Features

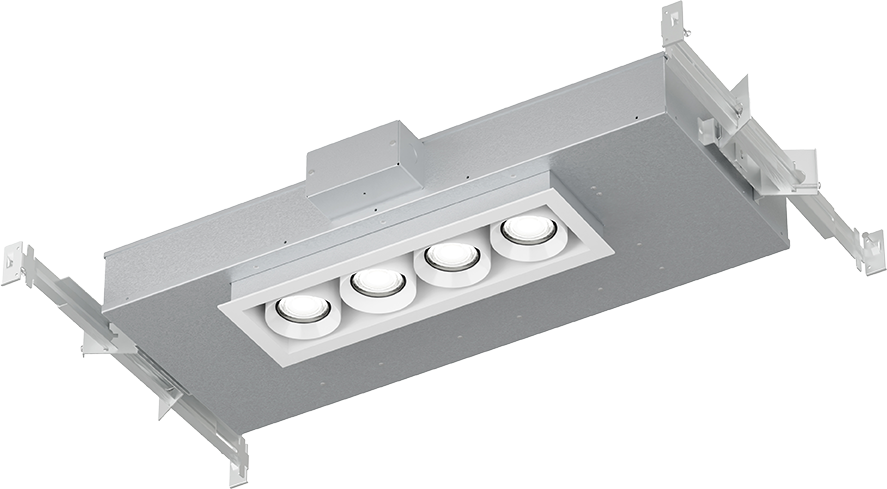

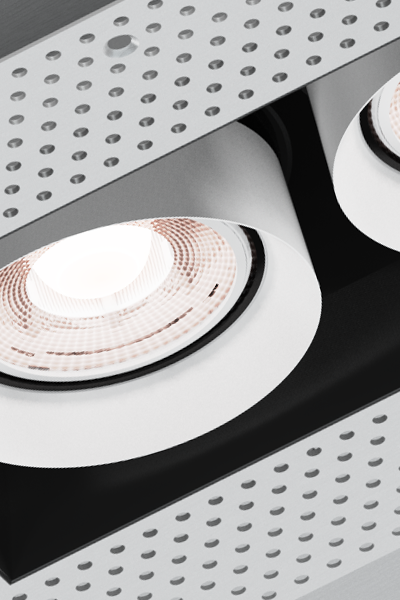

CSL GyroShift™ 1-4 Light Multiples incorporate the patented GyroShift™ optic system into multiple head recessed downlight fixtures that can be installed in shallow plenum spaces as little as 3 1/2". The heads are designed to stay fixed while each individual optic rotates and tilts up to 45° independently of the others, enabling crisp accents, broad washes, and tailored light wherever you need it -in multiple directions. The patented bezel-and-ball system rotates the spring-loaded optic independently from the light source, eliminating cut off from the trim to provide a round beam of light with superior light control. The refined below-the-ceiling aesthetic is maintained-even when lights have been shifted.
Options
LED light engine performance
|
2" |
3" |
| BEST FOR |
Accents with Higher Lumens |
General Uniform Lighting |
| EASY ADJUSTABILITY |
45° Tilt
360° Rotation
|
| AVAILABLE OPTICS |
10° 30° 50° 80° Beam Spread |
| MEDIA |
Clear, Solite, Frosted, Wall Wash, Linear Spread, Hex |
| MAX WATTAGE |
10W 15W |
10W 15W 20W |
| DELIVERED LUMENS |
890 - 1400 |
960 - 2250 |
| EFFICACY |
70 - 89 |
75 - 96 |
| CCT @ 90 CRI |
2700K, 3000K
3500K, 4000K
|
2700K, 3000K, 3500K
4000K, Warm Dim
|
|
LED LIFETIME
|
L70>50,000 Hours
|
|
INPUT VOLTAGE
|
120-277V Universal Voltage
|
|
DIMMING TYPES
|
TRIAC/ELV, 0-10V, EcoSystem
|
|
WARM DIM
|
|
X
|
Housing

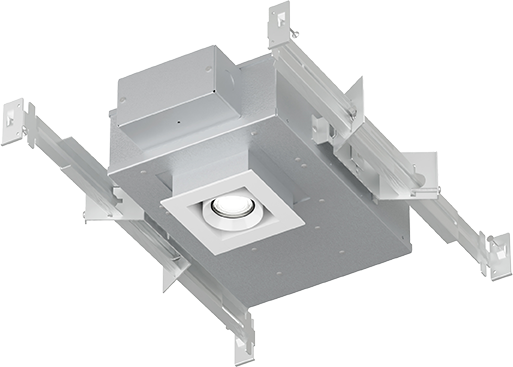

2" Gyroshift Recessed Multiples

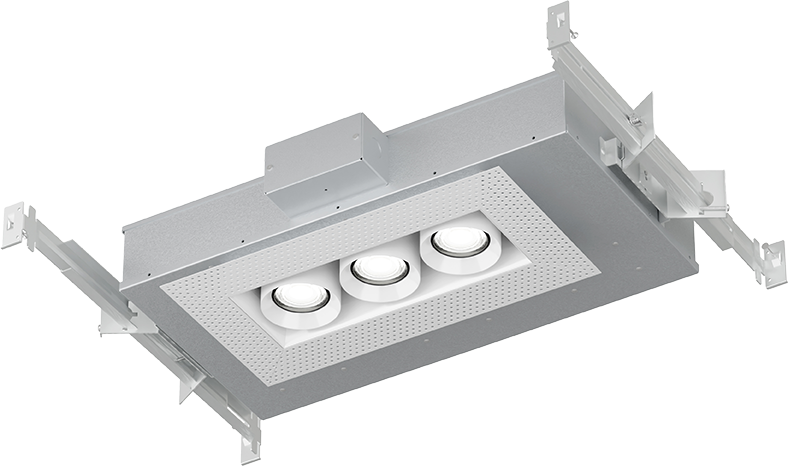

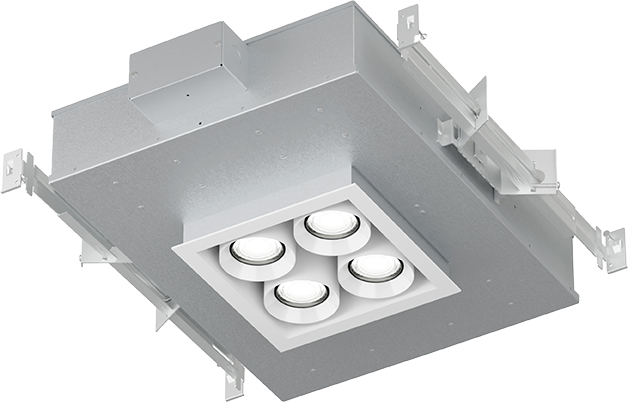

3" Gyroshift Recessed Multiples
Applications
GyroShift

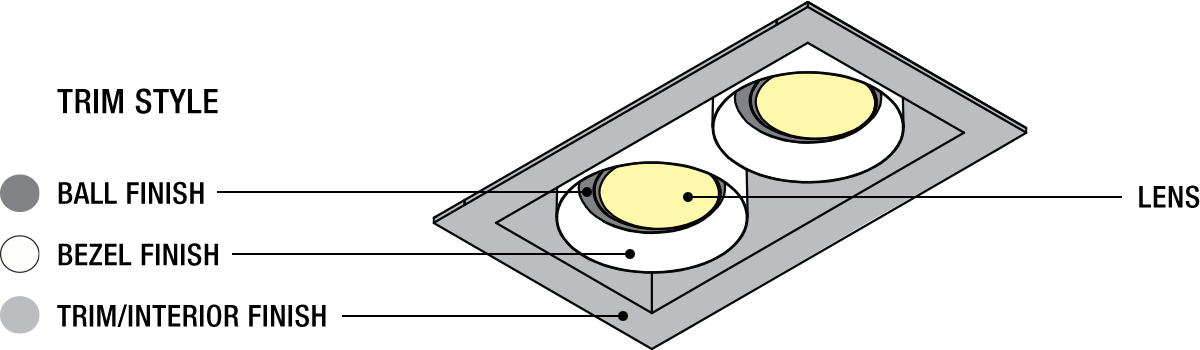

™ technology is a unique bezel-and-ball system that allows you to easily adjust a downlight with no loss of light on the target.
- • Residential
- • Commercial
- • Hospitality
