WHISPER
™
Multiples
Recessed Downlights
Unobtrusive design featuring small apertures that provide precise and powerful illumination from an incredibly quiet ceiling
2-UP 3-UP 4-UP
Options
Trim
Downloads
Browse

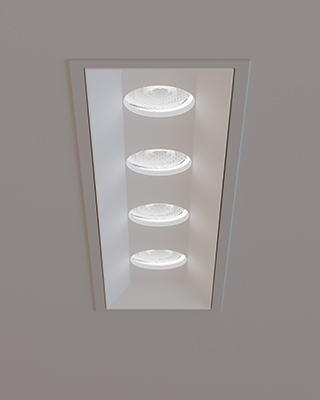

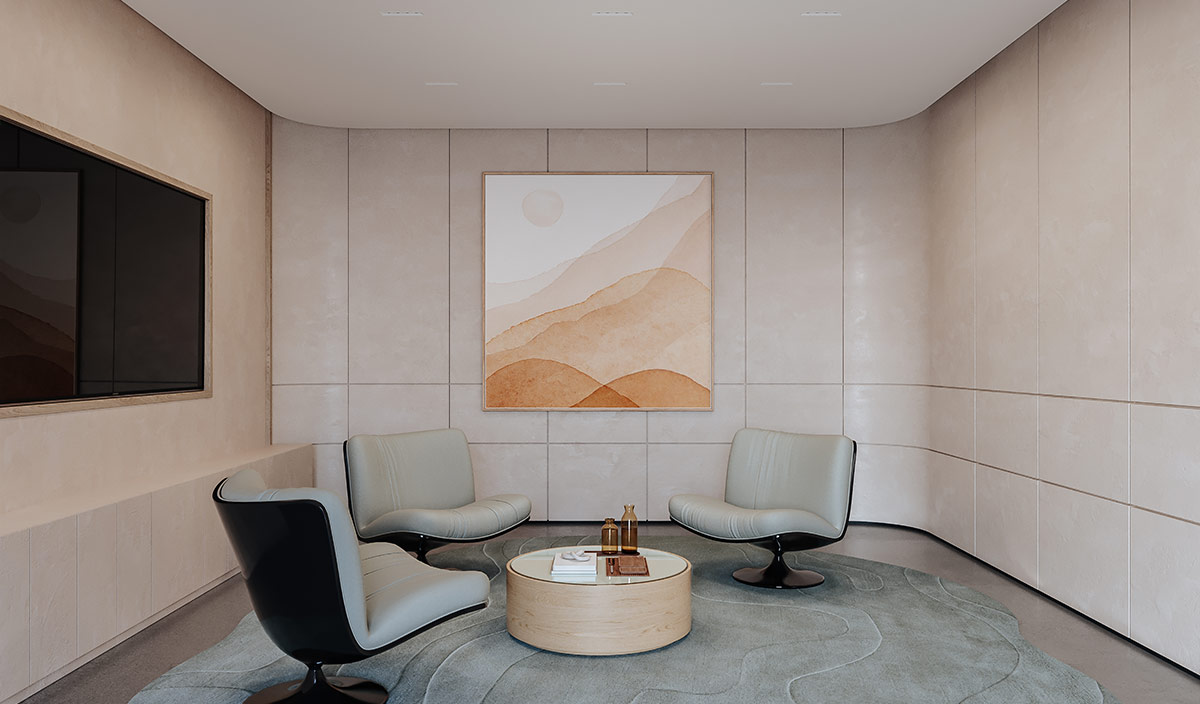

Introducing Whisper
™
Multiples – a revolutionary new concept in overhead lighting. This unobtrusive design features small apertures that provide precise and powerful illumination from an incredibly quiet ceiling. Sharing the same benefits of Whisper
™
Flex, Whisper
™
Multiples level up with the option of 2, 3, or 4 independently adjustable heads for increased flexibility and control.
Providing general or accent lighting as needed, each ¾" round aperture adjustable LED head delivers up to 816 lumens for expansive illumination. Featuring CSL's proprietary SilentVu
™
optic technology, Whisper
™

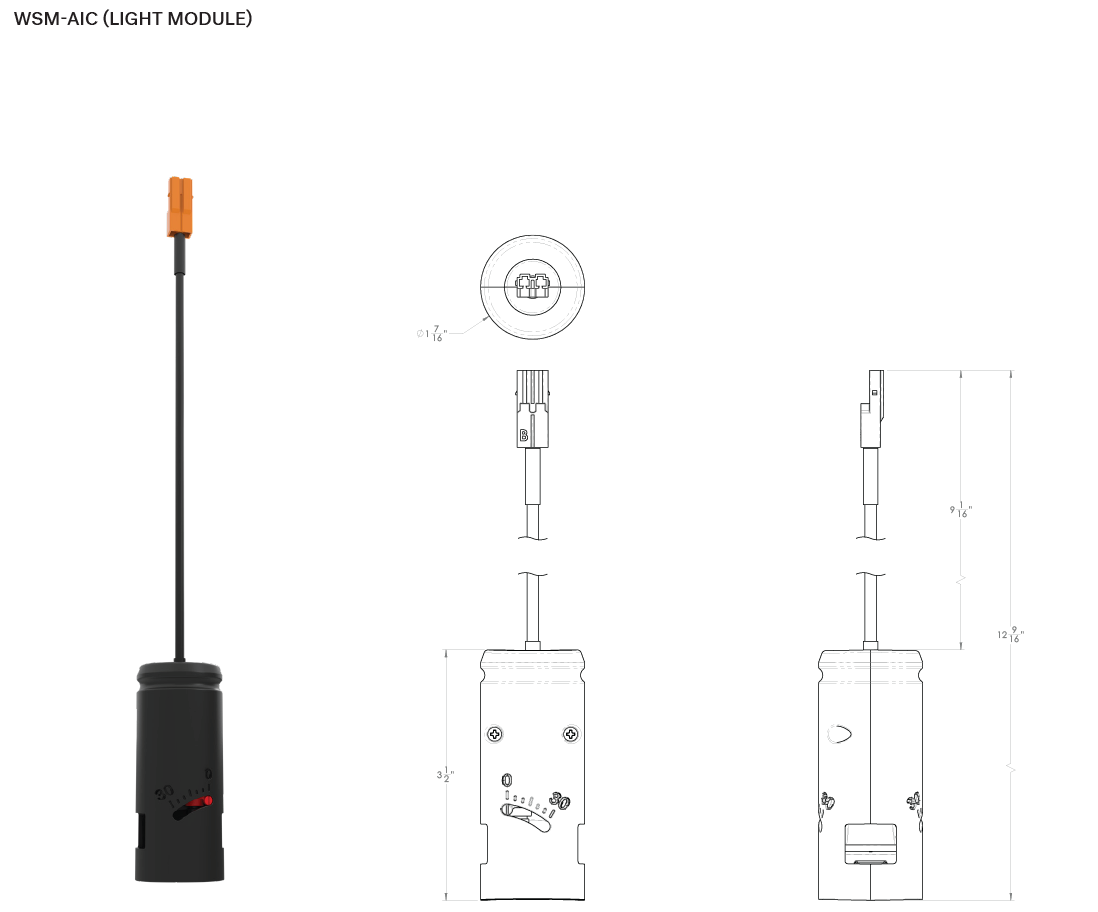

Multiples emit soft, glare-free lighting suitable for a wide variety of applications. A serviceable integral driver and easily removable light modules make installation and adjustments a snap.
LED Light Engine
High quality LEDs chosen with 2 SDCM binning. LED lifetime 55,000 hours.

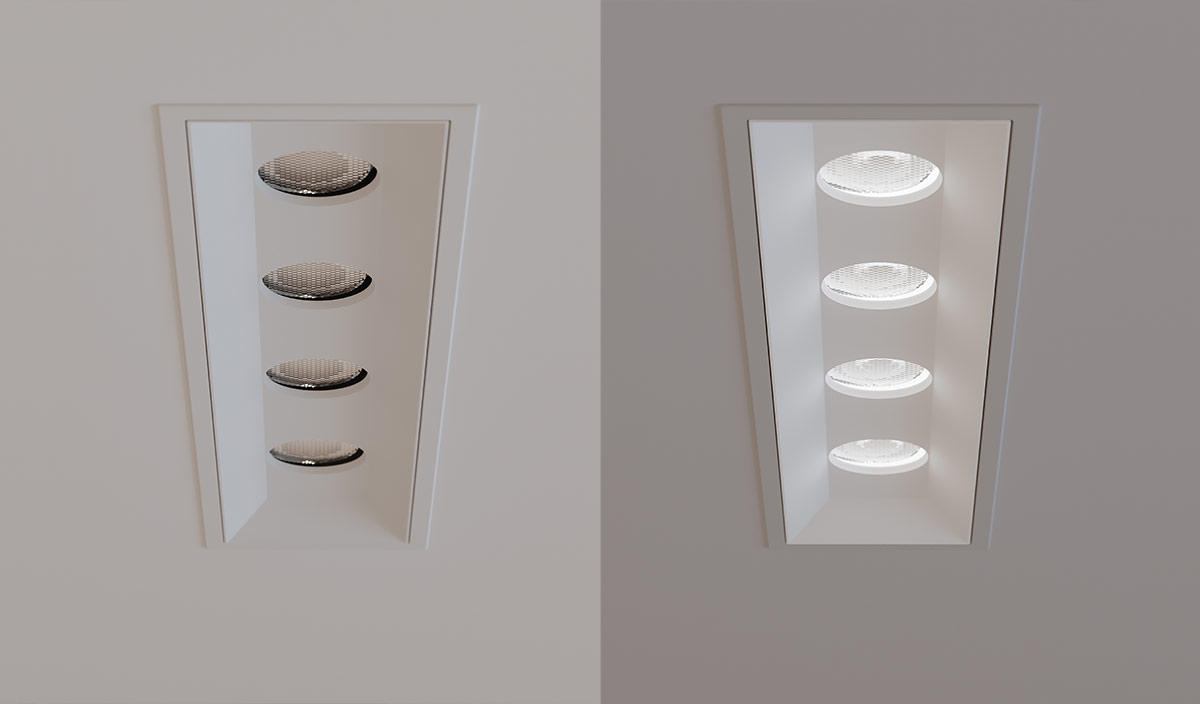

SilentVU
™
Optic Technology
Removes harsh glare and provides perfectly soft, even light.
Adjustable Design
Adjustable 0° to 30° Tilt, Infinite Rotation
WHISPER
™
MULTIPLES
Options
LED light engine performance
3/4"
BEST FOR
Clean, Quiet Ceiling
SILENT VU
™
OPTICS
Minimal Glare
30° 50° OPTICS
X
MAX WATTAGE
31W
MAX DELIVERED LUMENS
2496
MODULE DELIVERED LUMENS
Up to 816 lm
EFFICACY
Up to 82.9 LPW
CCT @ 90 CRI
2700K, 3000K, 3500K, 4000K, Warm Dim
LED LIFETIME
55,000 hours @ L70
INPUT VOLTAGE
120-277V, 50/60Hz
DIMMING TYPES
TRIAC, ELV and 0-10VDC and Lutron Homeworks/Ecosystem
SERVICEABILITY
Below Ceiling
TRIM
Whisper
™
Multiples adjustable downlights are available with round trims in multiple colors, or trimless.

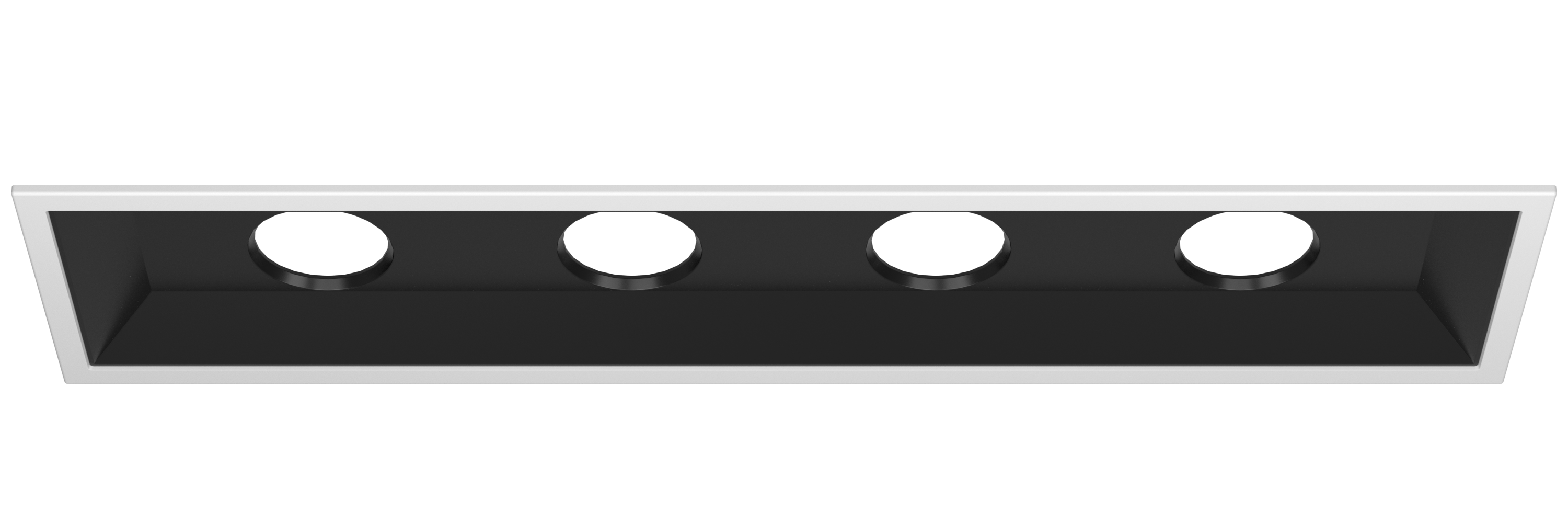

2 UP
3 UP
4 UP

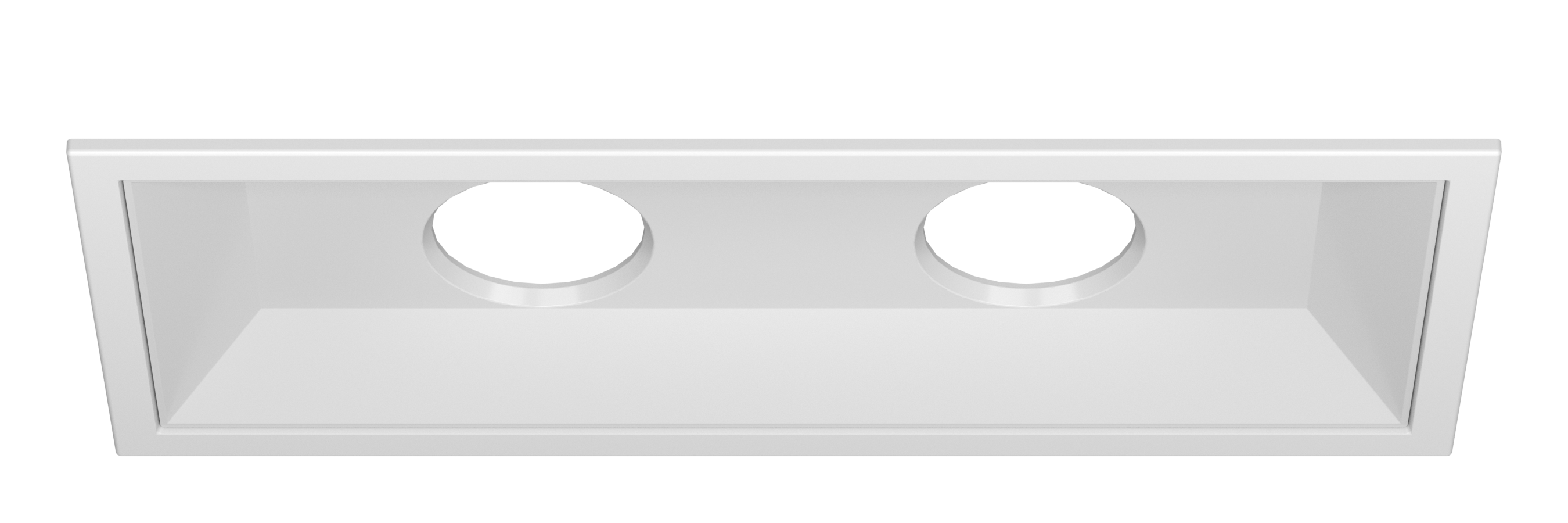

WT White Trim
WT White Reflector

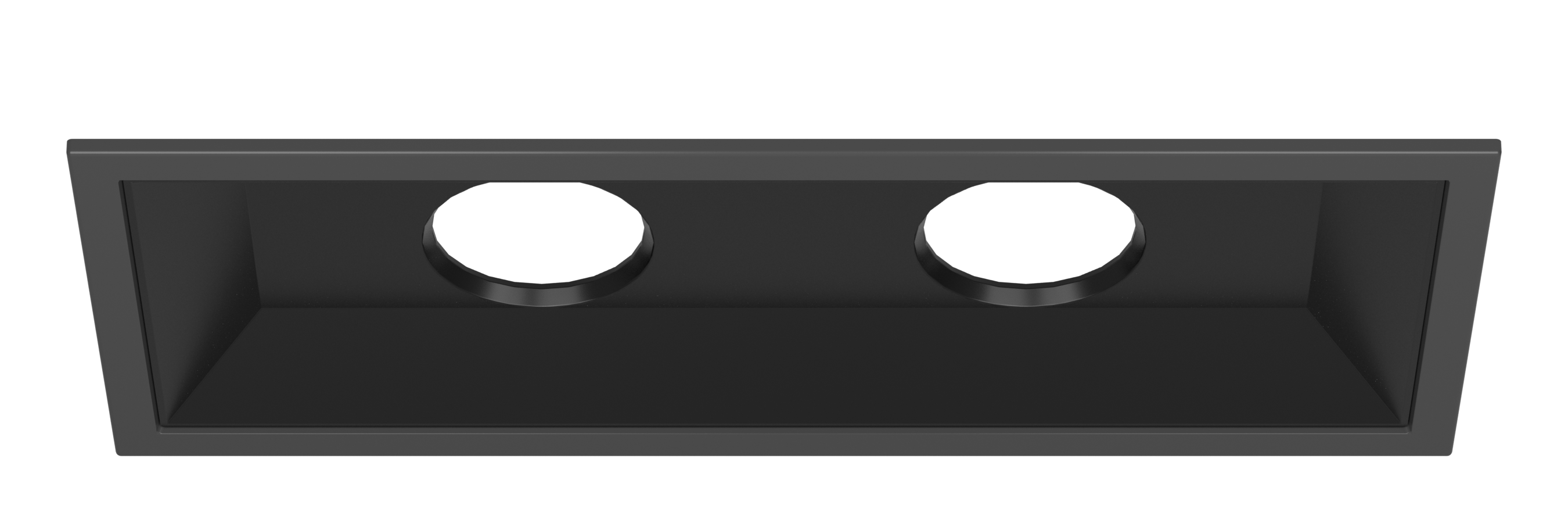

BK Black Trim
BK Black Reflector

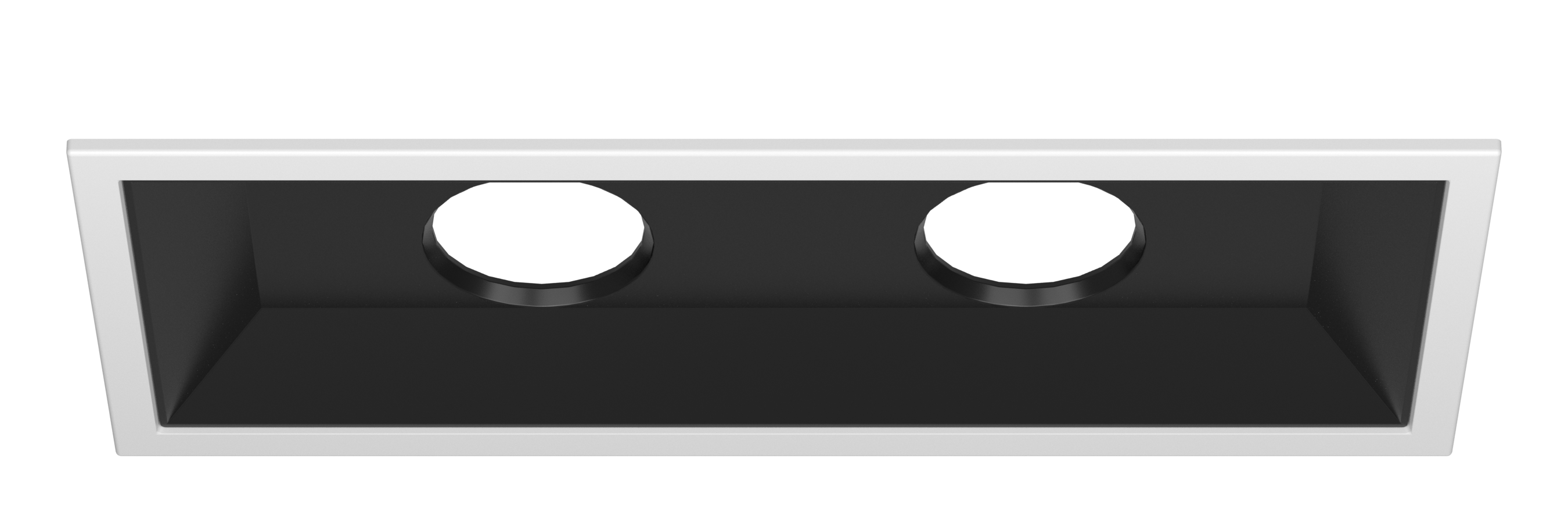

WT White Trim
BK Black Reflector

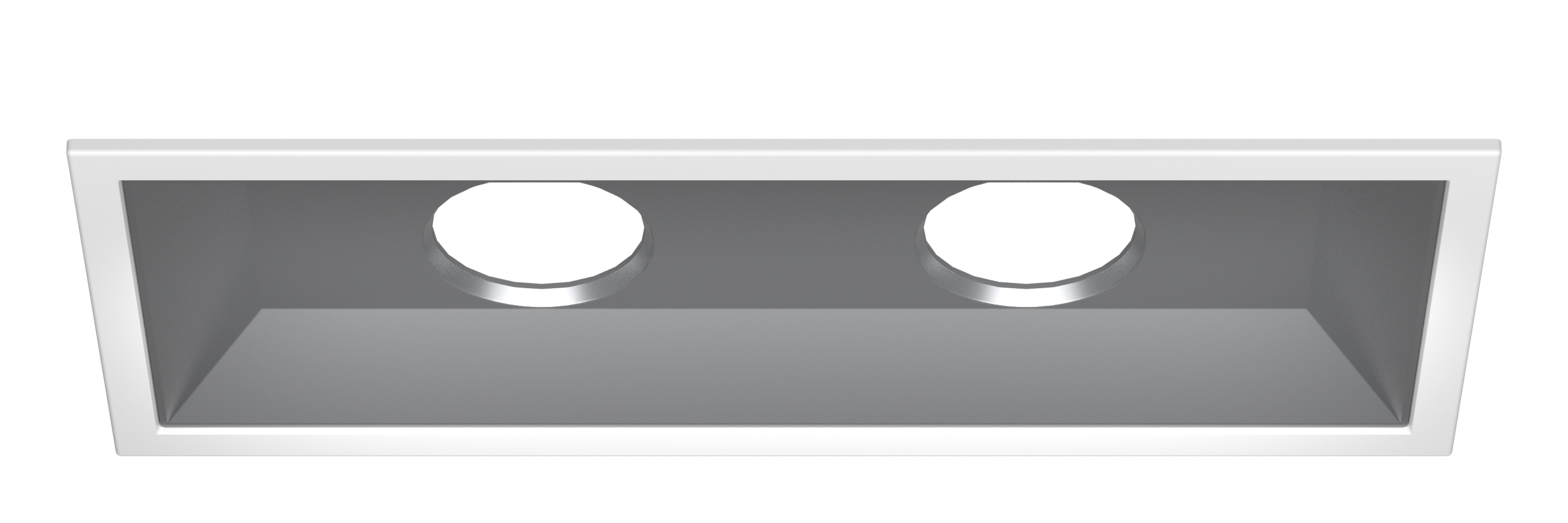

WT White Trim
SA Satin Aluminum

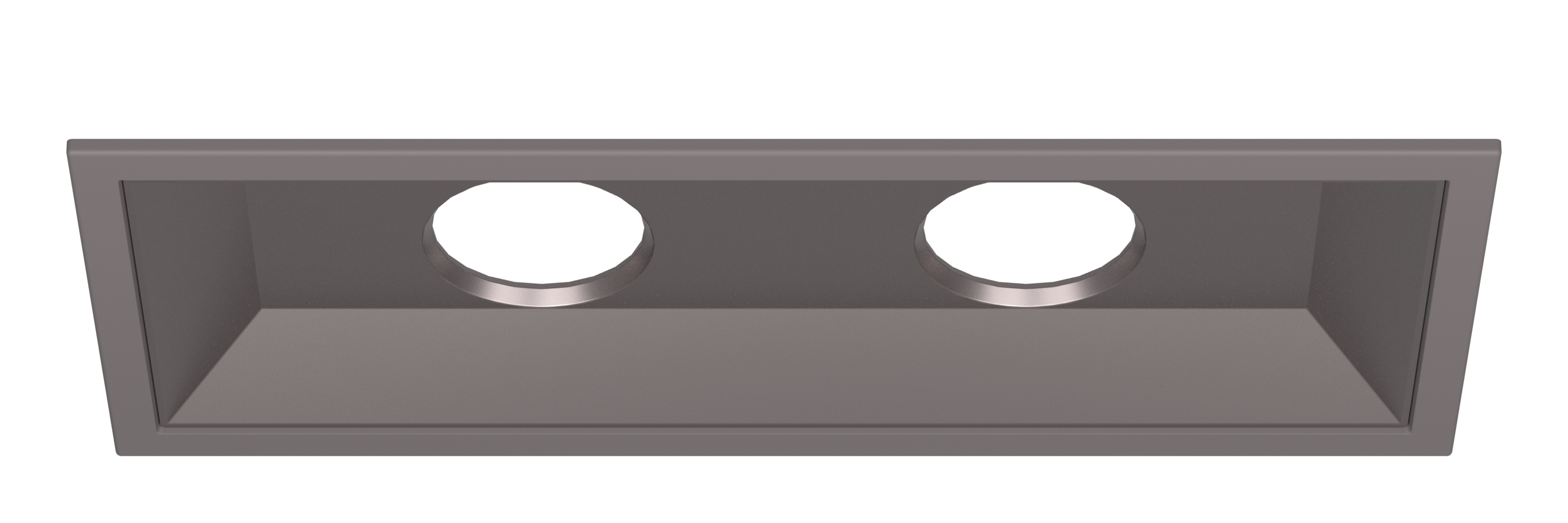

CN Champagne Trim
CN Champagne Reflector

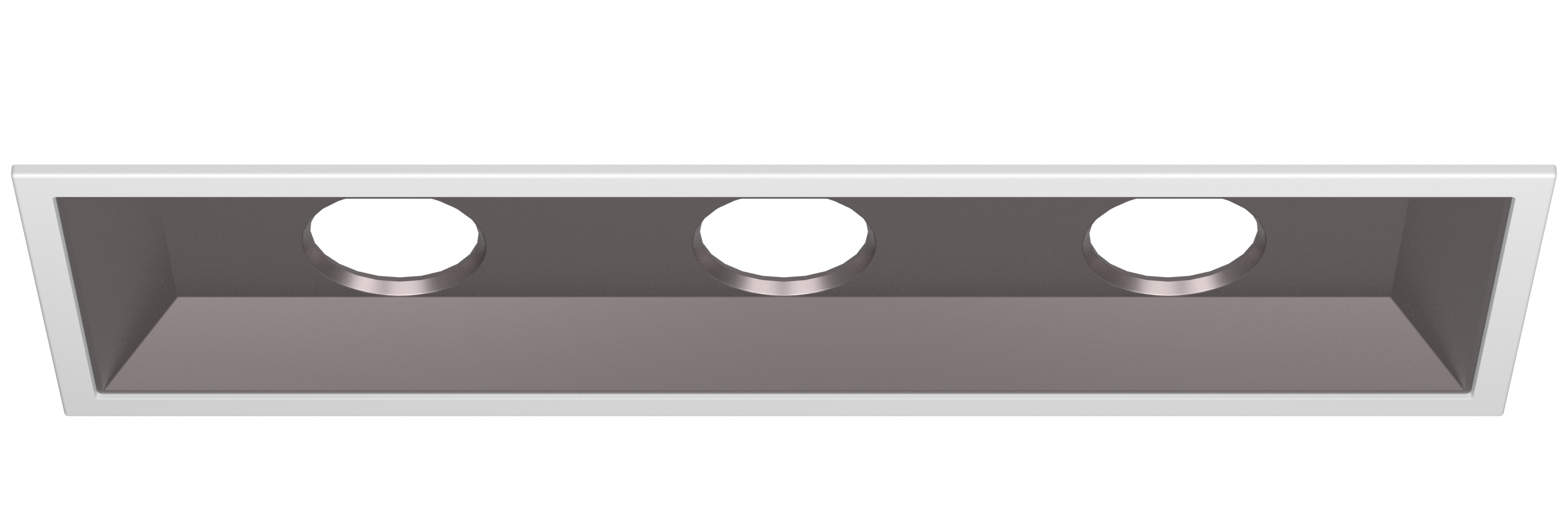

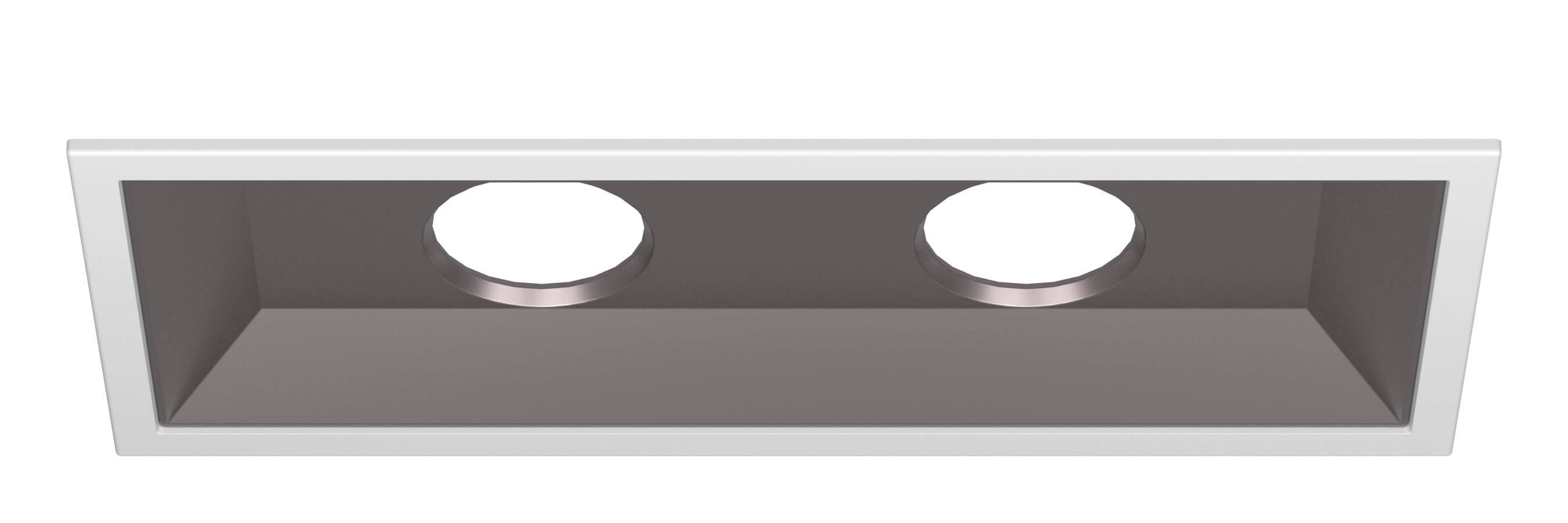

WT White Trim
CN Champagne Reflector

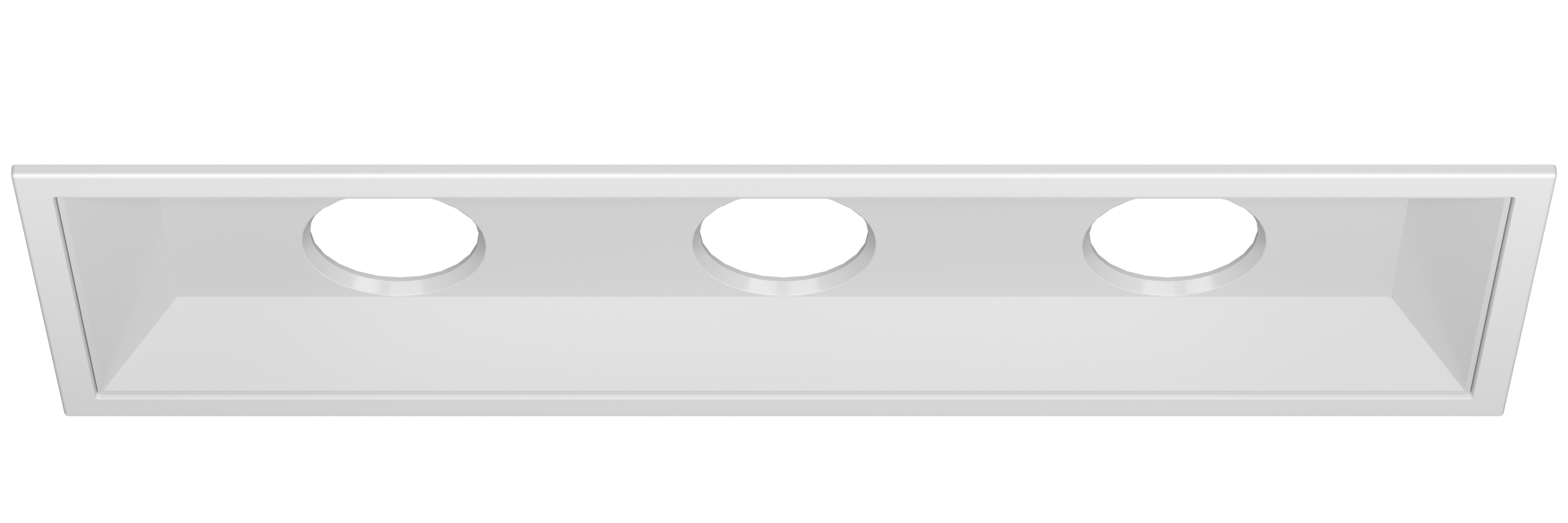

WT White Trim
WT White Reflector

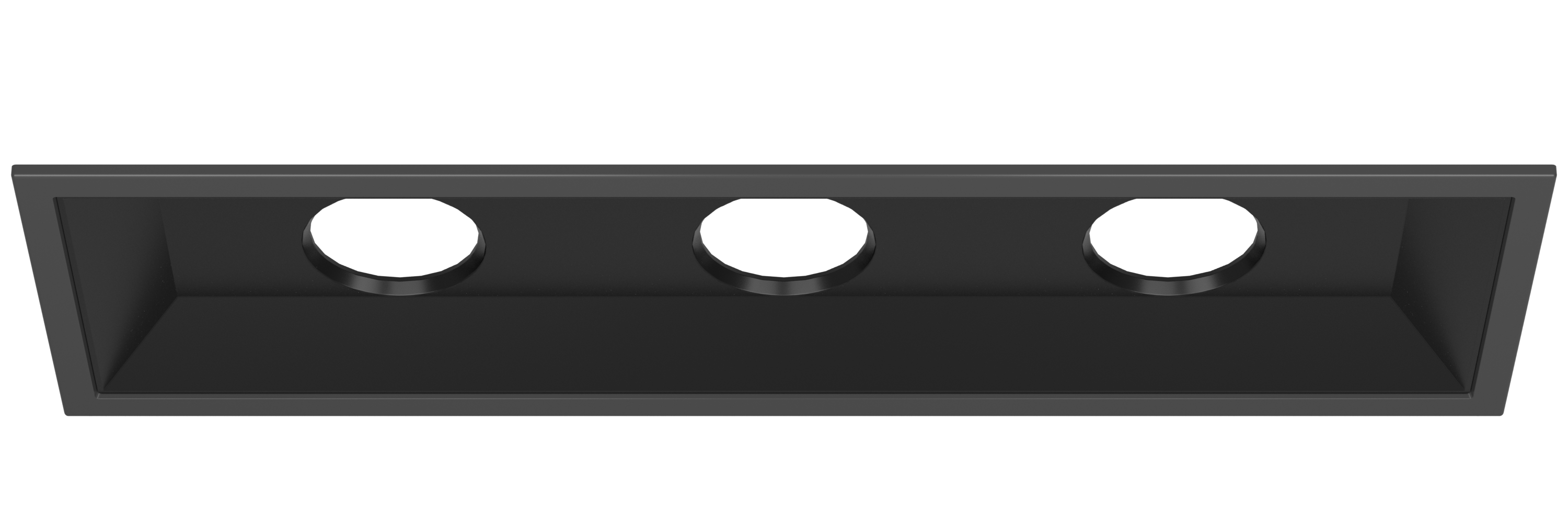

BK Black Trim
BK Black Reflector

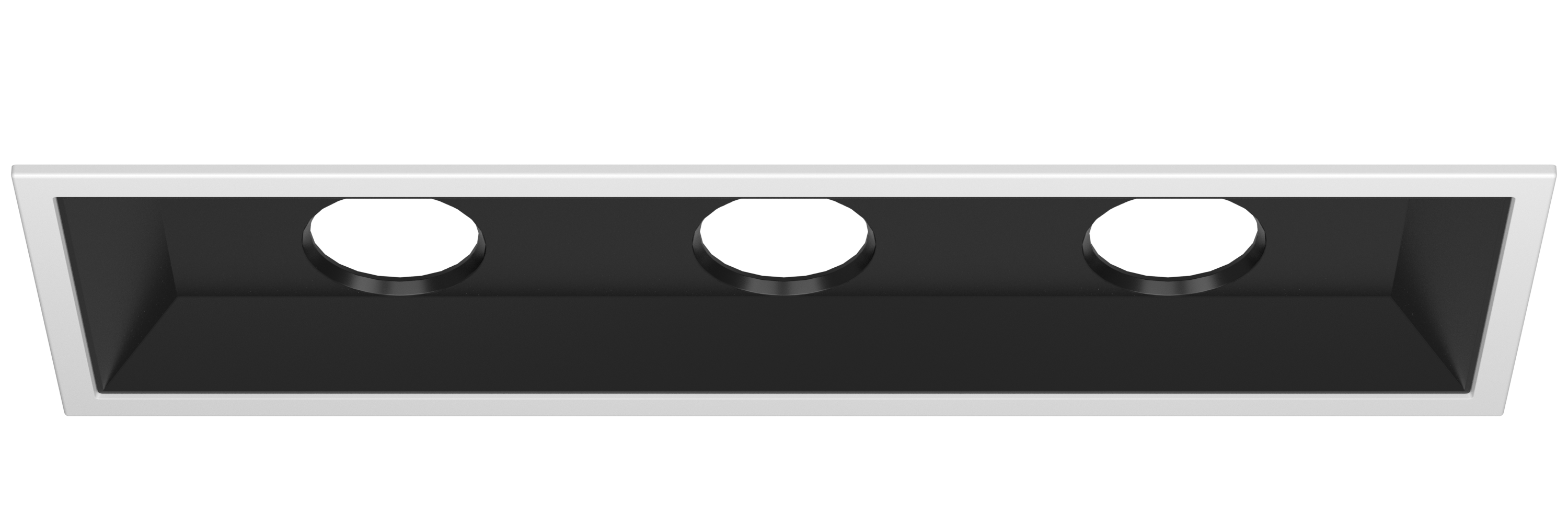

WT White Trim
BK Black Reflector

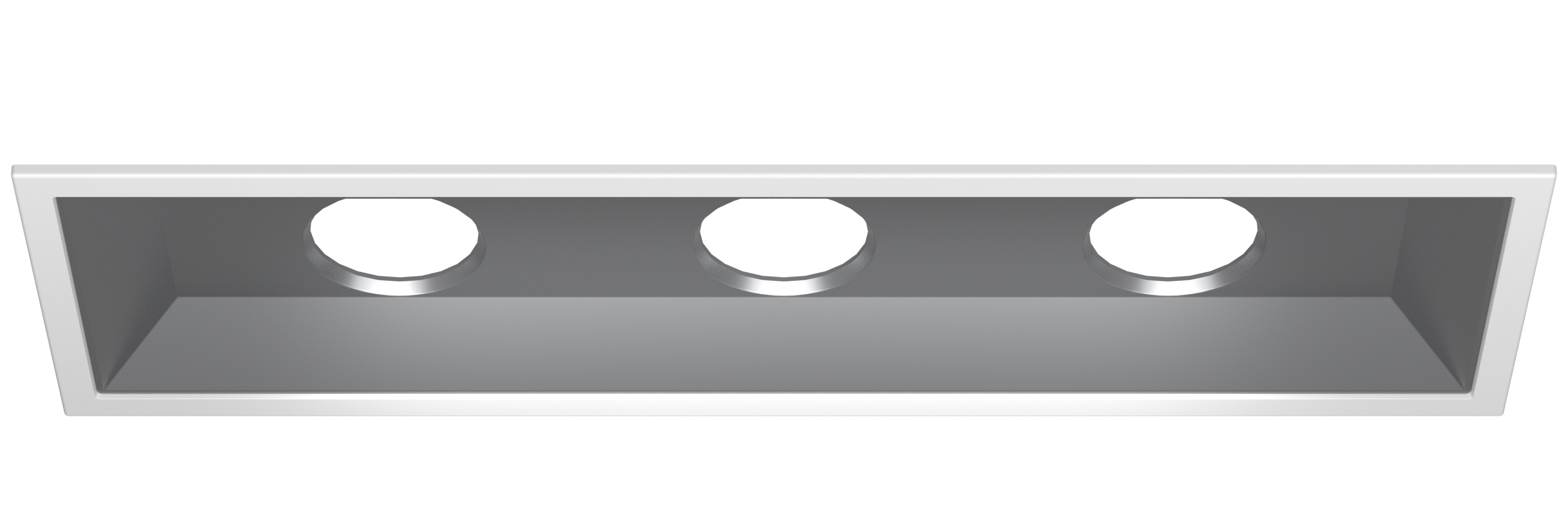

WT White Trim
SA Satin Aluminum

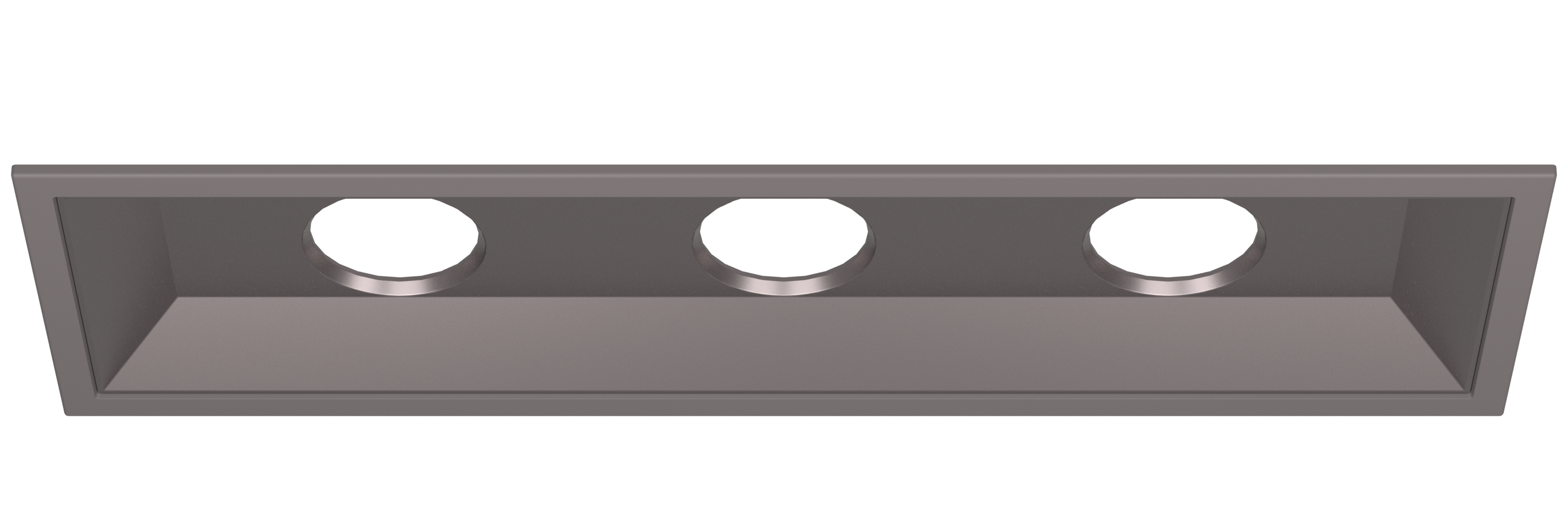

CN Champagne Trim
CN Champagne Reflector
WT White Trim
CN Champagne Reflector

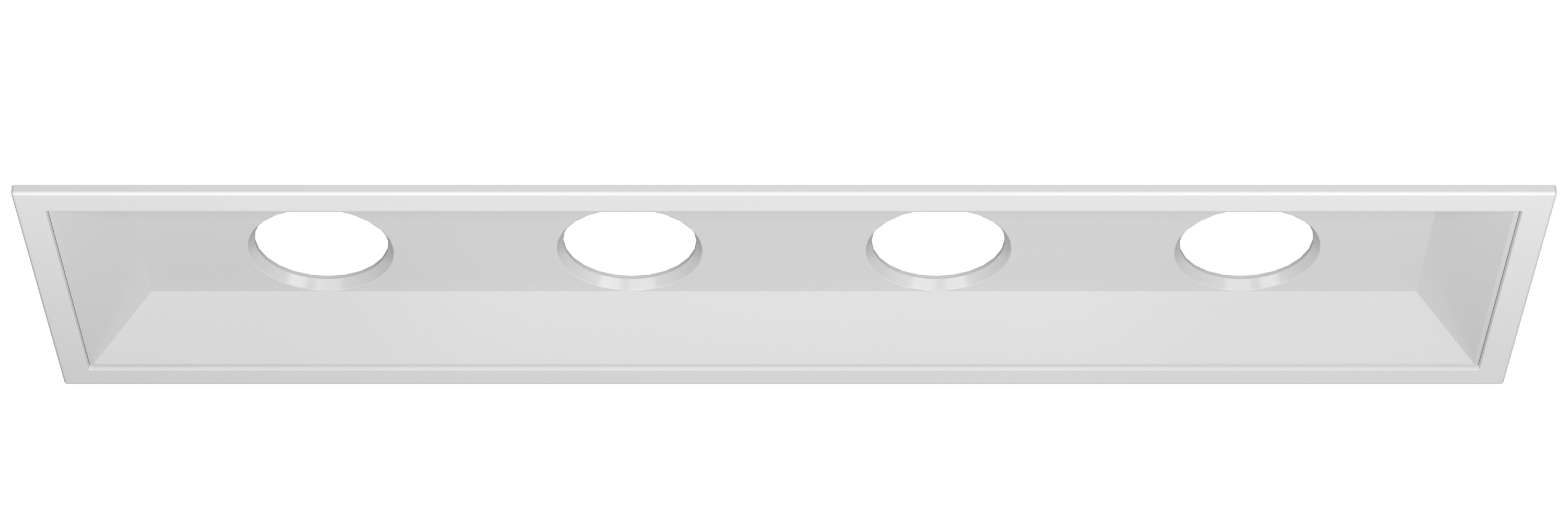

WT White Trim
WT White Reflector

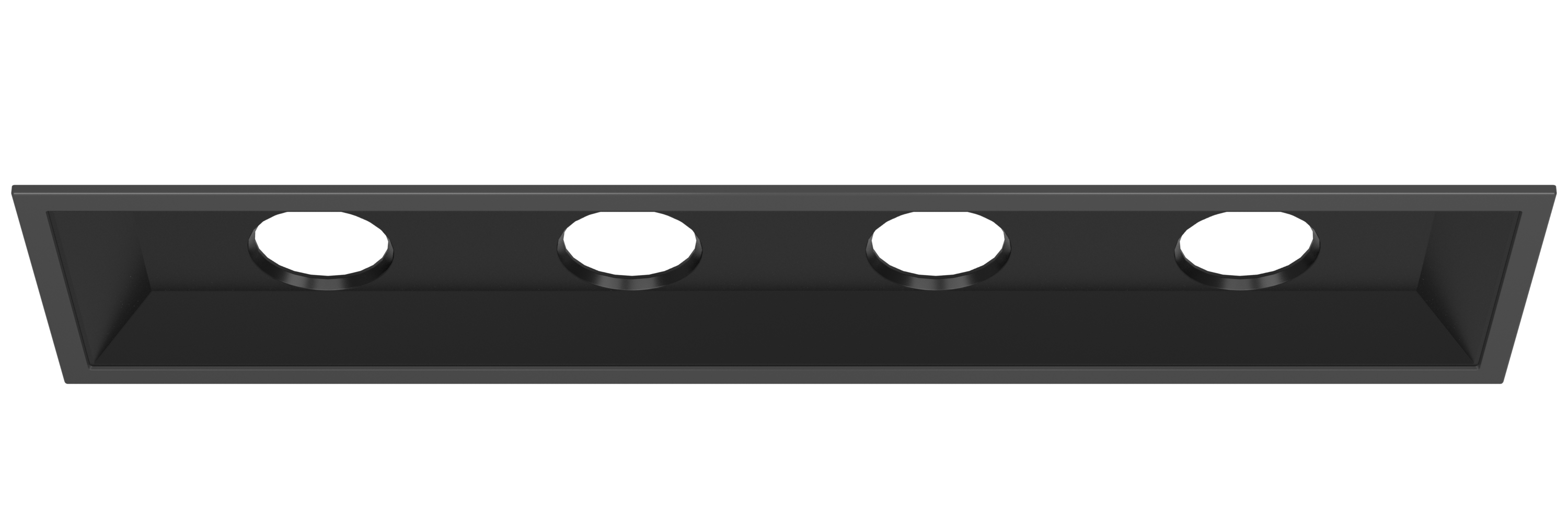

BK Black Trim
BK Black Reflector
WT White Trim
BK Black Reflector

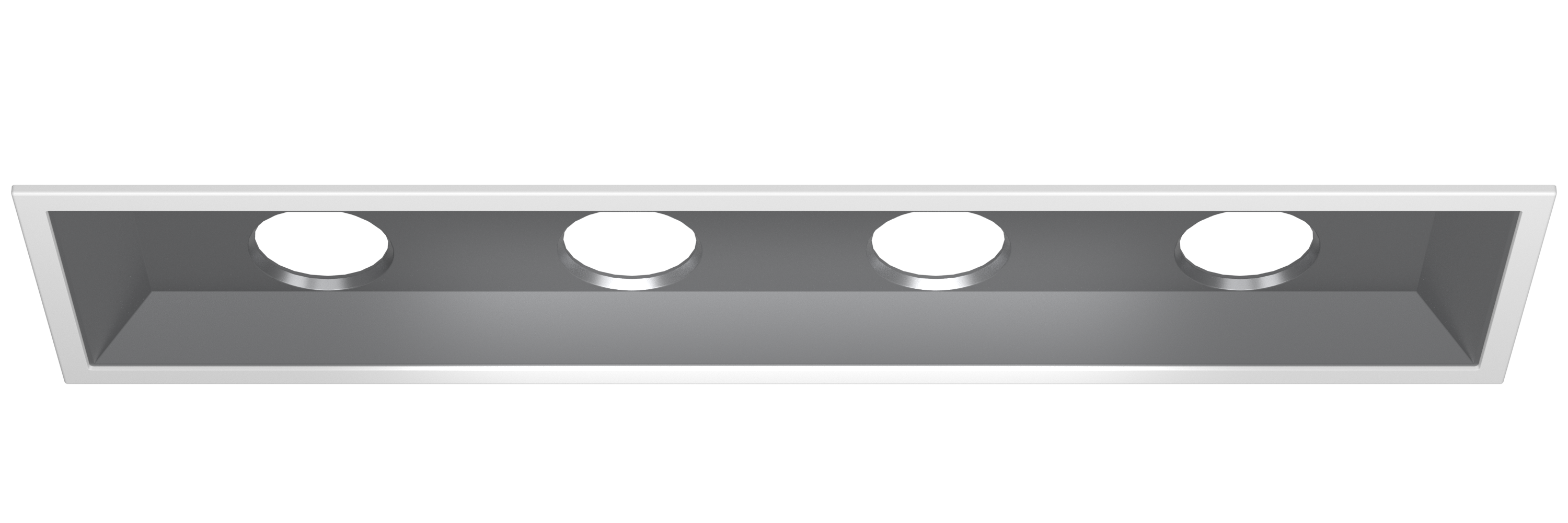

WT White Trim
SA Satin Aluminum

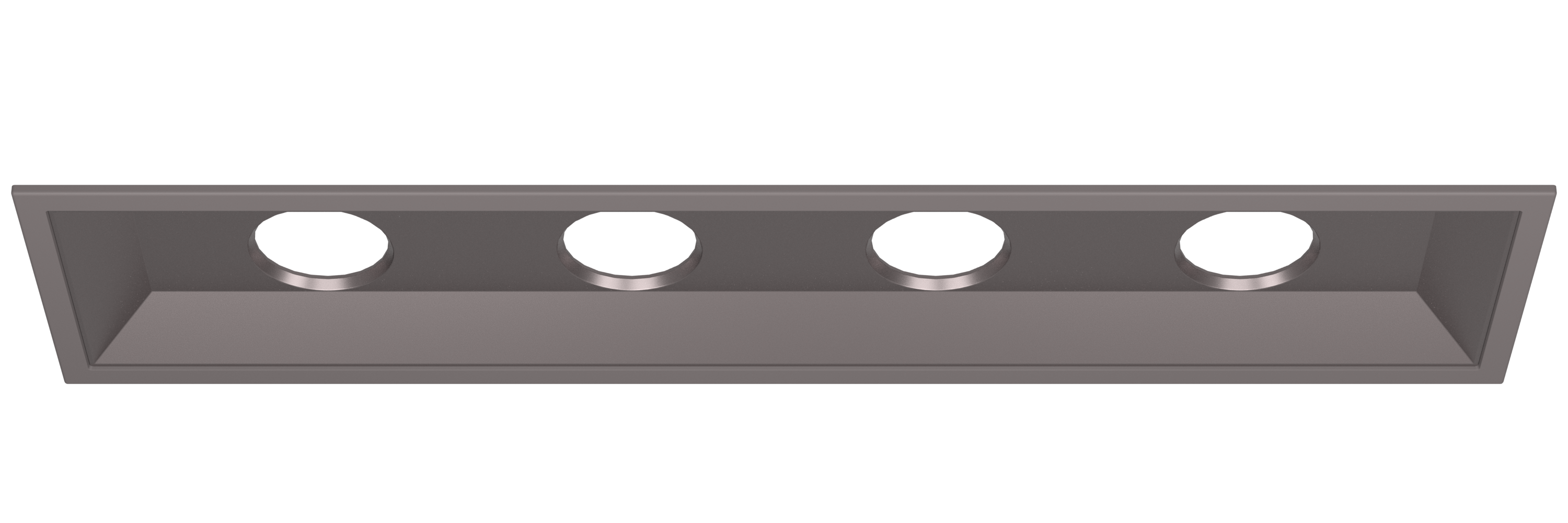

CN Champagne Trim
CN Champagne Reflector

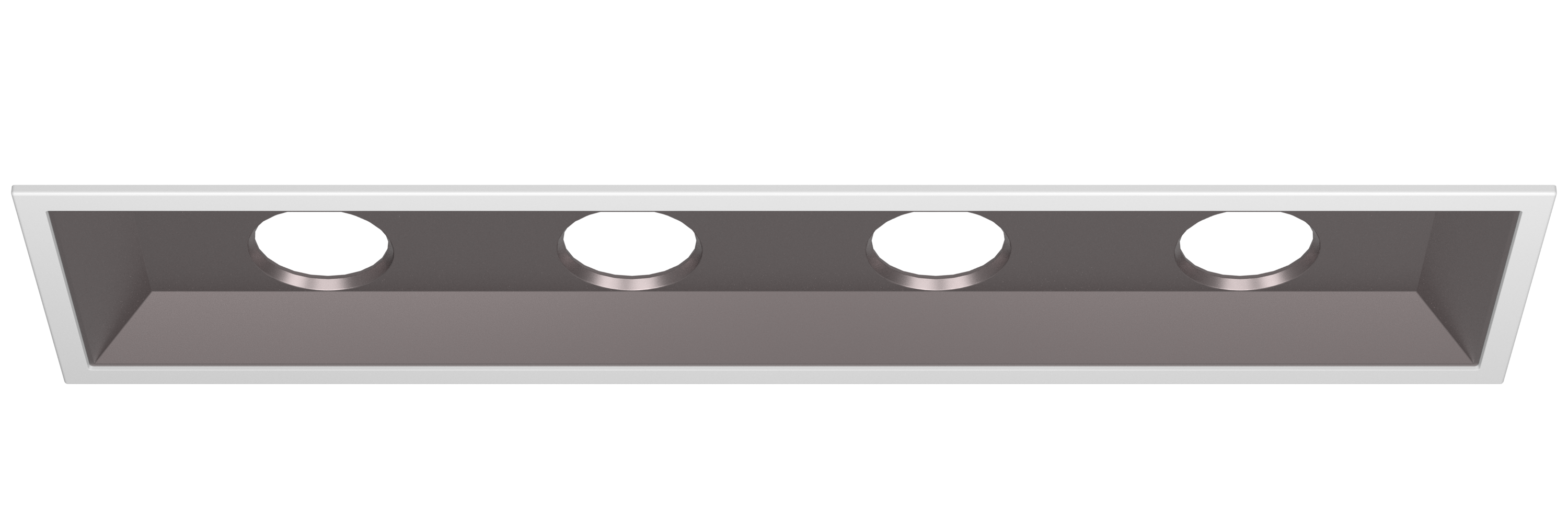

WT White Trim
CN Champagne Reflector
Downloads
BROCHURE
⬇
SPEC SHEET
⬇
INSTALLATION GUIDE
⬇
IES FILES
⬇
REVIT FILES
⬇
