WHISPER

Recessed Downlights

Whisper Standard & The Brand New Whisper Flex
WHISPER<sup>™</sup> LIGHTING
UL
Dimmable
Wet Location
JA-8
IC Rated
Airtight
CCEA

Features

Meet the new CSL Whisper, the 1/2" aperture LED recessed downlight built for today's clean, quiet ceiling designs. This impossibly small downlight offers broad flexibility for new construction and remodel projects and fits the shallowest of plenums, requiring as little as 2" of plenum clearance.

Whisper is powered by CSL's proprietary SilentVu️ optic technology*, which allows it to produce exceptionally high-quality light for general, task, or accent lighting from a footprint smaller than a dime. The goal: to draw your eye to the thoughtfully designed space, not the ceiling. Experience extremely low glare, when approaching or inside the space.

Now available as the Whisper Standard fixed system and the first of its kind Whisper Flex adjustable 3/4" aperture LED downlight, which allows you to install, service, and adjust from below the ceiling with ease!
SilentVU<sup>™</sup> Optic Technology
SilentVU Optic Technology
Removes harsh glare and provides perfectly soft, even light throughout the space.

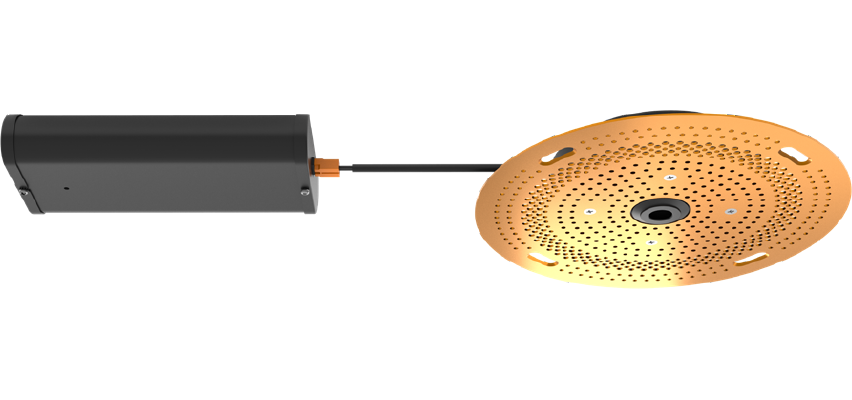

High Performance Drivers
High Performance Drivers
TRIAC/ELV, 0-10V, EcoSystem, dims to 1% standard, 0.5% and Warm Dim available

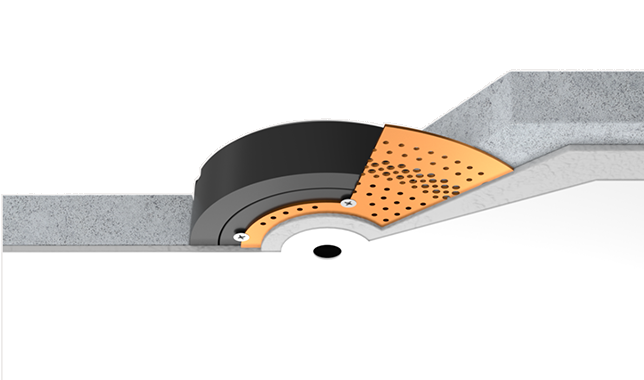

Shallow Plenum 2 Inch
Shallow Plenum

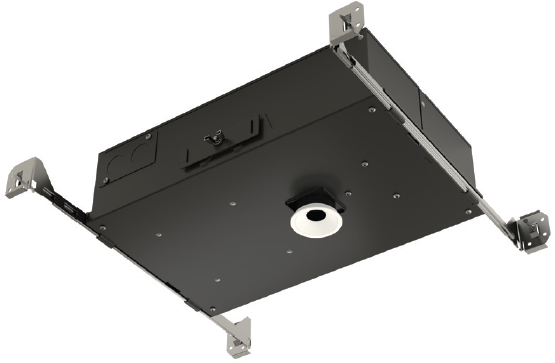

New construction housings engineered to fit within 2" above the ceiling.

Whisper 1/2" Standard
& Flex

SilentVu optic technology

WHISPER FLEX Installation

Easy Installation, Impressive Results

WHISPER STANDARD Installation

WHISPER STANDARD Installation

Options

LED light engine performance
1/2" 3/4"
BEST FOR Clean, Quiet Ceiling
SILENT VU OPTICS Minimal Glare
30° 50° OPTICS X
MAX WATTAGE Static White 18.3W, Warm Dim 16.0W
MAX DELIVERED LUMENS 1063 1006
EFFICACY Up to 58.9 LPW Up to 55.3 LPW
CCT @ 90 CRI
2700K, 3000K, 3500K, 4000K, Warm Dim
LED LIFETIME
55,000 hours @ L90
INPUT VOLTAGE
120/277V, 50/60Hz
DIMMING TYPES
Multiple dimming drivers available
SERVICABILITY
Above Ceiling
Below Ceiling
MIN PLENUM HEIGHT
2 1/2"
3 1/2"

TRIM

Whisper Flex adjustable downlights is available with round or square trims in black, champagne, and satin aluminum (reflector only). Custom colors and a decorative drop lens option are also available.

Adjustable Lensed Round Trim

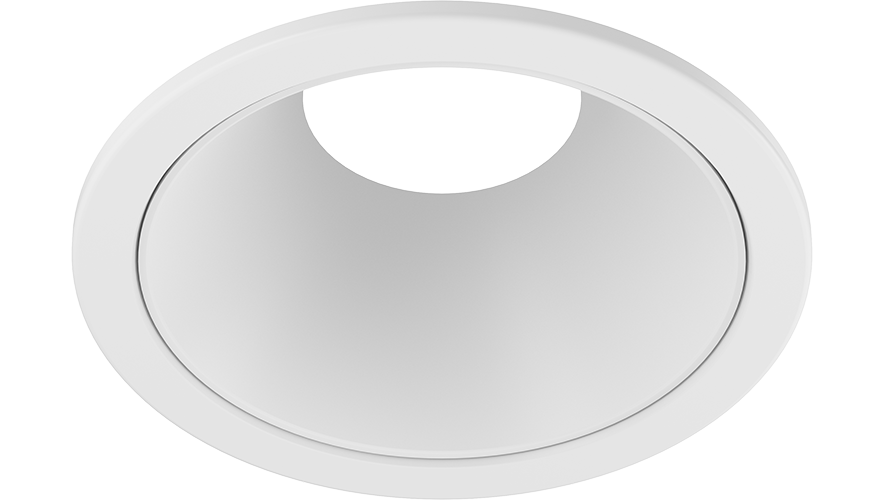

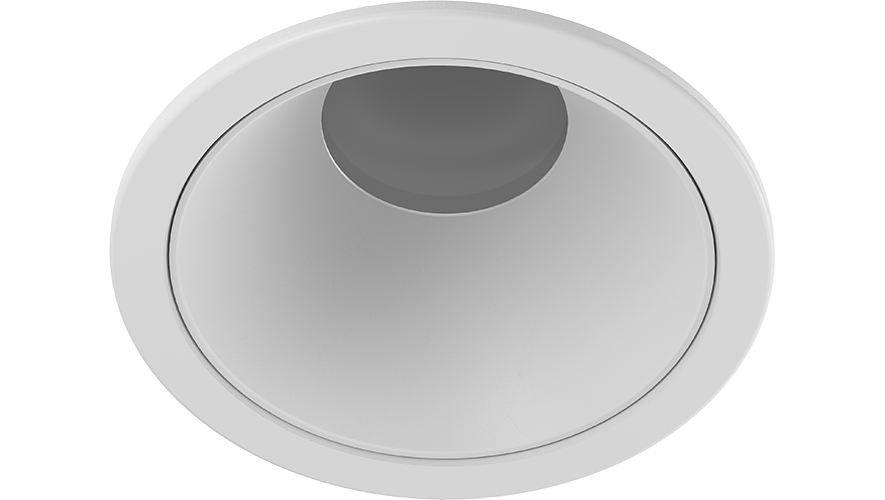

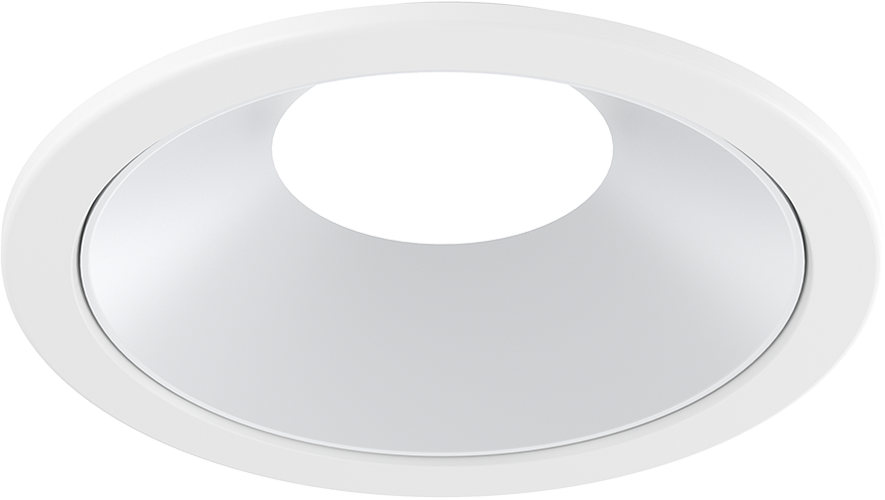

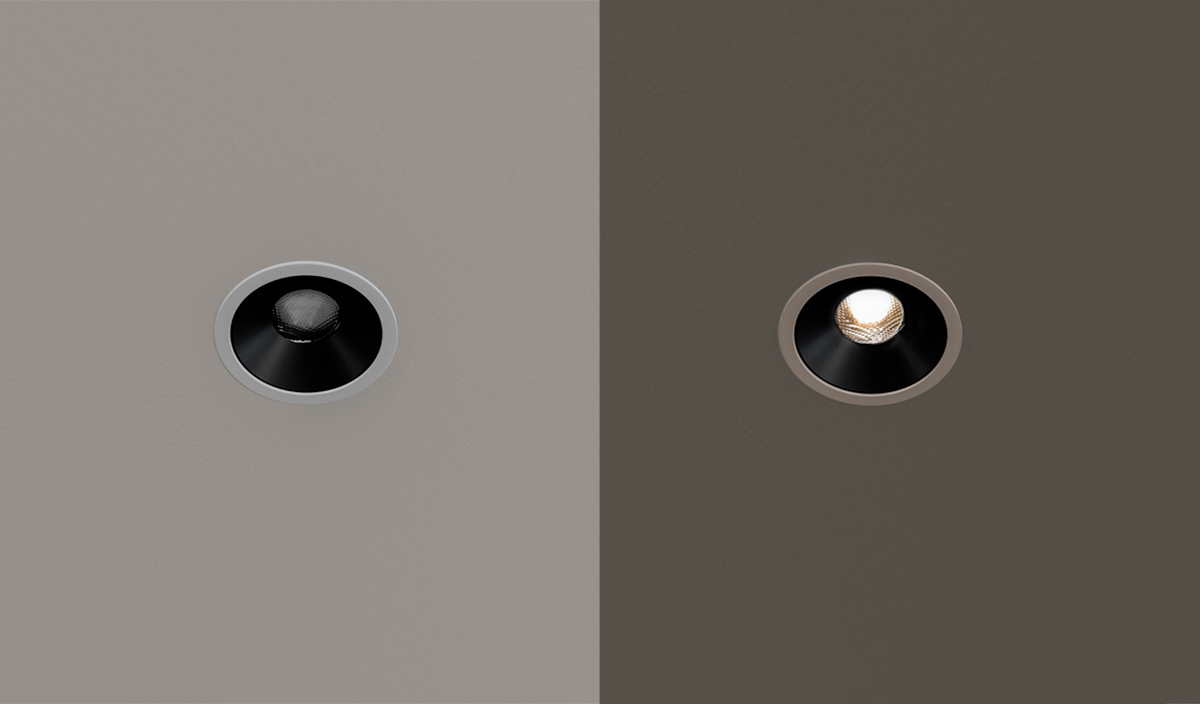

Fixed Round Trim

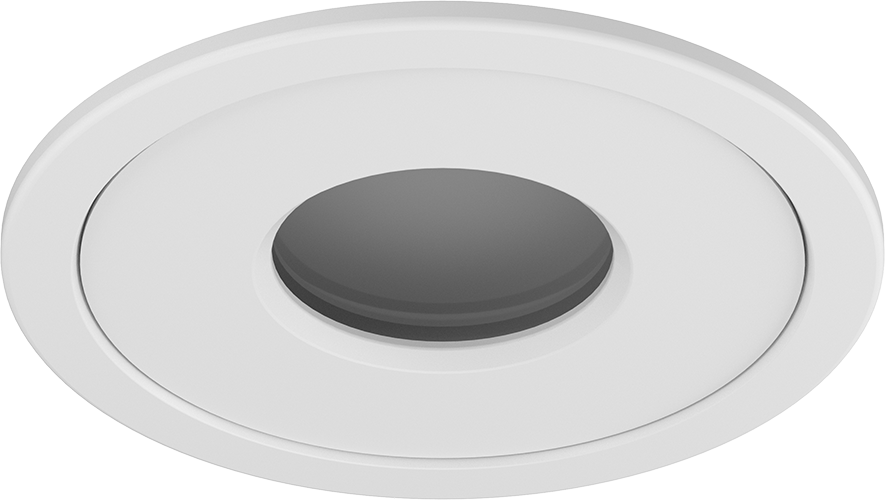

Fixed Lensed Round Trim
Adjustable Round Trim

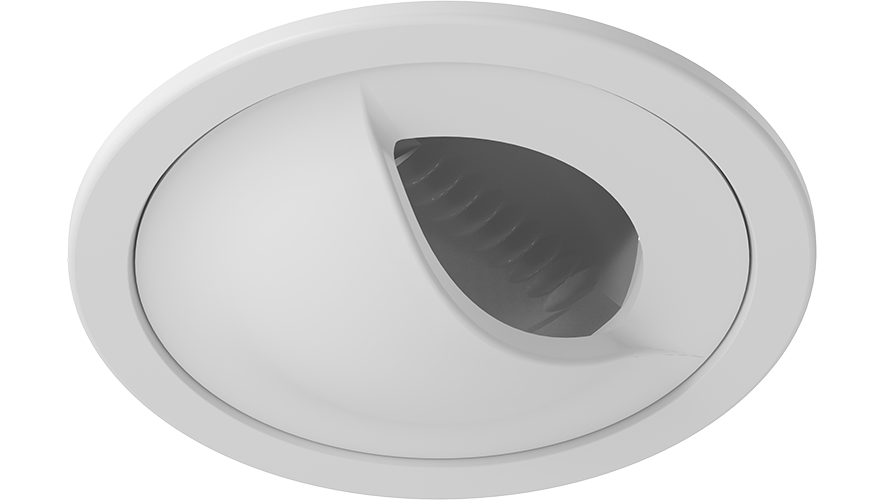

Wall Wash Round Trim
Decorative Drop Lens

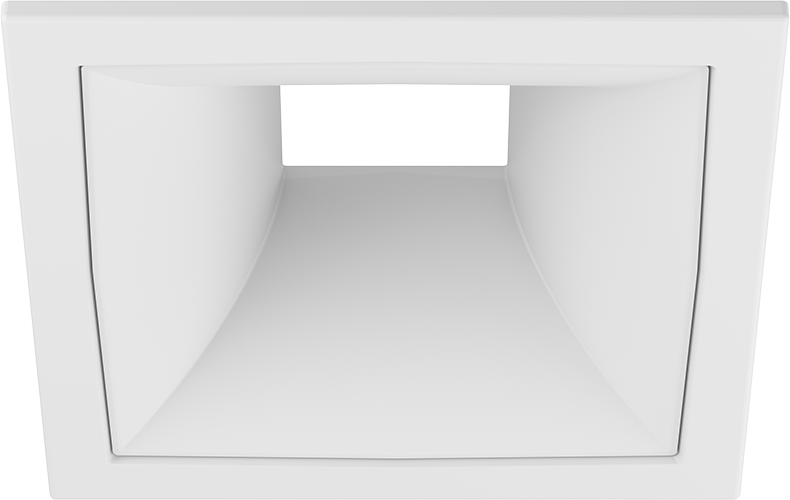

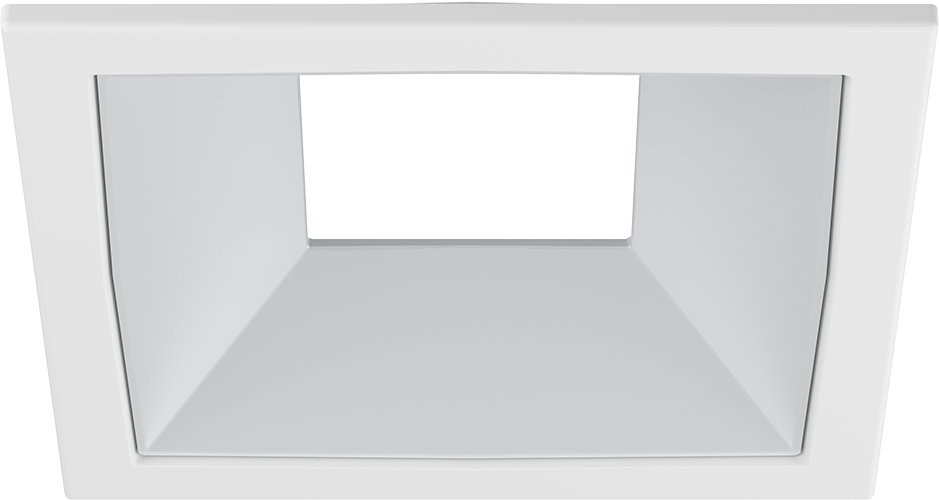

Fixed Square Trim

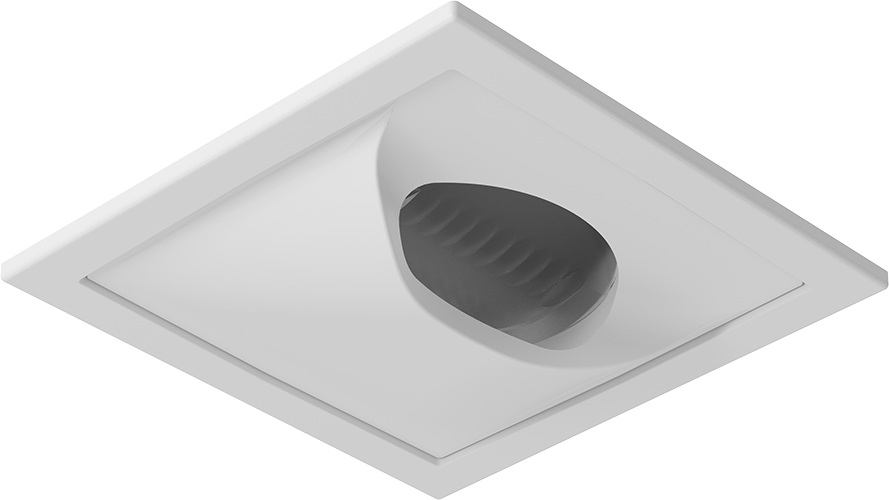

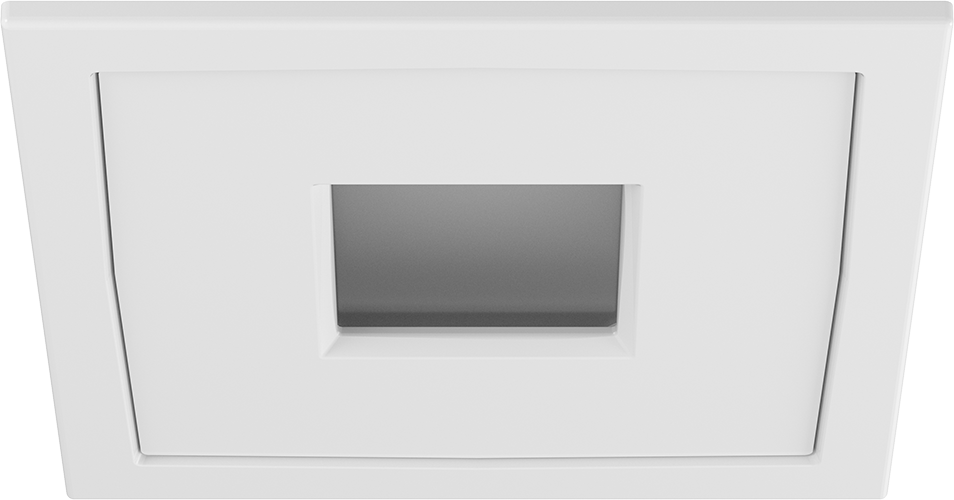

Wall Wash Square Trim
Adjustable Lensed Square Trim

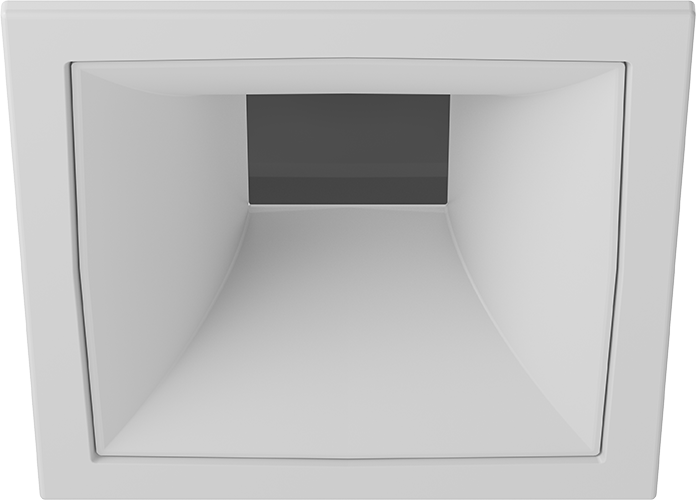

Fixed Lensed Square Trim

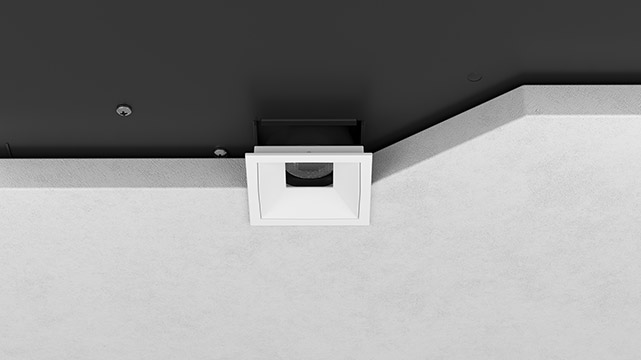

Adjustable Square Trim

Applications

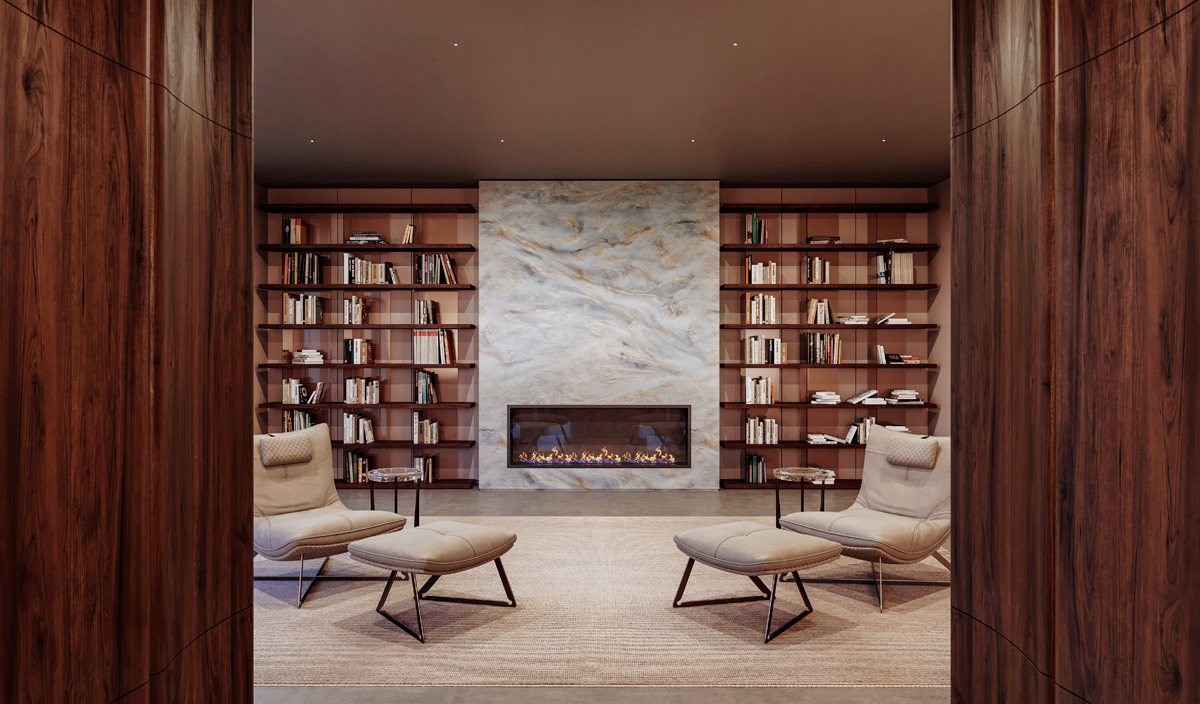

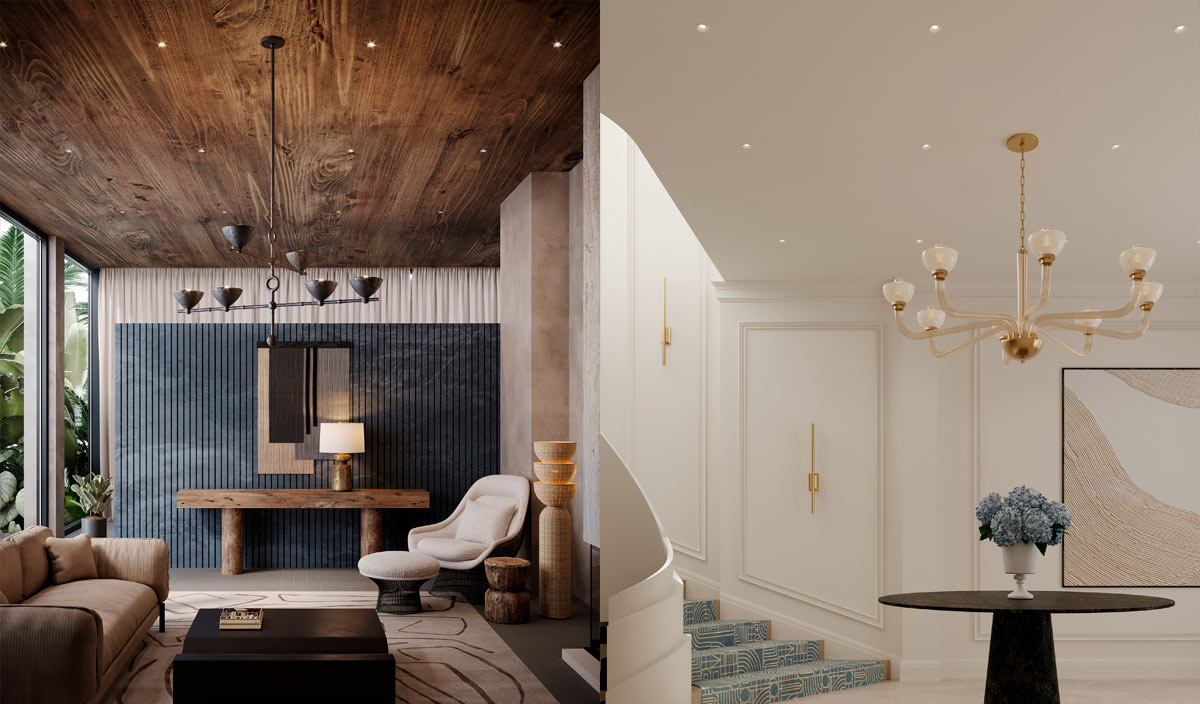

Whisper LED recessed downlights offer broad flexibility for new construction and remodel projects.

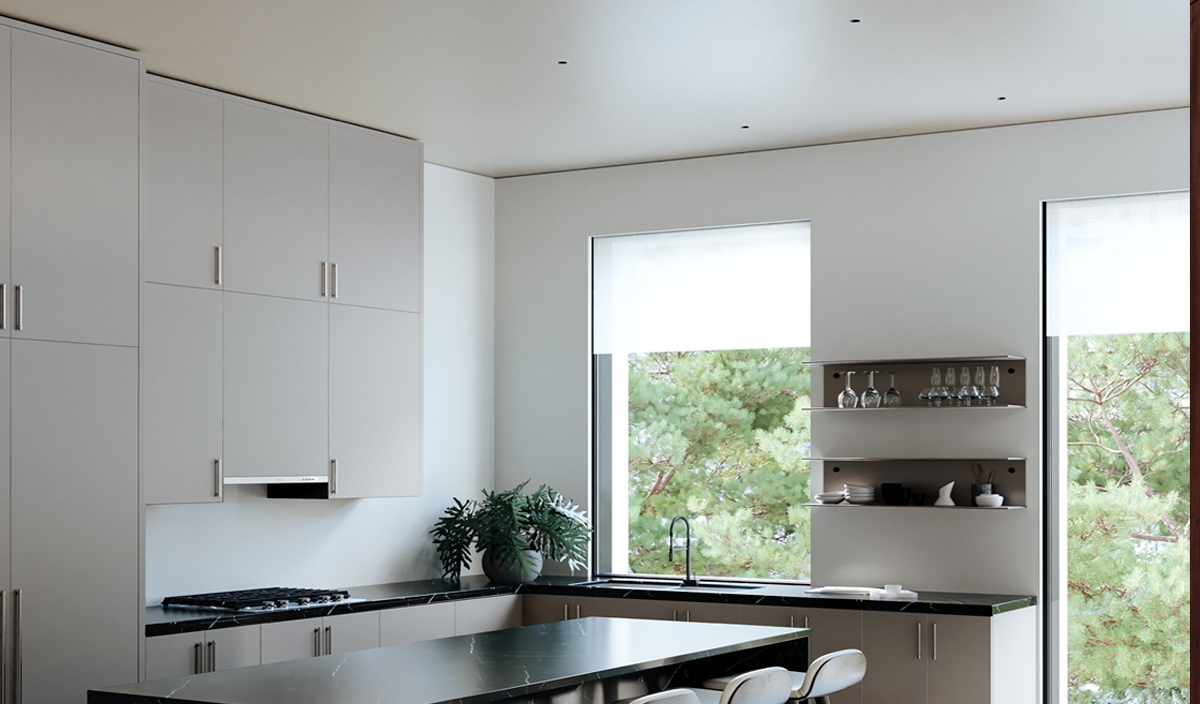

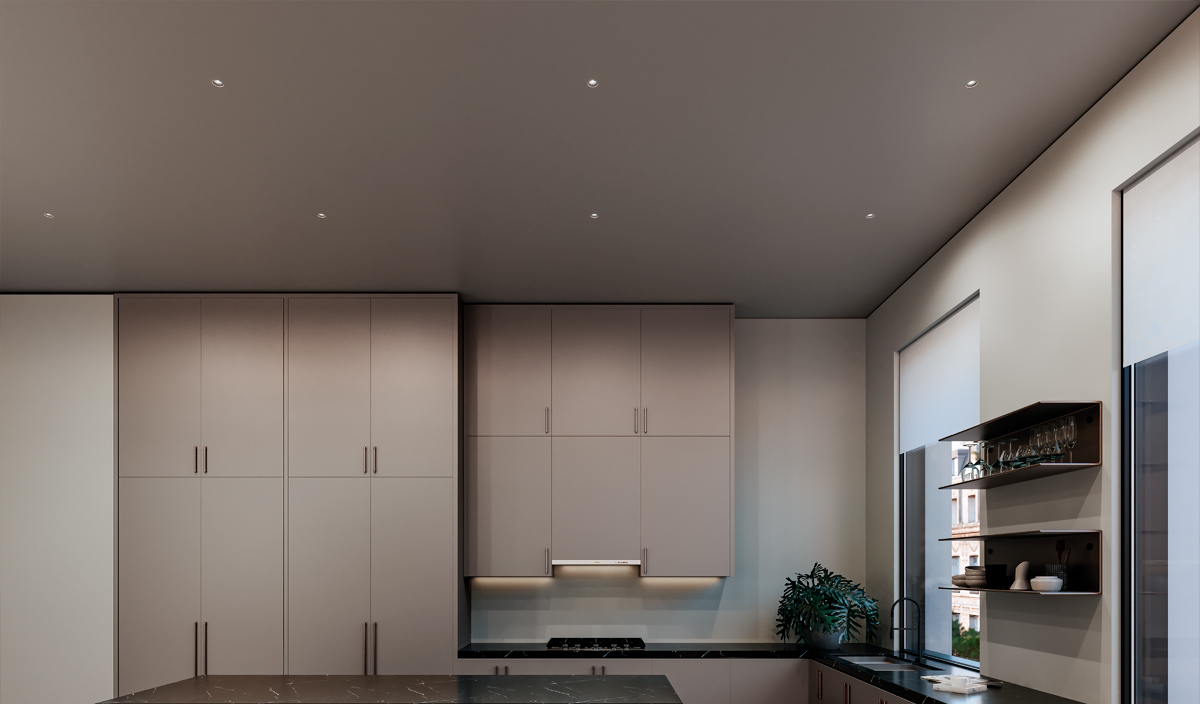

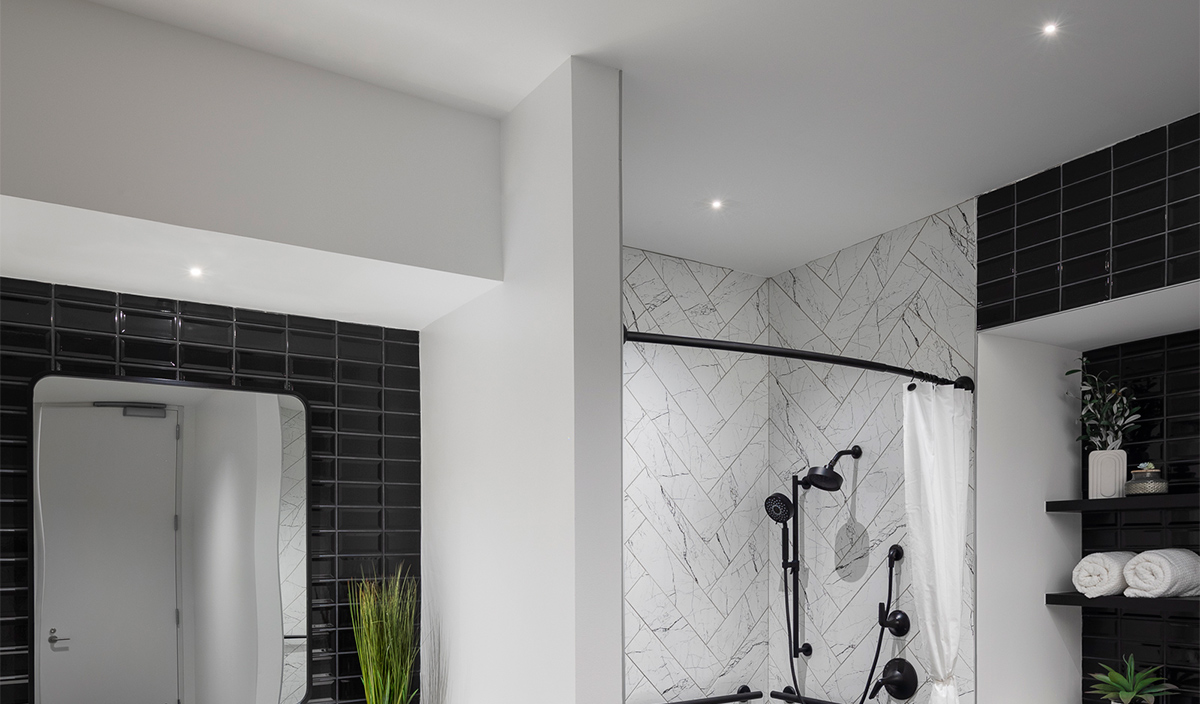

  • • Residential

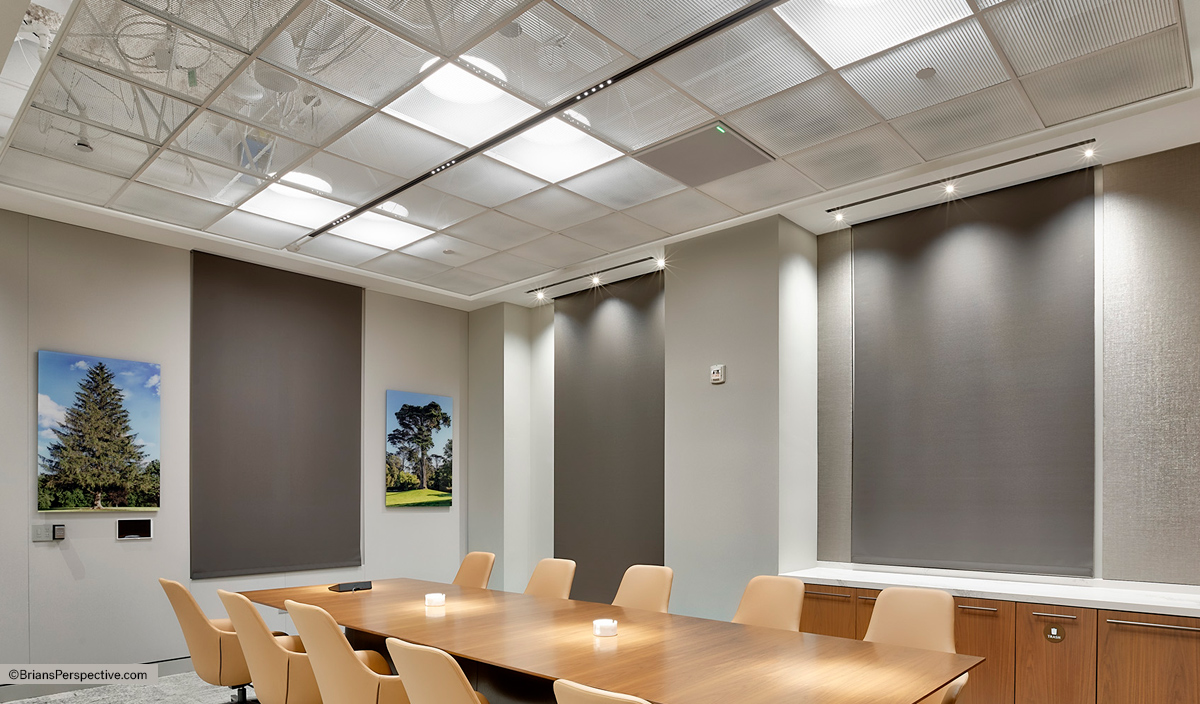

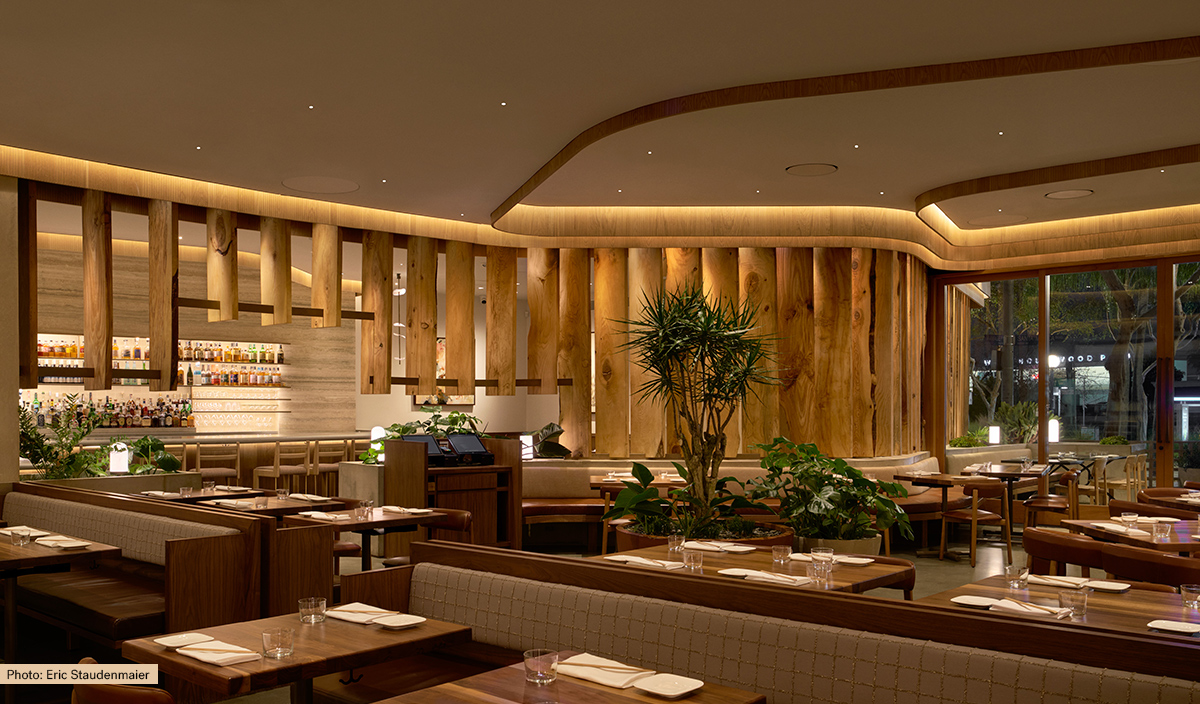

  • • Commercial
  • • Hospitality
