GYROSHIFT

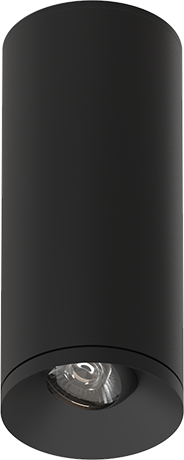

LED Cylinders

CSL superior recessed downlight optics in a verstile, easy adjustable cylinder you can wall mount, surface mount, or suspend with stem, cord or cable.
UL
Dimmable
5 years

Features

CSL superior recessed downlight optics in a versatile, easy adjustable cylinder you can wall mount, surface mount, or suspend with stem, cord or cable.
LED Light Engine 50K hours
LED Light Engine
High quality LEDs chosen with 2 SDCM binning. LED lifetime 50,000 hours.
Quality Optics
Quality Optics
10° 30° 50° 80° uniform beam spreads available. Optional media provide added control or diffusion.
High Performance Drivers
High Performance Drivers
TRIAC/ELV, 0-10V, EcoSystem, dims to 1% standard, 0.5% and Warm Dim available

Options

LED light engine performance
1" 3" 5"
BEST FOR Clean, Modern, Minimalist Accents with Higher Lumens General Uniform Lighting
ADJUSTABILITY 35° Tilt
360° Rotation
45° Tilt
360° Rotation
45° Tilt
360° Rotation
10° 30° 50° 80° Beam Spread X X X
MEDIA Clear, Solite, Frosted, Wall Wash, Linear Spread, Hex
MAX WATTAGE 11 25 30
DELIVERED LUMENS 650 1800 2000
EFFICACY 60 72 67
CCT @ 90 CRI
2700K, 3000K, 3500K, 4000K
LED LIFETIME
L70>50,000 Hours
DIMMING TYPES
TRIAC/ELV, 0-10V, EcoSystem
WARM DIM
X
X
SERVICABILITY
Below Ceiling
Below Ceiling
Below Ceiling

Housing

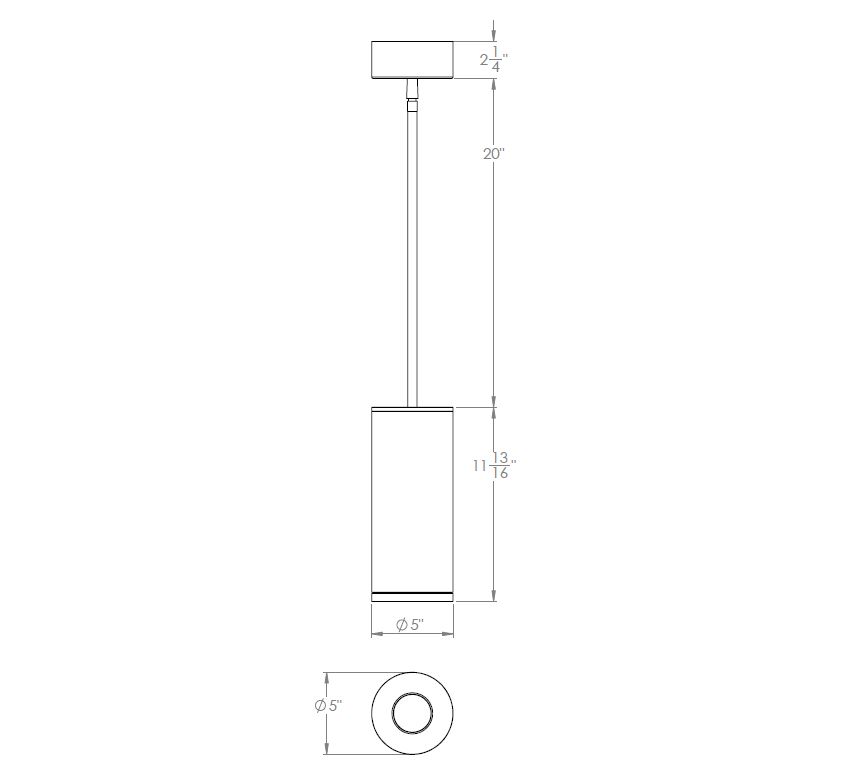

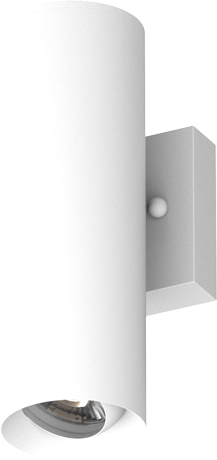

Surface mount, wall mount, suspend with stem, cord, cable

Applications

GyroShift technology is a unique bezel-and-ball system that allows you to easily adjust a downlight with no loss of light on the target.
  • • Residential
  • • Commercial
  • • Hospitality
