GYROSHIFT 1-4 LIGHT MULTIPLES

Flush Mounts

GyroShift 2" and 3" Multiple Downlights feature an adjustable optic that allows you to easily tilt the light up to 45° from below the ceiling without tools. Independent multiple heads each provide a round beam of light where directed.
GYROSHIFT<sup>™</sup> 1-4 LIGHT MULTIPLES LIGHTING
UL
Dimmable
Damp Location
JA-8
5 years

Features

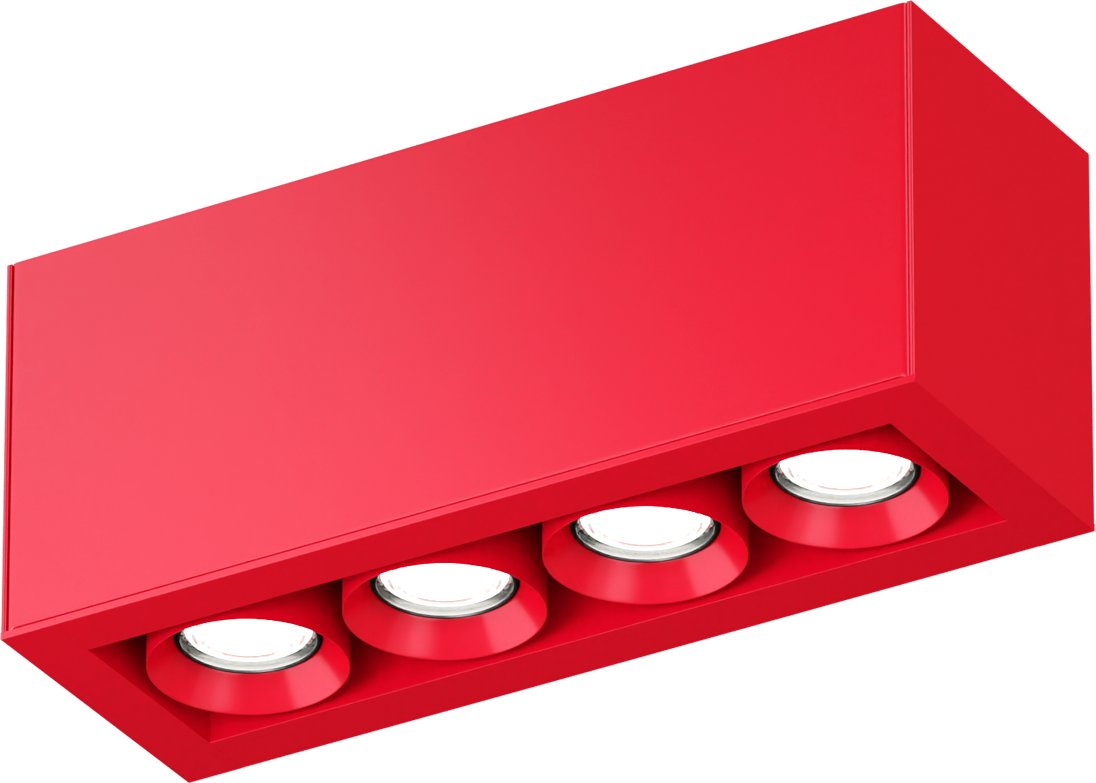

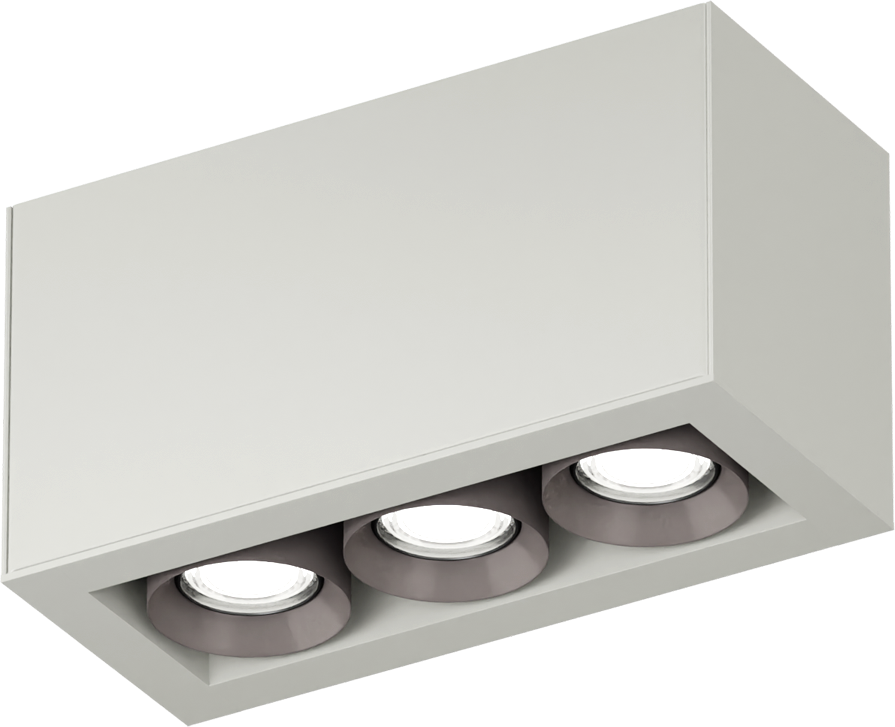

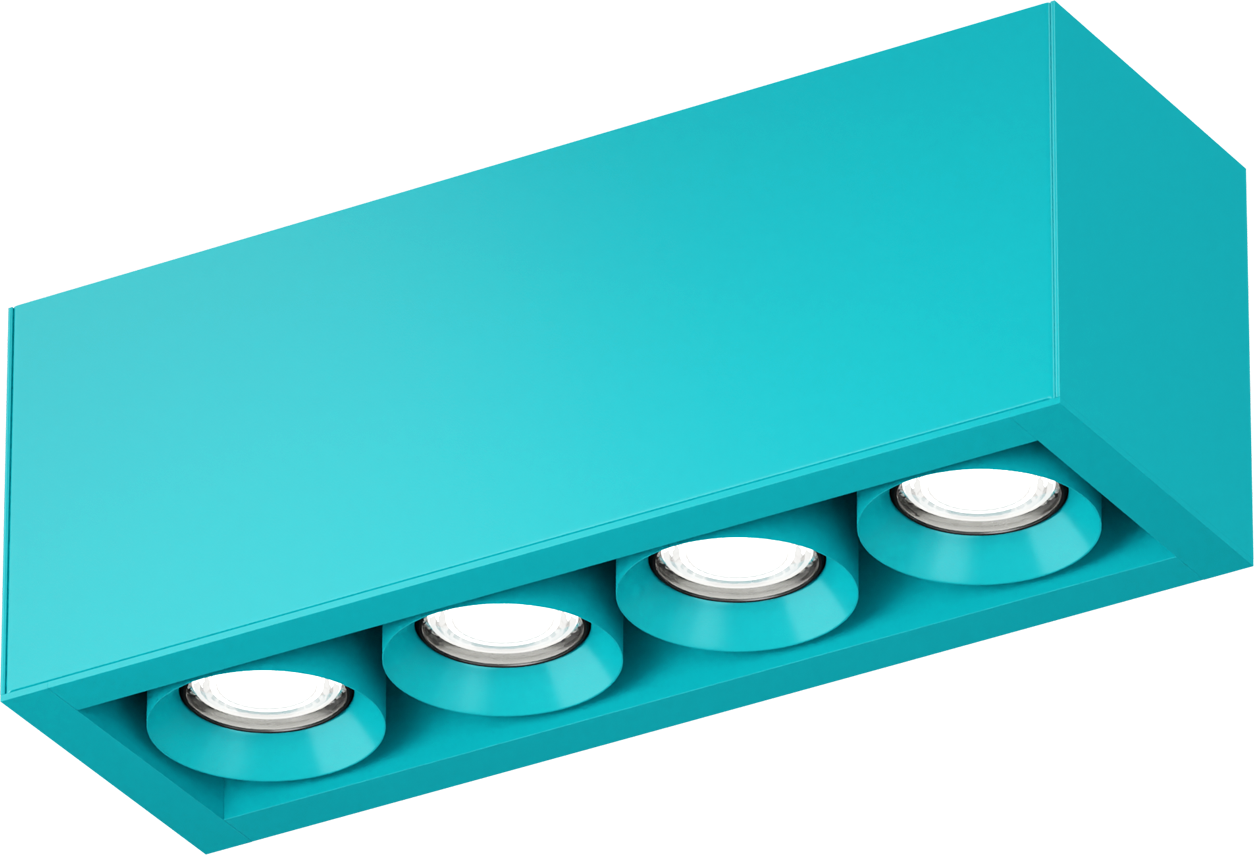

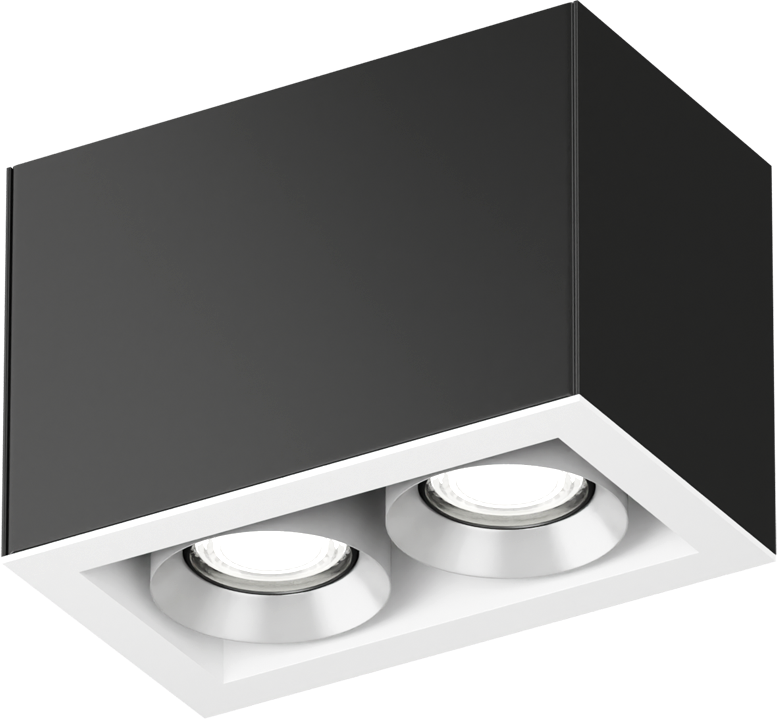

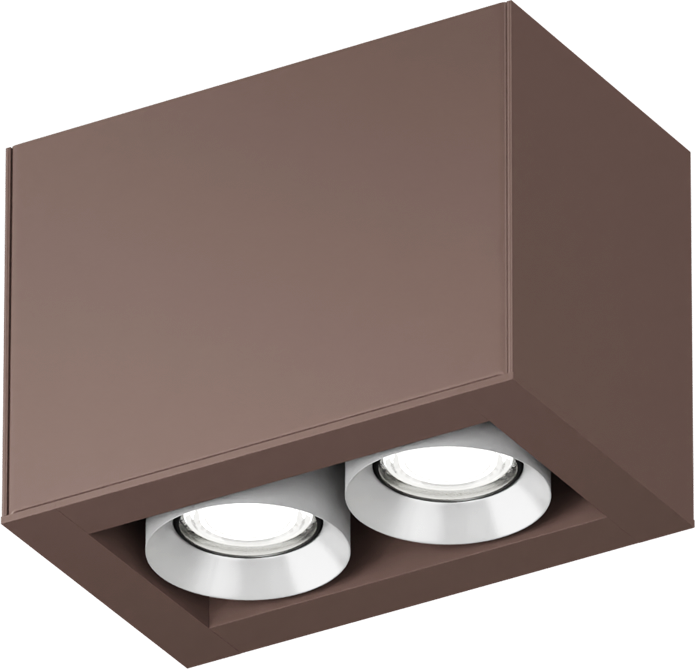

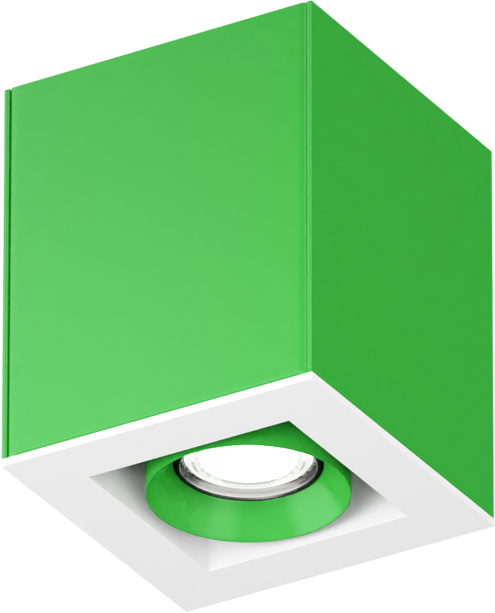

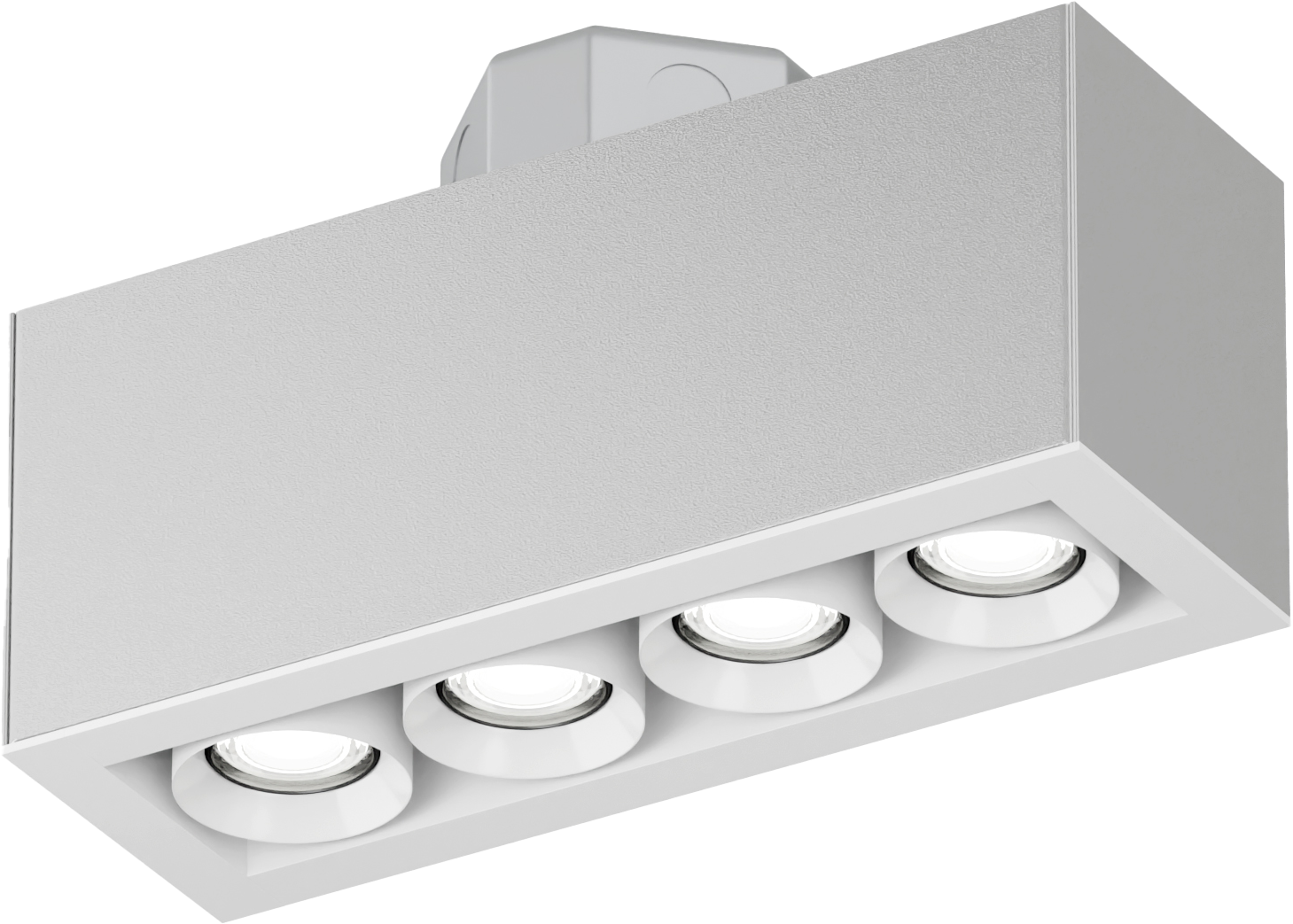

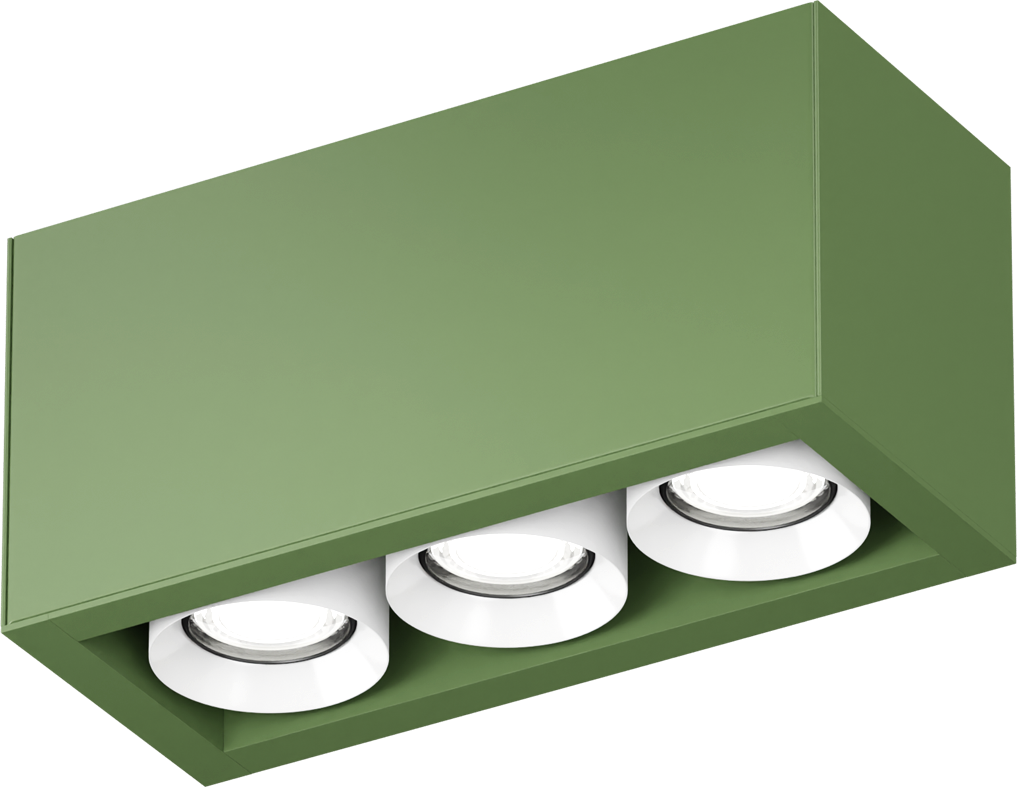

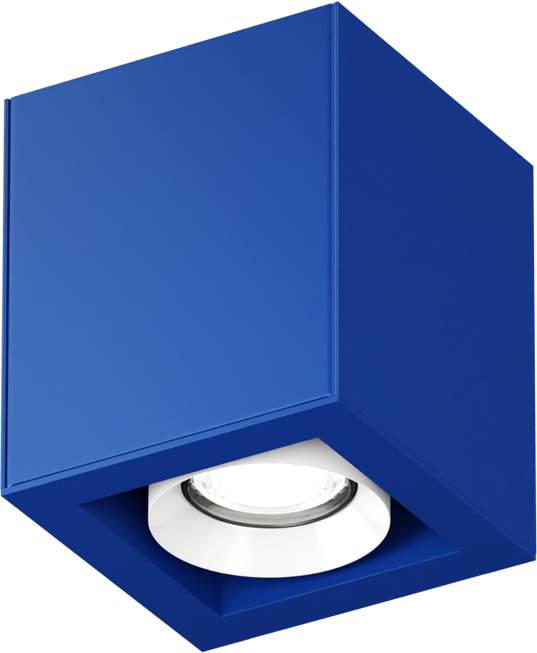

CSL GyroShift 1-4 Light Multiples incorporate the patented GyroShift optic system into multiple head flush mount fixtures that can be mounted to the ceiling with or without conduit. The heads are designed to stay fixed while each individual optic rotates and tilts up to 45° independently of the others, enabling crisp accents, broad washes, and tailored light wherever you need it -in multiple directions. The patented bezel-and-ball system rotates the spring-loaded optic independently from the light source, eliminating cut off from the trim to provide a round beam of light with superior light control. The refined aesthetic of the fixture is maintained-even when lights have been shifted.
LED Light Engine 50K hours
LED Light Engine
High quality LEDs chosen with 2 SDCM binning. LED lifetime 50,000 hours.
SilentVU<sup>™</sup> Optic Technology
SilentVU Optic Technology
Removes harsh glare and provides perfectly soft, even light throughout the space.
High Performance Drivers
High Performance Drivers
TRIAC/ELV, 0-10V, EcoSystem, dims to 1% standard, 0.5% and Warm Dim available

Options

LED light engine performance
2" 3"
BEST FOR Accents with Higher Lumens General Uniform Lighting
EASY ADJUSTABILITY 45° Tilt
360° Rotation
AVAILABLE OPTICS 10° 30° 50° Installed
MEDIA Clear, Solite, Frosted, Wall Wash, Linear Spread, Hex
MAX WATTAGE 10W 15W 20W 10W 15W 20W
25W 30W
DELIVERED LUMENS 890 - 1400 960 - 2250
EFFICACY 70 - 89 75 - 96
CCT @ 90 CRI 2700K, 3000K
3500K, 4000K
2700K, 3000K, 3500K
4000K, Warm Dim
LED LIFETIME
L70>50,000 Hours
INPUT VOLTAGE
120-277V Universal Voltage
DIMMING TYPES
TRIAC/ELV, 0-10V, EcoSystem
WARM DIM
X

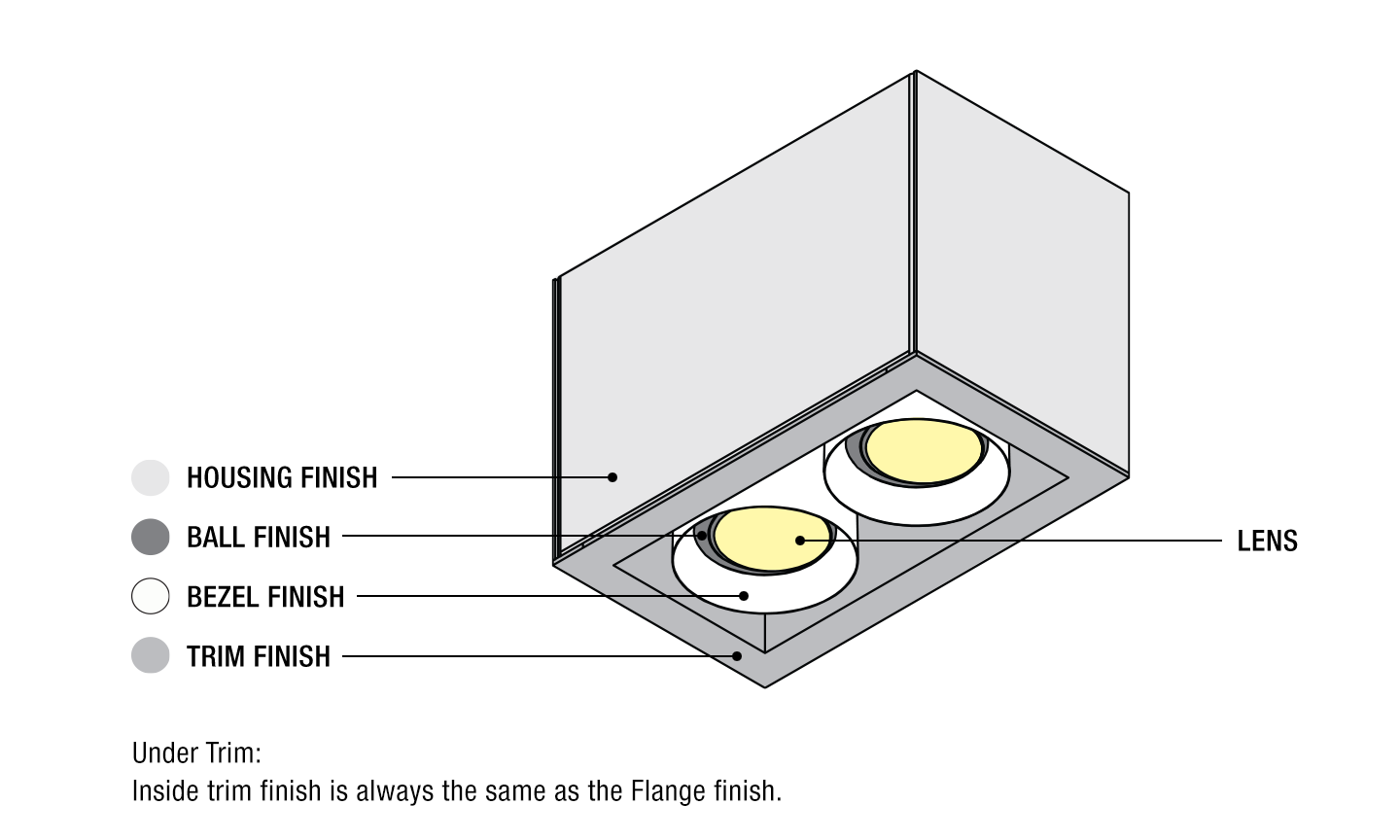

Housing



Trim

GyroShift Multiples offer 23 different color options that can be used to create a unique fixture with a traditional flange or modern flangeless style.
Ball, Bezel, Trim Color Options
Aegean Blue
Aegean Blue
Burnished Bronze
Burnished Bronze
Gloss Black
Gloss Black
Blue
Blue
Dove Gray
Dove Gray
Flannel Gray
Flannel Gray
Galvanized
Galvanized
Lime Green
Lime Green
Matte Black
Matte Black
Midnight Blue
Midnight Blue
Painted Natural Aluminum
Painted Natural Aluminum
Painted Natural Copper
Painted Natural Copper
Red
Red
Sage Green
Sage Green
Sand
Sand
Satin Silver
Satin Silver
Textured Bronze
Textured Bronze
Textured Graphite
Textured Graphite
Tangerine
Tangerine
Tahitian Teal
Tahitian Teal
Semi Gloss White
Semi Gloss White
Yellow
Yellow

Applications

GyroShift technology is a unique bezel-and-ball system that allows you to easily adjust a downlight with no loss of light on the target.

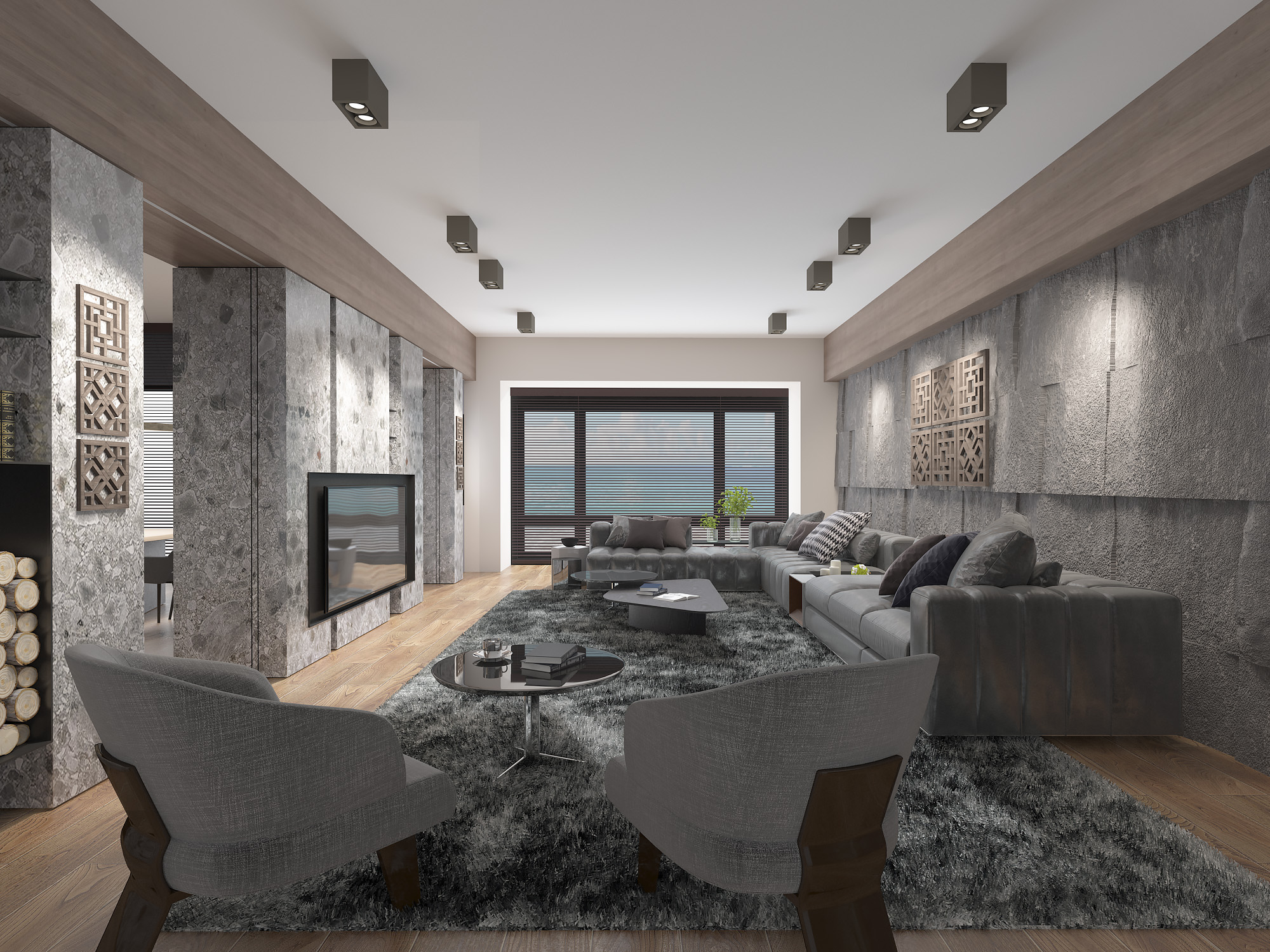

  • • Residential
  • • Commercial
  • • Hospitality
