GYROSHIFT
™
1-4 LIGHT MULTIPLES
Recessed Downlights
A Different Way to Downlight
Adjustable from 0° to 45° with Infinite Rotation
2" 3"
Options
Housing
Trim
Downloads
Browse
CSL GyroShift
™

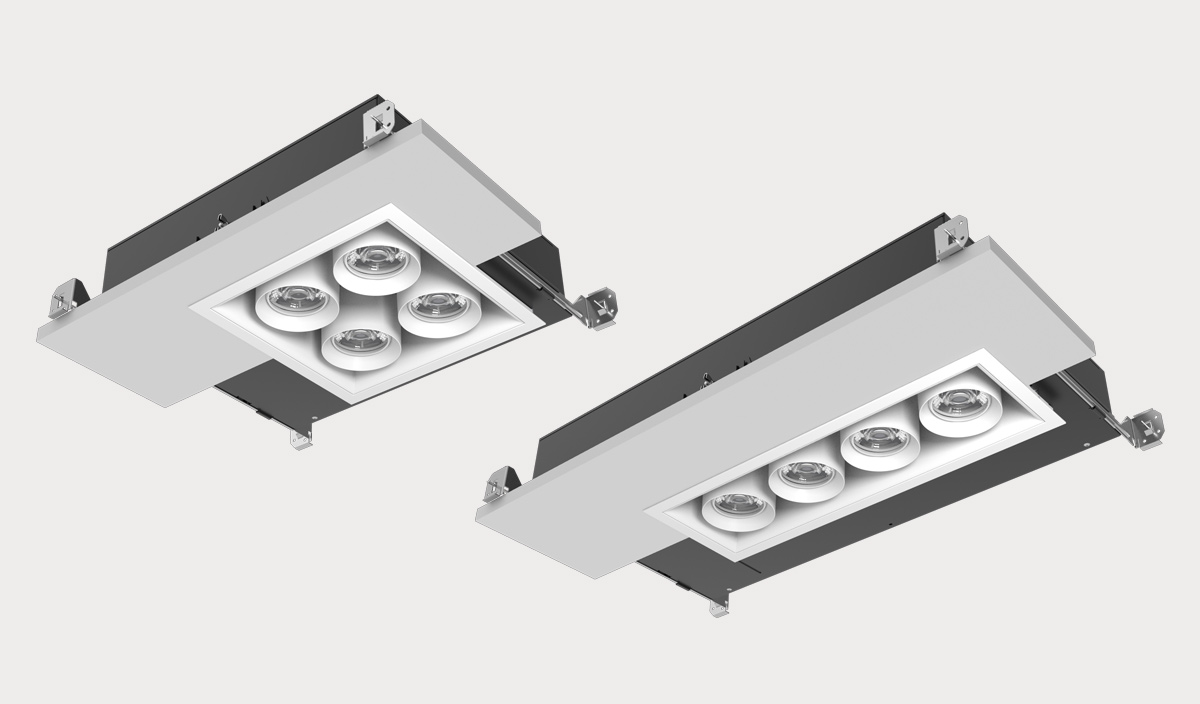

1-4 Light Multiples incorporate the patented GyroShift
™
optic system into multiple head recessed downlight fixtures that can be installed in shallow plenum spaces as little as 3 1/2". The heads are designed to stay fixed while each individual optic rotates and tilts up to 45° independently of the others, enabling crisp accents, broad washes, and tailored light wherever you need it -in multiple directions. The patented bezel-and-ball system rotates the spring-loaded optic independently from the light source, eliminating cut off from the trim to provide a round beam of light with superior light control. The refined below-the-ceiling aesthetic is maintained-even when lights have been shifted.
LED Light Engine
High quality LEDs chosen with 2 SDCM binning. LED lifetime 50,000 hours.
High Quality Optics
10° 30° 50° uniform beam spreads available. Optional media provide added control or diffusion.
High Performance Drivers
TRIAC, ELV and 0-10VDC and Lutron Homeworks / Ecosystem options available
A DIFFERENT WAY TO DOWNLIGHT
Options
LED light engine performance
2"
3"
BEST FOR

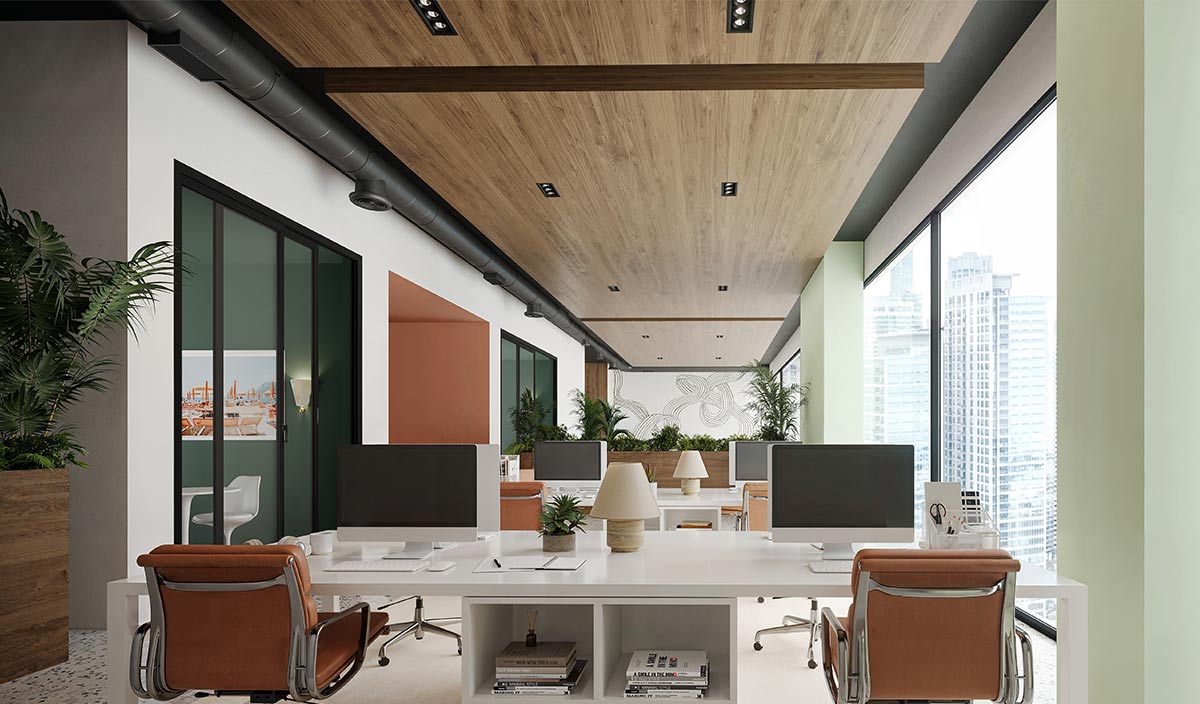

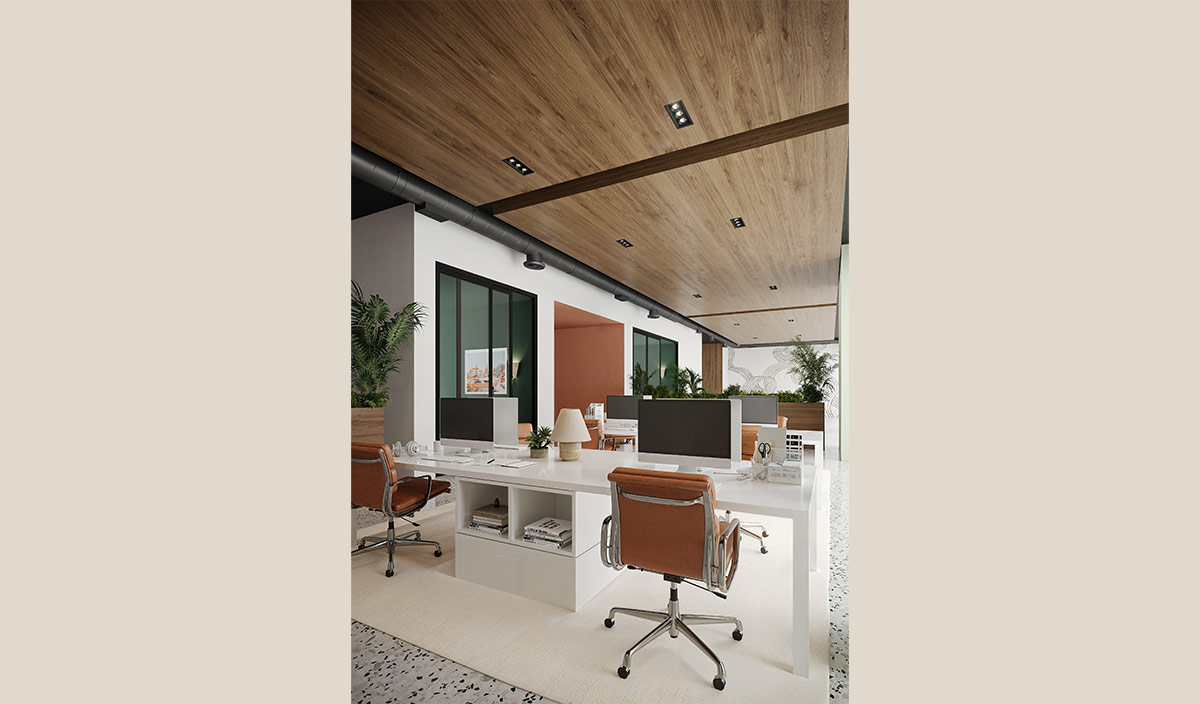

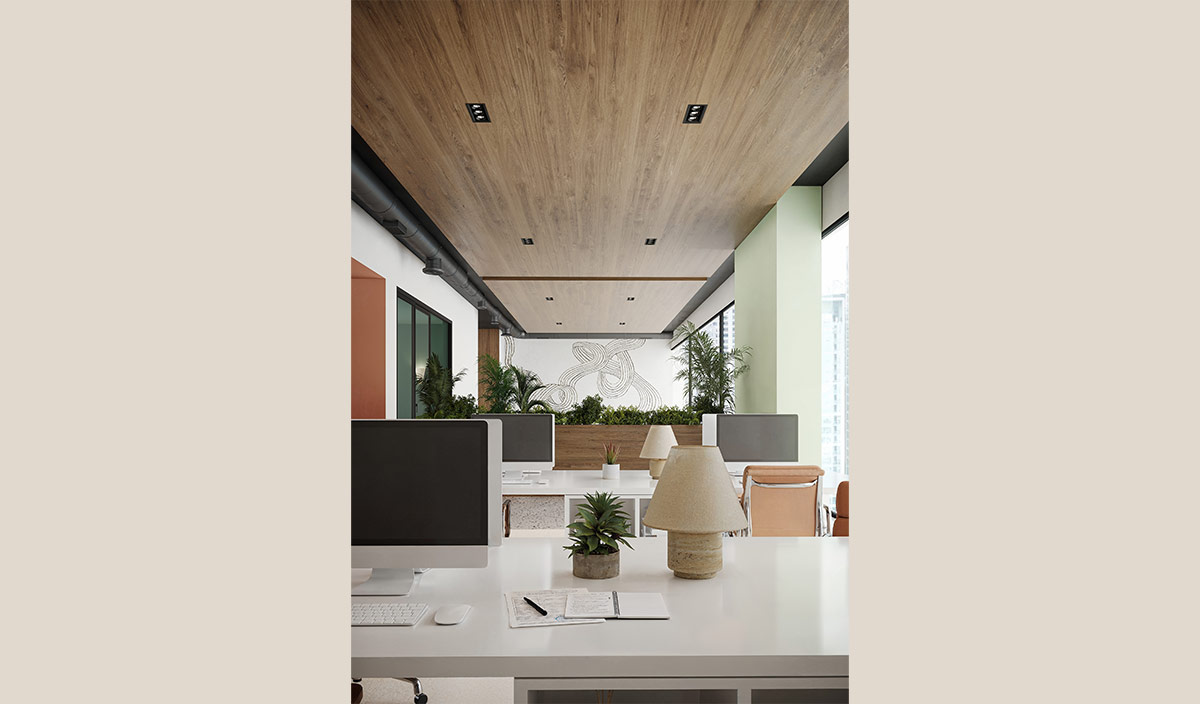

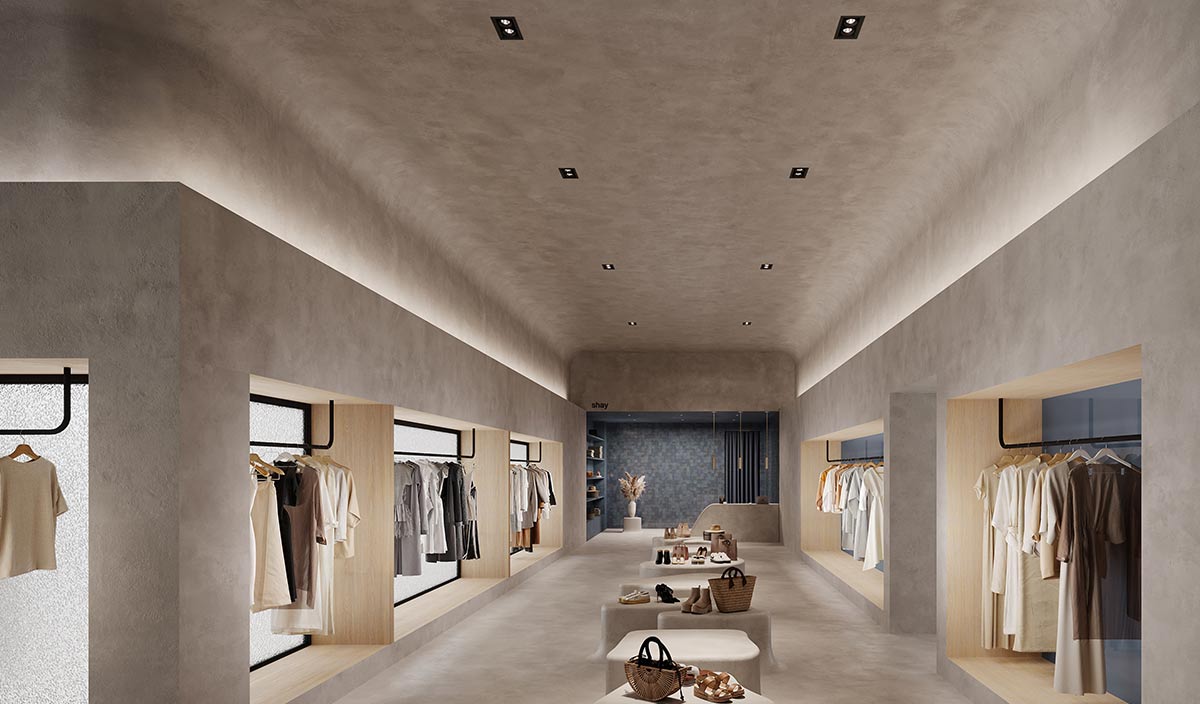

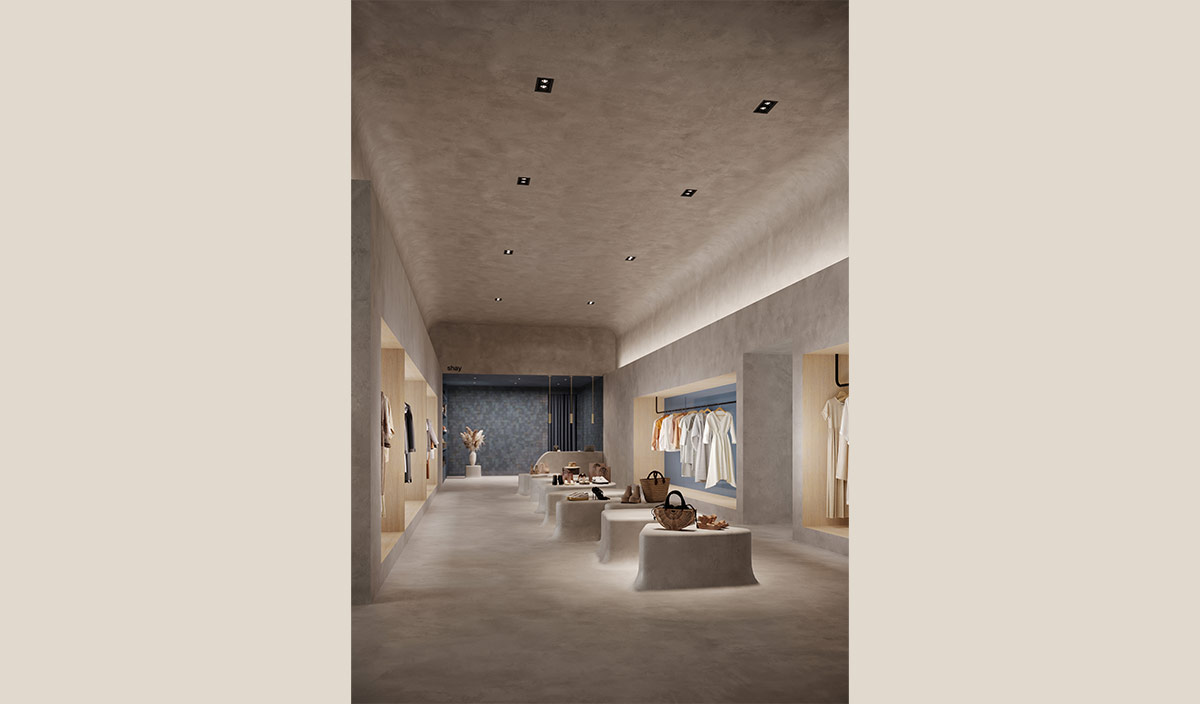

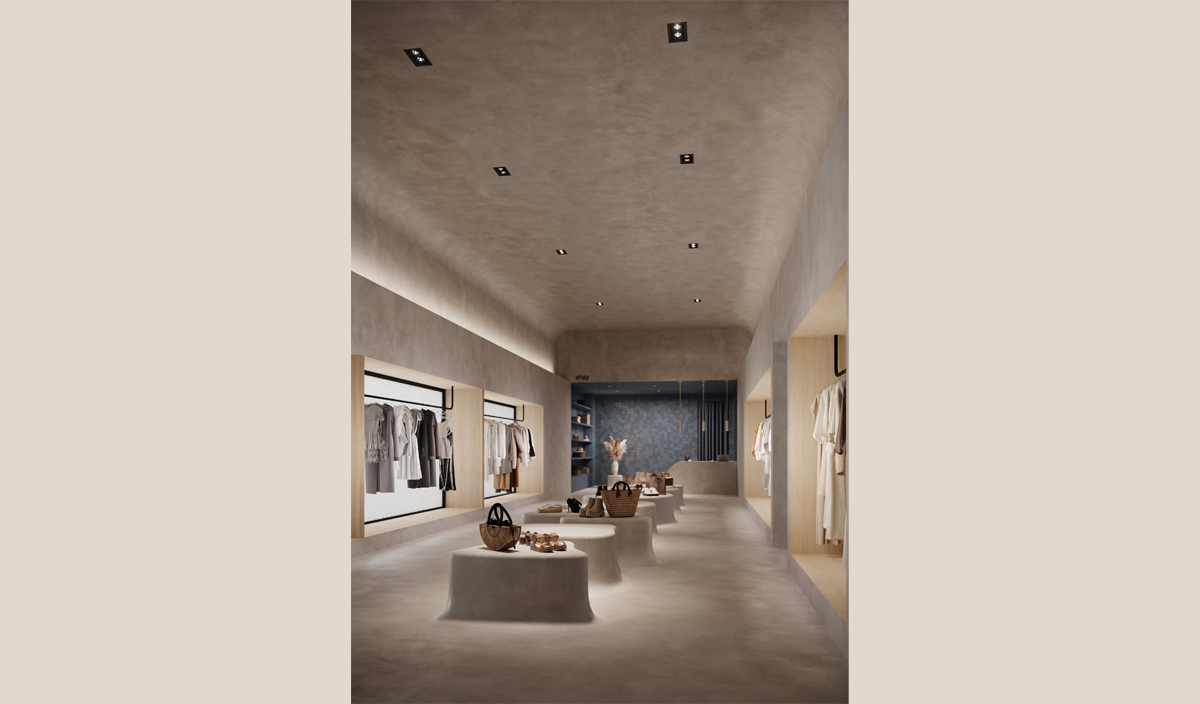

Illuminate multiple aspects of a room while maintaining a quiet ceiling
EASY ADJUSTABILITY
45° Tilt
360° Rotation
AVAILABLE OPTICS
10° 30° 50° Beam Spread
MEDIA
Clear, Solite, Frosted, Linear Spread, Hex, Wall Wash
RATED WATTAGE
UP TO 54.1W
UP TO 79.1W
DELIVERED LUMENS
UP TO 4257
UP TO 6426
EFFICACY
UP TO 86 LPW
UP TO 99 LPW
CCT @ 90 CRI
2700K, 3000K, 3500K, 4000K, WARM DIM
LED LIFETIME
>55,000 HOURS @ L70
INPUT VOLTAGE
120/277V, 50/60Hz
DIMMING TYPES
TRIAC, ELV, 0-10VDC, Lutron Homeworks/Ecosystem, DALI Independently Addressable Heads options available
SERVICABILITY
BELOW CEILING ACCESS
Housing
2" Gyroshift Recessed Multiples
Housing
Type
Description
Watts
S2-1L
Adjustable
2" 1-Light Shallow New Construction IC
10W
15W

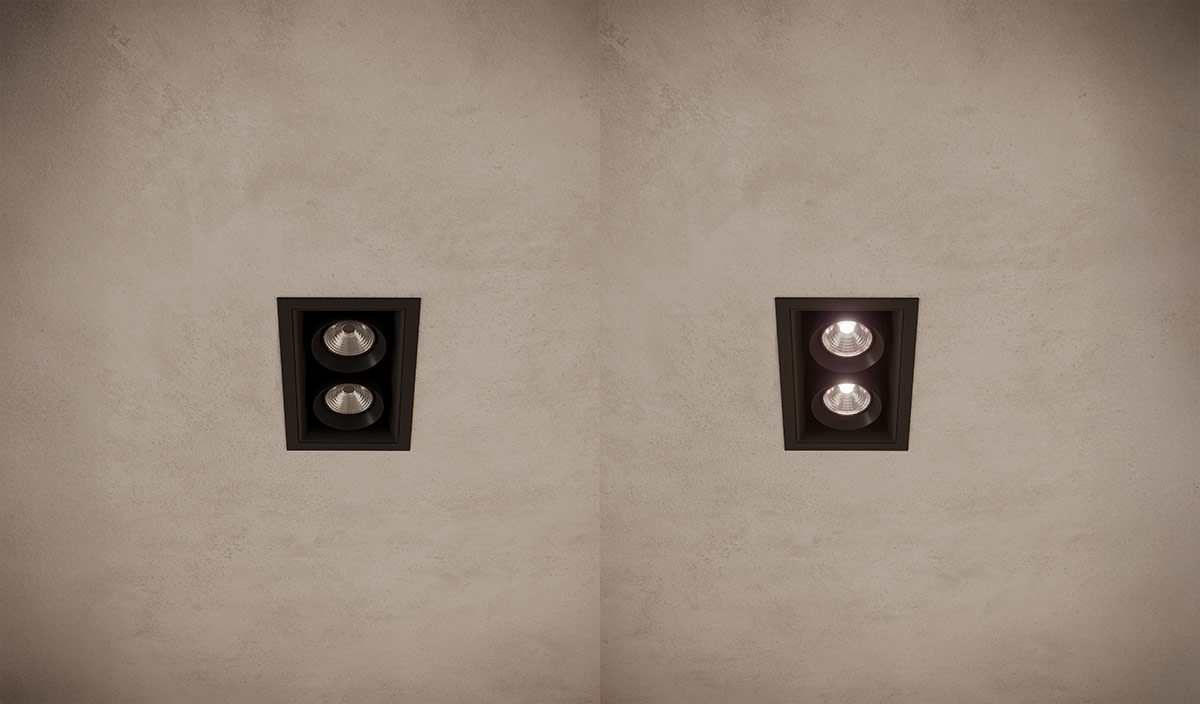

S2-2L
Adjustable
2" 2-Light Shallow New Construction IC
10W
15W
S2-3L
Adjustable
2" 3-Light Shallow New Construction IC
10W
15W
S2--4L
Adjustable
2" 4-Light Shallow New Construction IC
10W
15W
S2-4S
Adjustable
2" 4-Light Square Shallow New Construction IC
10W
15W
3" Gyroshift Recessed Multiples
Housing
Type
Description
Watts
S3-1L
Adjustable
3" 1-Light Shallow New Construction IC
10W
15W
20W
S3-2L
Adjustable
3" 2-Light Shallow New Construction IC
10W
15W
20W

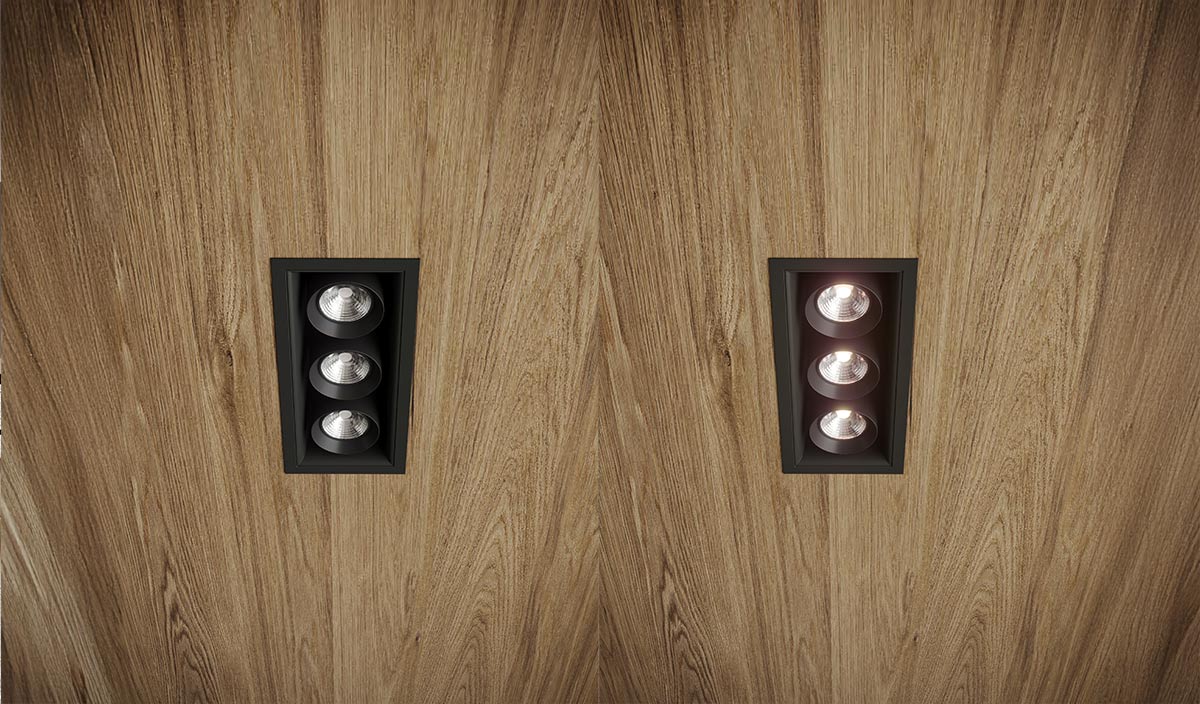

S3-3L
Adjustable
3" 3-Light Shallow New Construction IC
10W
15W
20W
S3-4L
Adjustable
3" 4-Light Shallow New Construction IC
10W
15W
20W
S3-4S
Adjustable
3" 4-Light Square Shallow New Construction IC
10W
15W
TRIM
Gyroshift
™
Multiples adjustable downlights are available with round trims in multiple colors, or trimless.

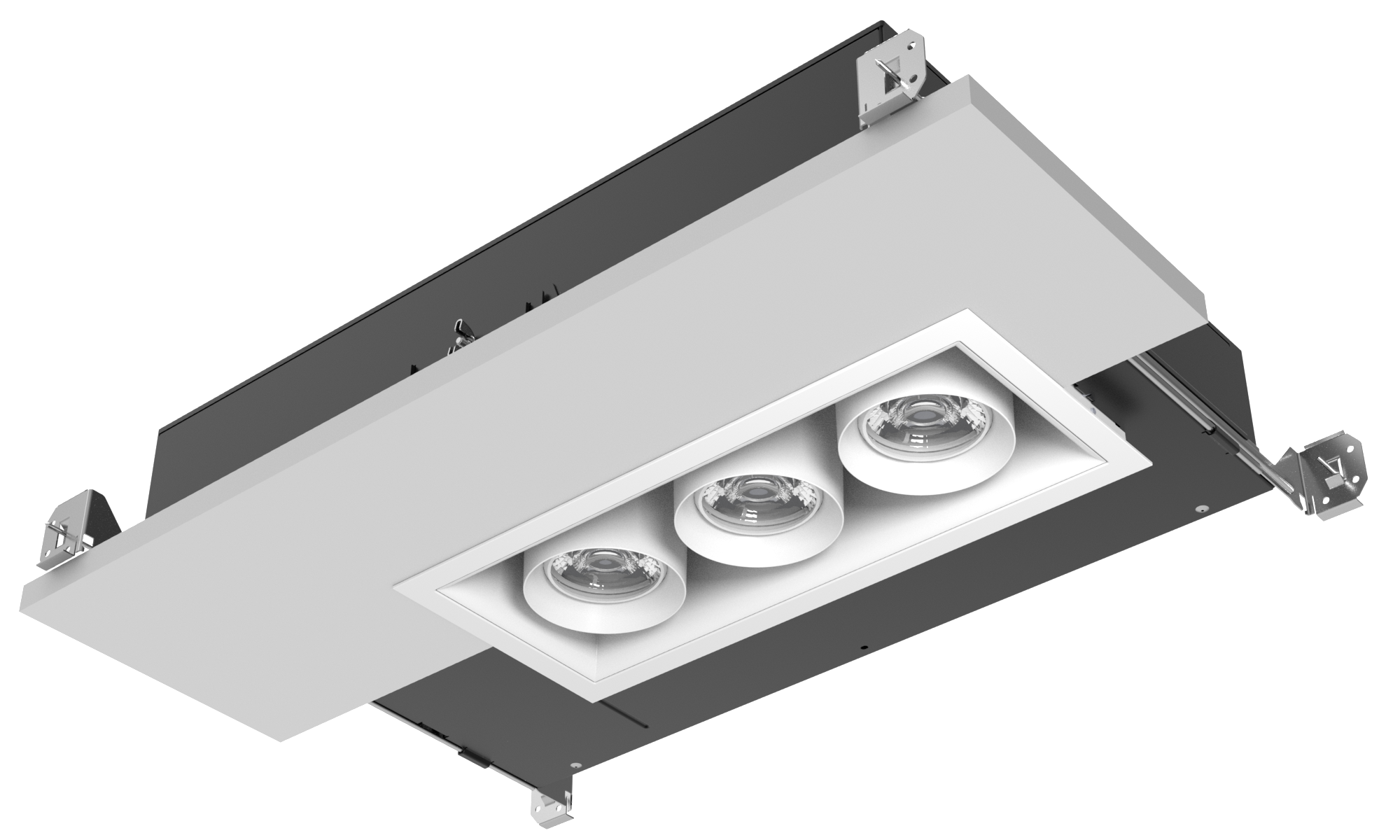

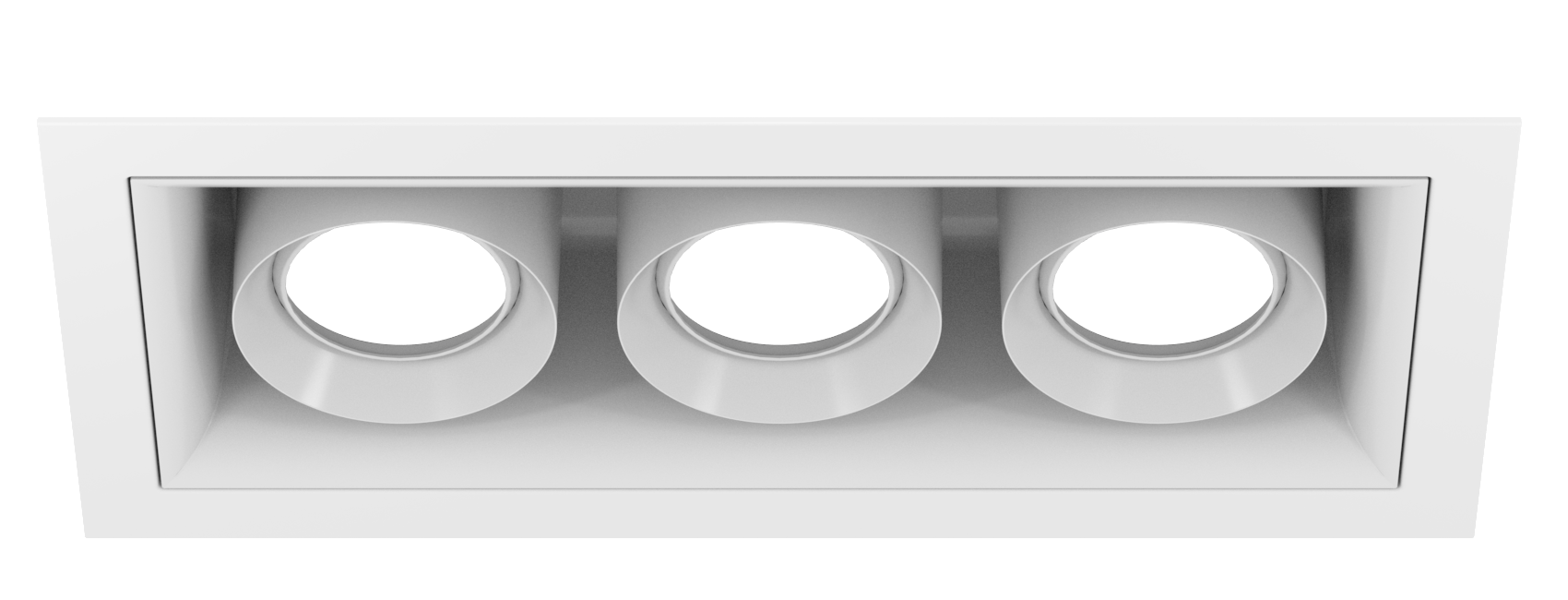

S3-3L-ST-WTWT
WT White Trim
WT White Trim Interior

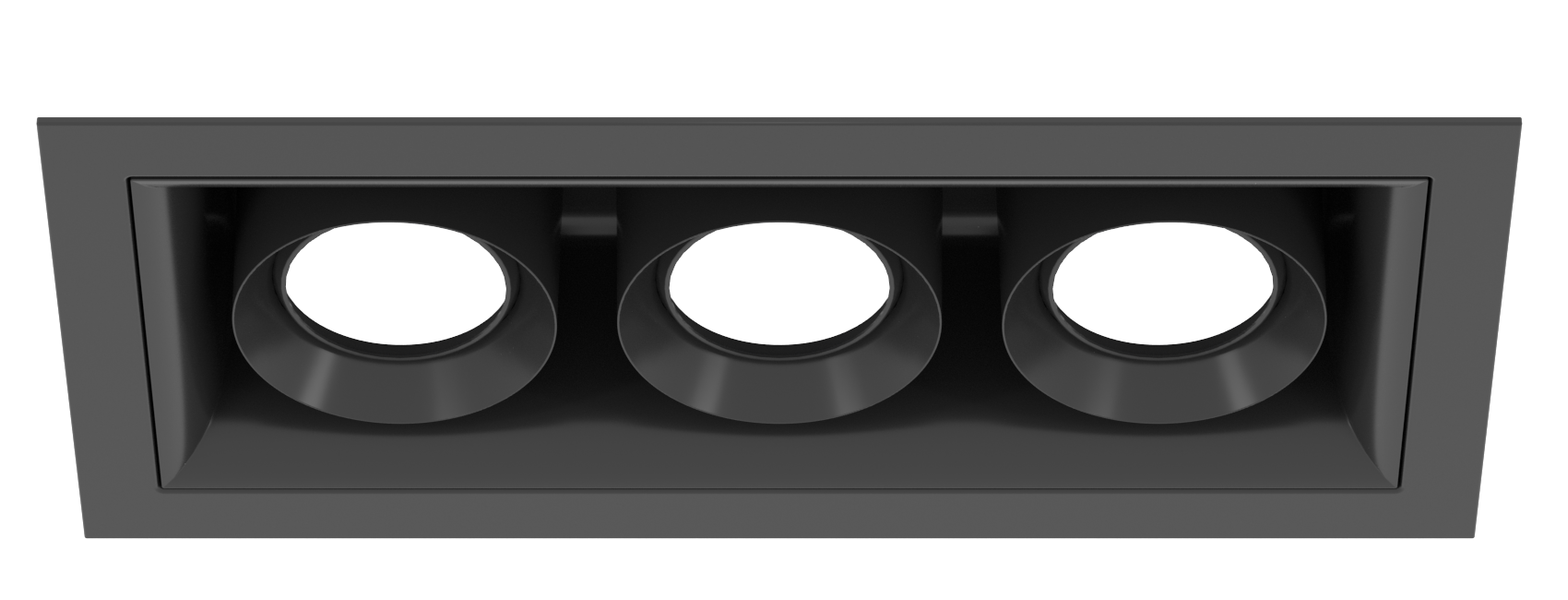

S3-3L-ST-BKBK
BK Black Trim
BK Black Trim Interior

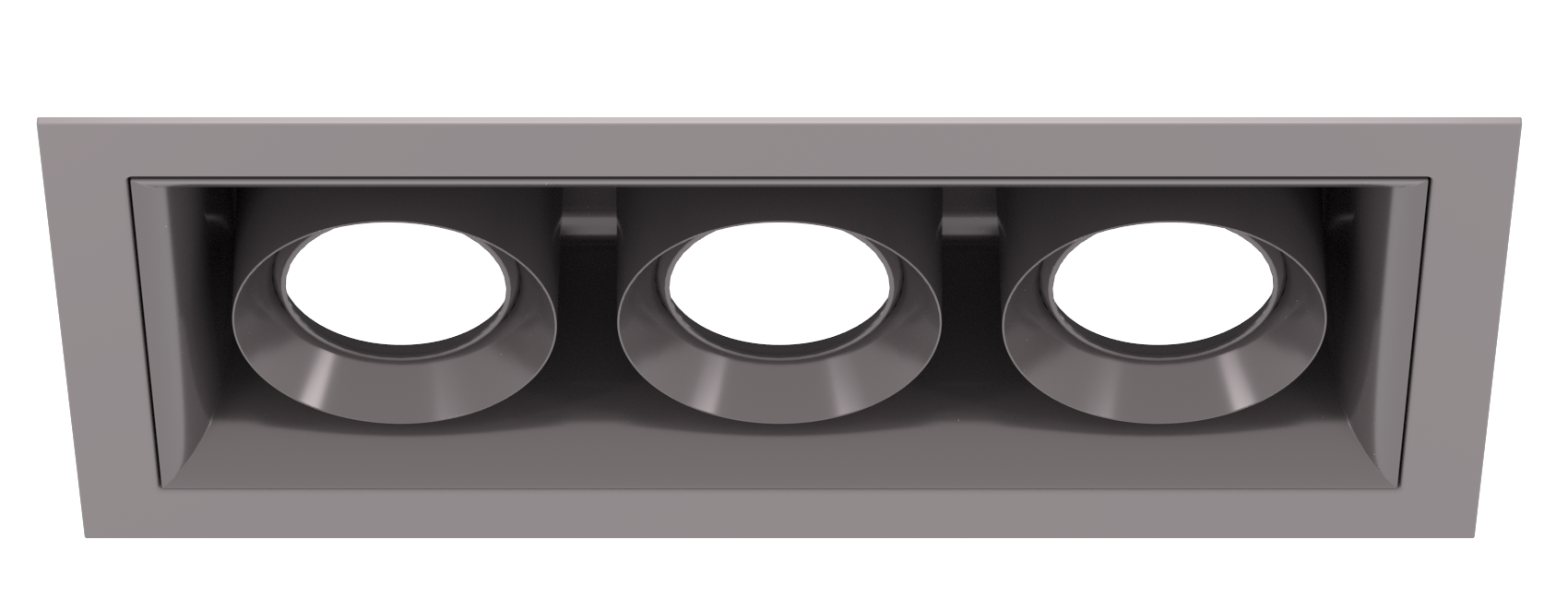

S3-3L-ST-CNCN
CN Champagne Trim
CN Champagne Trim Interior

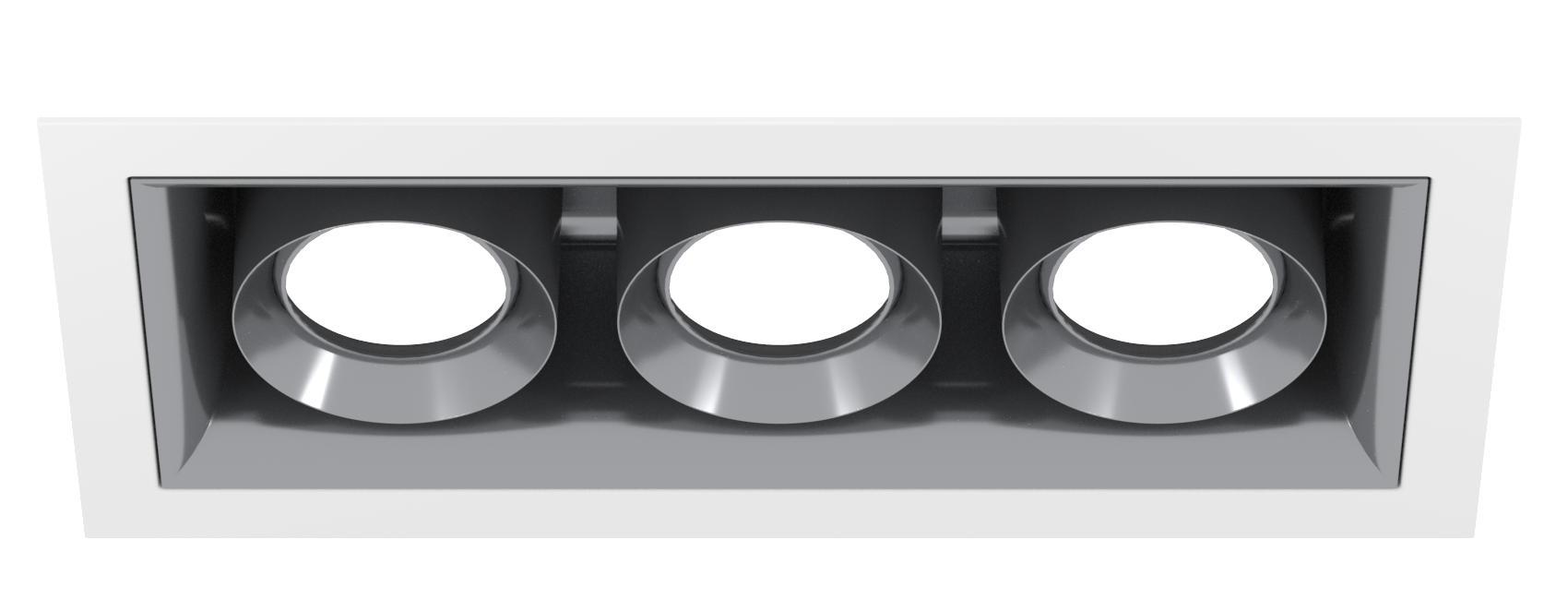

S3-3L-ST-WTSA
WT White Trim
SA Satin Aluminum Trim Interior

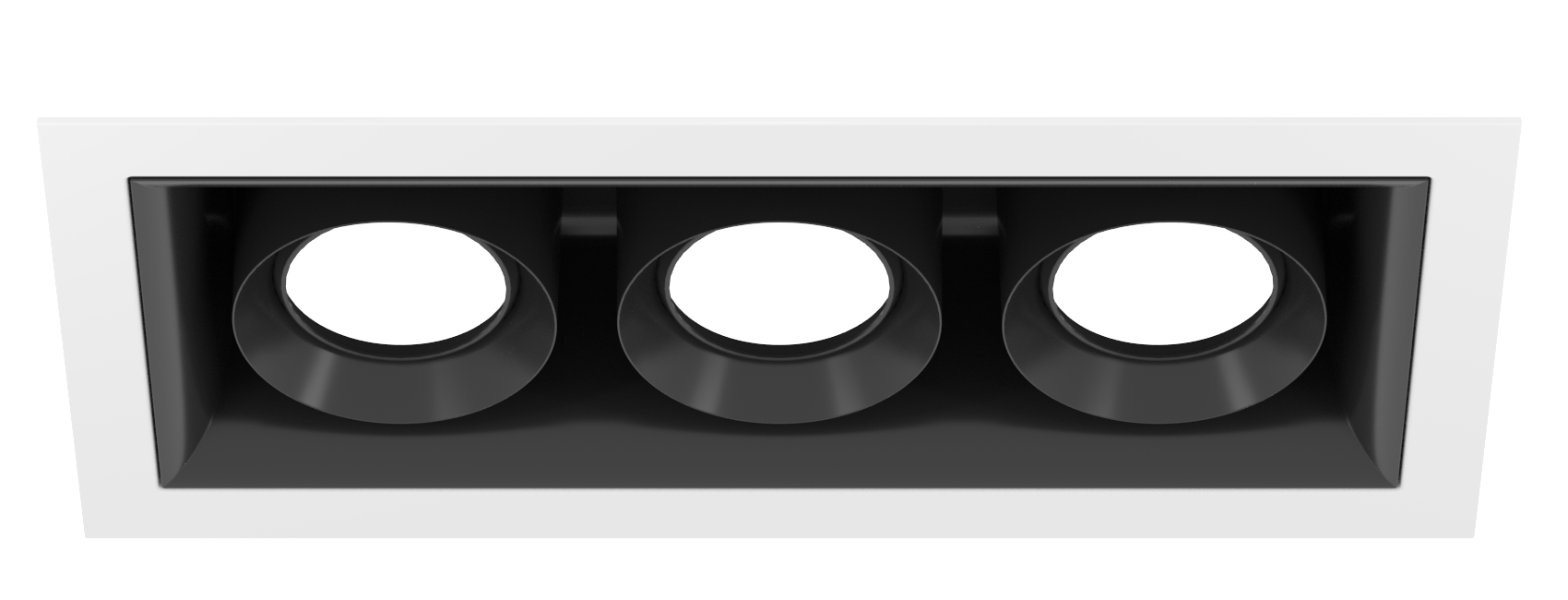

S3-3L-ST-WTBK
WT White Trim
BK Black Trim Interior

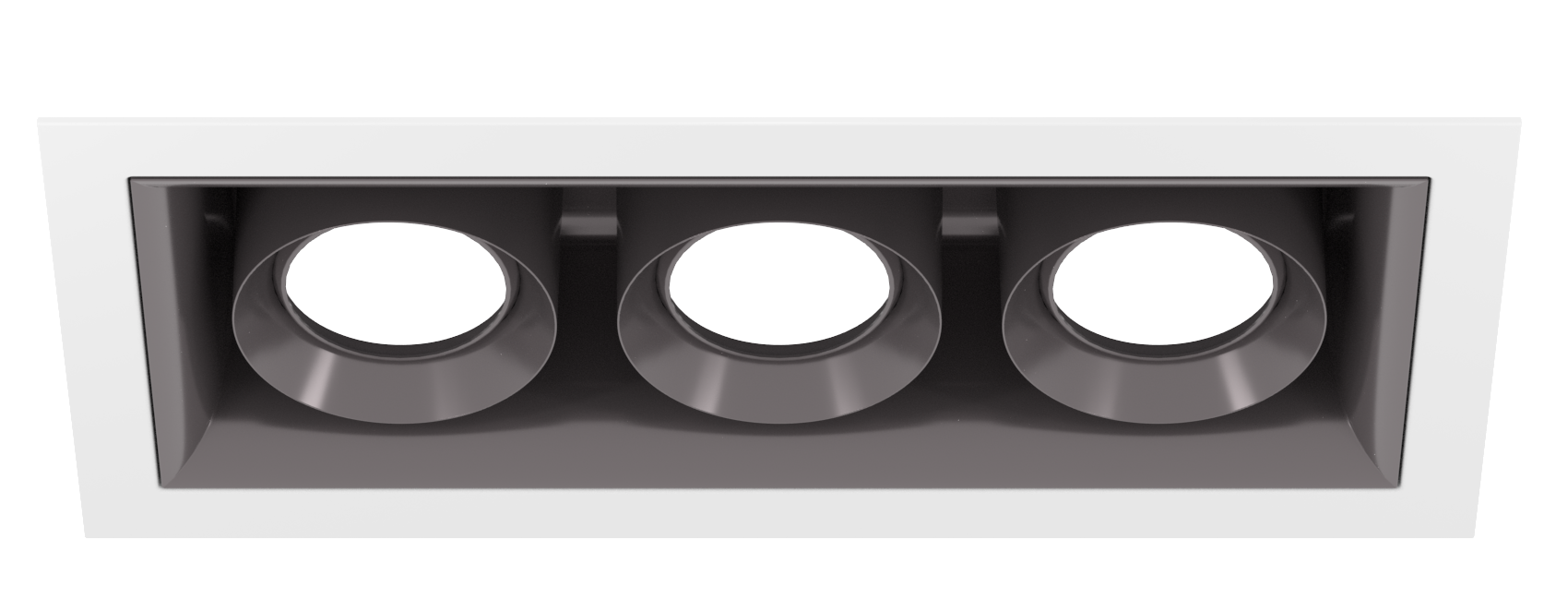

S3-3L-ST-WTCN
WT White Trim
CN Champagne Trim Interior
Downloads
Overview
BROCHURE
⬇
SPEC SHEET
⬇
INSTALLATION GUIDES
+
GyroShift_Multiples_WC_IG.pdf
⬇
GyroShift_Multiples_Standard_T...
⬇
GYROSHIFT MULTIPLES 2" RECESSED
LINE DRAWINGS
⬇
IES FILES
⬇
REVIT FILES
⬇
GYROSHIFT MULTIPLES 3" RECESSED
LINE DRAWINGS
⬇
IES FILES
⬇
REVIT FILES
⬇
