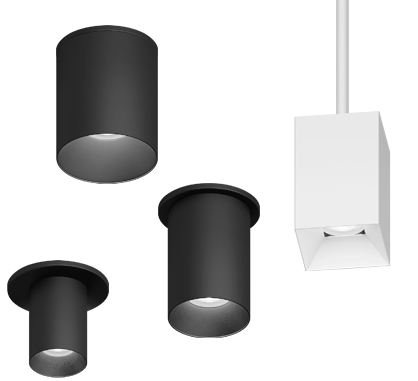

ENTITY^™

Cylinders

CSL superior recessed downlight optics in a decorative cylinder you can wall mount, surface mount or suspend with stem, cord or cable.

Options
Housing
Applications

Downloads Browse

Features

CSL Entity offers colorful, versatile, powerful LED cylinders. Available in 23 stylish colors, they can be mounted on the ceiling or suspended by stem or cord. A twistable flush mount cylinder is also available.

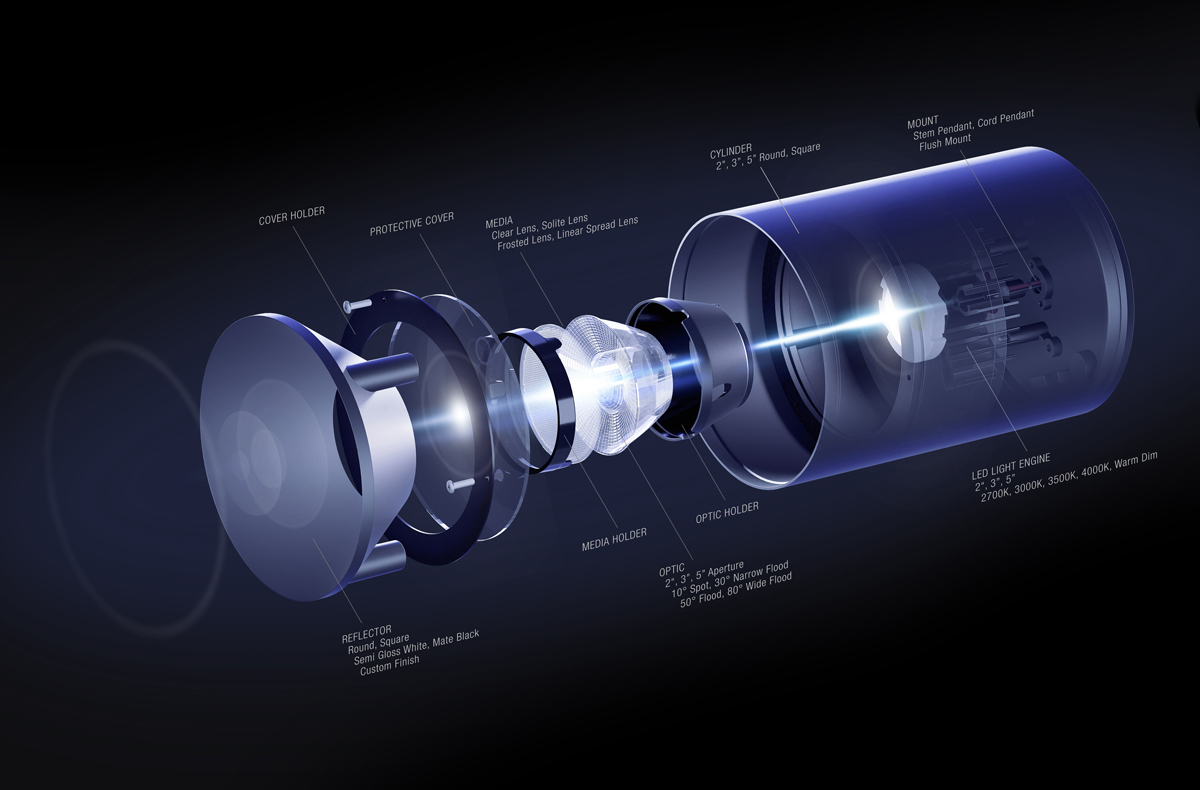

LED Light Engine

High quality LEDs chosen with 2 SDCM binning. LED lifetime 50,000 hours.

Quality Optics

10° 30° 50° 80° uniform beam spreads available. Optional media provide added control or diffusion.

High Performance Drivers

TRIAC/ELV, 0-10V, EcoSystem, dims to 1% standard, 0.5% and Warm Dim available

Options

LED light engine performance

	Entity	Entity Adjustable
BEST FOR	Decorative Downlight	Adjustable Decorative Downlight
10° 30° 50° 80° Beam Spread	X	X
MAX WATTAGE	25W	25W
DELIVERED LUMENS	2400	2400
EFFICACY	96	96
CCT @ 90 CRI	2700K, 3000K, 3500K, 4000K
LED LIFETIME	50,000 Hours	L70>50,000 Hours
DIMMING TYPES	TRIAC/ELV, 0-10V, EcoSystem
SERVICABILITY	Below Ceiling	Below Ceiling

Housing

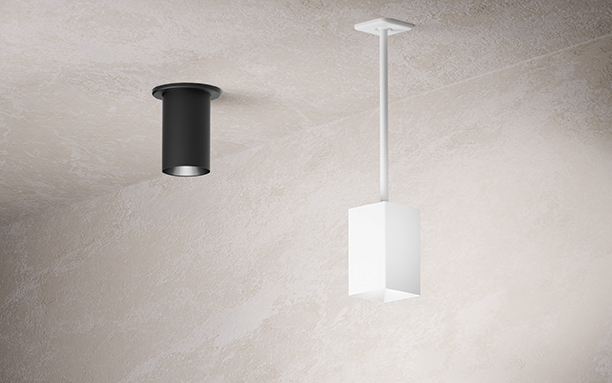

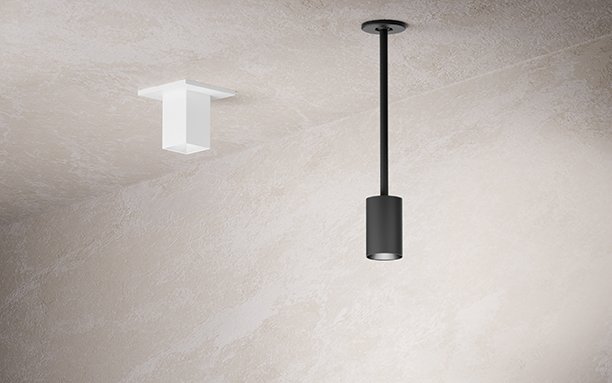

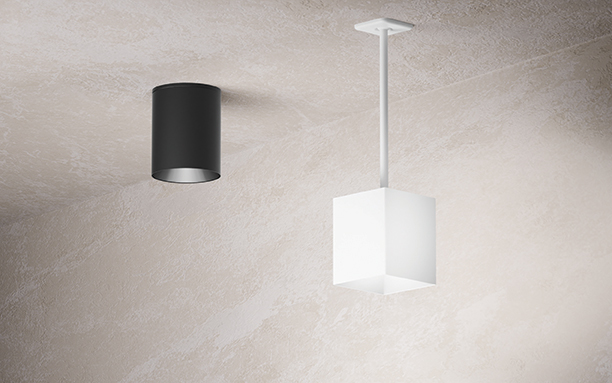

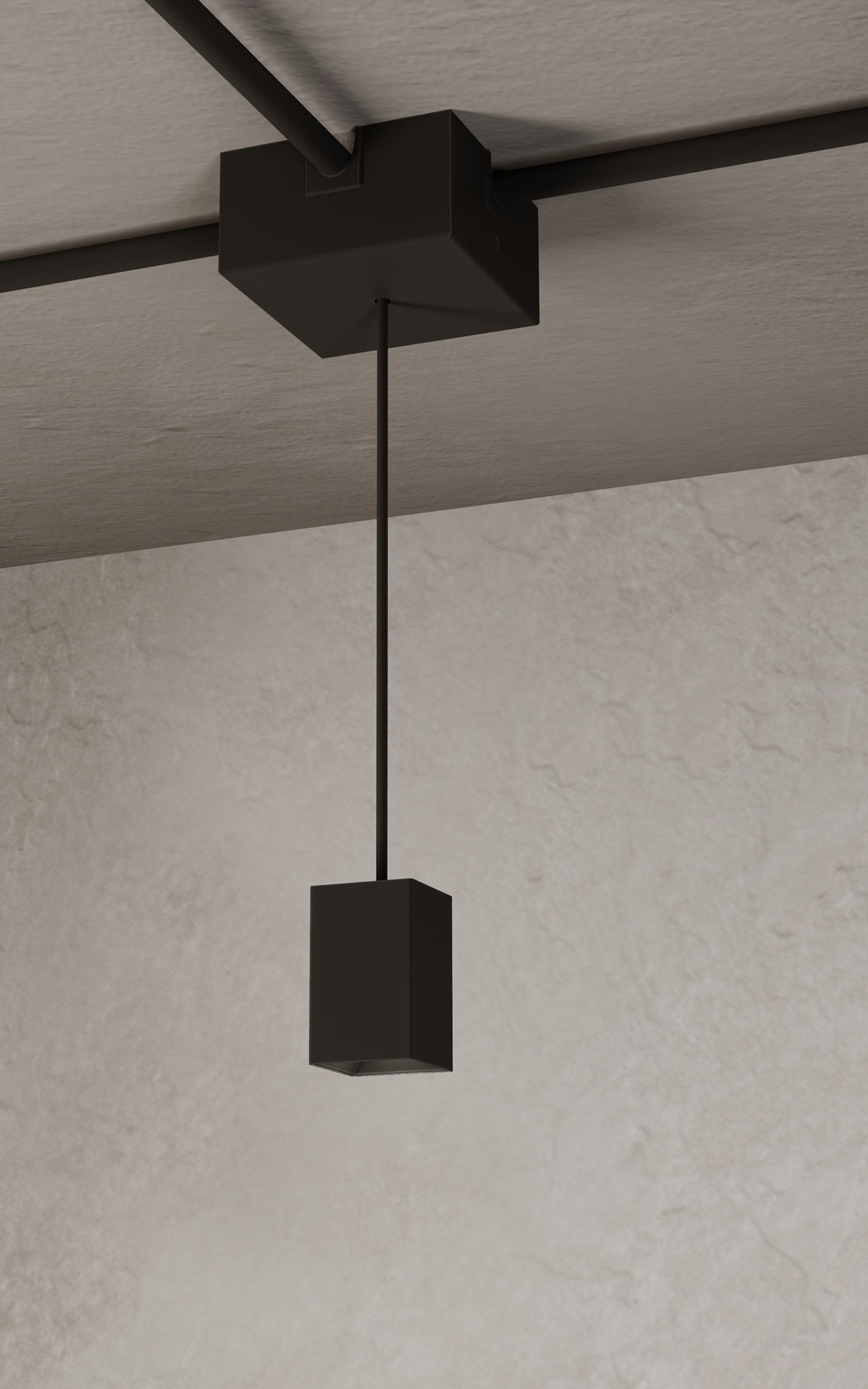

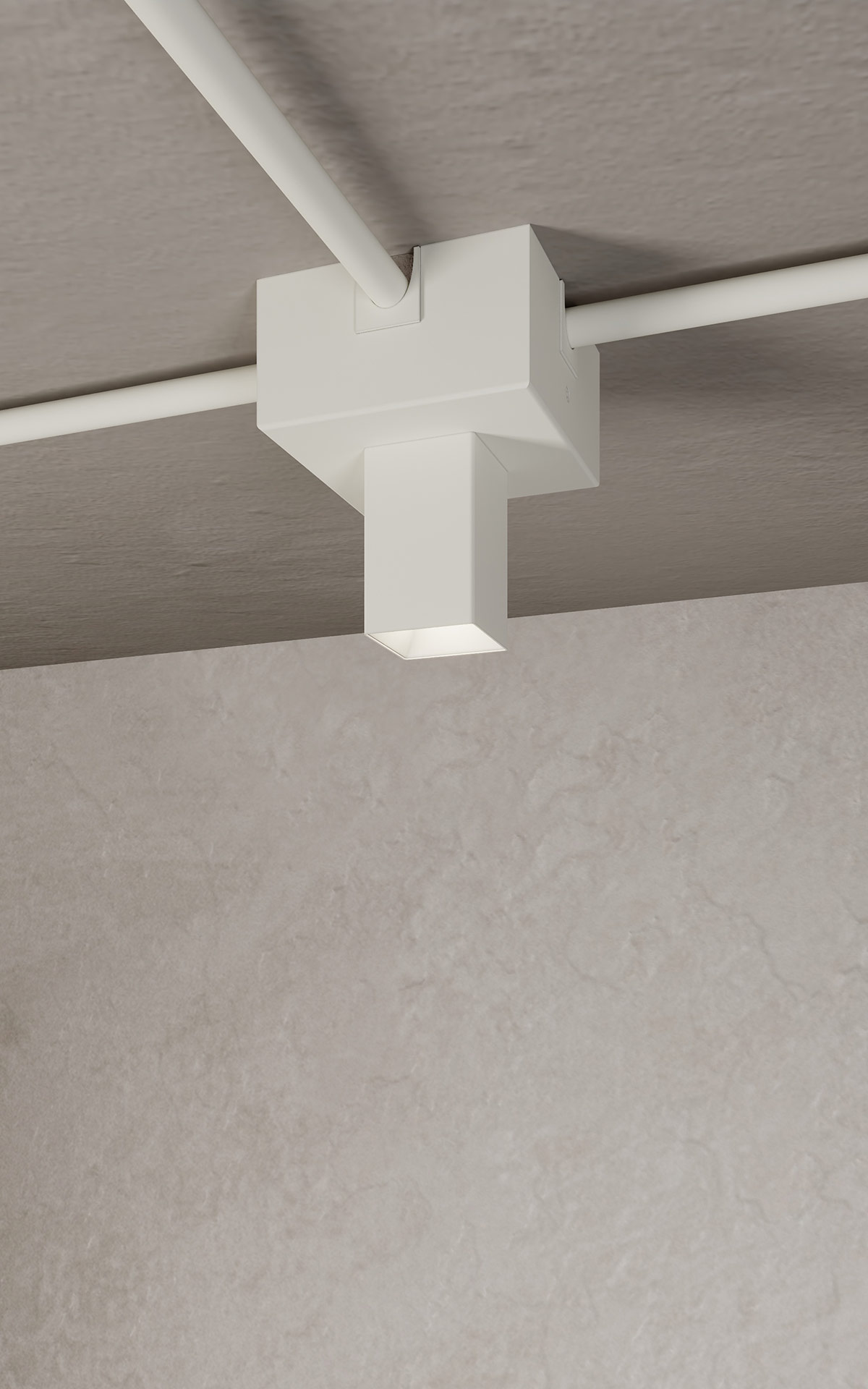

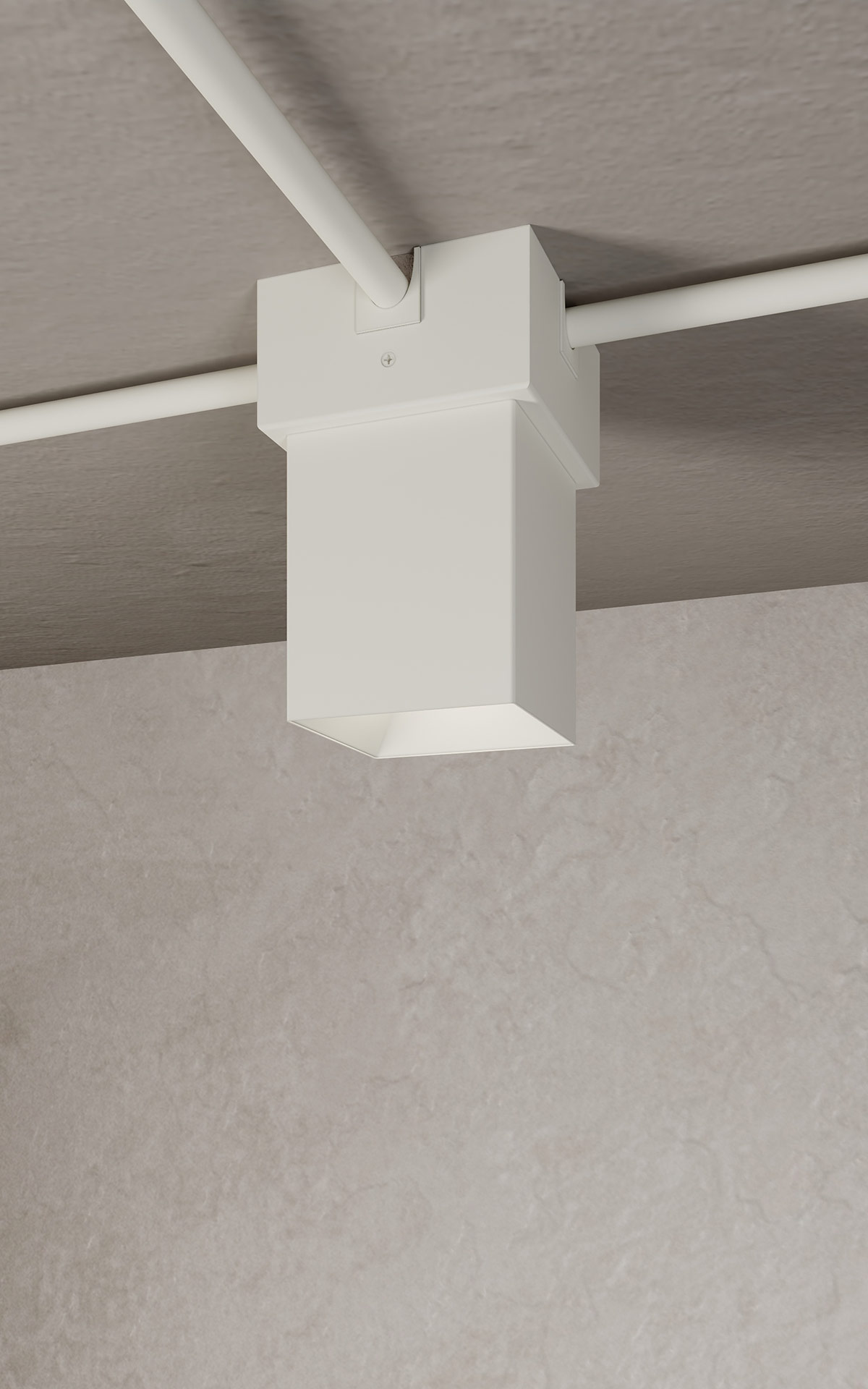

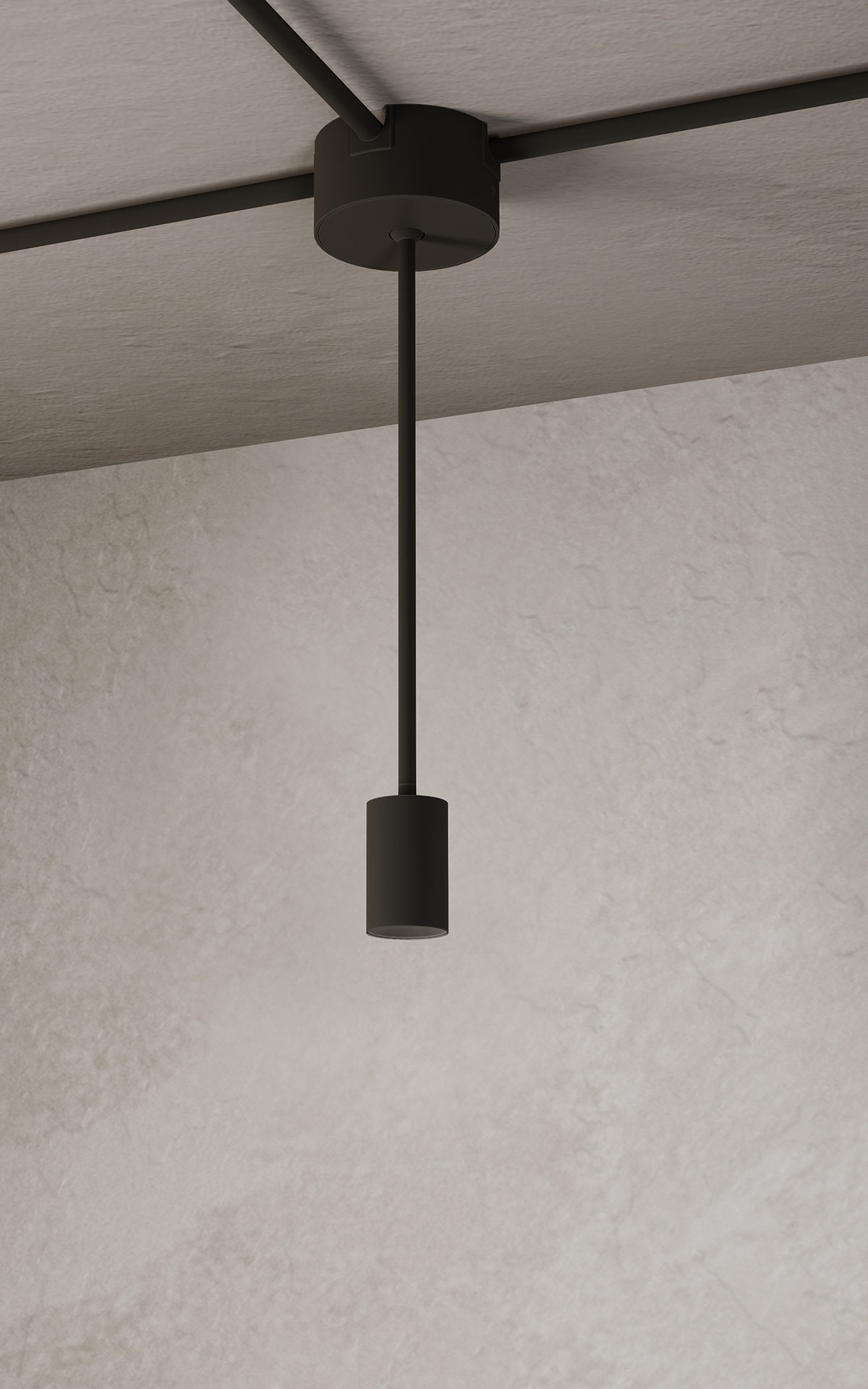

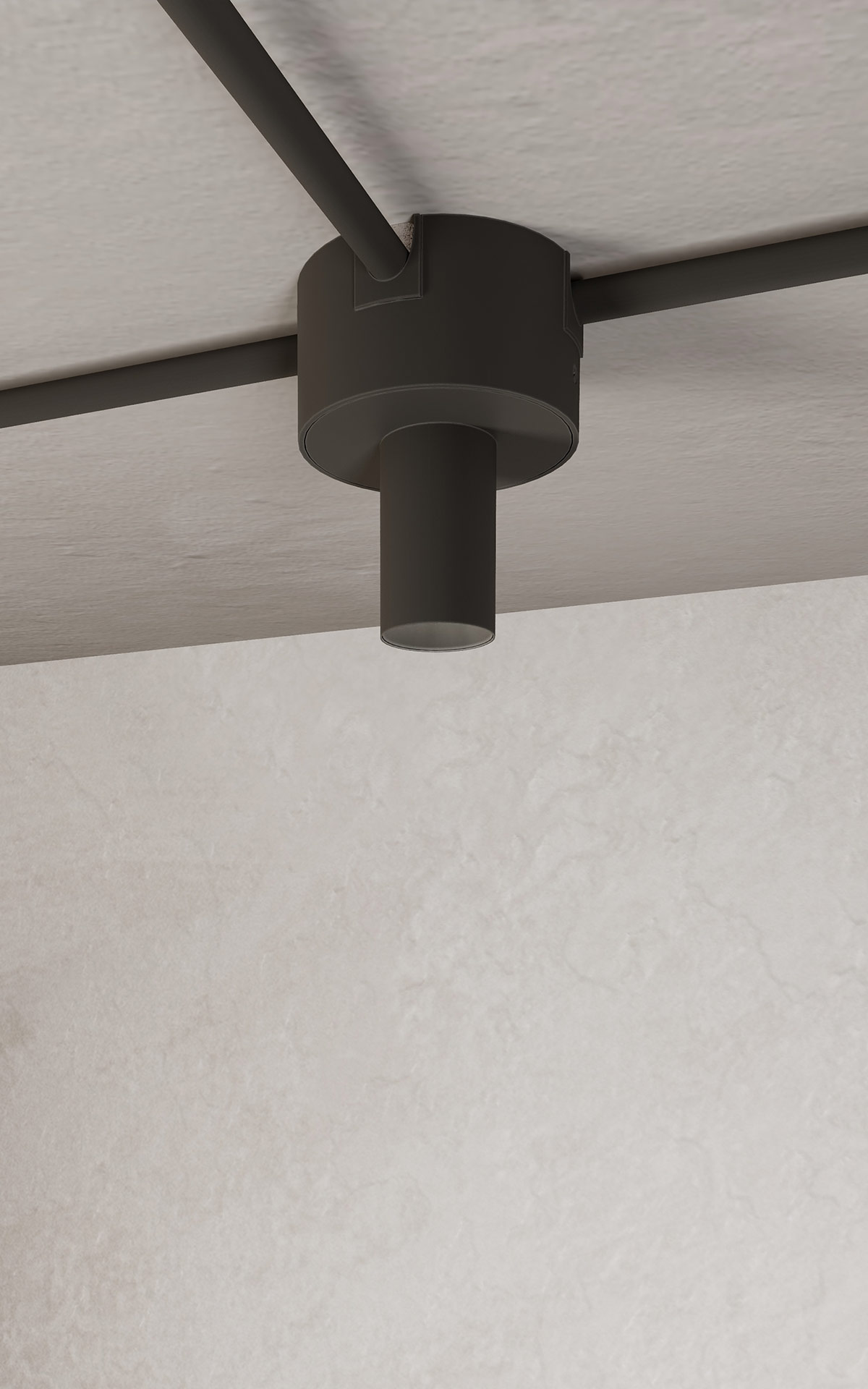

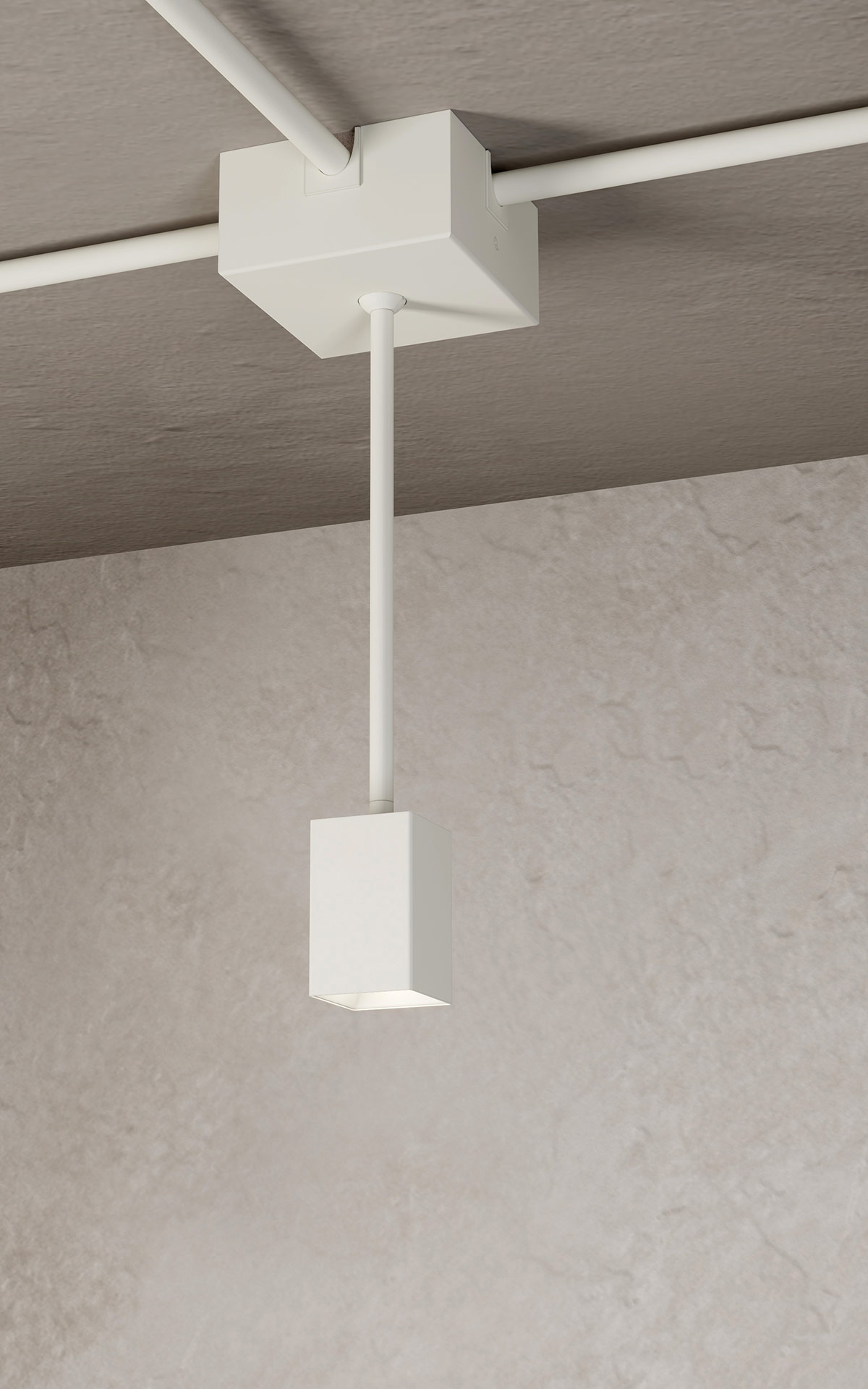

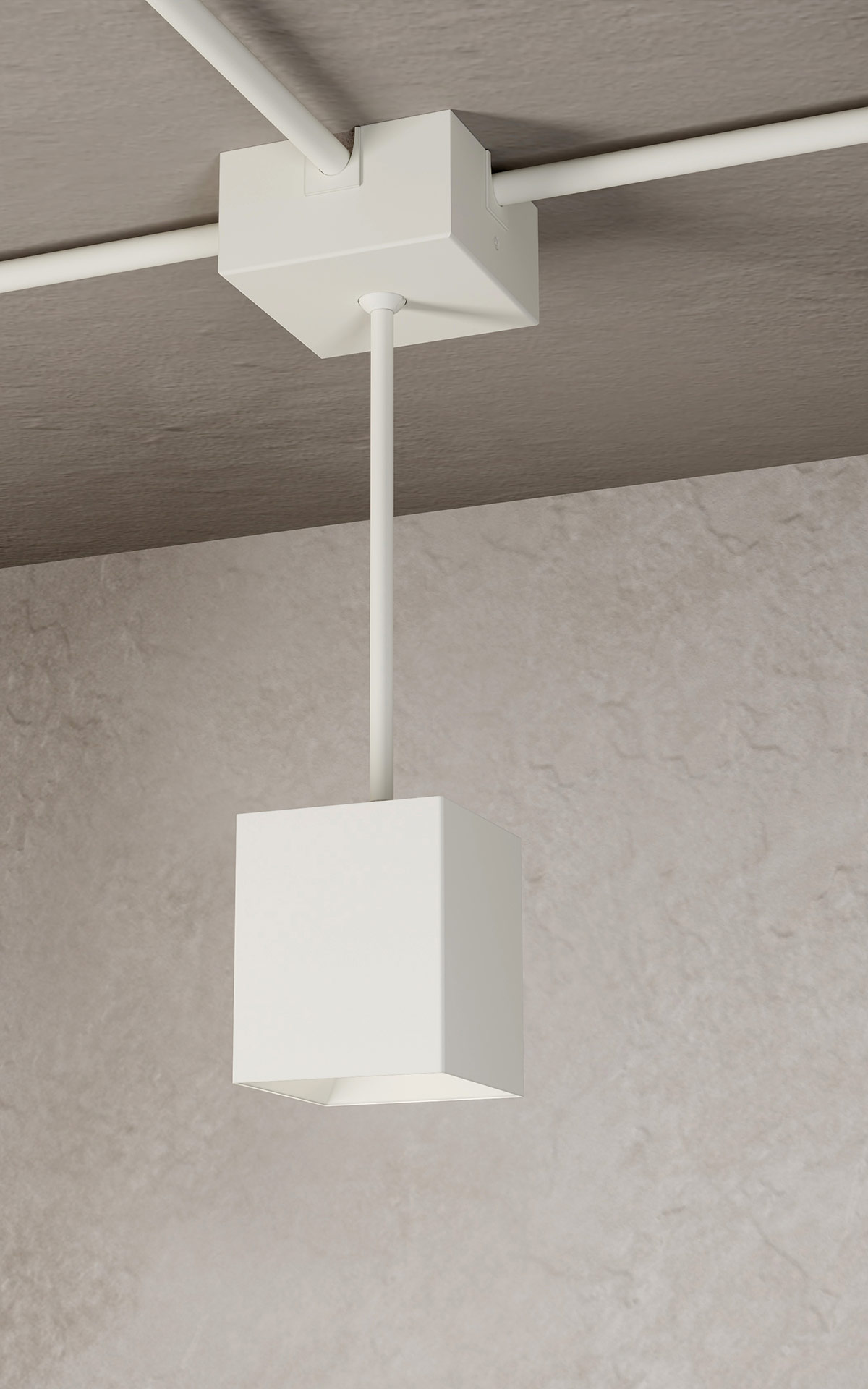

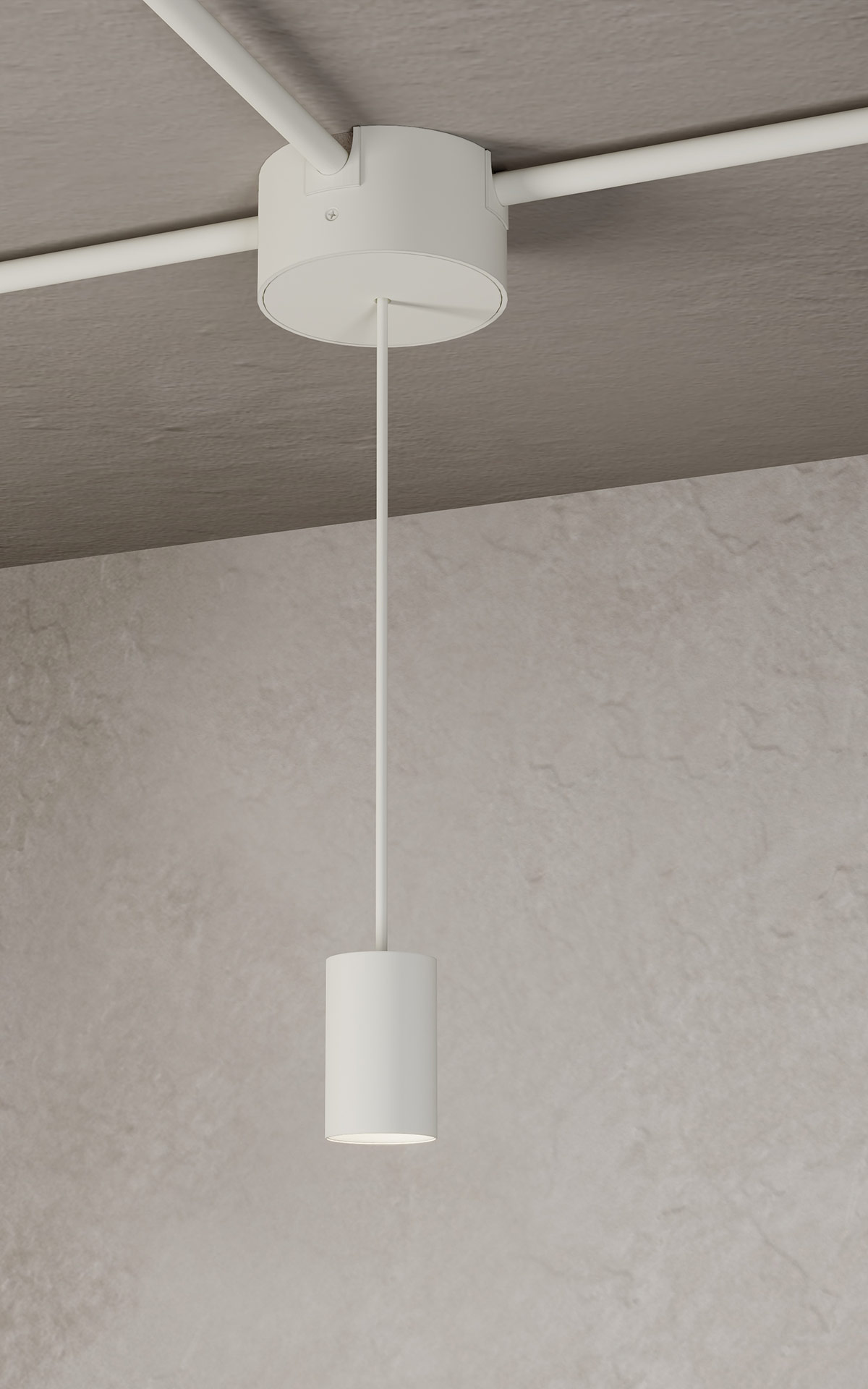

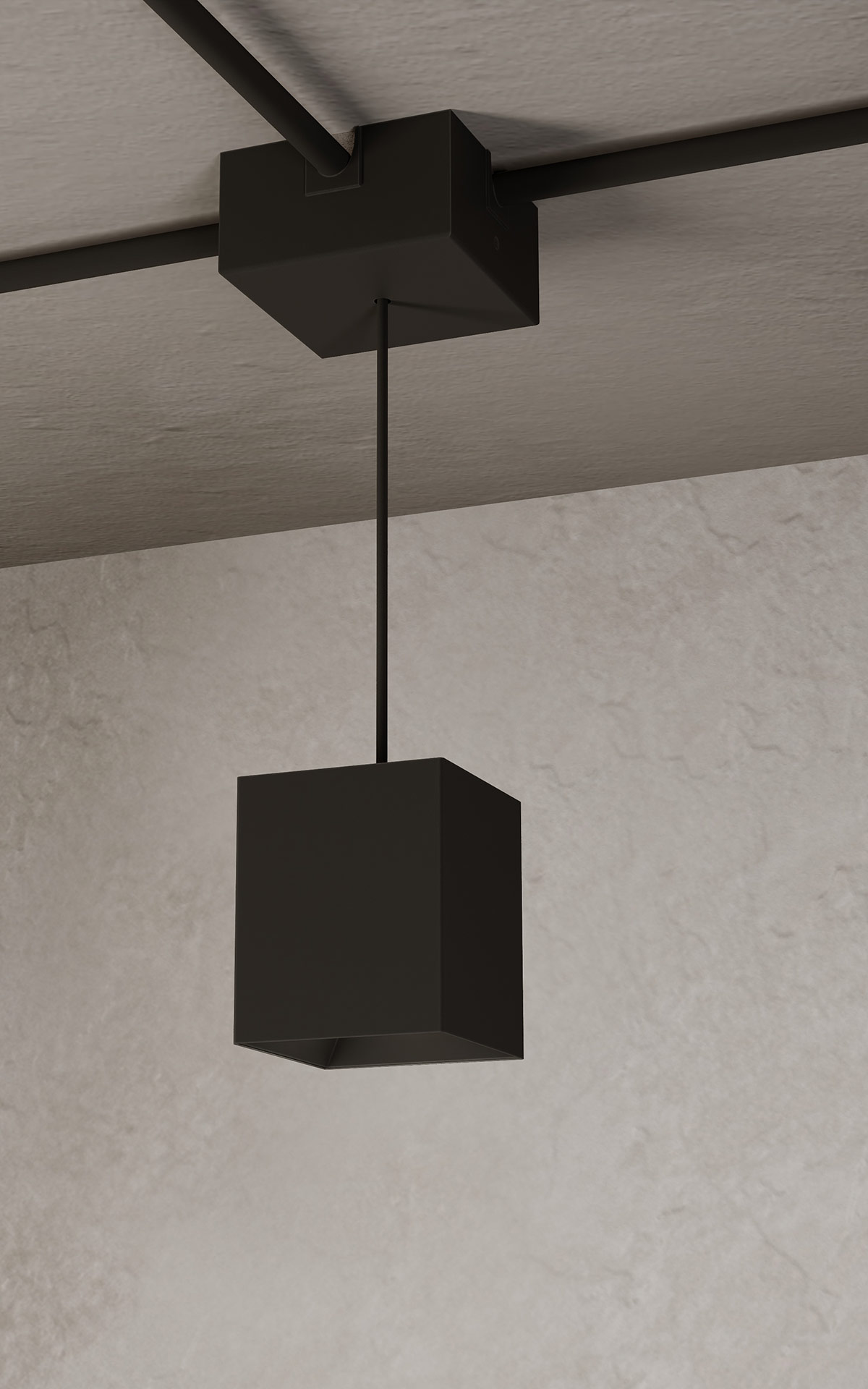

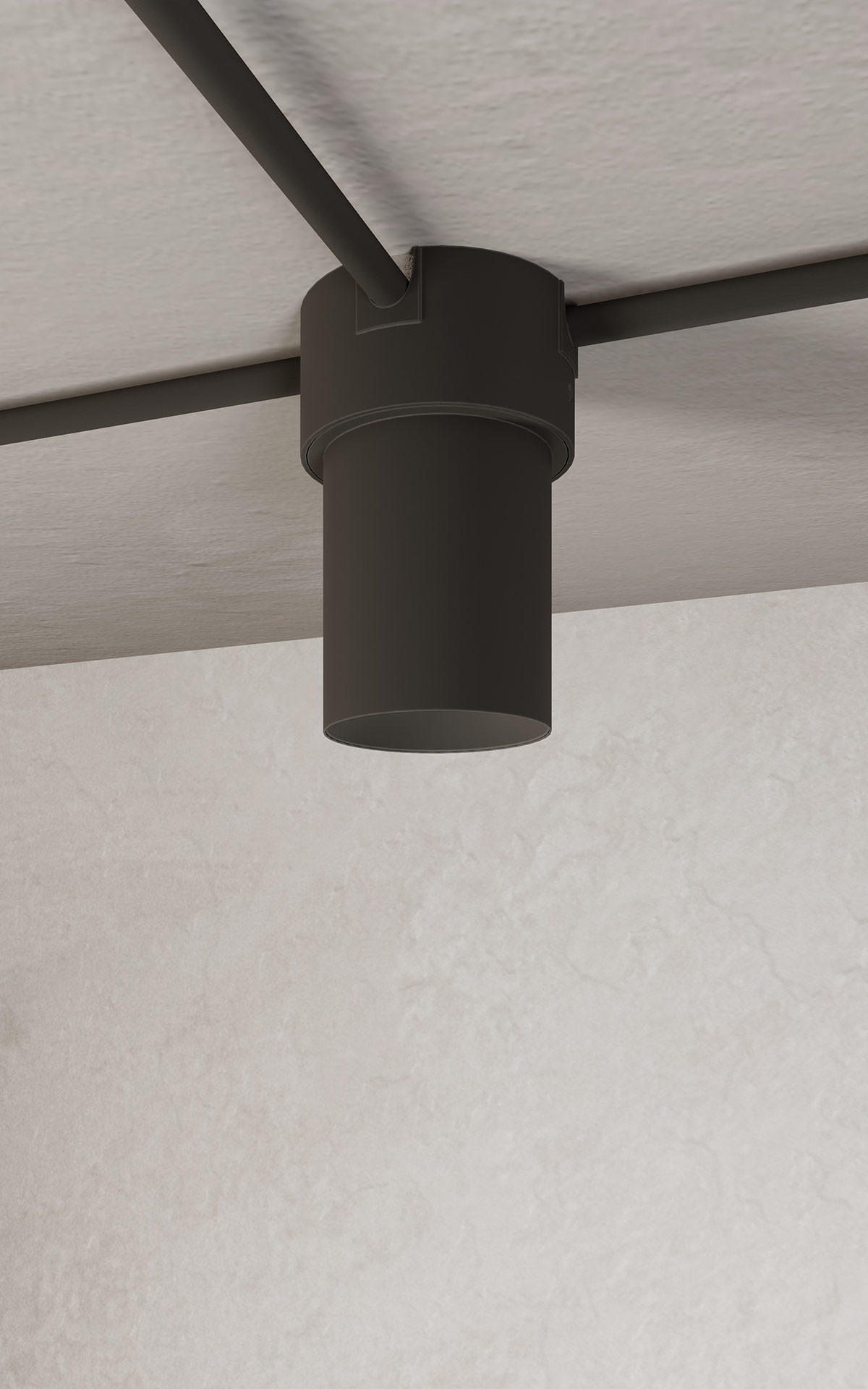

Surface mount fixed or twist. Suspend with stem or cord. LED cylinders available in 23 colors.

Applications

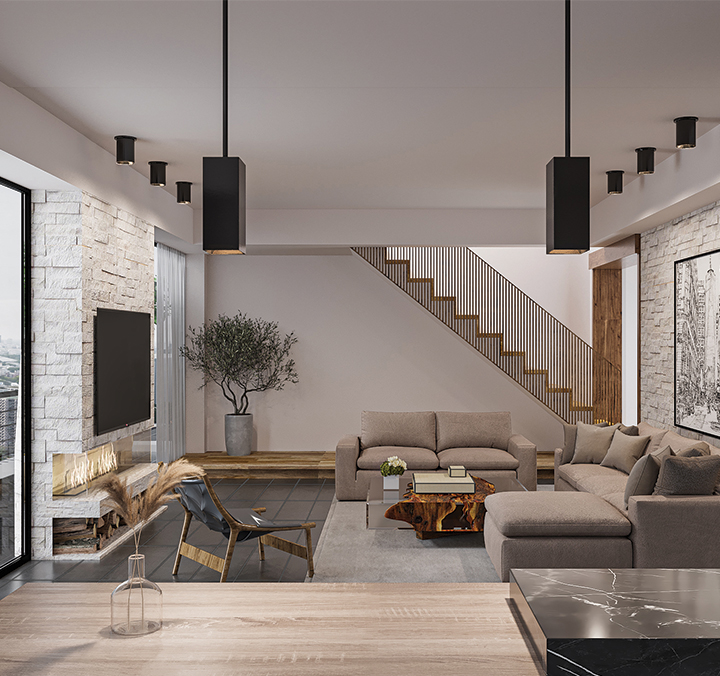

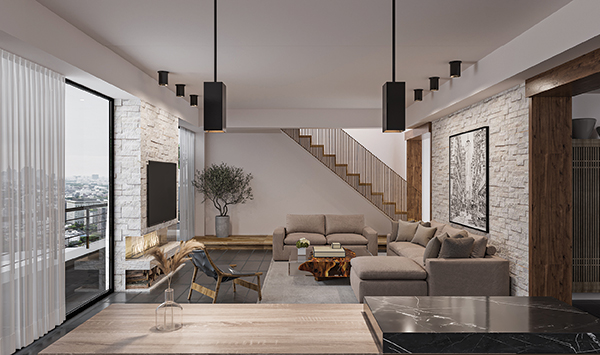

CSL offers colorful, versatile, powerful LED cylinders. Available in 23 stylish colors, they can be mounted on the ceiling or suspended by stem or cord.
