ECO^™ Gen 1

Recessed Downlights

Easy adjustability before installation.
Sophisticated Architectural Finish

Options
Housing
Trim

Downloads

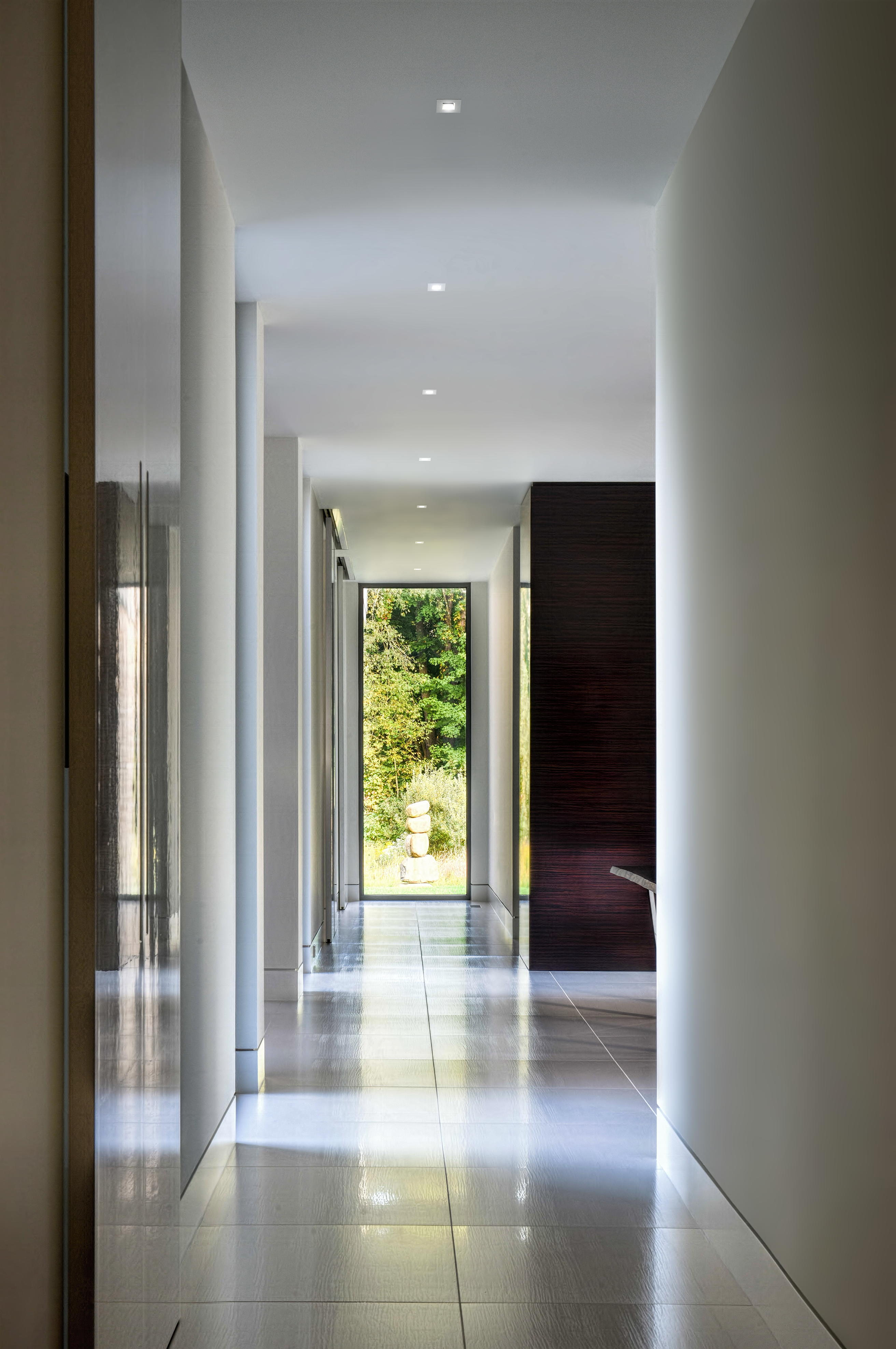

Features

ECO 1”, 3”, 5” LED Recessed Downlights deliver quality lighting and easy installation in new construction, remodel, and shallow plenum installations. The unique optic system provides quality light with minimal glare and maximum control. Lower lumen, lower cost options are available. LED modules and trims ship separately from housings. These are the original ECO Recessed Downlights, available in limited quantities for a limited time only.

LED Light Engine

High quality LEDs chosen with 2 SDCM binning. LED lifetime 50,000 hours.

Quality Optics

10° 30° 50° 80° uniform beam spreads available. Optional media provide added control or diffusion.

High Performance Drivers

TRIAC/ELV, 0-10V, EcoSystem, dims to 1% standard, 0.5% and Warm Dim available

Options

LED light engine performance

	1"	3"	5"
BEST FOR	Clean, Modern, Minimalist	Accents with Higher Lumens	General Uniform Lighting
ADJUSTABILITY	15° Tilt 360° Rotation	45° Tilt 360° Rotation	45° Tilt 360° Rotation
10° 30° 50° 80° OPTICS	X	X	X
MEDIA	Clear, Solite, Frosted, Wall Wash, Linear Spread, Hex
WATTAGE	8W or 12W	13W or 21W	17W or 30W
MAX DELIVERED LUMENS	1150	2000	2500
EFFICACY	up to 96	up to 95	up to 83
CCT @ 90 CRI	2700K, 3000K, 3500K, 4000K
LED LIFETIME	L70˃50,000 Hours
DIMMING TYPES	TRIAC/ELV, 0-10V, EcoSystem
SERVICEABILITY	Above Ceiling	Above Ceiling	Above Ceiling
MIN PLENUM HEIGHT	4"	2 1/2"	4 5/8"

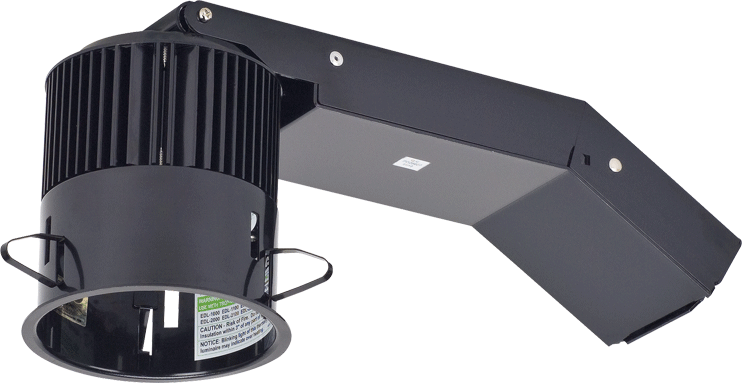

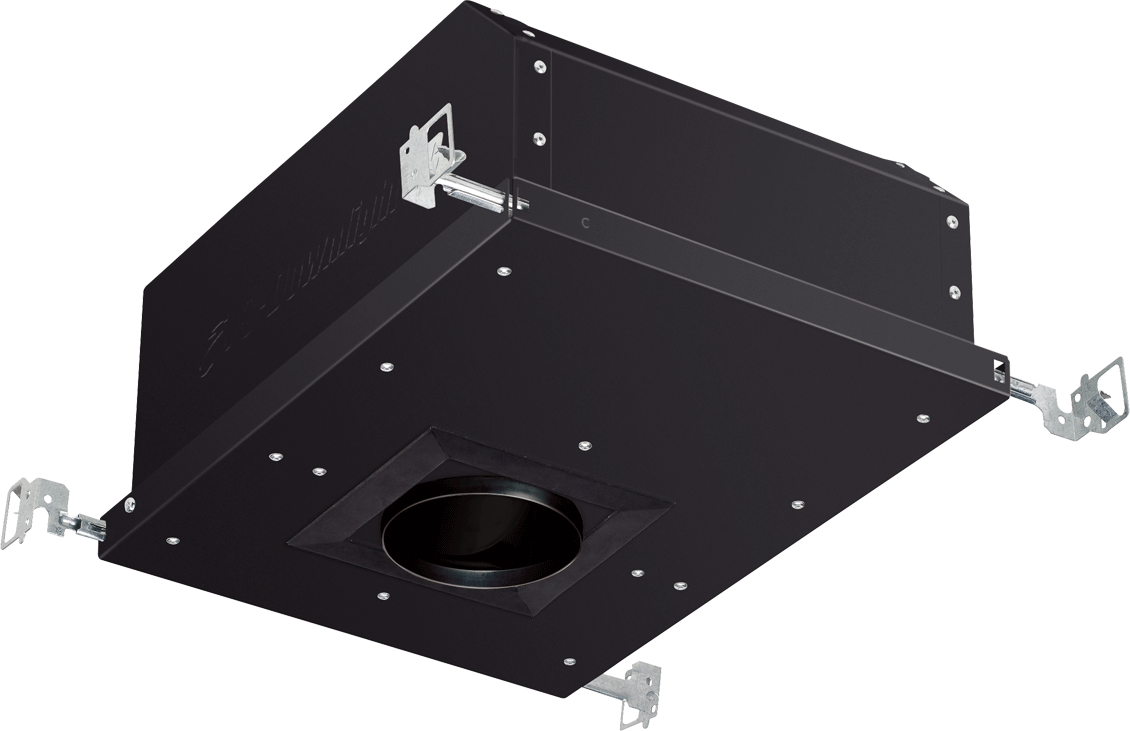

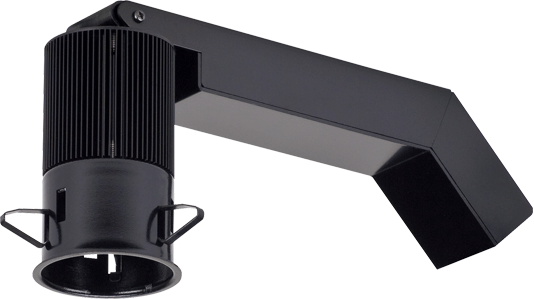

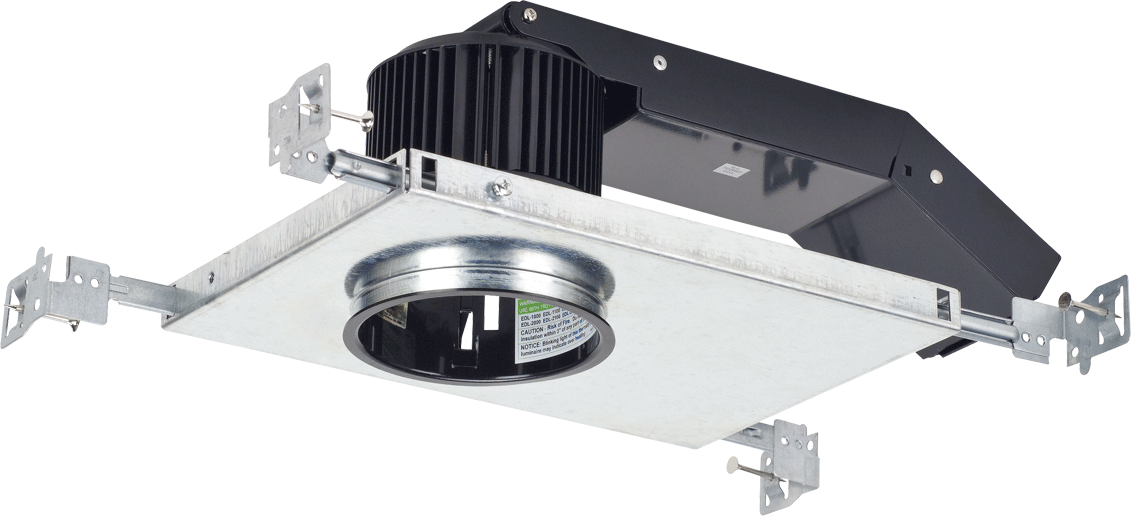

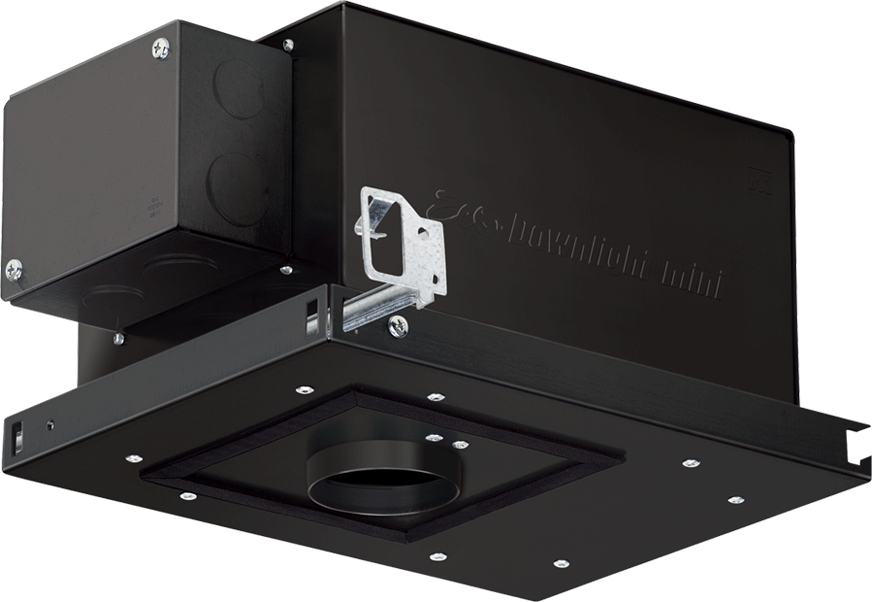

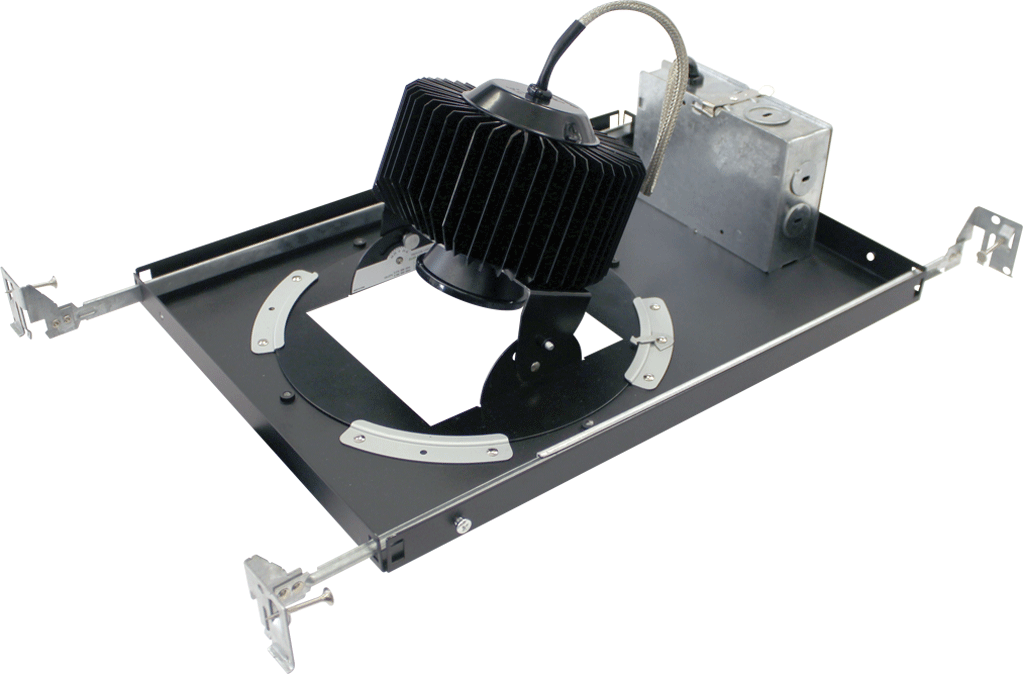

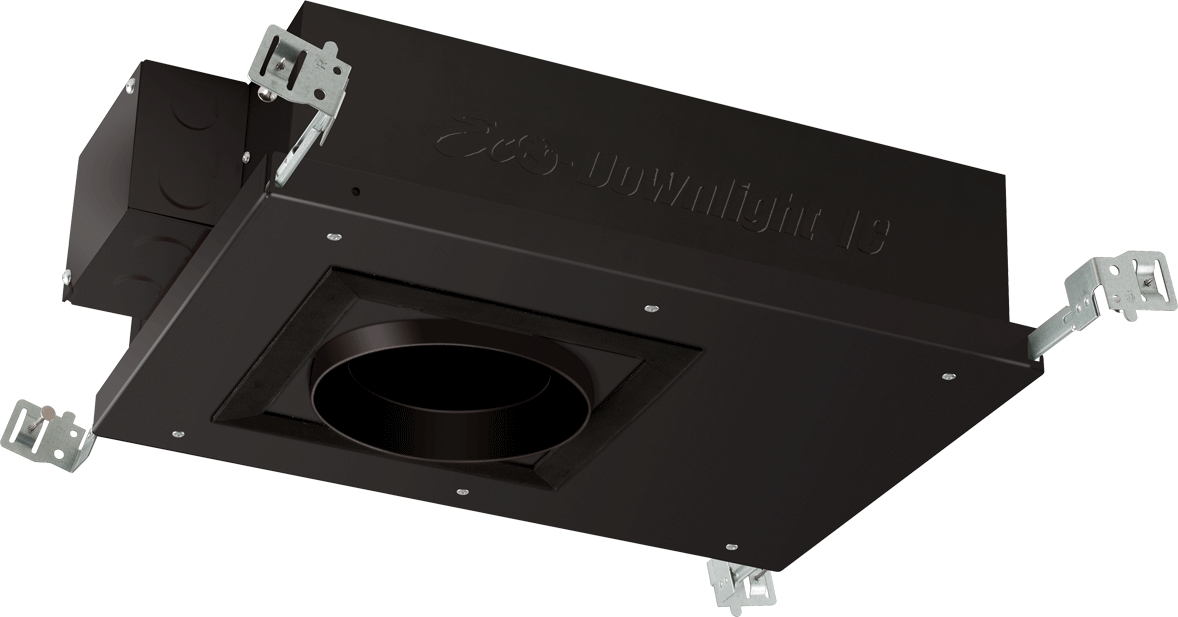

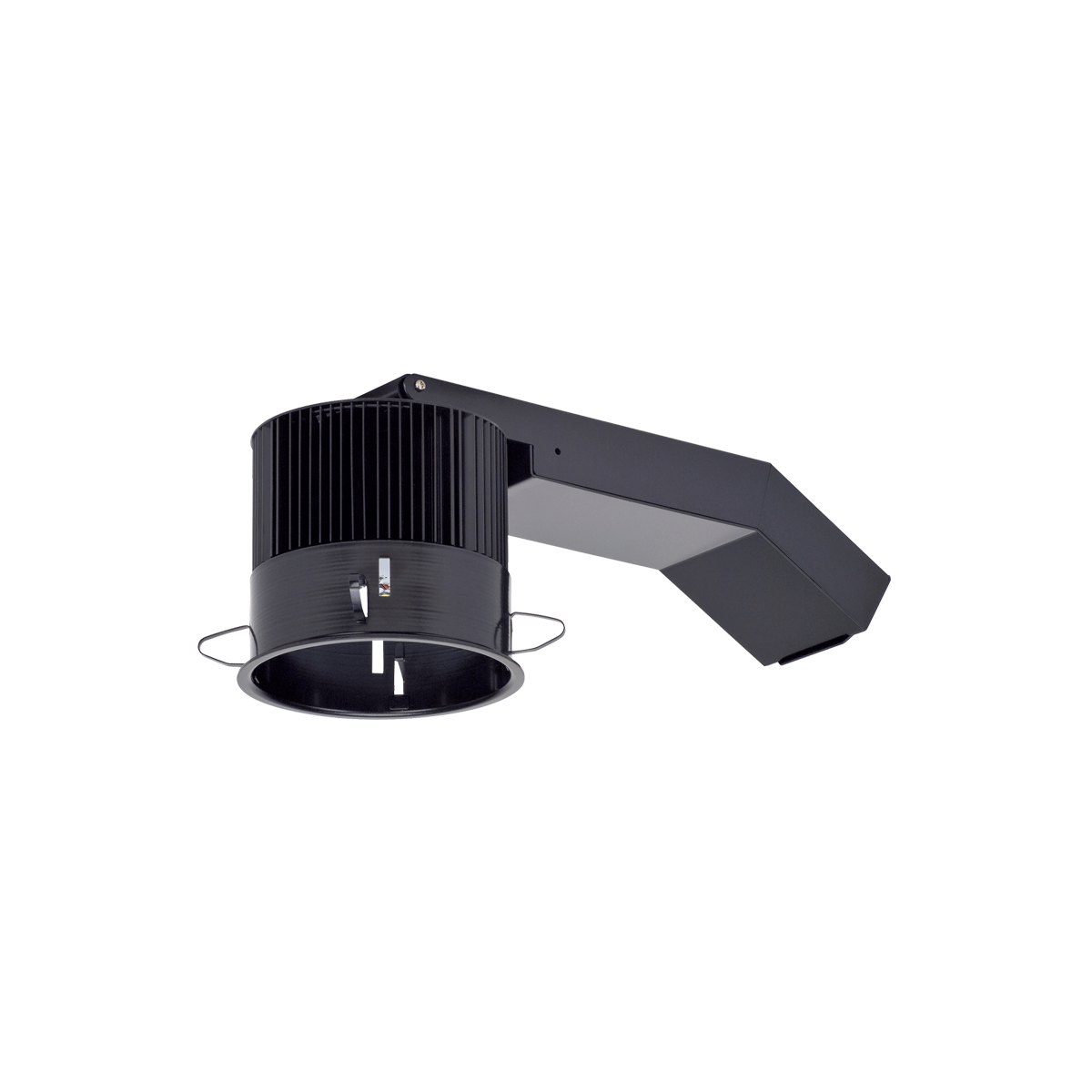

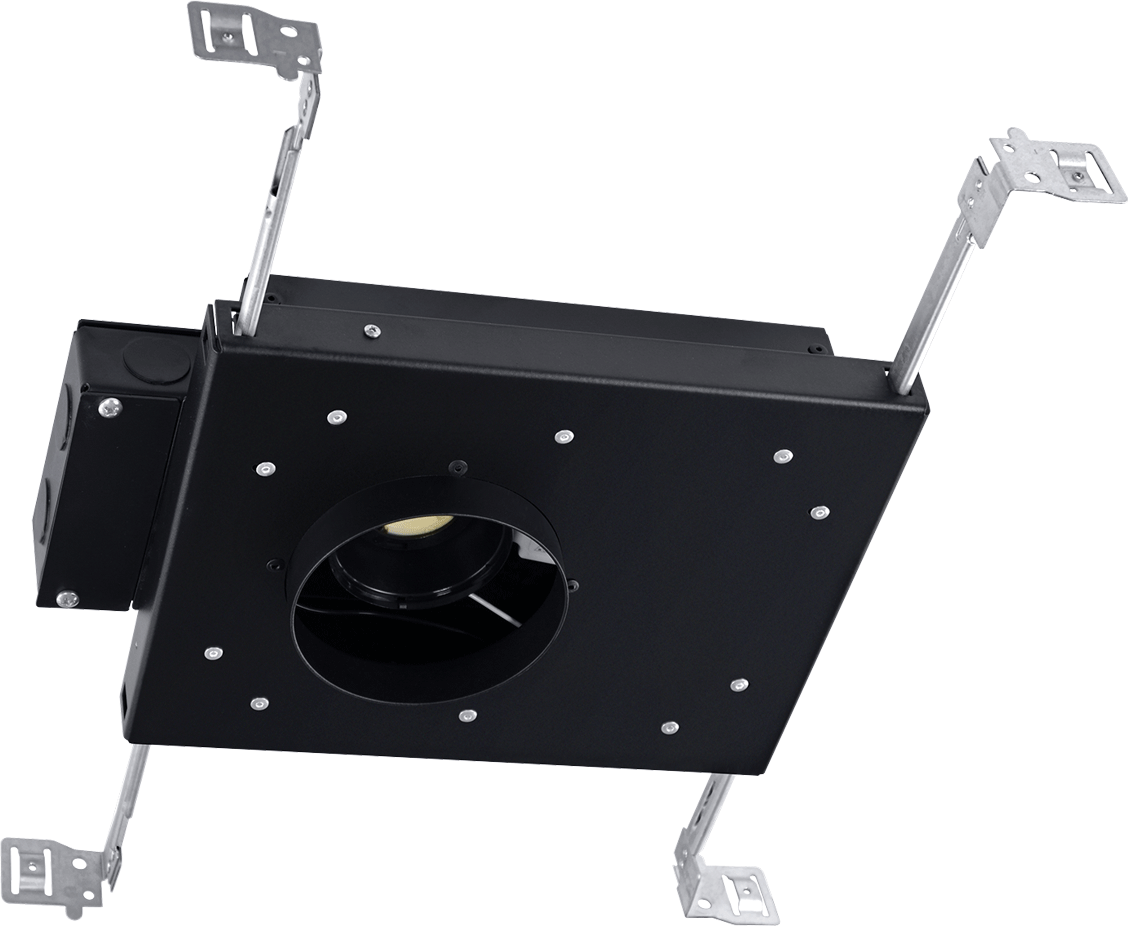

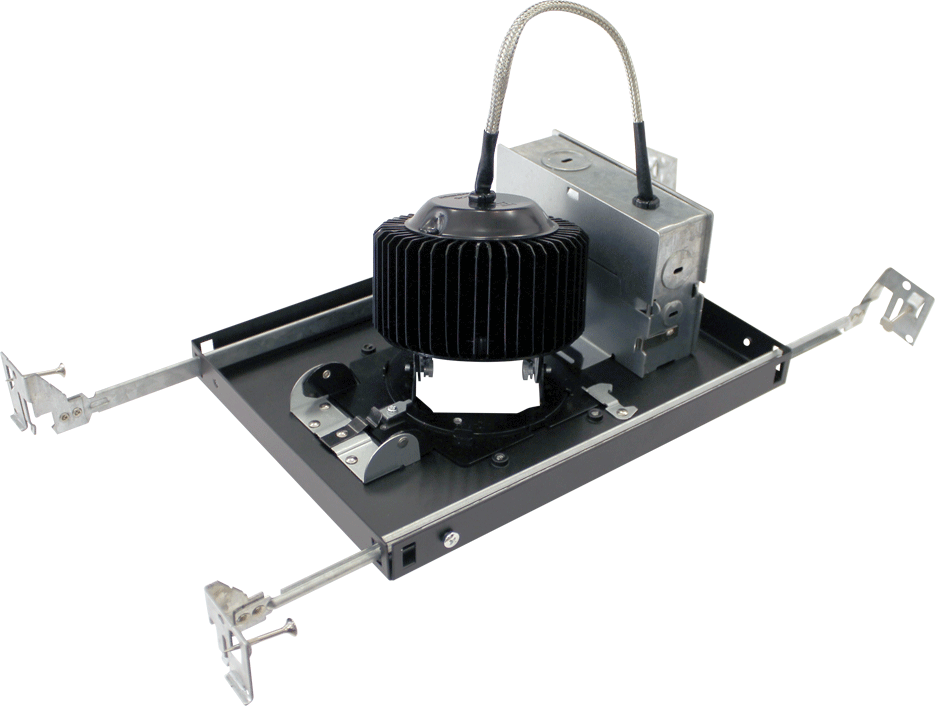

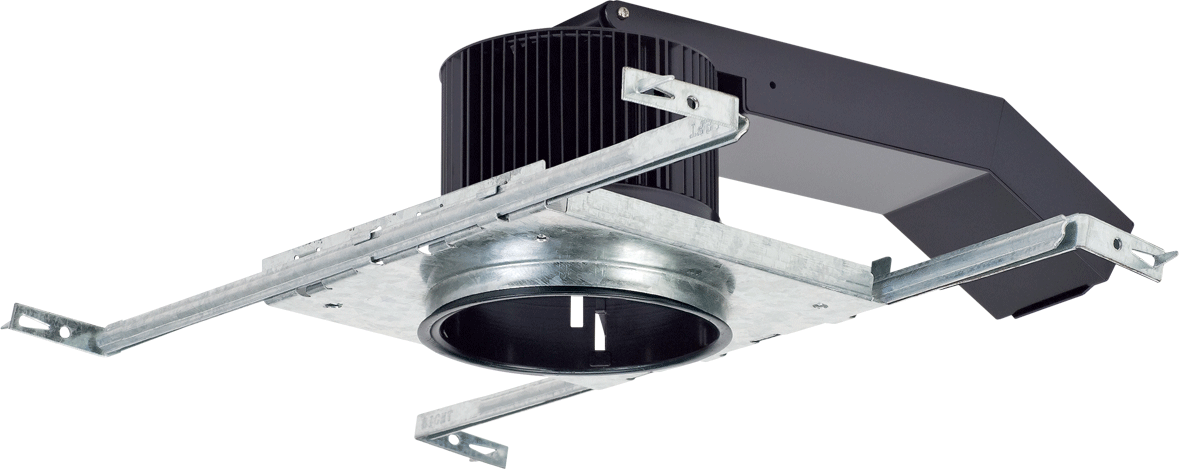

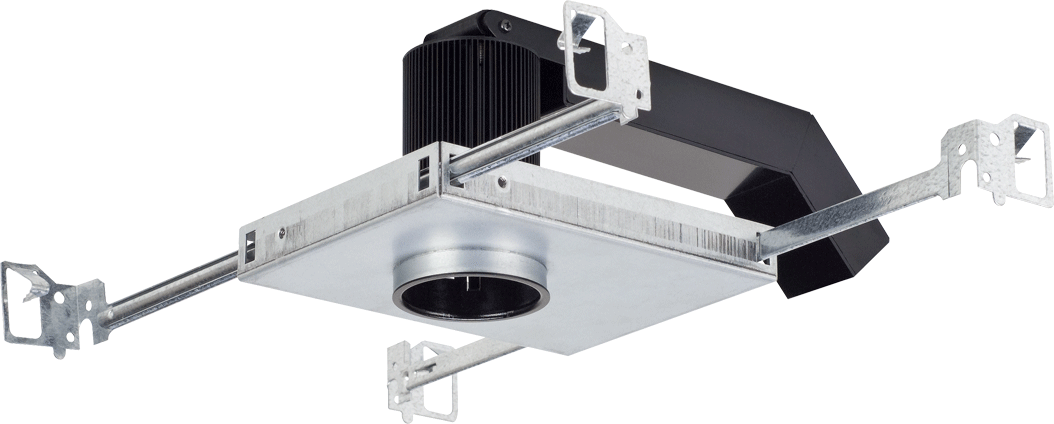

Housing

Eco Gen 1
- - Housing
  - Type
  - Description
  - Watts

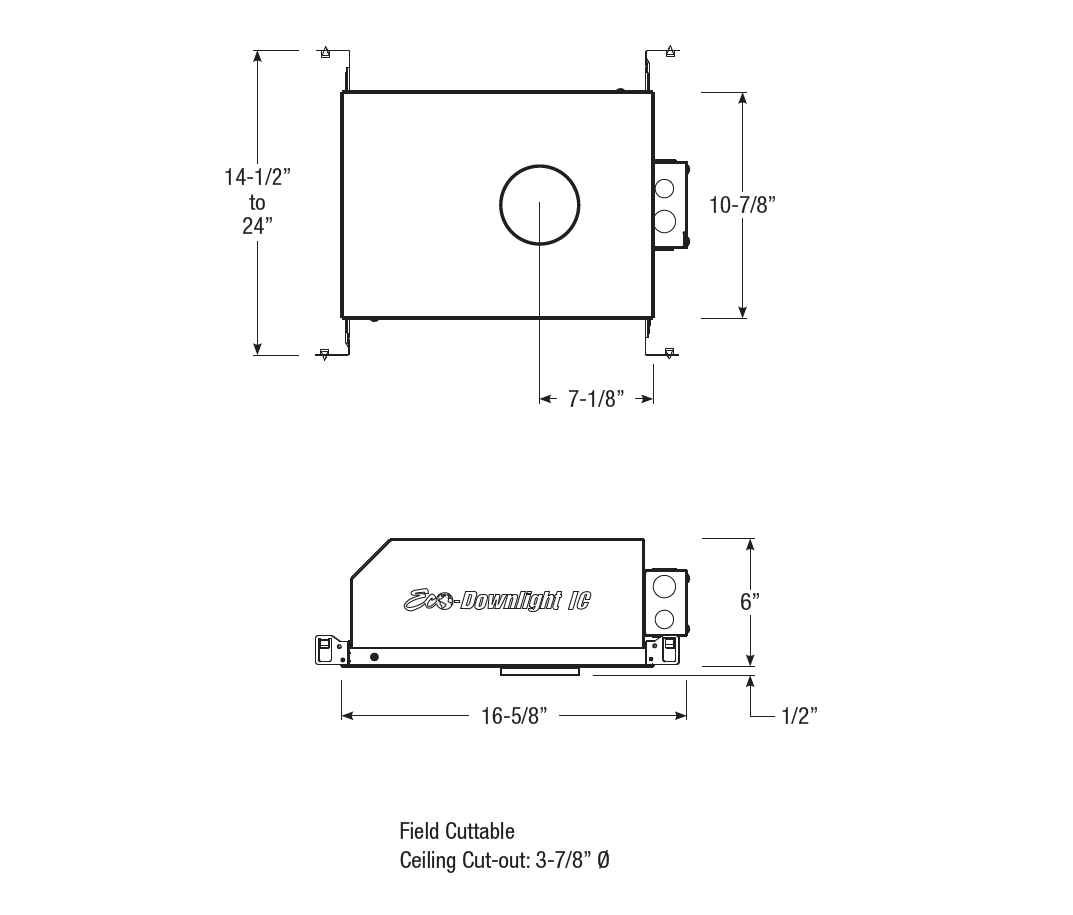

Eco Gen 3
- - Housing
  - Type
  - Description
  - Watts
Eco Gen 5
- - Housing
  - Type
  - Description
  - Watts

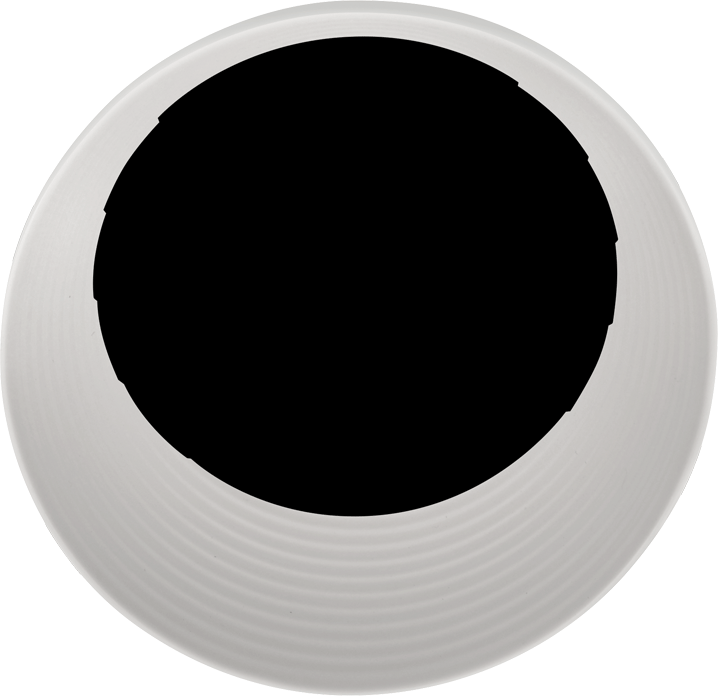

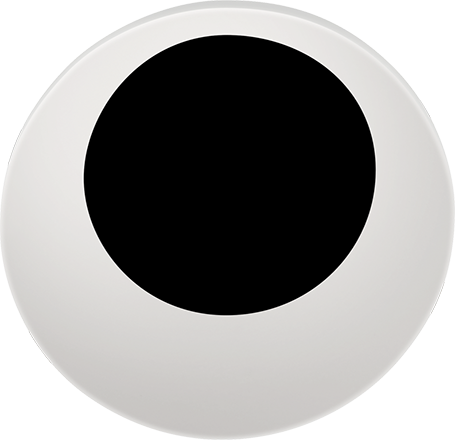

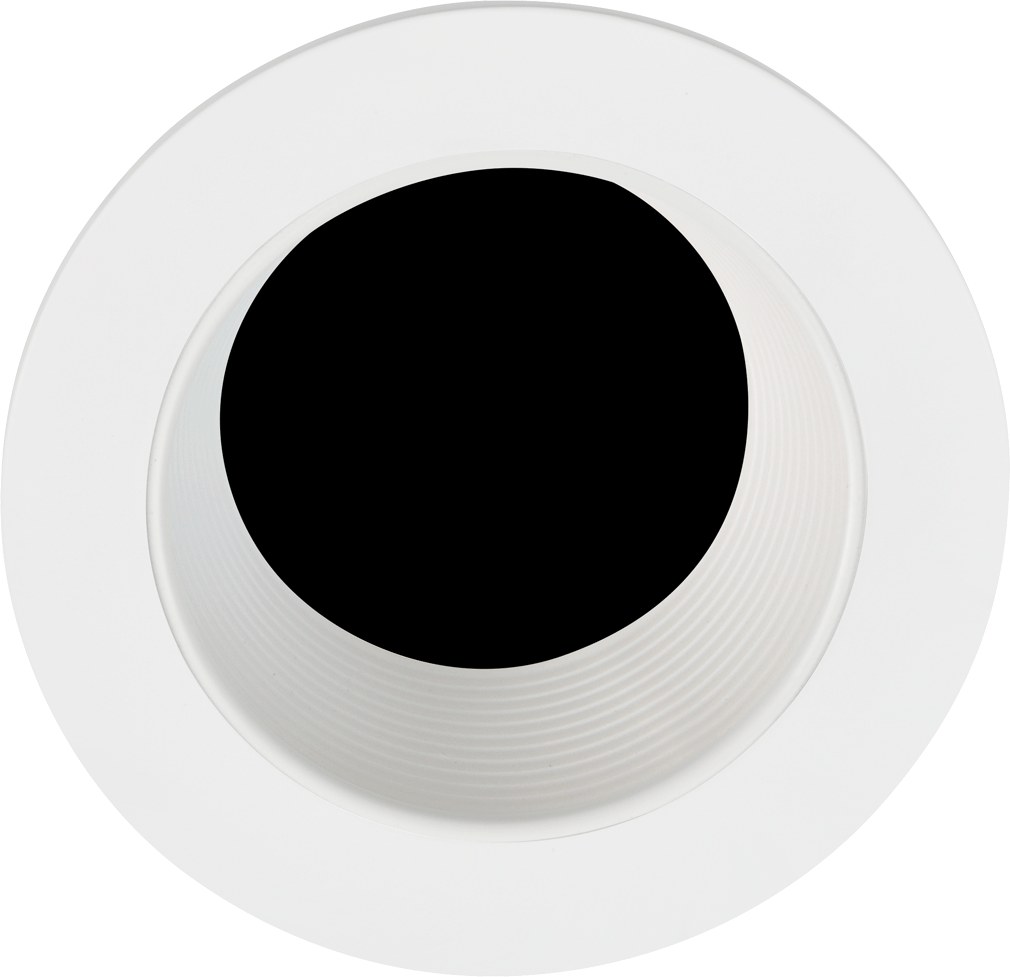

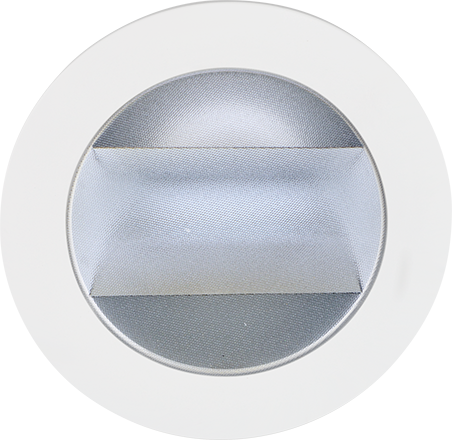

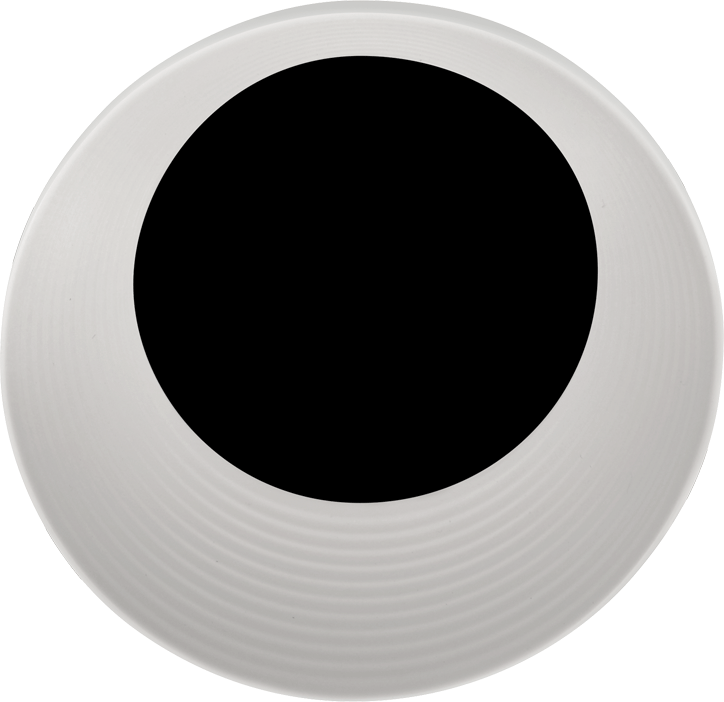

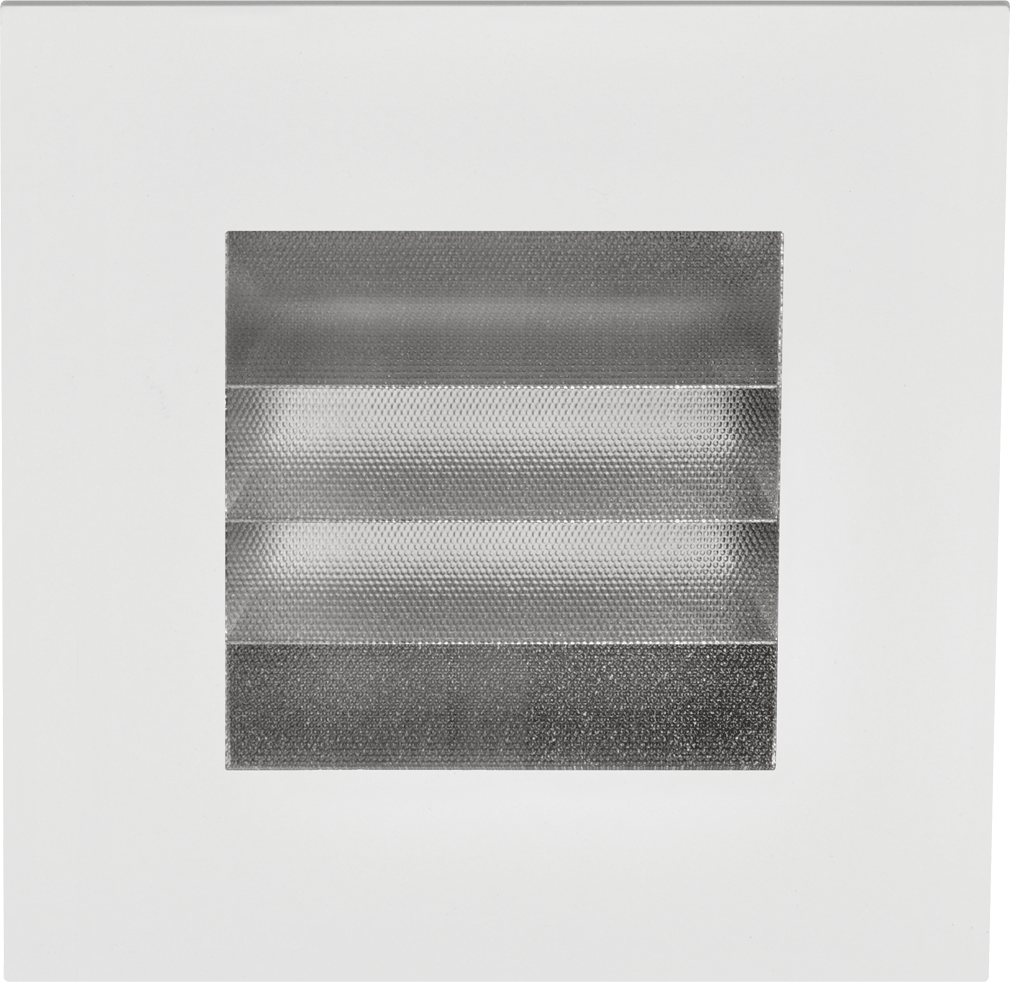

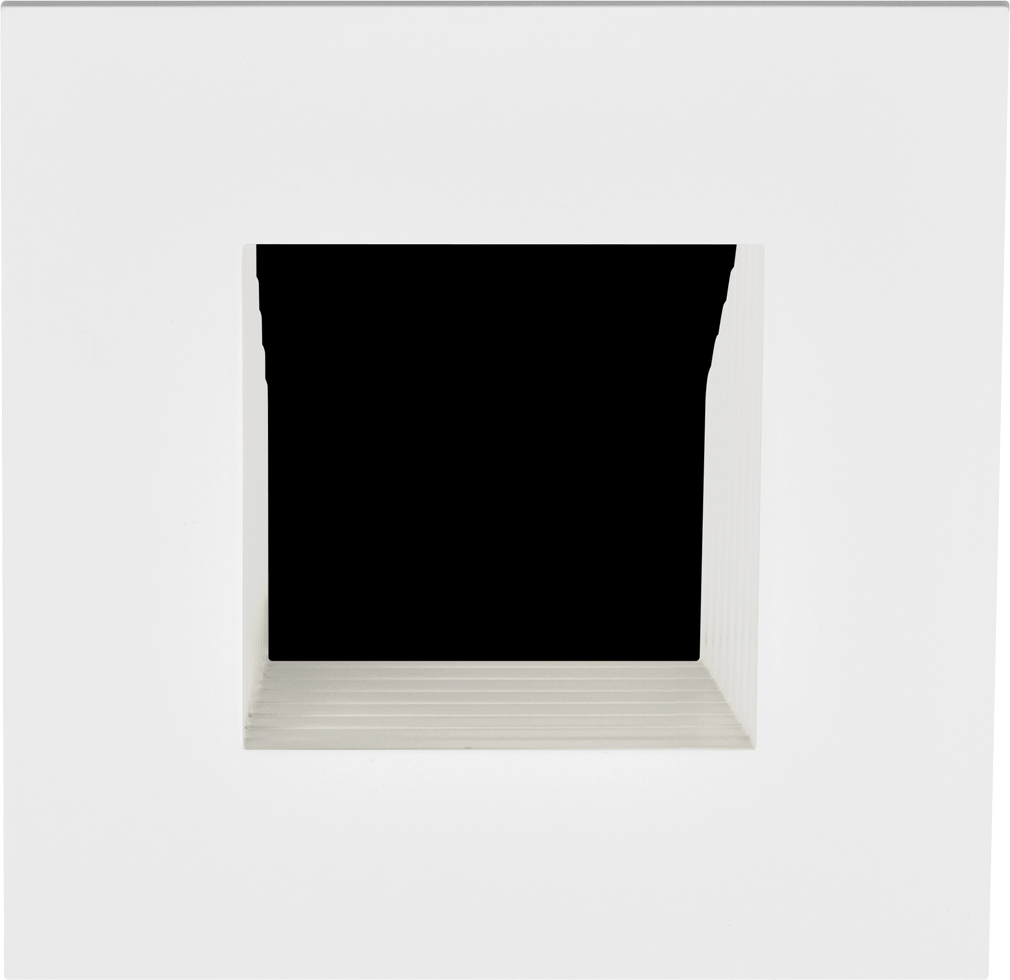

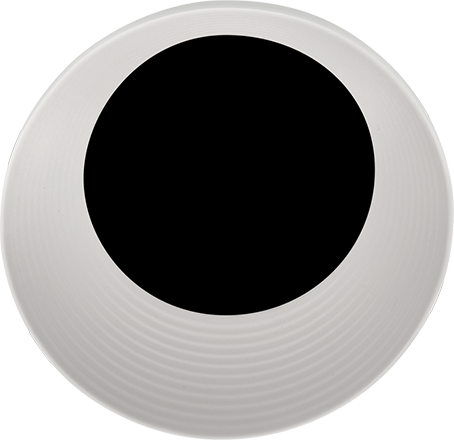

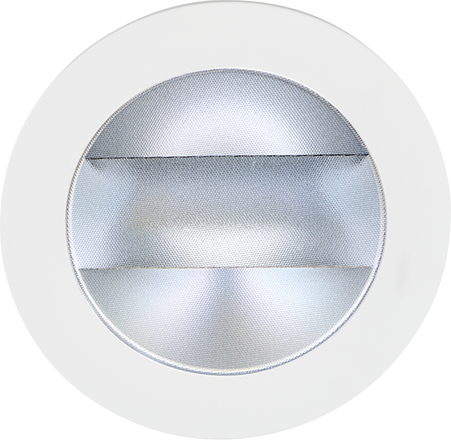

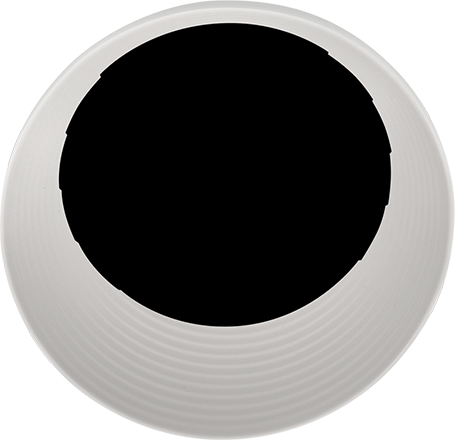

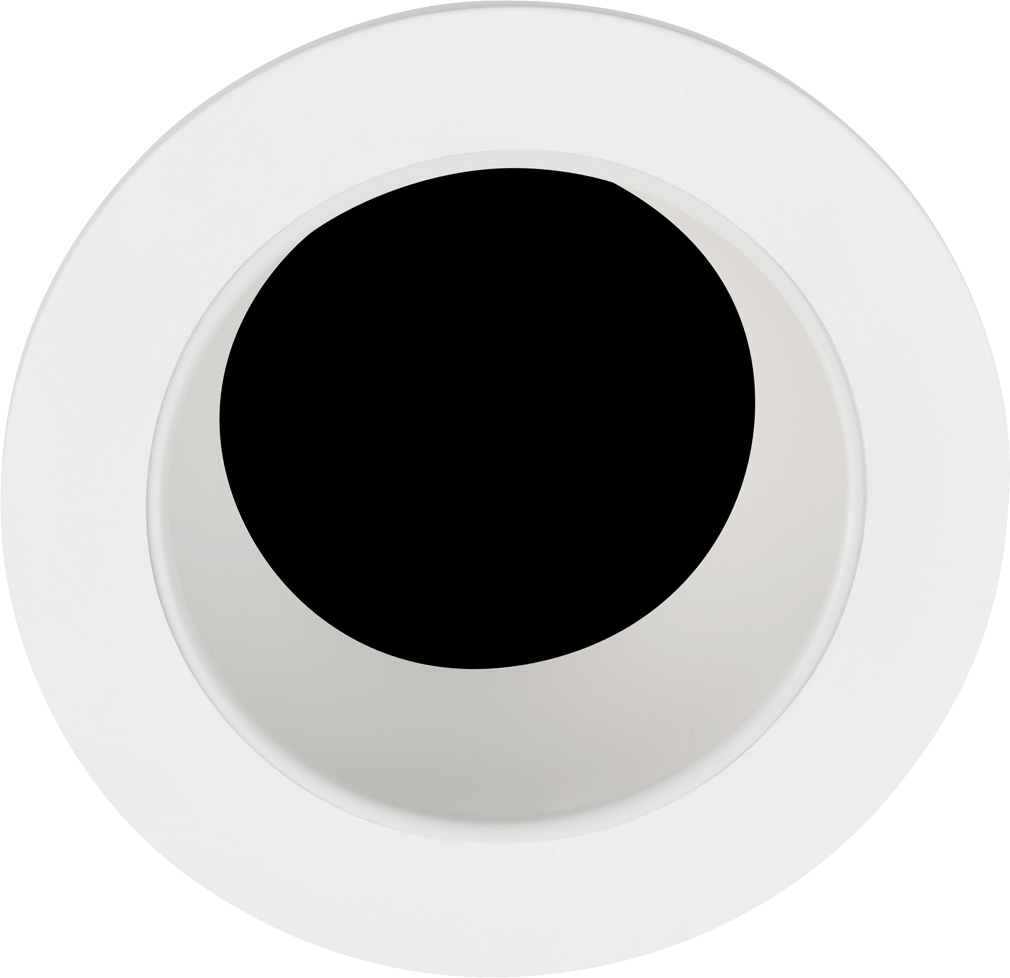

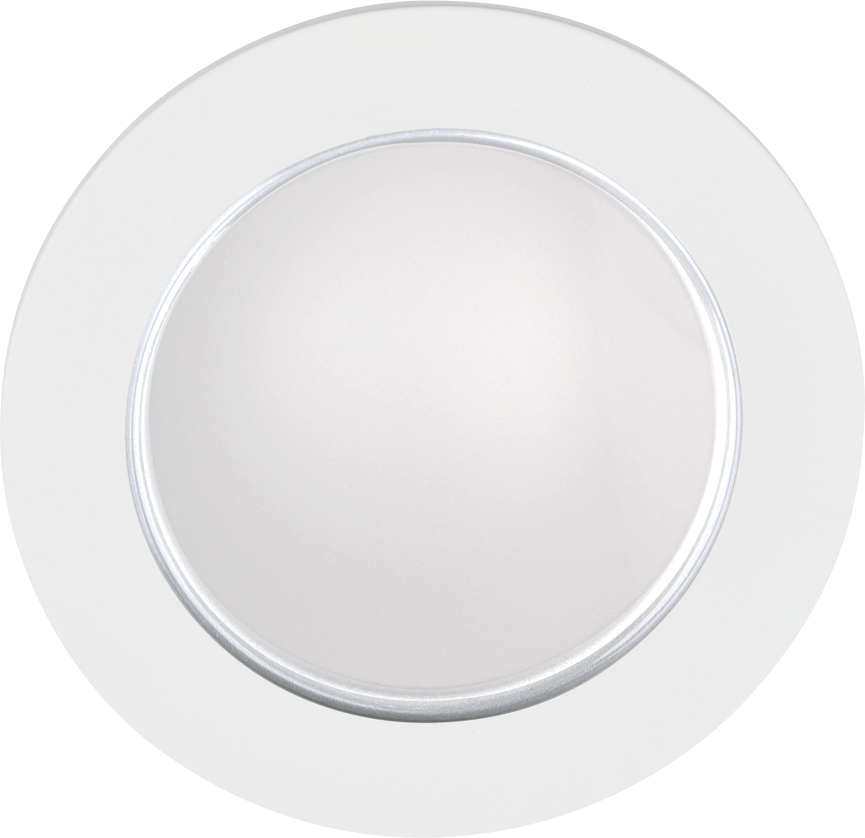

Trims

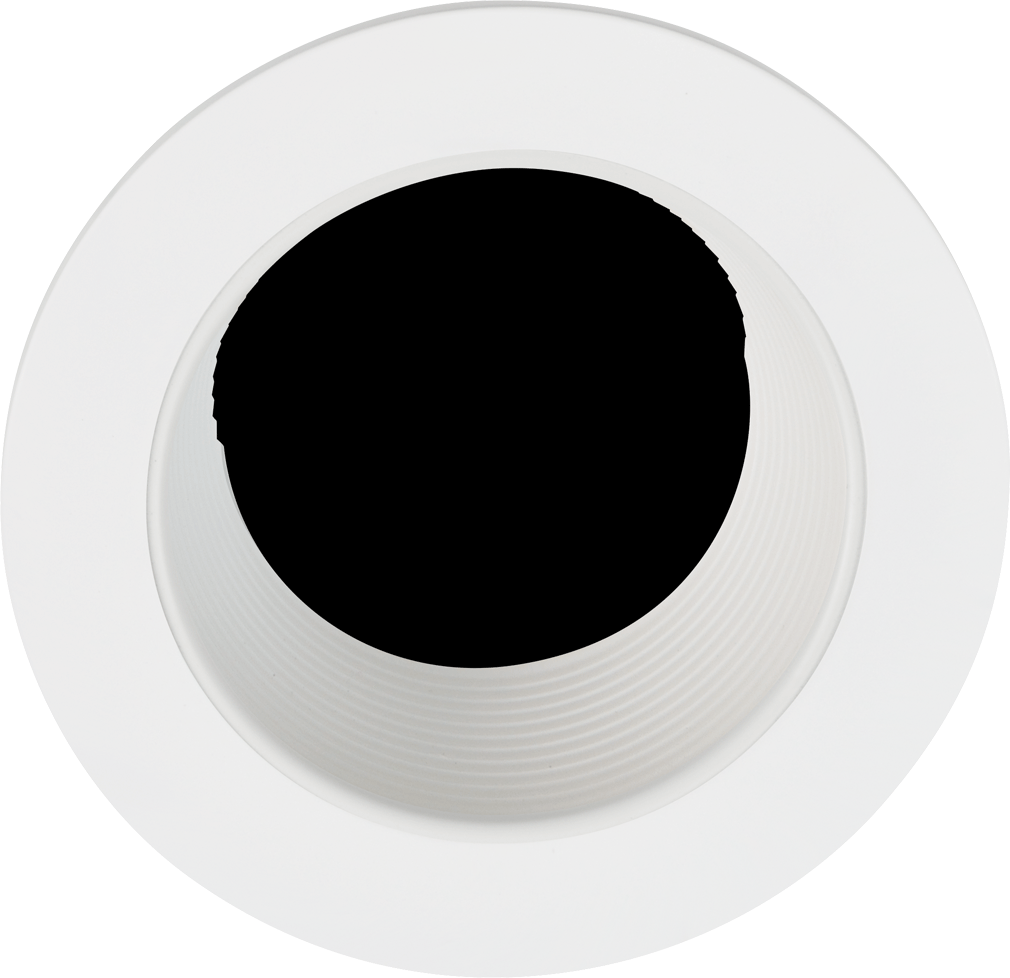

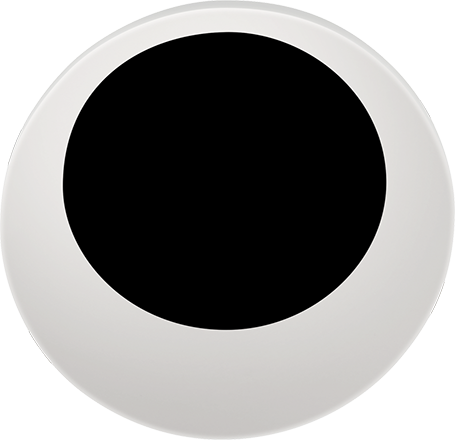

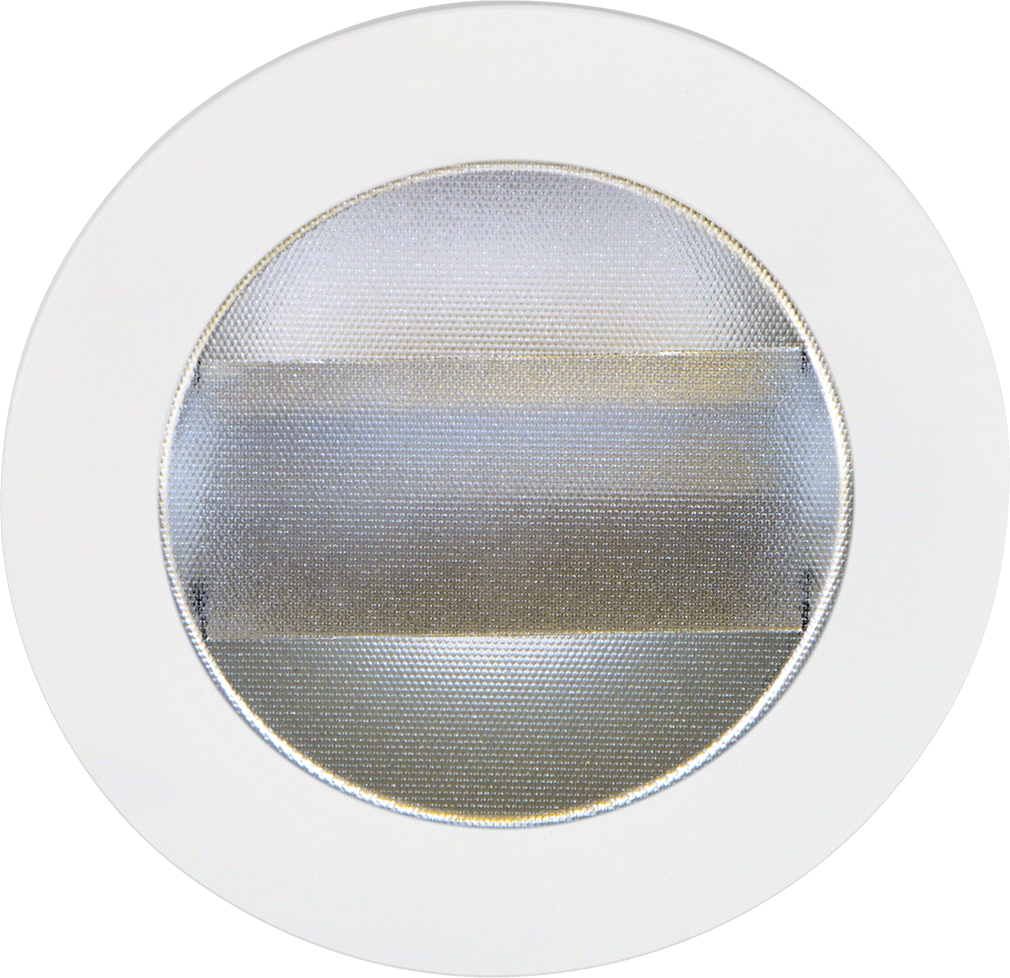

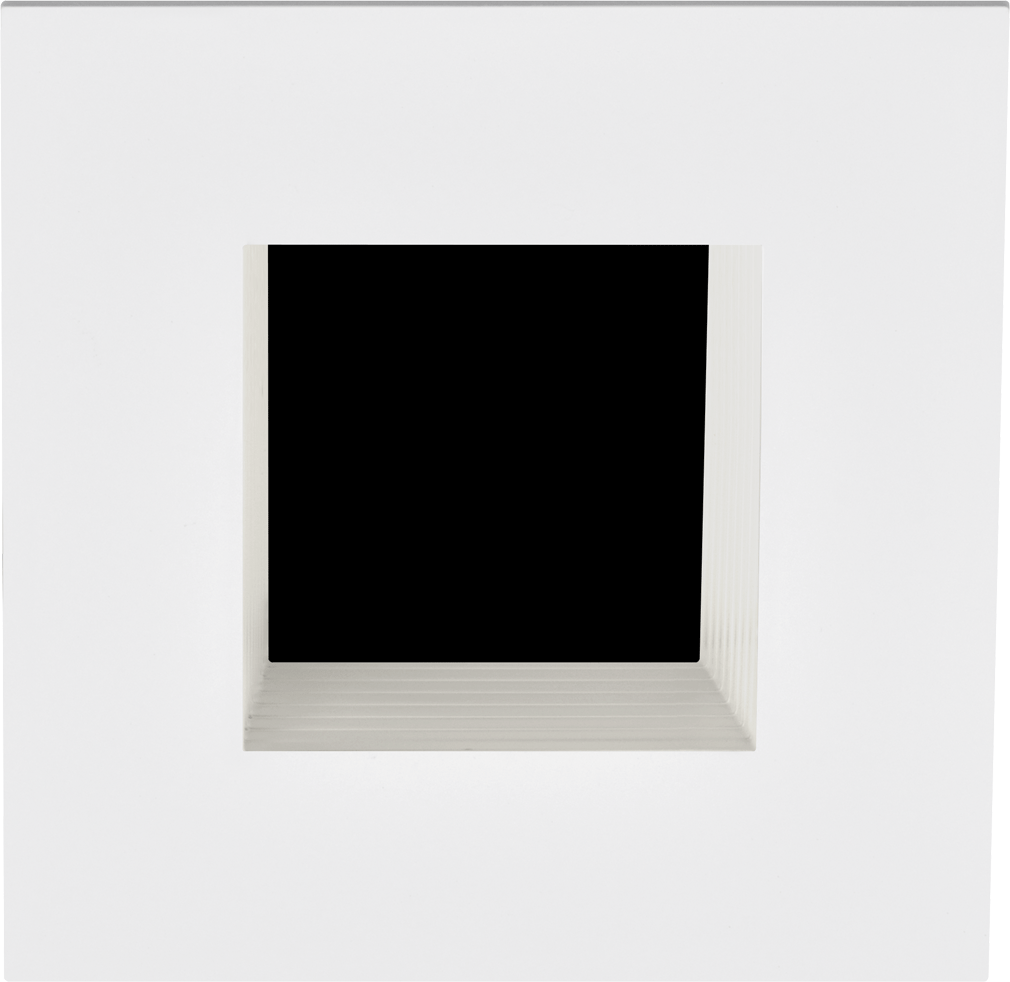

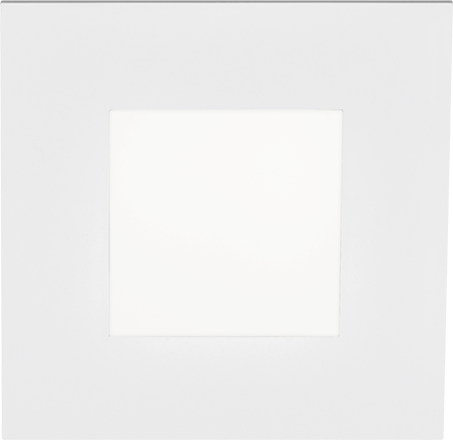

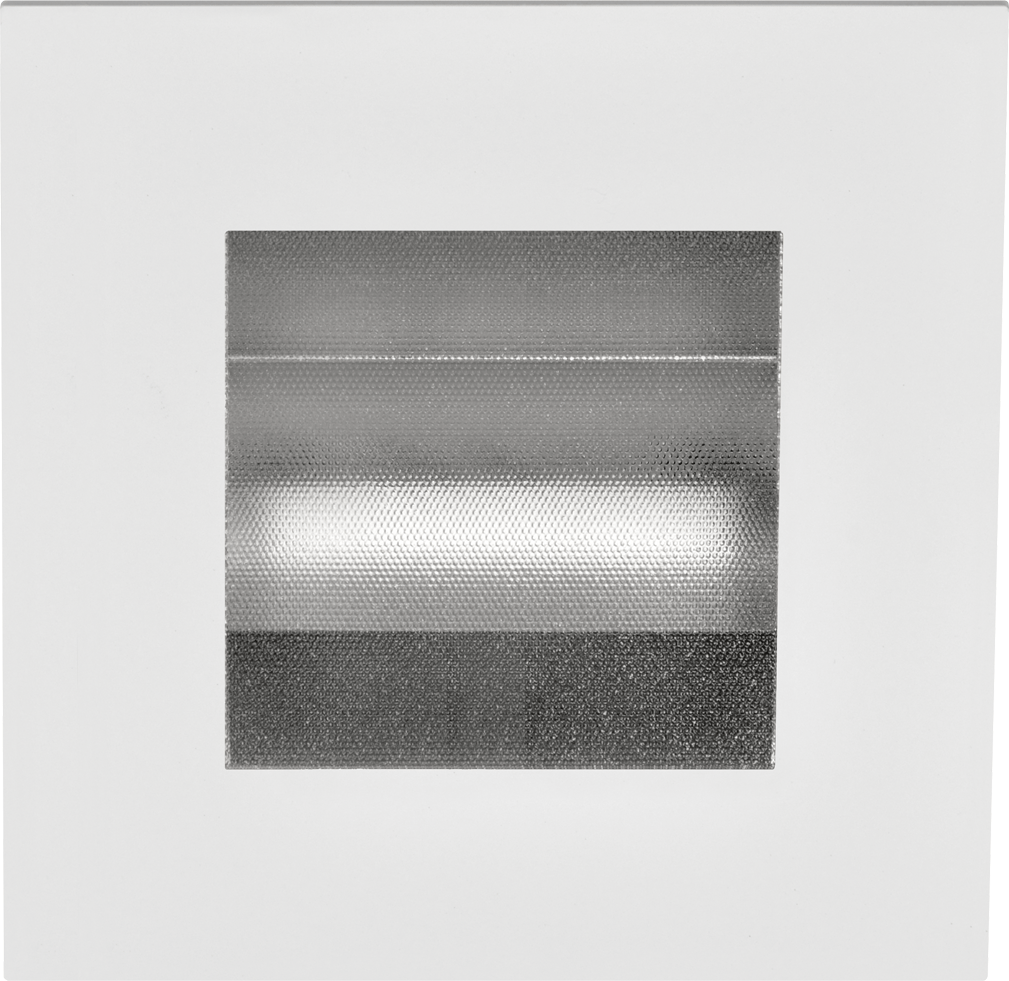

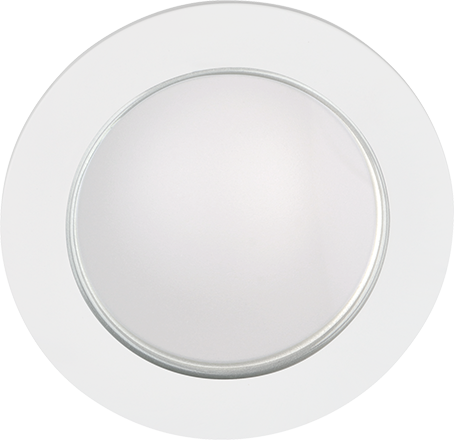

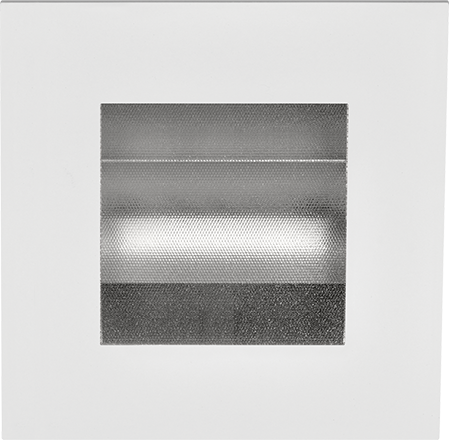

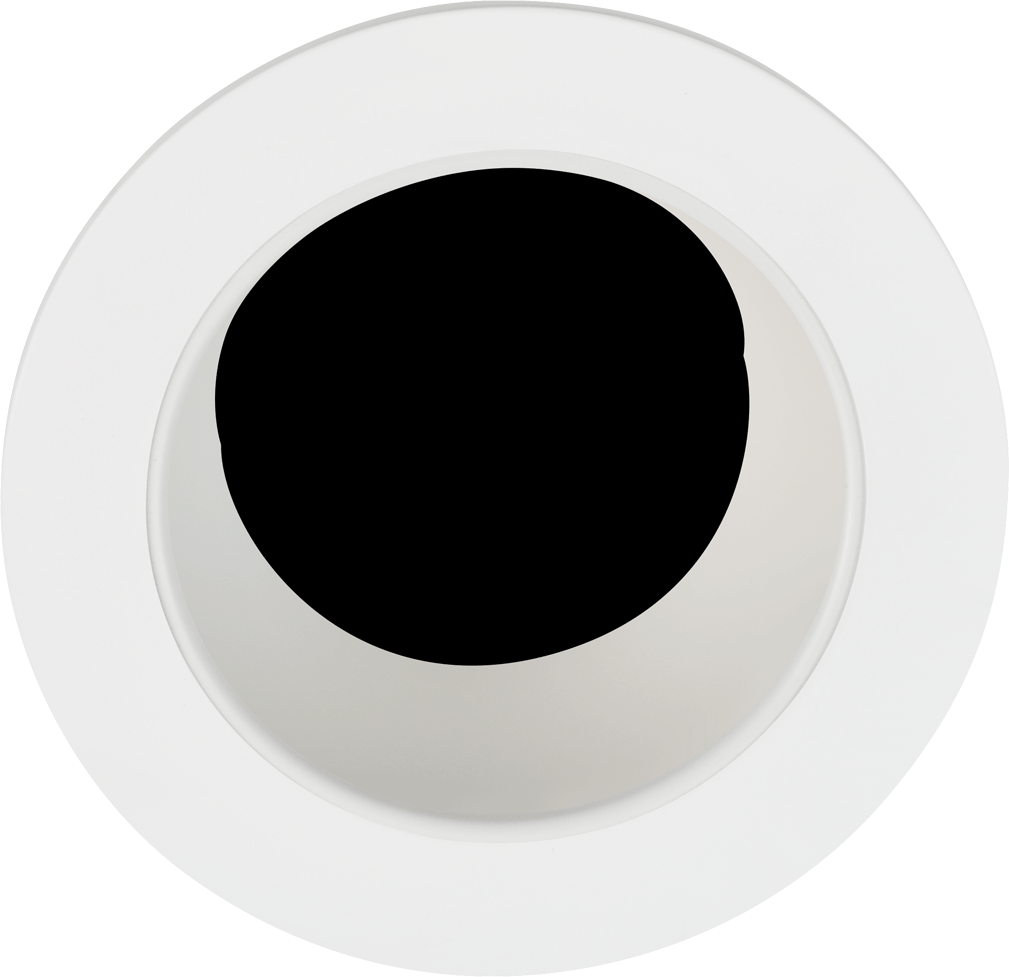

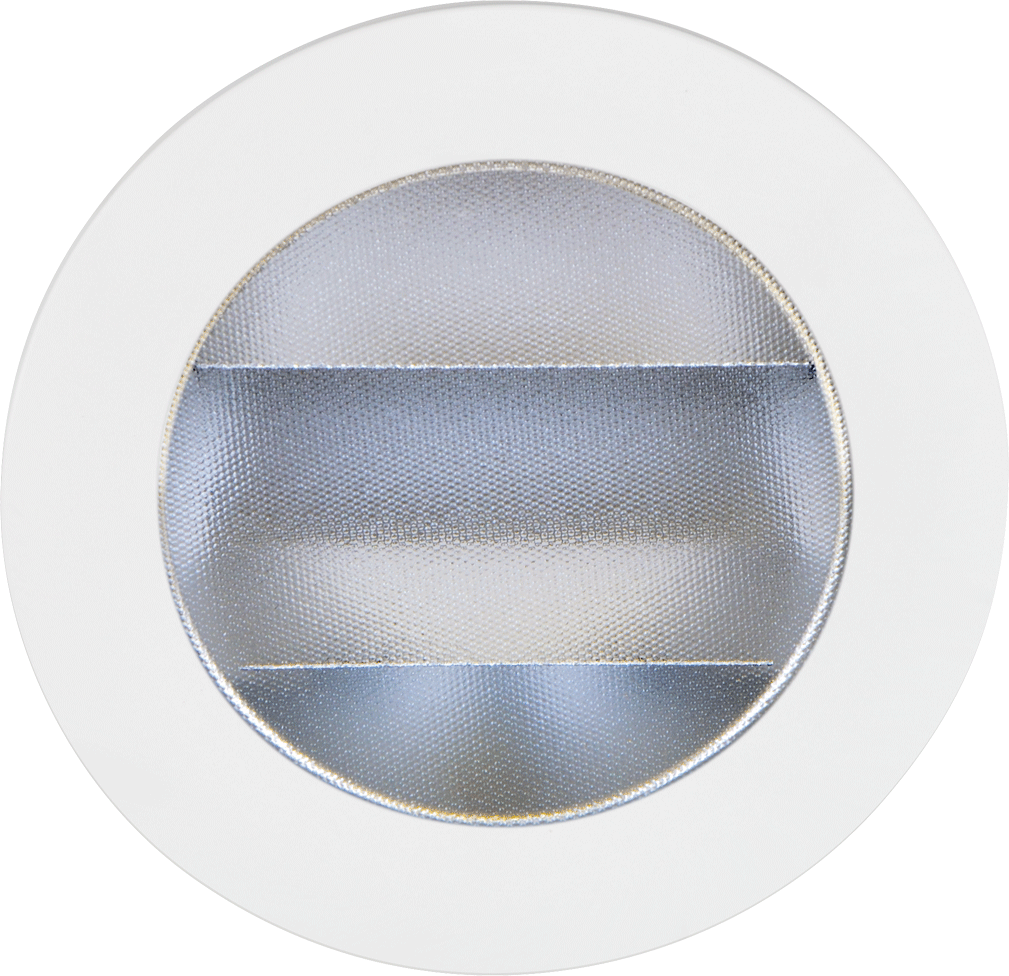

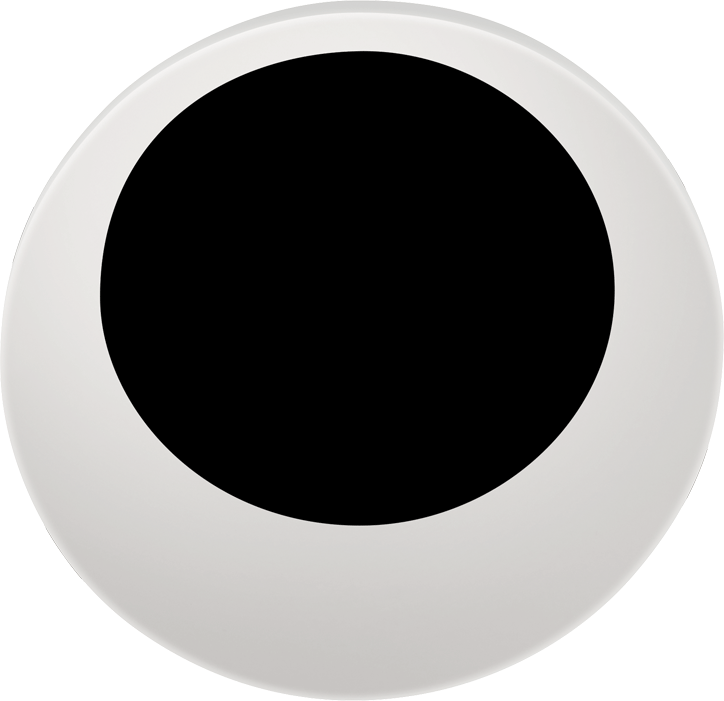

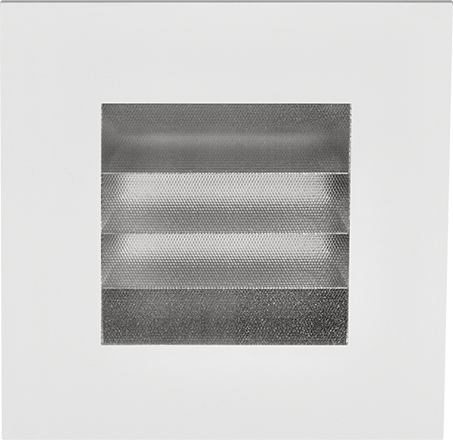

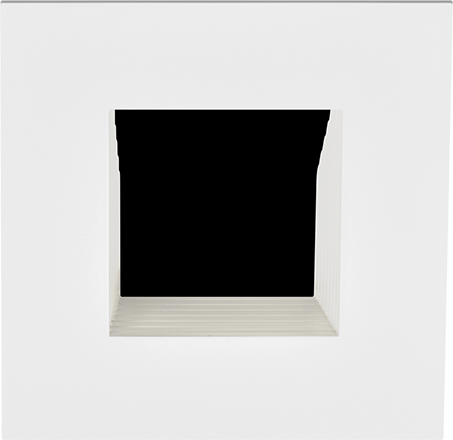

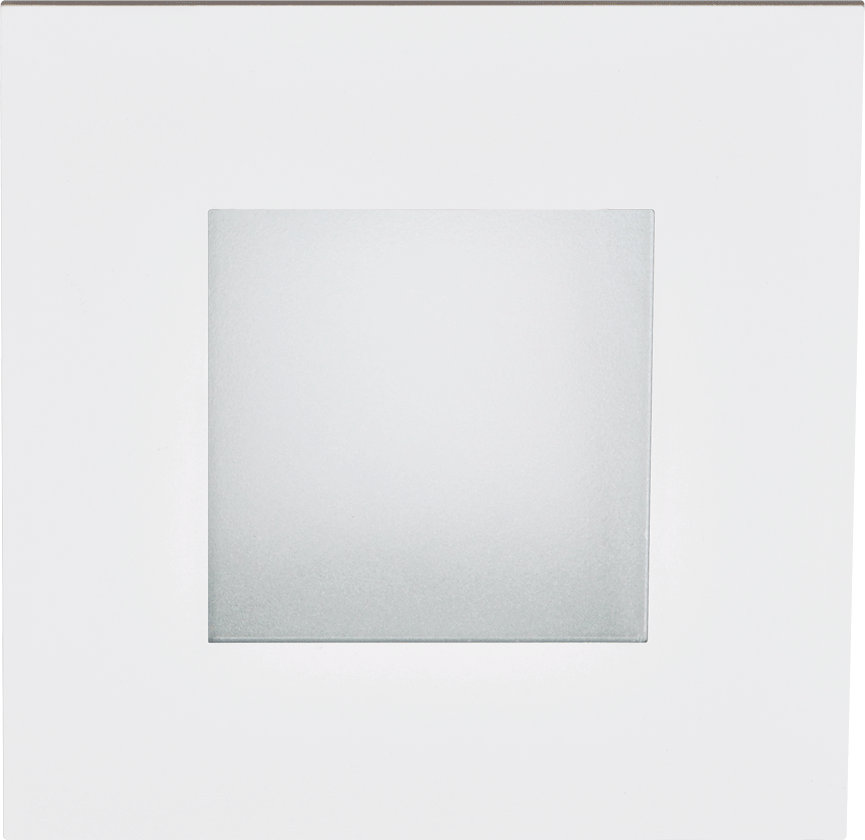

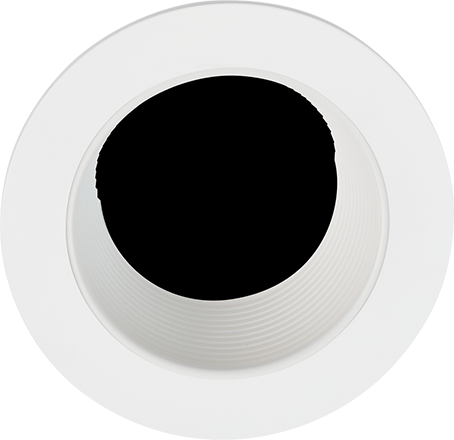

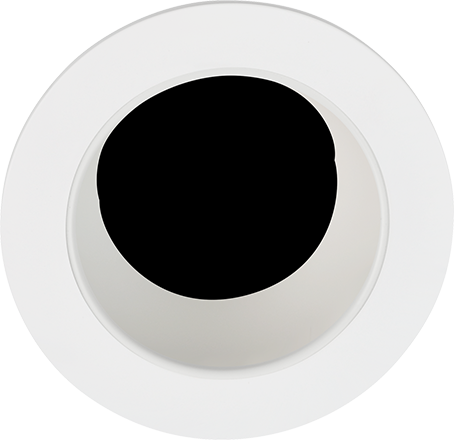

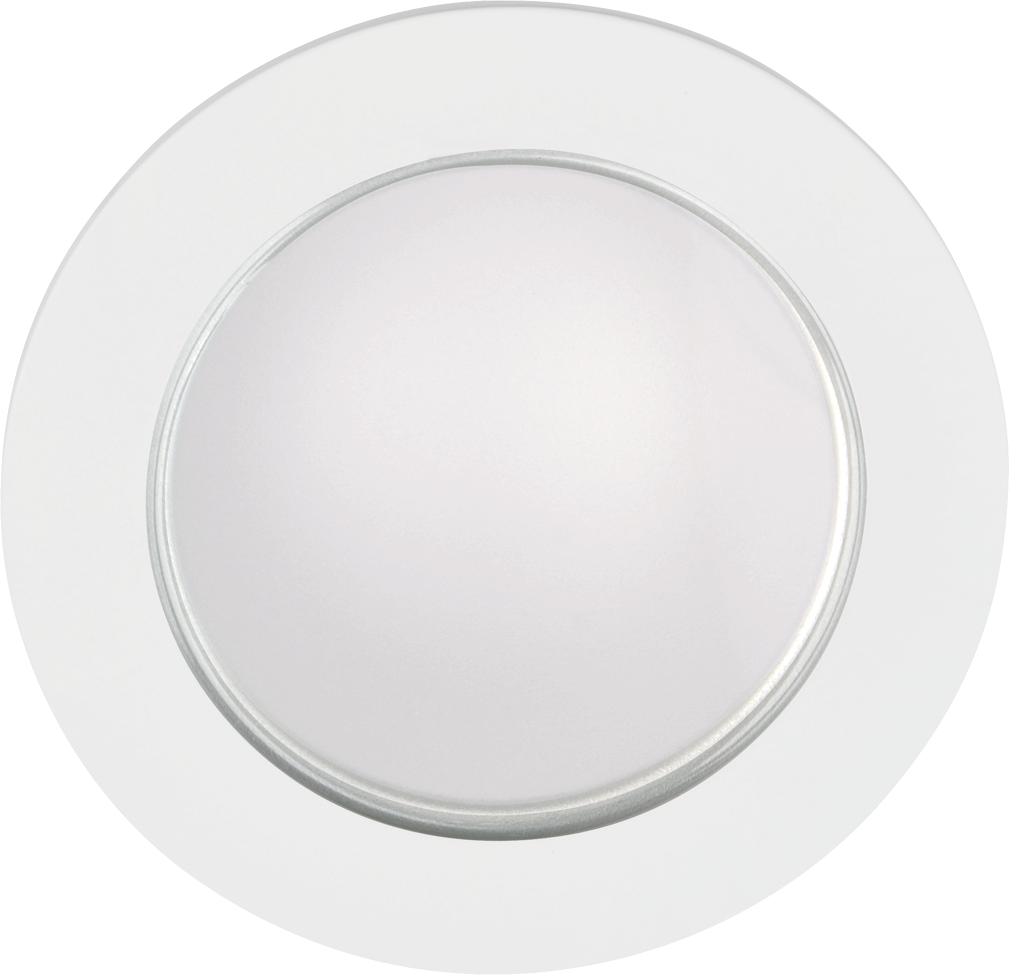

Eco^™ LED recessed downlights are offered in round and square aperture trims for creating a downlight, adjustable, baffle, pinhole, or wall wash. Trimless options are available.

Round Square
