ECO™ Gen 2

Recessed Downlights

Easy adjustability before installation.
Sophisticated Architectural Finish
1" 3" 5"
ECO<sup>™</sup> Gen 2 LIGHTING
UL

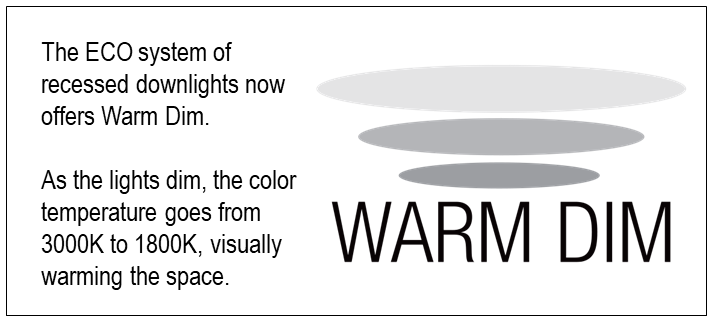

Warm Dim
Dimmable
Wet Location
JA-8
Downloads

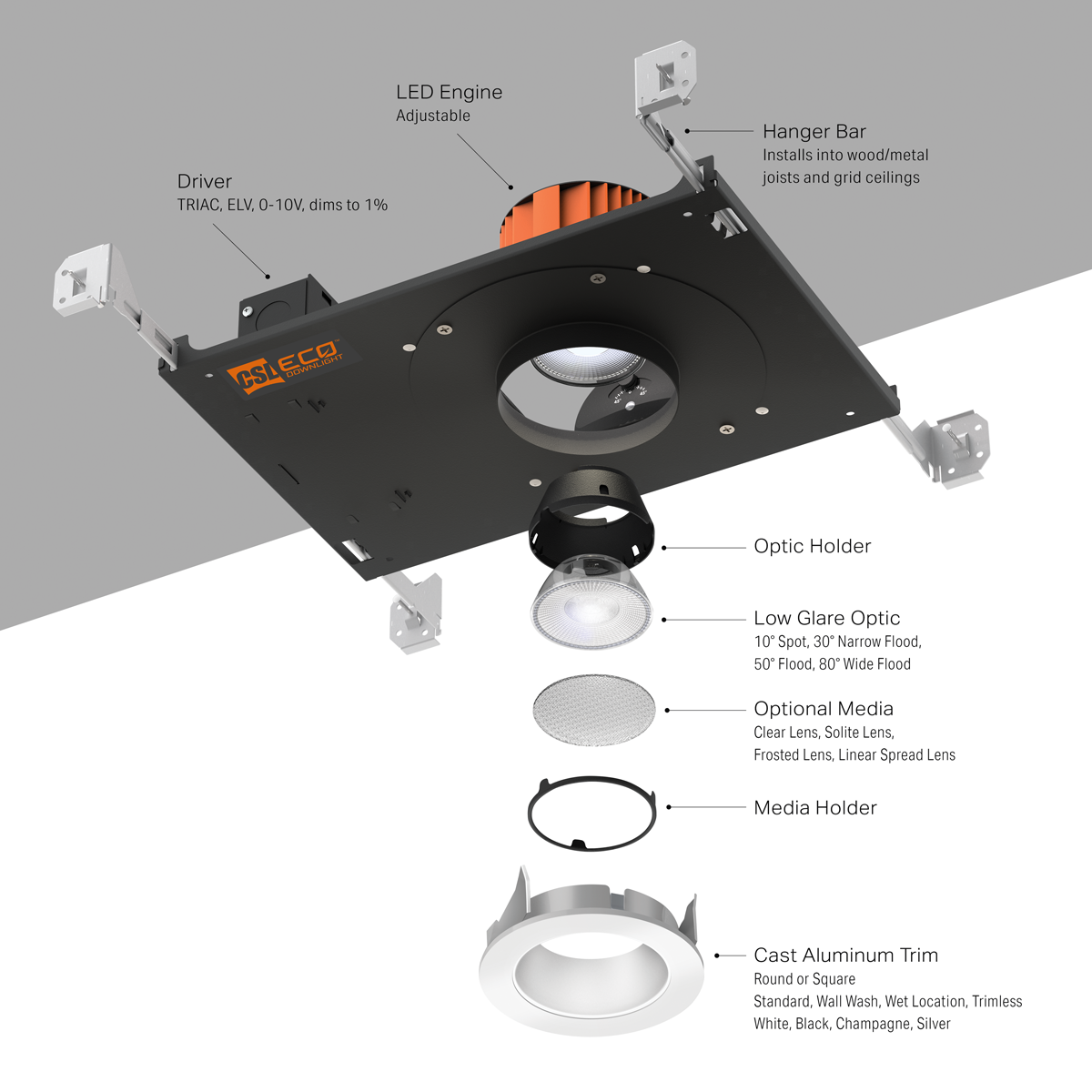

ECO 1", 3", 5" LED Recessed Downlights are the new over achiever, designed to over deliver on light quality, efficiency, and configurability. ECO’s newly engineered housing system delivers the best design for fixed or easily adjustable lighting in new construction, and remodel projects. From residential and commercial to hospitality and retail, the ECO Downlight fits into plenums as low as 2 1/2" with improved housings and hanger bars that speed installation. CSL's patented optic system provides quality light with minimal glare and maximum control, bringing illumination into the space. Drivers on all models are accessible from below the ceiling to make serviceability quick and easy.
LED Light Engine 50K hours
LED Light Engine
High quality LEDs chosen with 2 SDCM binning. LED lifetime 50,000 hours.
Quality Optics
Quality Optics
10° 30° 50° 80° uniform beam spreads available. Optional media provide added control or diffusion.
High Performance Drivers
High Performance Drivers
TRIAC/ELV, 0-10V, EcoSystem, dims to 1% standard, 0.5% and Warm Dim available
ECO™ RECESSED DOWNLIGHTS

Options

LED light engine performance
1" 3" 5"
BEST FOR Clean, Modern, Minimalist Accents with Higher Lumens General Uniform Lighting
ADJUSTABILITY 15° Tilt
360° Rotation		 45° Tilt
360° Rotation		 45° Tilt
360° Rotation
10° 30° 50° 80° OPTICS X X X
MEDIA Clear, Solite, Frosted, Wall Wash, Linear Spread
WATTAGE 10W or 12W 13W or 21W 17W or 30W
MAX DELIVERED LUMENS 1100 1900 2600
EFFICACY up to 103 up to 108 up to 104
CCT @ 90 CRI
2700K, 3000K, 3500K, 4000K, Warm Dim
LED LIFETIME
L90˃55,000 Hours
DIMMING TYPES
TRIAC/ELV, 0-10V, EcoSystem
SERVICEABILITY
Below Ceiling
Below Ceiling
Below Ceiling
MIN PLENUM HEIGHT
2 1/2"
2 1/2"
2 1/2"

Trim

Eco™ LED recessed downlights are offered in round and square aperture trims for creating a downlight, adjustable, baffle, pinhole, or wall wash. Trimless options are available.

Round Square
Round Wet Location Regressed Trim
Round Adjustable Standard Trim
Round Adjustable Trimless Reflector
Round Adjustable Wet Location Regressed Trim
Round Fixed Dead Front Trim
Round Fixed Standard Trim
Round Fixed Standard Trim
Round Fixed Standard Trim
Round Fixed Standard Trim
Round Fixed Standard Trim
Round Fixed Standard Trim
Round Fixed Trimless Reflector
Round Fixed Wet Location Trim
Round Fixed Wall Wash Trim
Square Wet Location Regressed Trim
Square Adjustable Standard Trim
Square Adjustable Trimless Reflector
Square Adjustable Wet Location Regressed Trim
Square Fixed Standard Trim
Square Fixed Standard Trim
Square Fixed Standard Trim
Square Fixed Standard Trim
Square Fixed Standard Trim
Square Fixed Standard Trim
Square Fixed Trimless Reflector
Square Fixed Wet Location Trim
Square Fixed Wall Wash Trim
