Features
CSL ECO under cabinet lights provide exceptional light, evenly distributed across the entire counter surface from a sleek, low profile, edge-lit design. Powered by an integral dimming driver, quality LEDs provide up to 1400 lumens that can be switched between 2700K and 3000K CCT at 90 CRI. Hardwire, plug-in, and linkable, these under cabinets are easy to install and operate.
Options
LED light engine performance
|
8" |
16" |
24" |
32" |
MOUNTING OPTIONS |
Hardwired, Plug-in, Linkable. Installs Easily. |
FINISHES |
White, Bronze, Silver Housing |
MAX WATTAGE |
6W |
12W |
18W |
24W |
DELIVERED LUMENS |
350 |
700 |
1050 |
1400 |
EFFICACY |
58 Lumens per Watt |
LED LIFETIME
|
L70>50,000 Hours
|
INPUT VOLTAGE
|
120V
|
DIMMING
|
Dimmable with Incandescent and ELV Dimmers
|
Housing
Available in Bronze, Silver, White

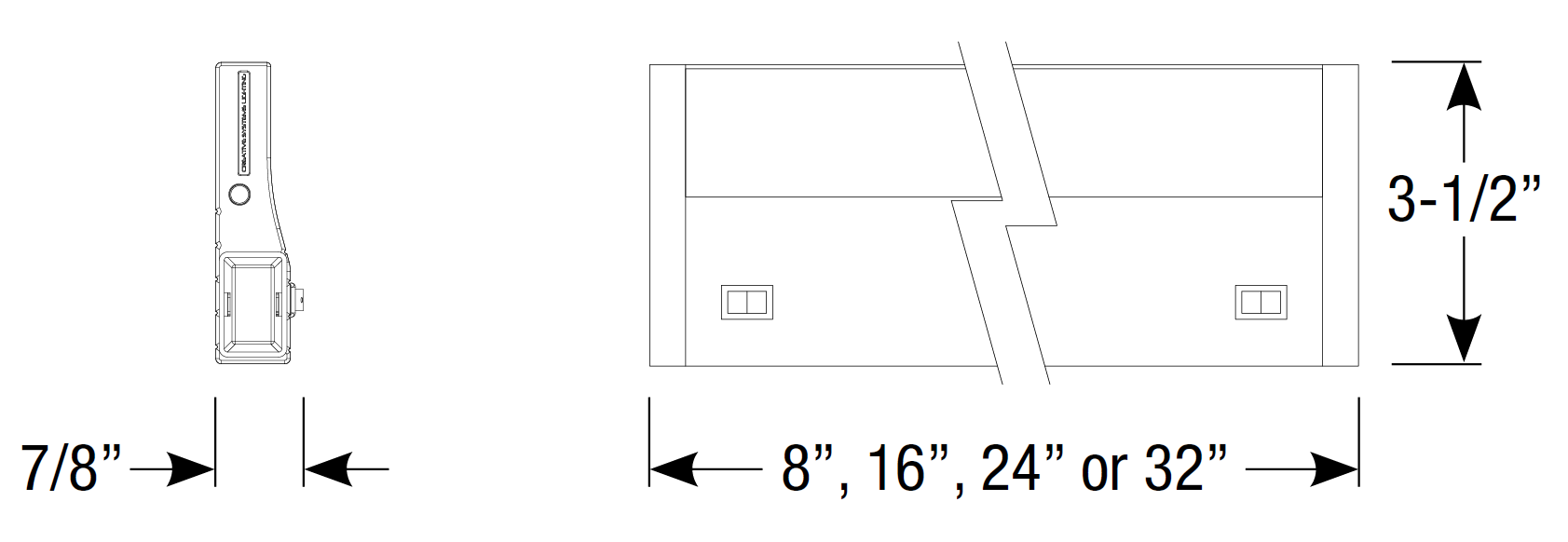

8”, 16”, 24”, 32” Lengths

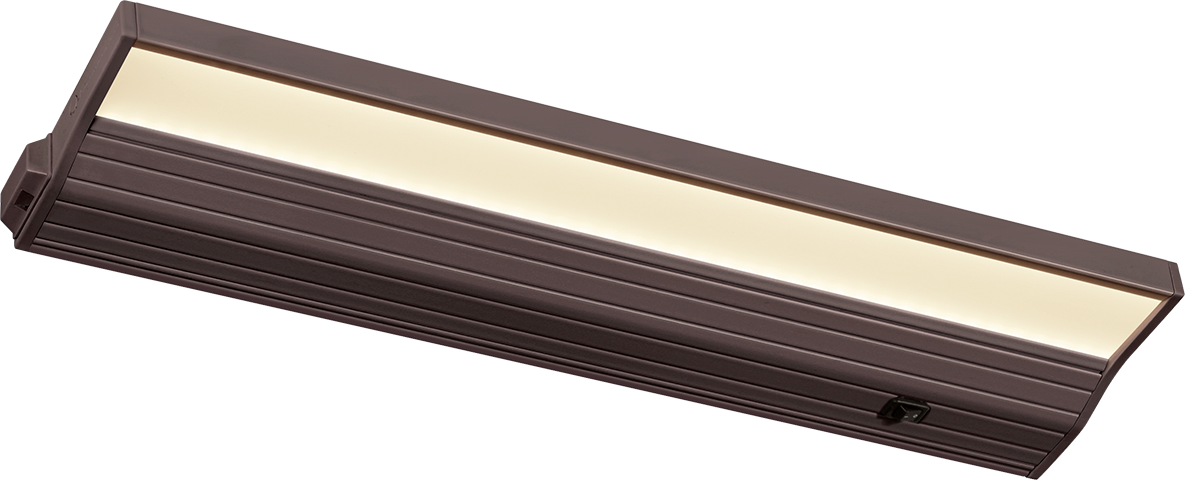

16" Low Profile ECO Under Cabinet Light
24" Low Profile ECO Under Cabinet Light

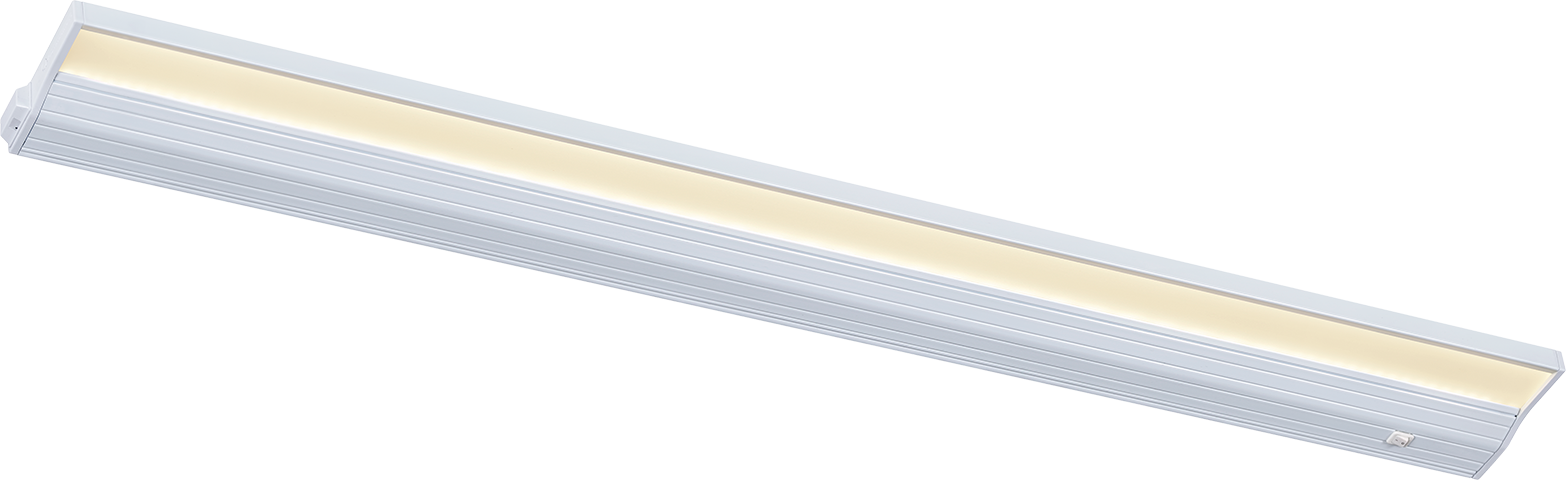

32" Low Profile ECO Under Cabinet Light

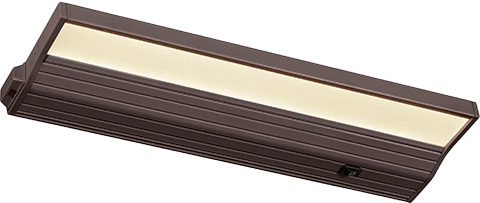

8" Low Profile ECO Under Cabinet Light
Applications
CSL ECO EGE LIT under cabinet lights can be hardwired or plugged-in, and they are linkable. The low profile edge lit design makes ECO the perfect solution for hidden under cabinet lighting in any application.
- • Residential
- • Commercial
- • Hospitality
