Acrobat

Recessed Downlights

Precise hot aiming from below ceiling. Sophisticated Architectural Finish
UL
Warm Dim
Dimmable
Wet Location
JA-8
5 years

Features

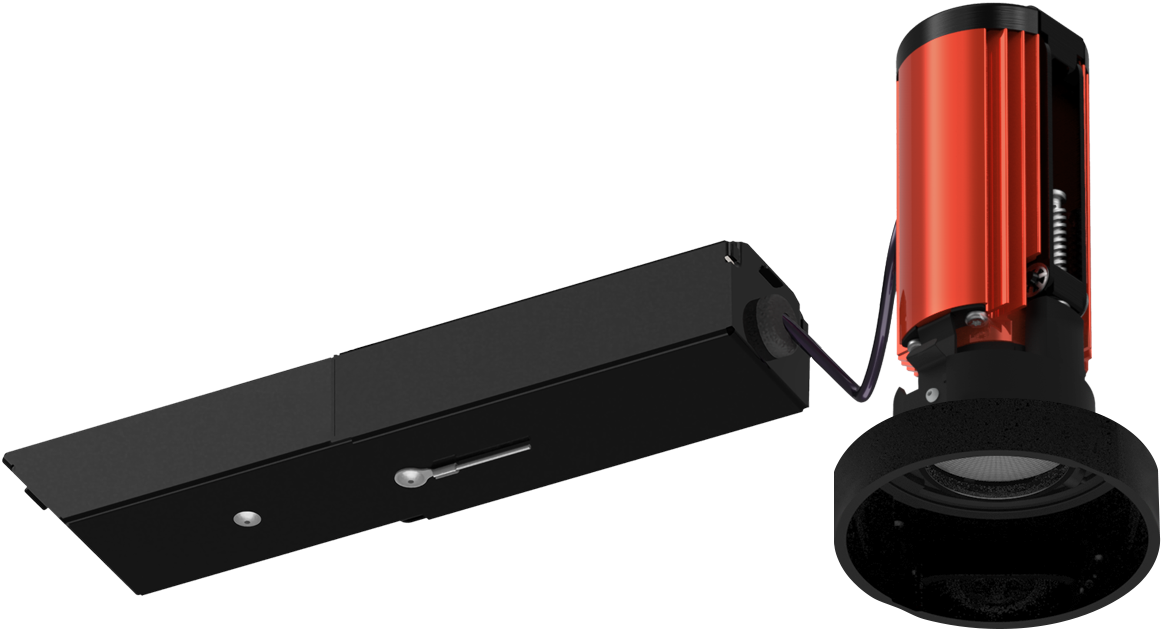

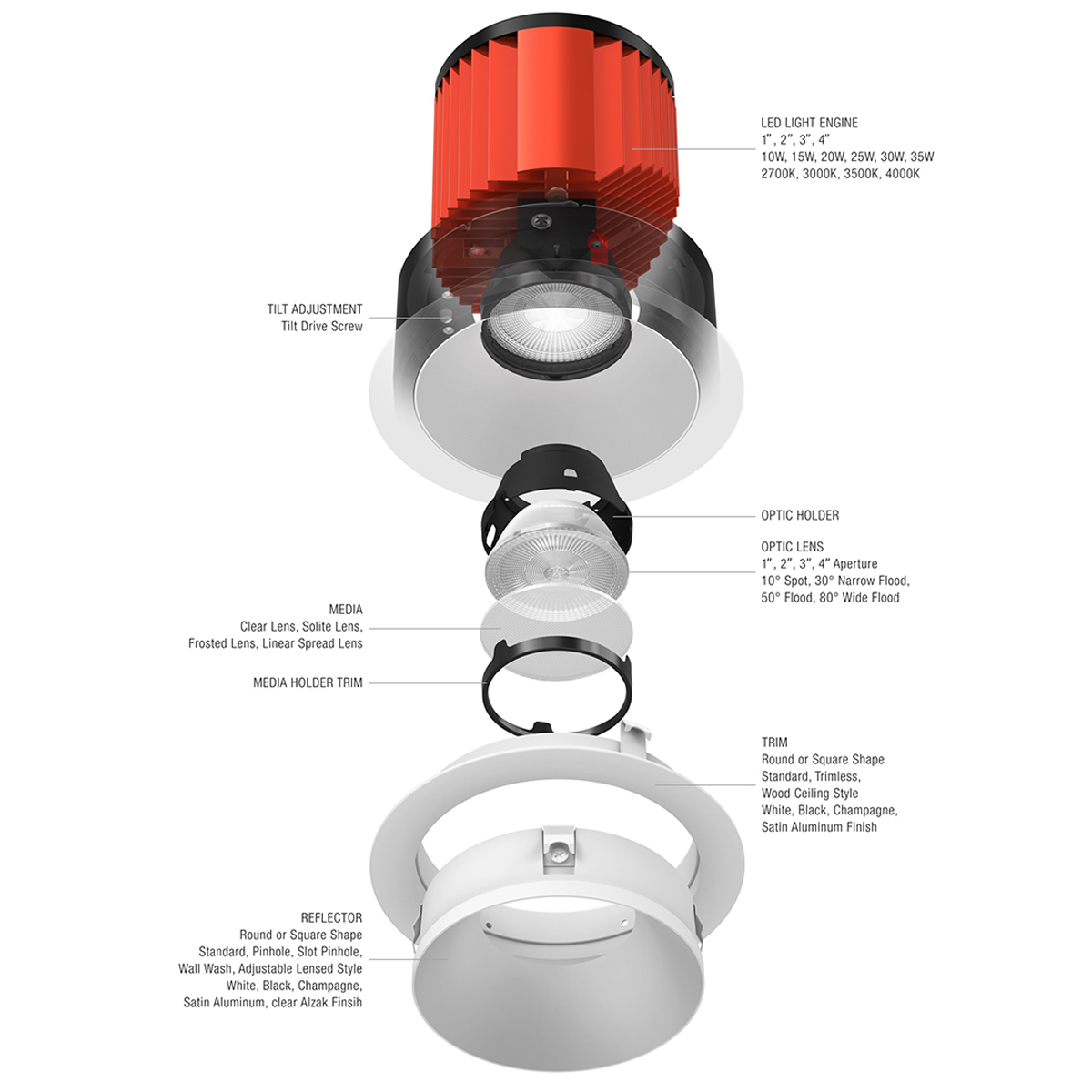

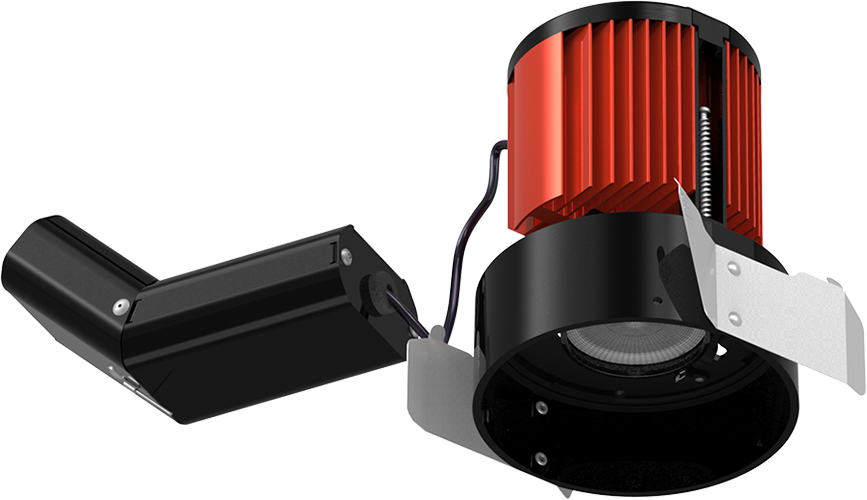

CSL Acrobat is the ultimate performer, engineered to deliver premium light quality and control in any application, to the most exacting standard. Acrobat's light module installs separately from the housing, at the end of construction. It easily adjusts up or down, independent of the housing, to guarantee a tight fit between the optic holder and the reflector to hide internal components and maintain a professional, clean look below the ceiling. Adjustability is quick, easy, and precise. The light module rotates 360°, and a twist of the custom lead screw tilts the module to the desired degree and locks it in place. Acrobat's housings are designed and engineered to fit into into tight spaces and optimize performance in any type of installation environment and ceiling material. Acrobat LED modules house CSL's patented Silent Vu optics, a unique system that converges light output throught the optic to provide an exceptional quality of light with minimal glare.
LED Light Engine 50K hours
LED Light Engine
High quality LEDs chosen with 2 SDCM binning. LED lifetime 50,000 hours.
SilentVU<sup>™</sup> Optic Technology
SilentVU Optic Technology
Experience extremely low glare
High Performance Drivers
High Performance Drivers
TRIAC/ELV, 0-10V, EcoSystem, dims to 1% standard, 0.5% and Warm Dim available

ACROBAT RECESSED DOWNLIGHTS

Sophisticated Architectural Finish

Options

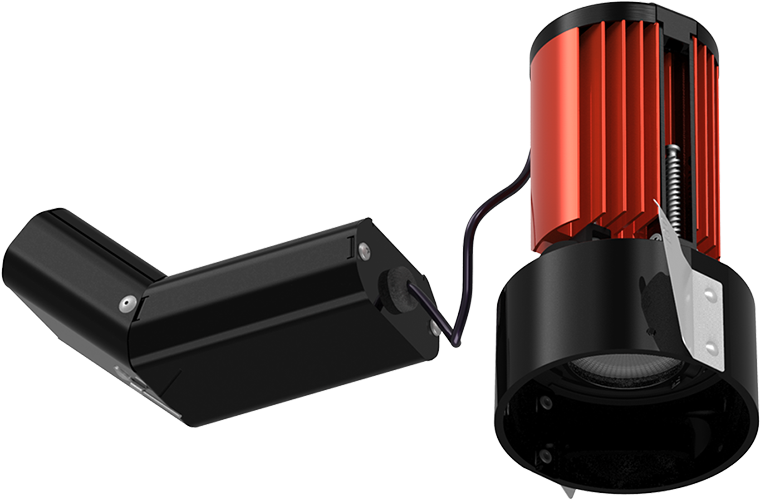

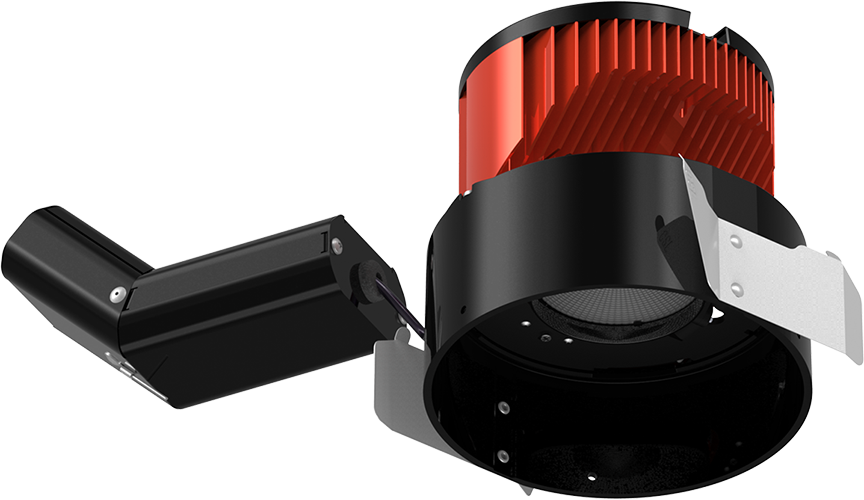

LED light engine performance
1" 2" 3" 4"
BEST FOR Clean, Modern, Minimalist Accents with Higher Lumens General Uniform Lighting Large Spaces, High Ceiling
PRECISE ADJUSTABILITY 30° Tilt
360° Rotation
40° Tilt
360° Rotation
40° Tilt
360° Rotation
40° Tilt
360° Rotation
AVAILABLE OPTICS 10° 30° 50° 80° Beam Spread
MEDIA Clear, Solite, Frosted, Wall Wash, Linear Spread, Hex
MAX WATTAGE 10W, 15W 10W, 15W, 20W 10W, 15W, 20W, 25W 10W, 15W, 20W, 25W, 30W, 35W
MAX DELIVERED LUMENS 1197 1855 2305 2954
EFFICACY up to 81.5 up to 96.2 up to 101 up to 102.3
CCT @ 90 CRI
2700K, 3000K, 3500K, 4000K, Warm Dim
LED LIFETIME
L90>55,000 Hours
DIMMING TYPES
TRIAC/ELV, 0-10V, EcoSystem
WARM DIM
X
X
X
X
SERVICABILITY
Below Ceiling
Below Ceiling
Below Ceiling
Below Ceiling
MIN PLENUM HEIGHT
2 1/2"
2 1/2"
2 1/2"
3 1/8"

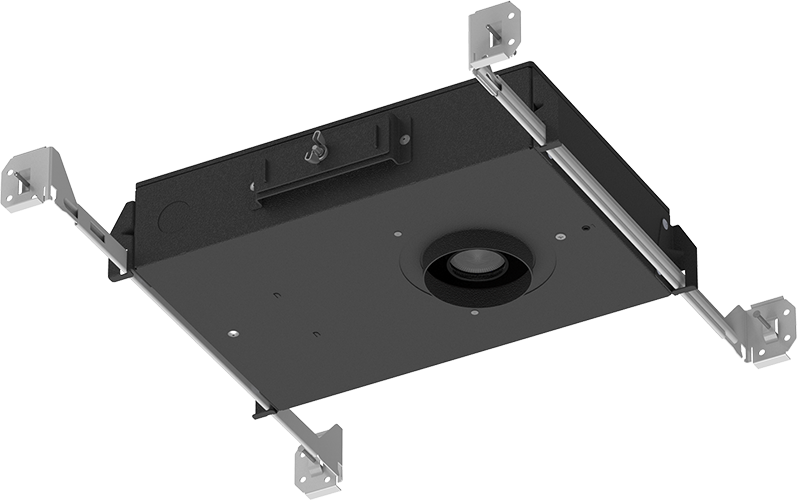

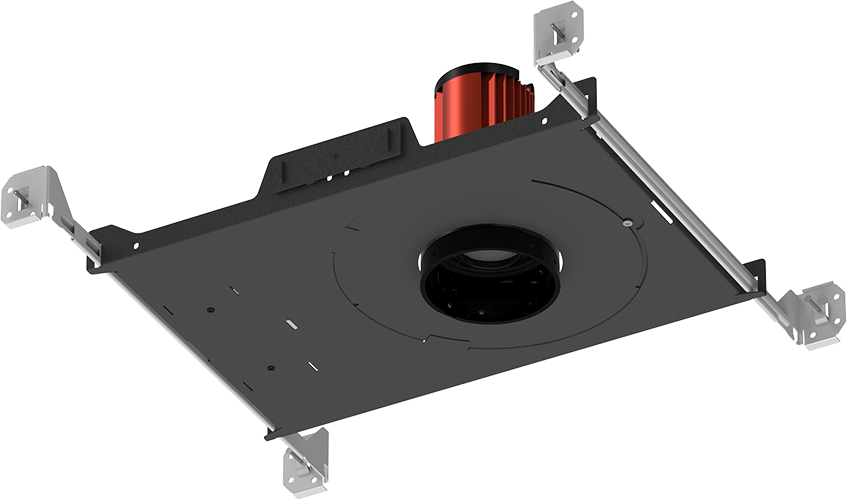

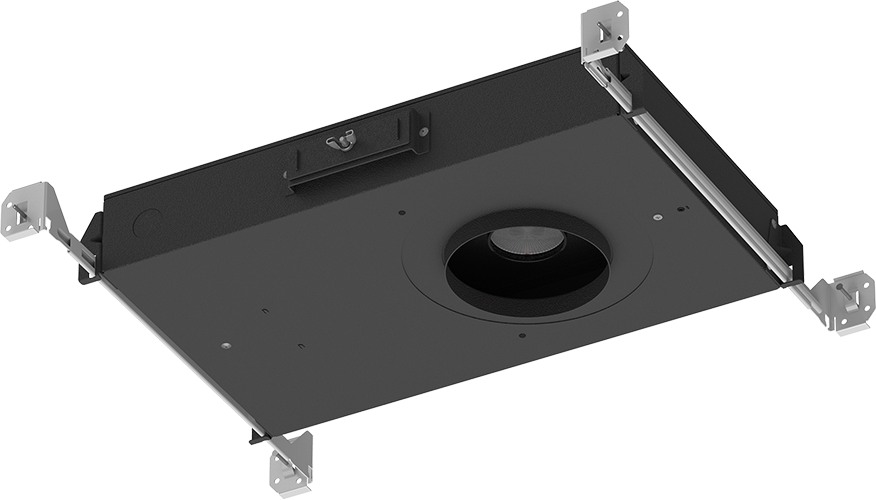

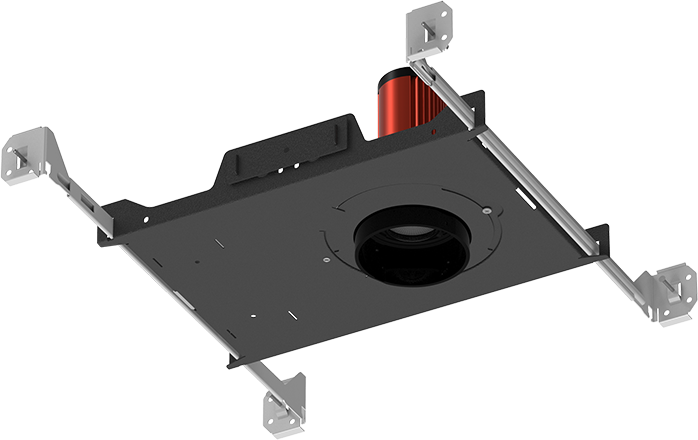

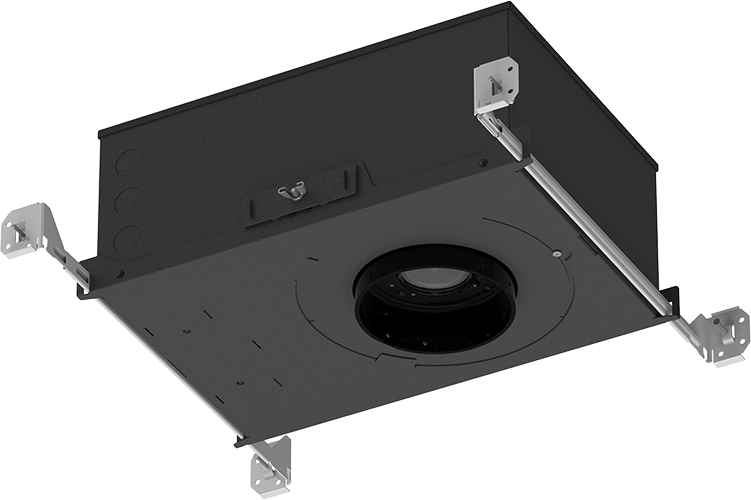

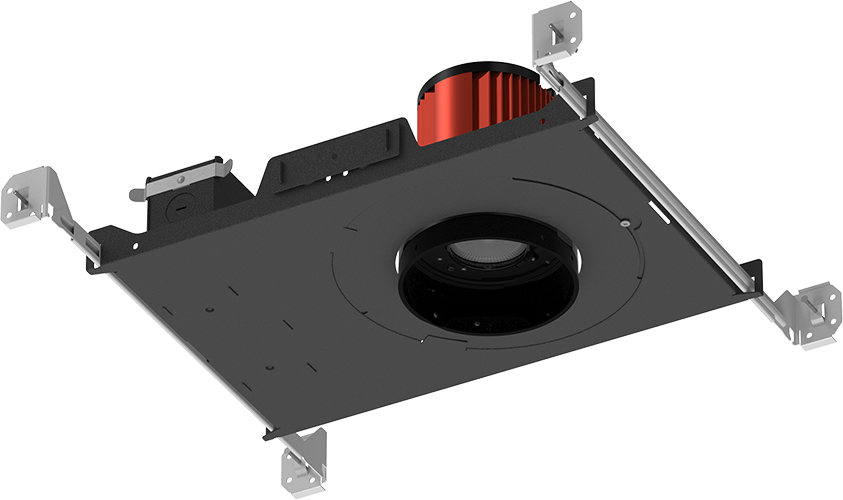

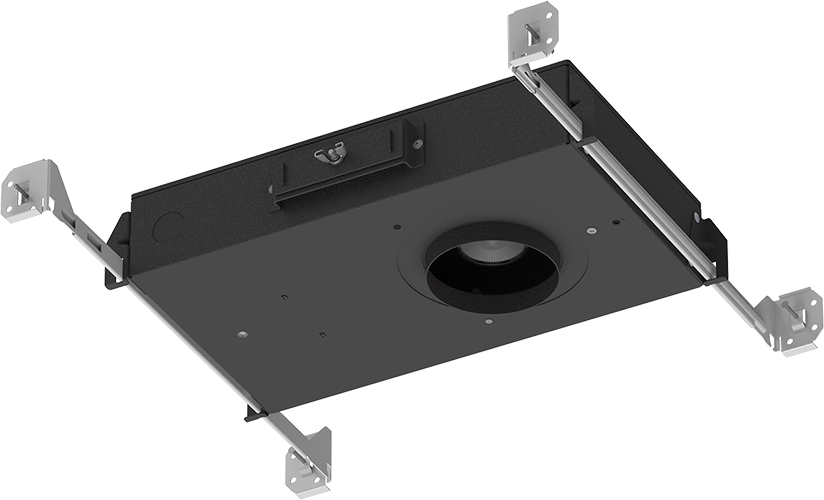

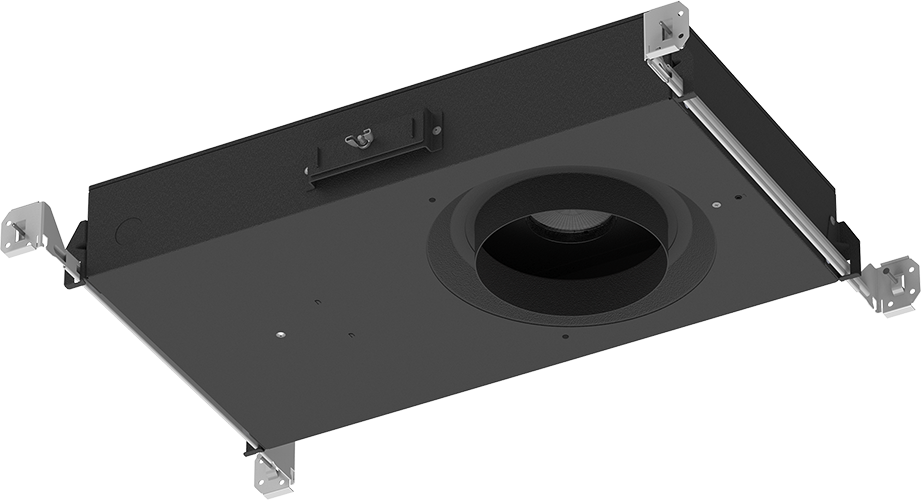

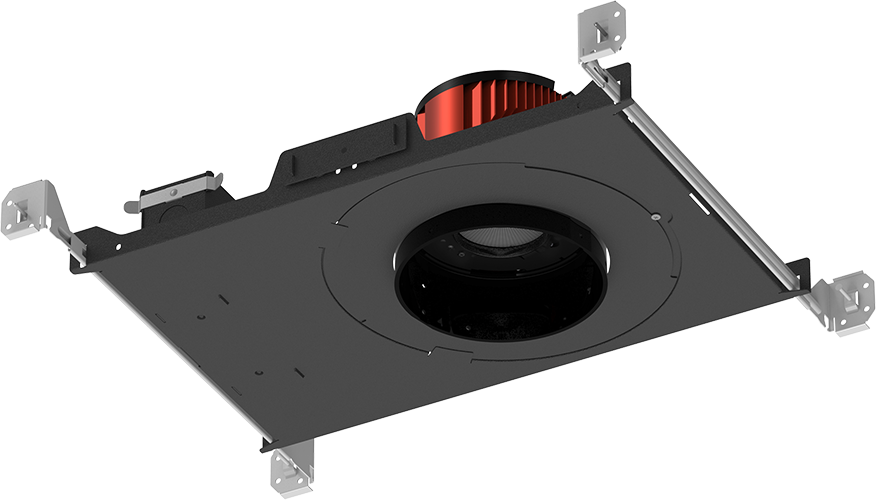

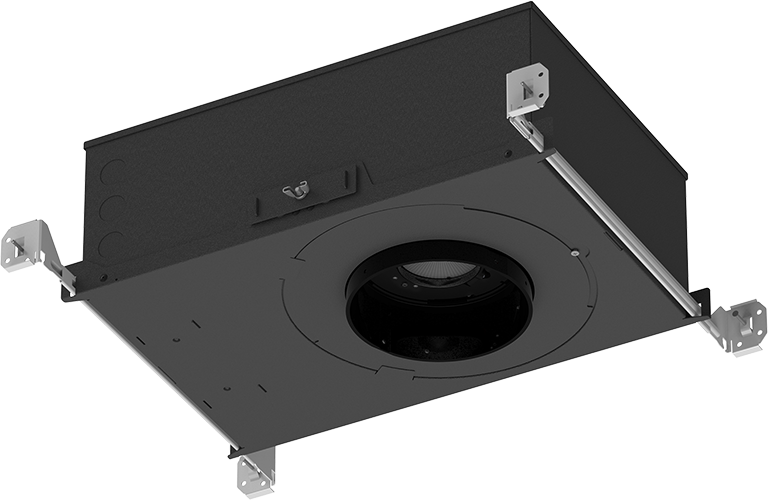

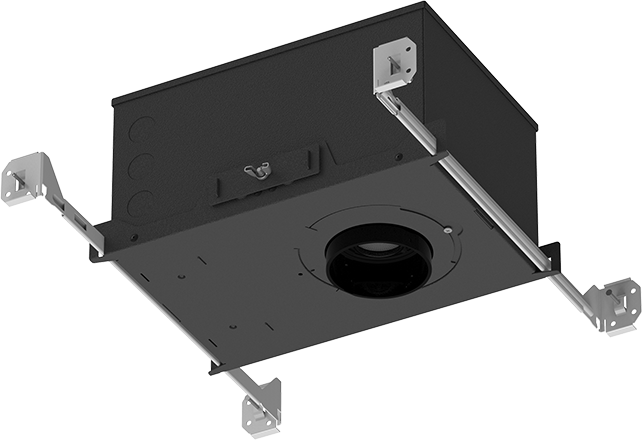

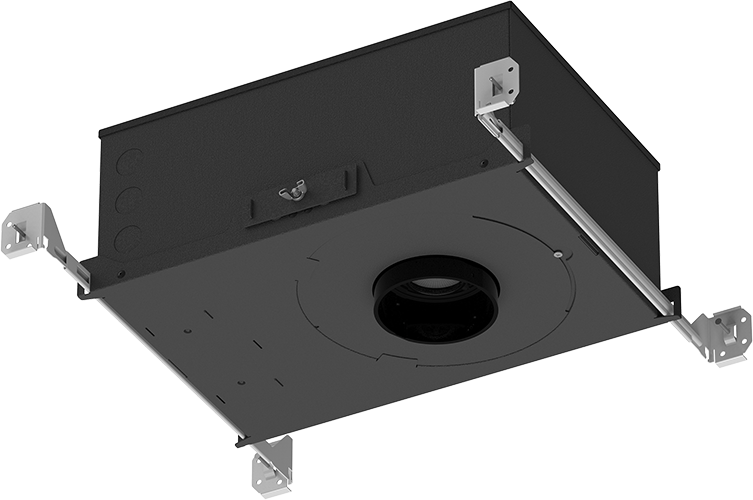

HOUSING

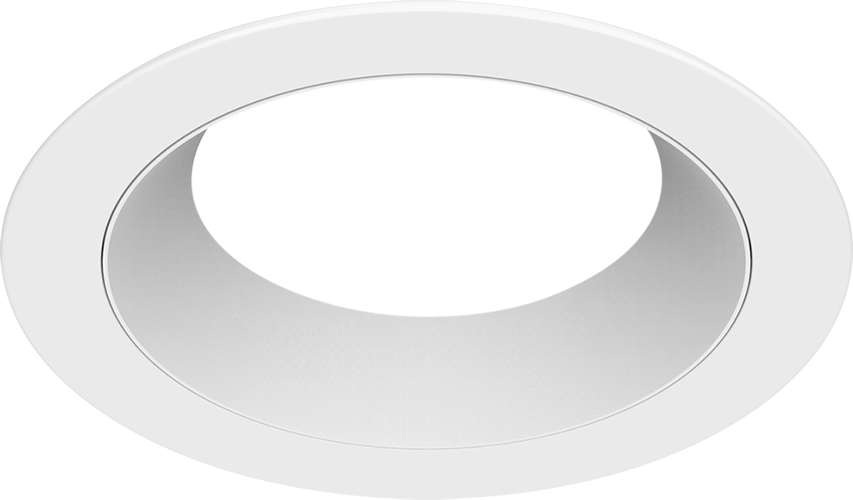

TRIM

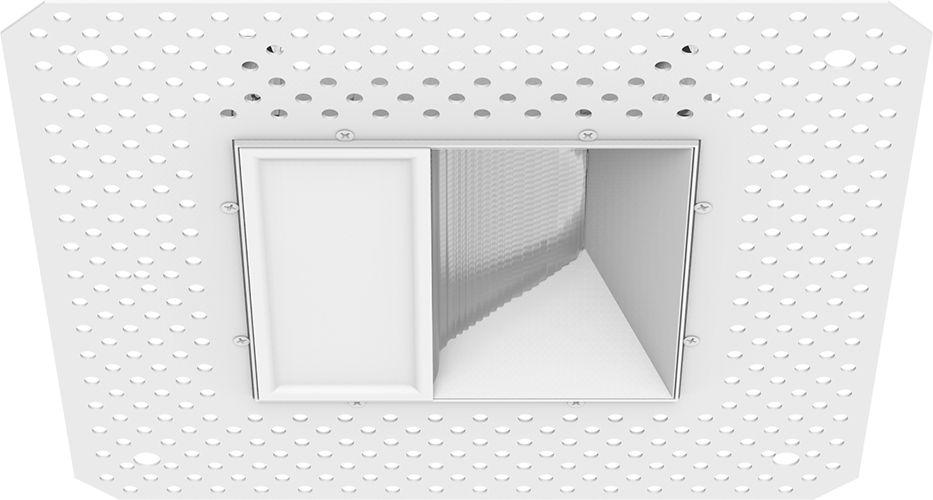

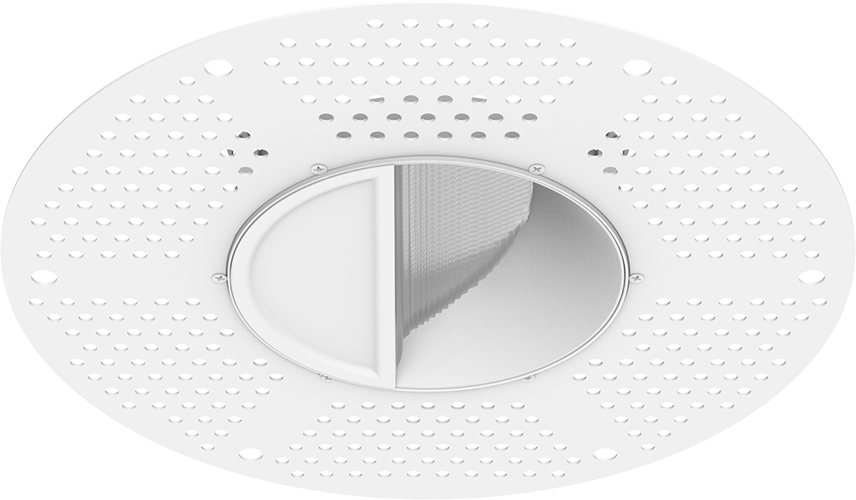

Acrobat LED recessed downlights provide an unparalleled look below the ceiling. Round and square aperture trims create a downlight, adjustable, baffle, pinhole, or wall wash. Trimless options are available.

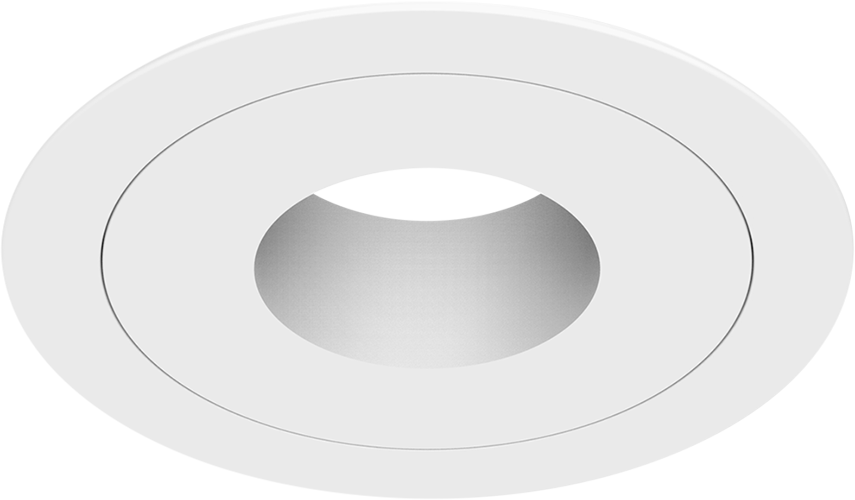

Round Standard Trim, Pinhole Reflector

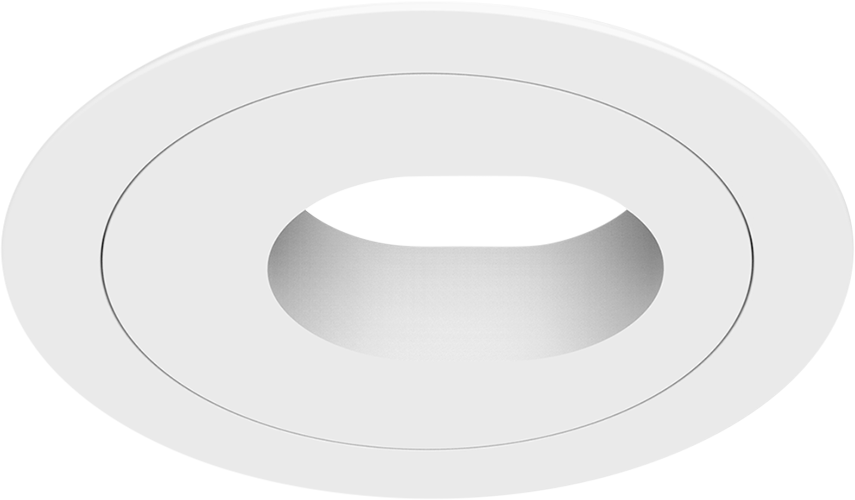

Round Standard Trim, Slot Pinhole Reflector

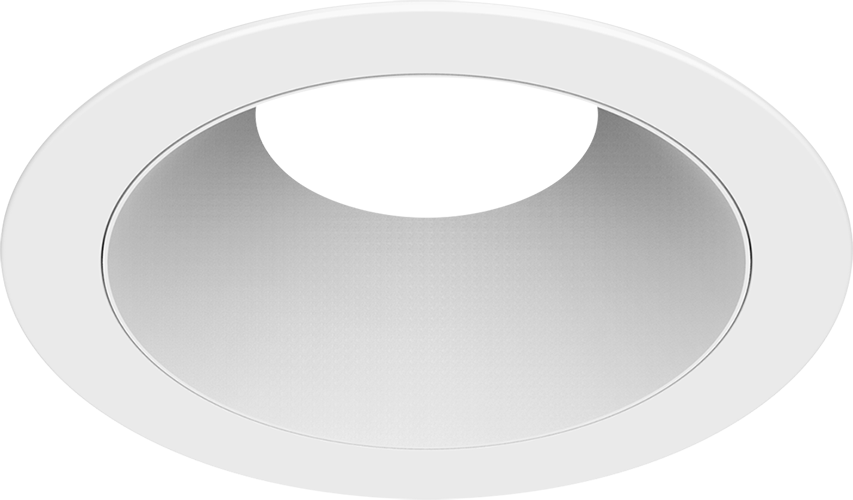

Round Standard Trim, Standard Reflector

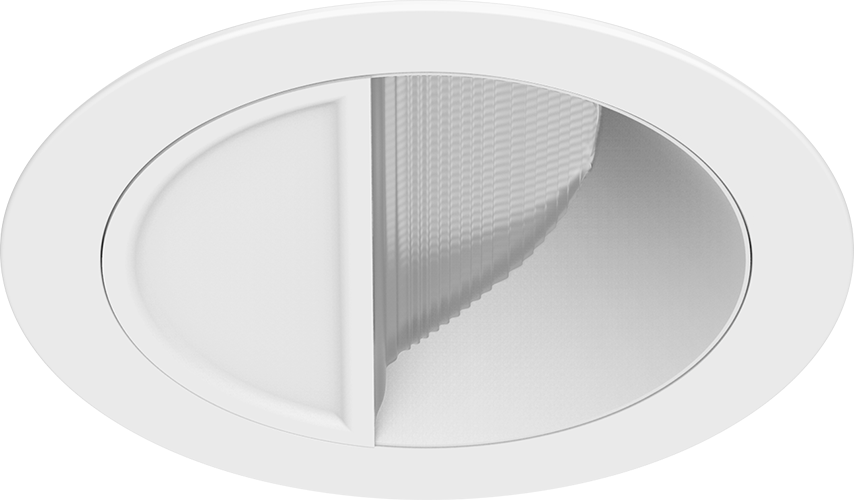

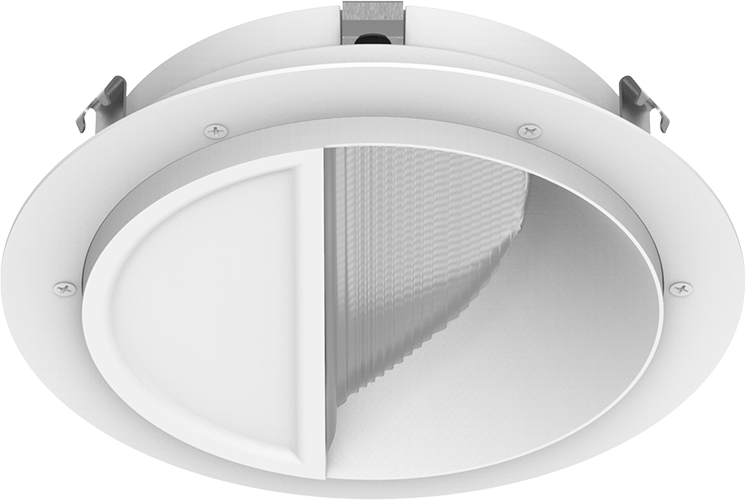

Round Standard Trim, Wall Wash Reflector
Round Standard Trim, Adjustable Lens Reflector
Round Standard Trim, Pinhole Reflector
Round Standard Trim, Slot Pinhole Reflector
Round Standard Trim, Standard Reflector
Round Standard Trim, Wall Wash Reflector
Round Standard Trim, Adjustable Lens Reflector
Round Standard Trim, Pinhole Reflector
Round Standard Trim, Slot Pinhole Reflector
Round Standard Trim, Standard Reflector
Round Standard Trim, Wall Wash Reflector
Round Standard Trim, Adjustable Lens Reflector
Round Standard Trim, Pinhole Reflector
Round Standard Trim, Slot Pinhole Reflector
Round Standard Trim, Standard Reflector
Round Standard Trim, Wall Wash Reflector

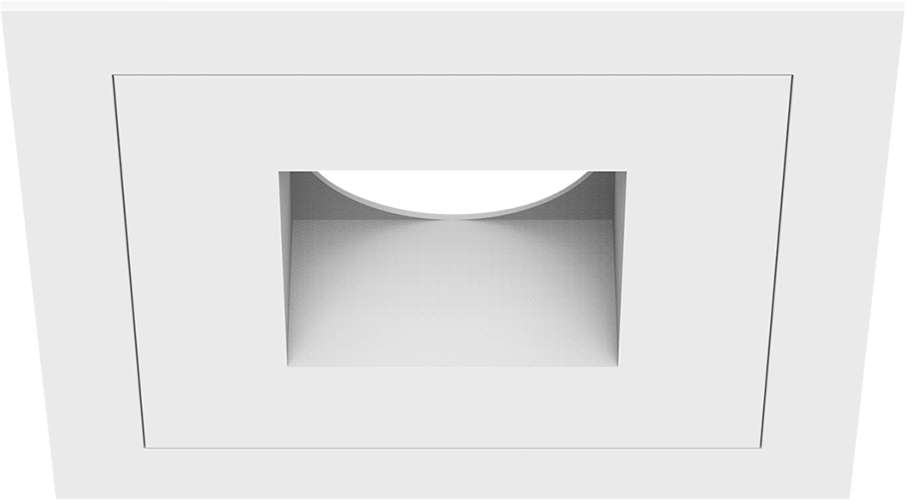

Square Standard Trim, Pinhole Reflector
Square Standard Trim, Slot Pinhole Reflector

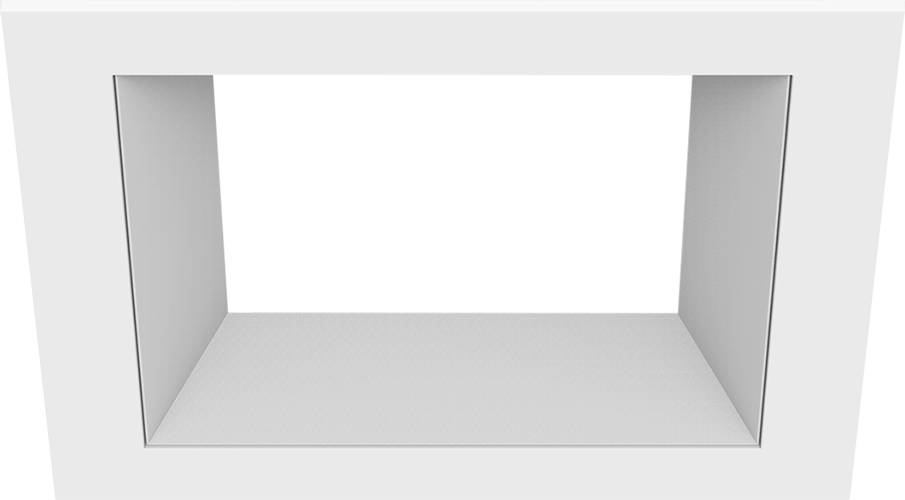

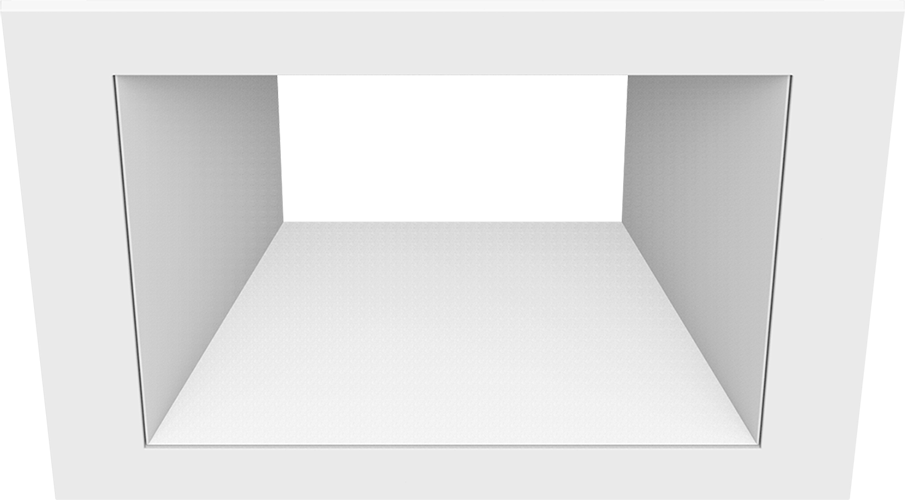

Square Standard Trim, Standard Reflector

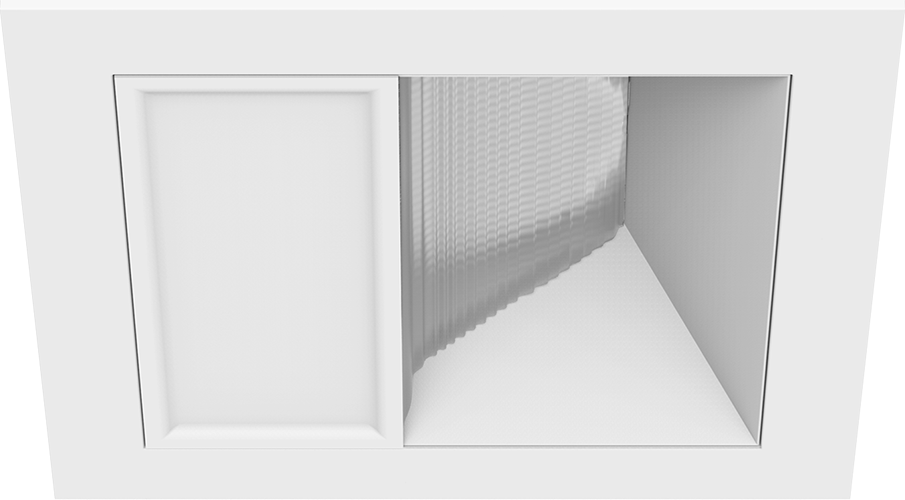

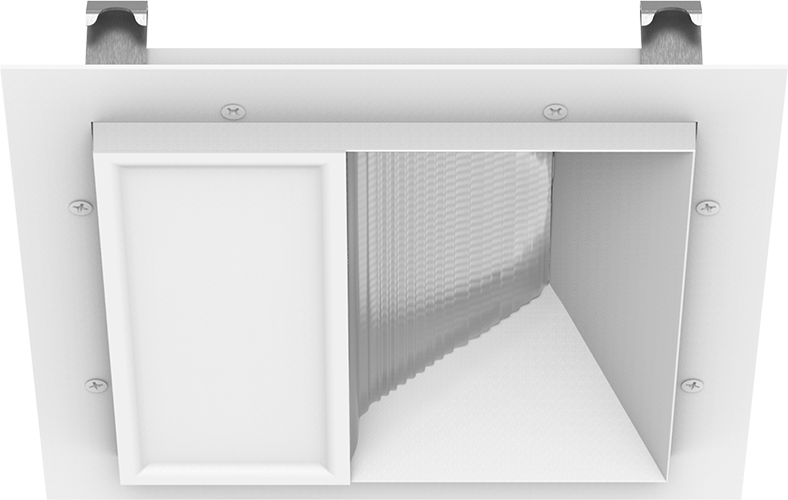

Square Standard Trim, Wall Wash Reflector
Square Standard Trim, Adjustable Lens Reflector
Square Standard Trim, Pinhole Reflector
Square Standard Trim, Slot Pinhole Reflector
Square Standard Trim, Standard Reflector
Square Standard Trim, Wall Wash Reflector
Square Standard Trim, Adjustable Lens Reflector
Square Standard Trim, Pinhole Reflector
Square Standard Trim, Slot Pinhole Reflector
Square Standard Trim, Standard Reflector
Square Standard Trim, Wall Wash Reflector

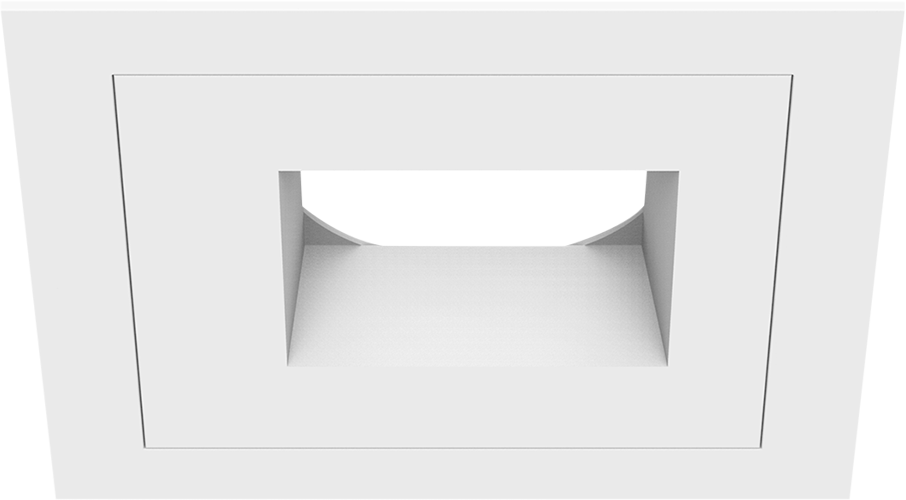

Square Standard Trim, Pinhole Reflector
Square Standard Trim, Slot Pinhole Reflector
Square Standard Trim, Standard Reflector
Square Standard Trim, Wall Wash Reflector

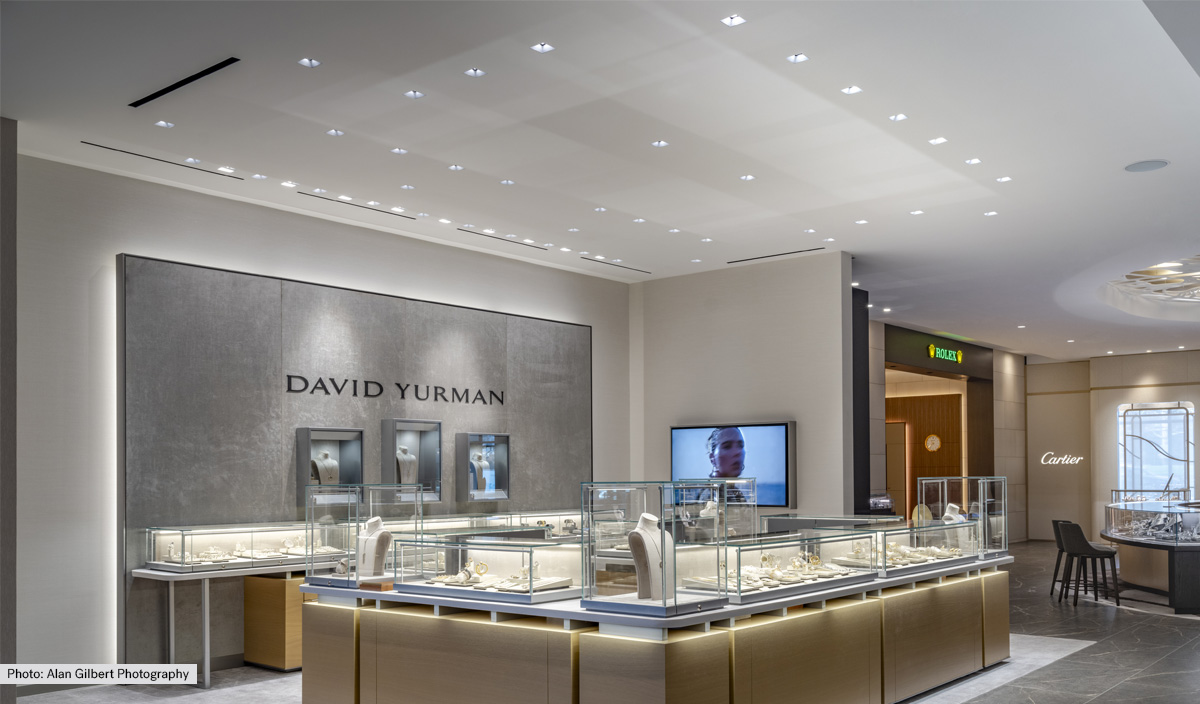

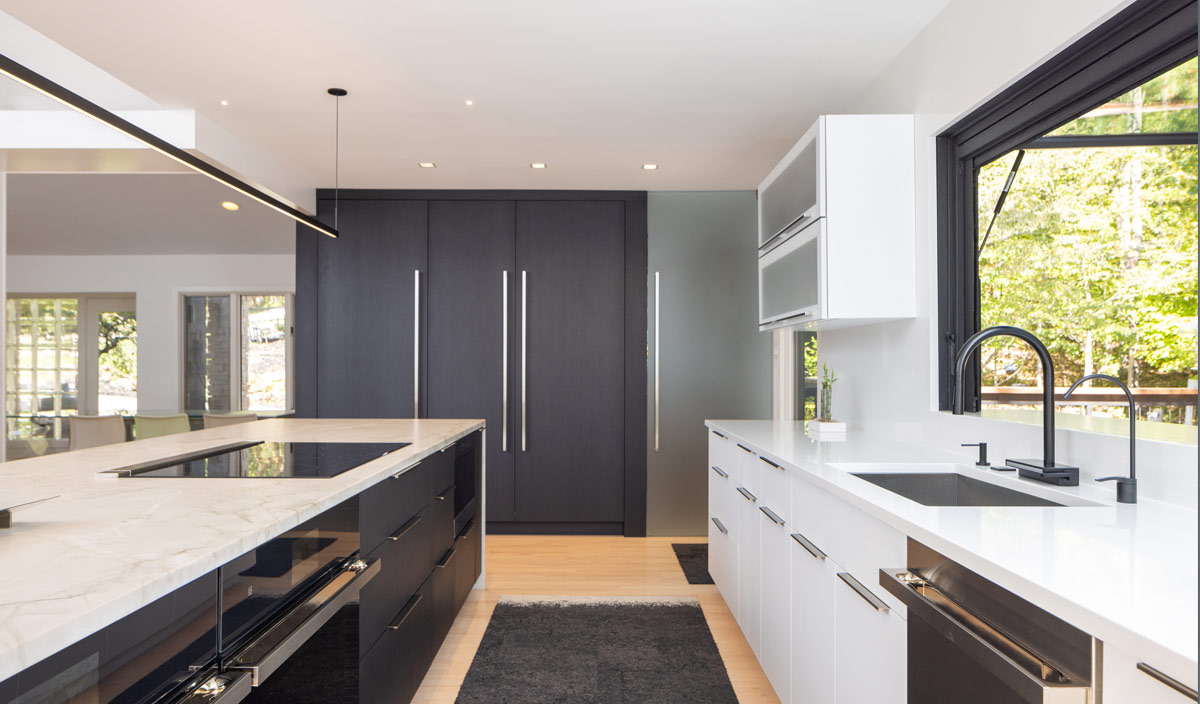

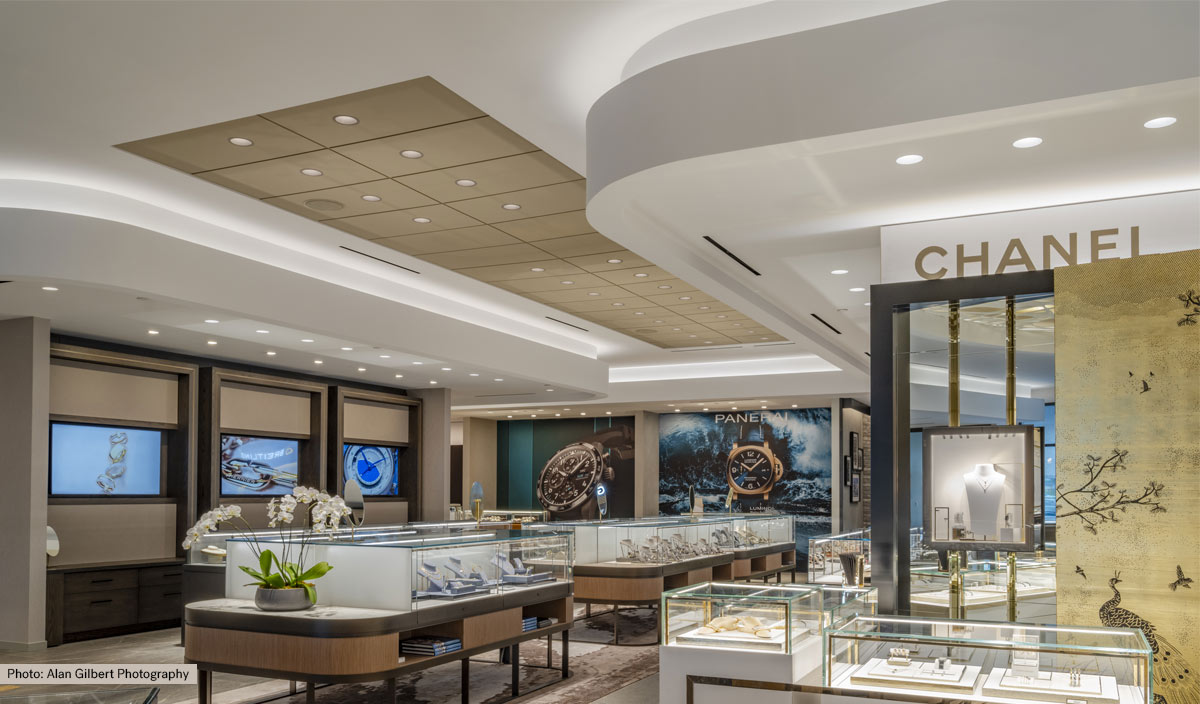

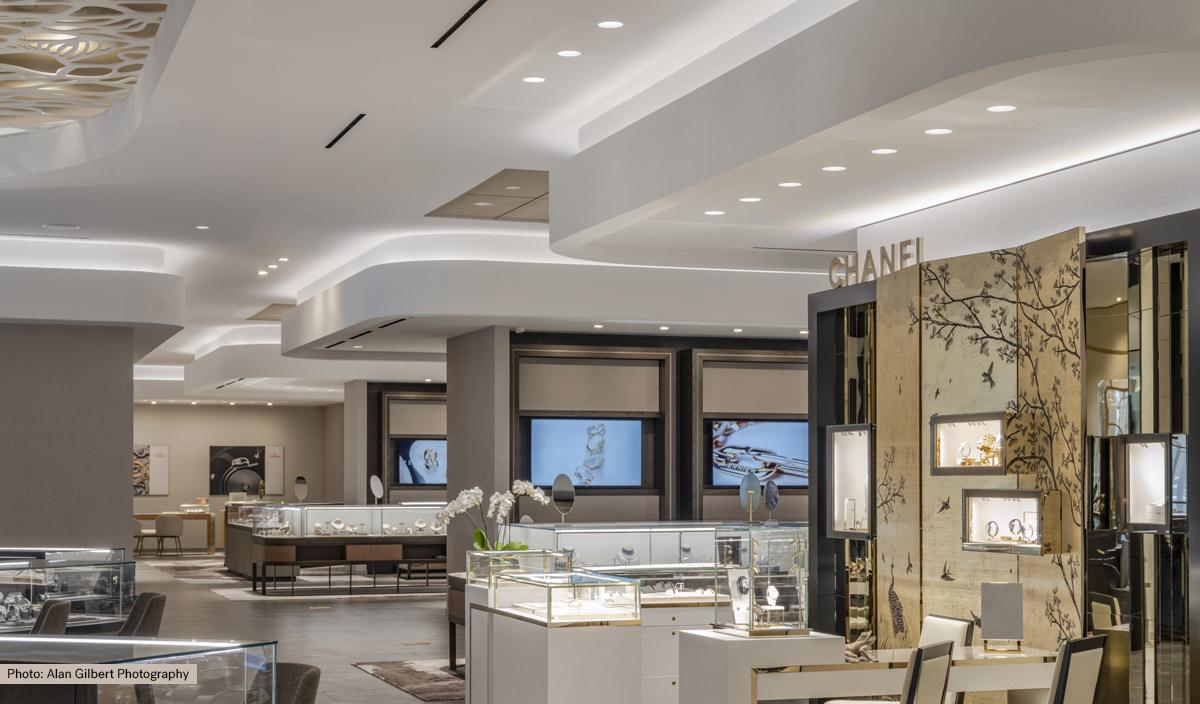

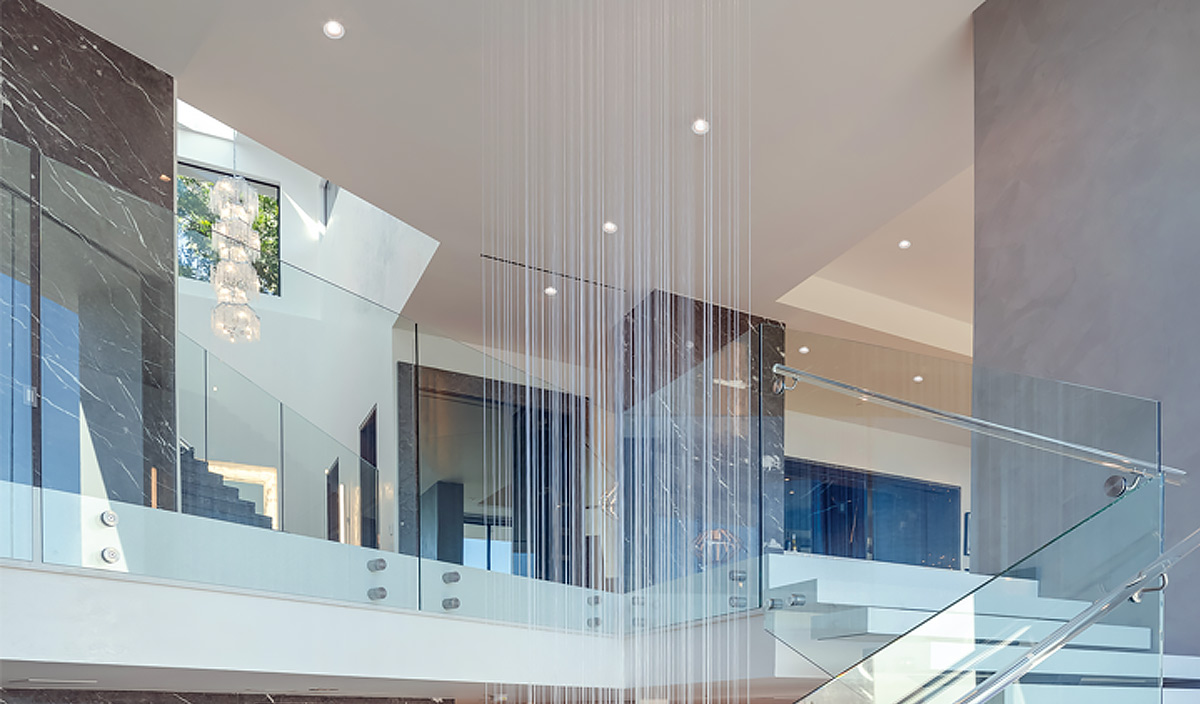

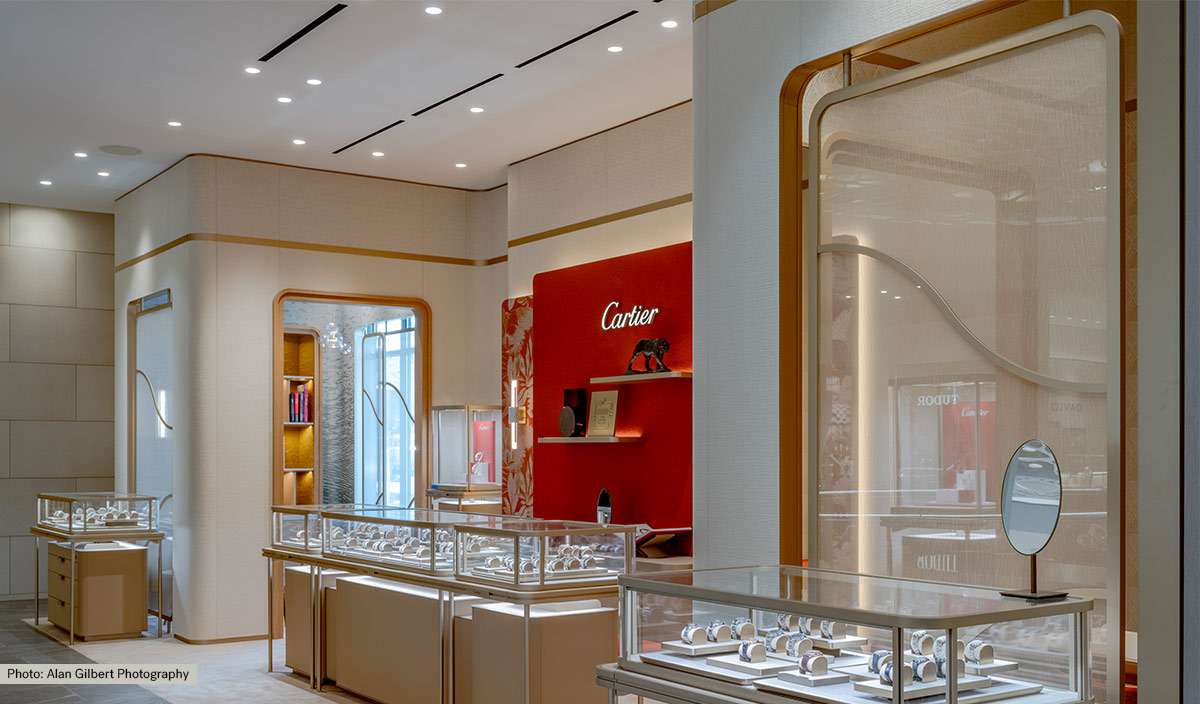

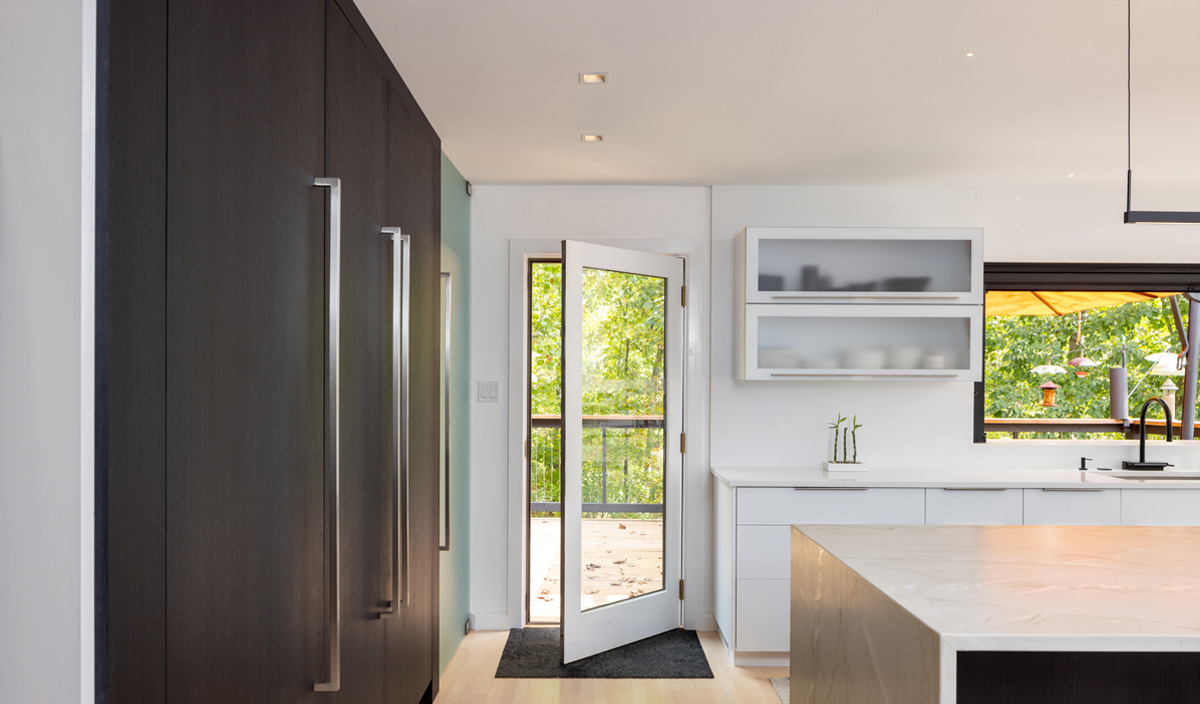

APPLICATIONS

Acrobat Recessed Downlights offer precise hot aiming from below the ceiling, with a sophisticated architectural finish.
  • • Residential
  • • Commercial
  • • Hospitality
