Recessed Downlights

Precise hot aiming from below ceiling. Sophisticated Architectural Finish
IC Rated
Airtight
CCEA
Dimmable
JA-8
5 years

Features

Architecturally driven, the CSL Acrobat family provides infinite adjustability with precise hot aiming from below the ceiling after installation. With exact fit between the optic and the trim, all of Acrobat's internal components are concealed, leaving a clean ceiling. Acrobat is flexible in design to fit any type of ceiling with several field interchangeable opics and trims to bring superior lighting into all spaces.

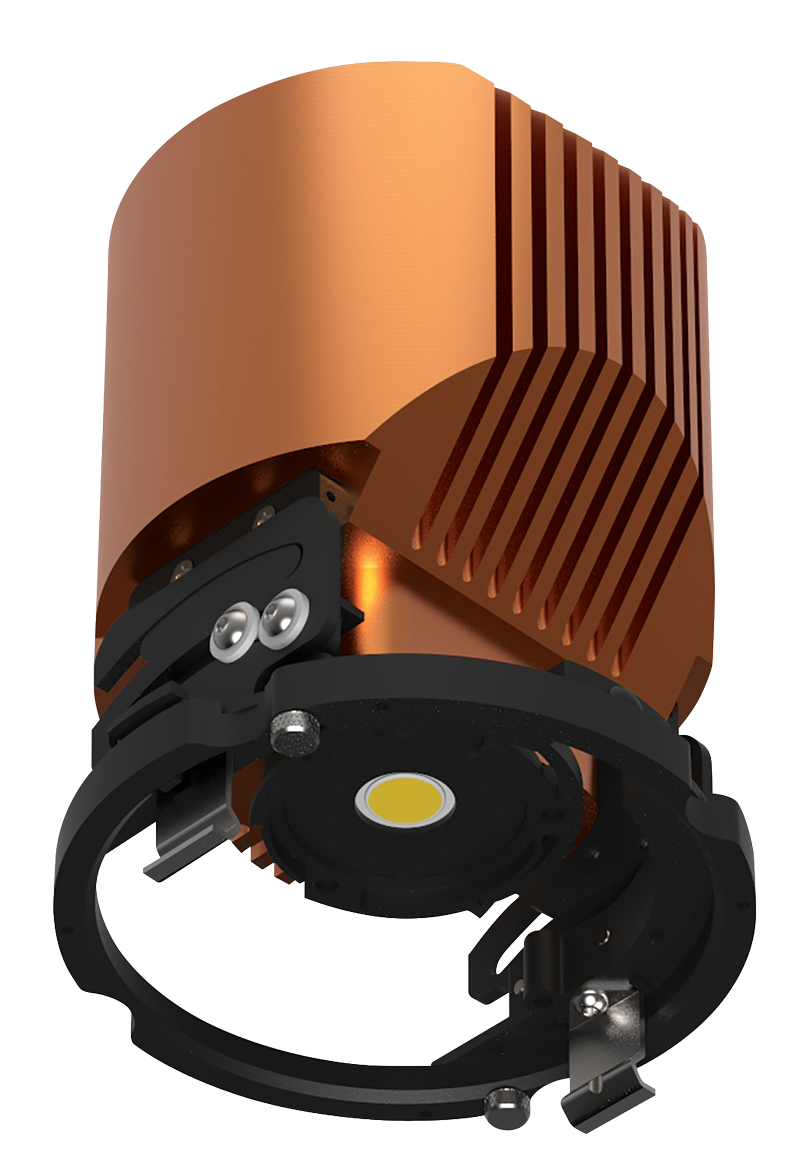

LED Light Engine 50K hours
LED Light Engine
High quality LEDs chosen with 2 SDCM binning. LED lifetime 50,000 hours.

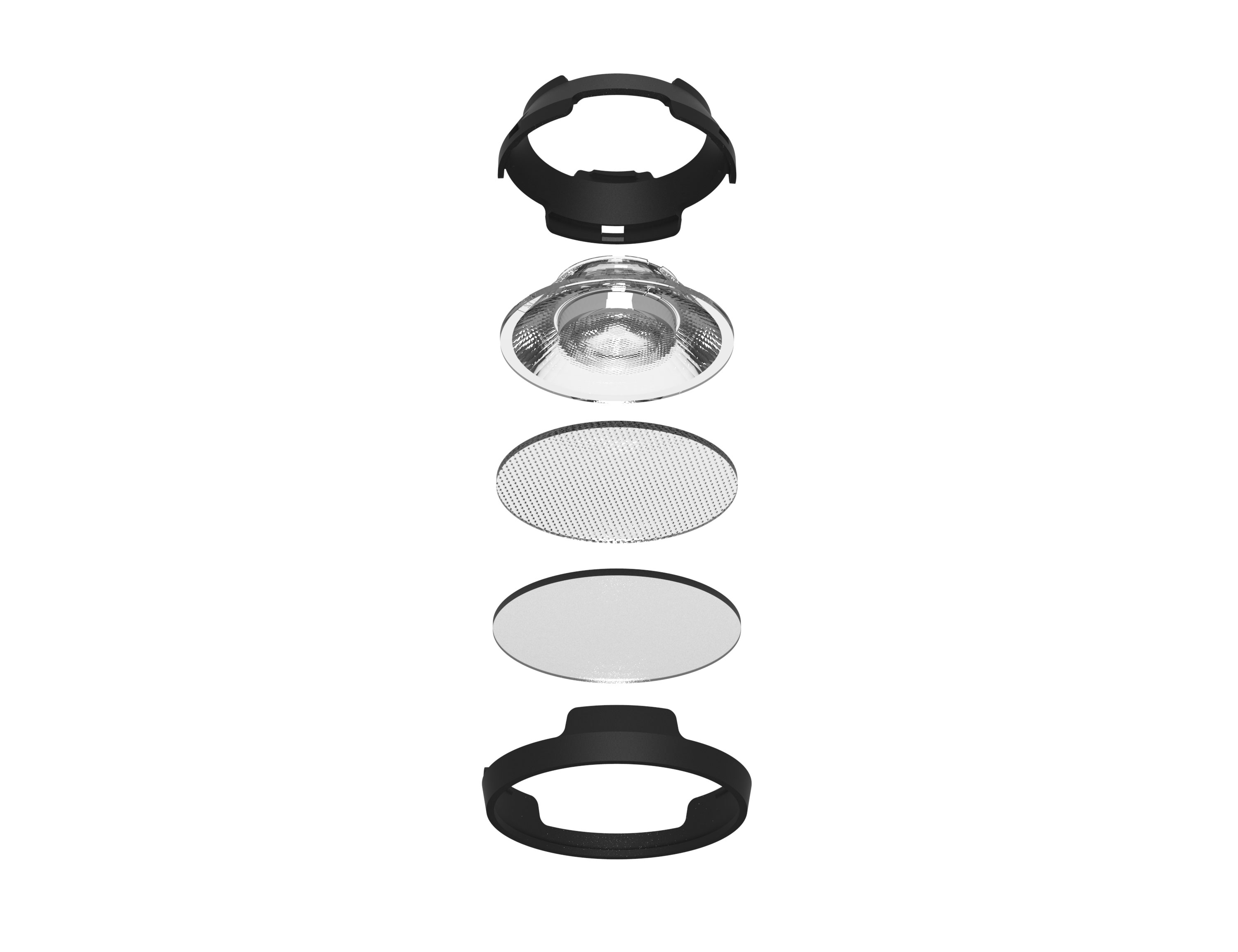

Quality Optics
Quality Optics
10° 30° 50° 80° uniform beam spreads available. Optional media provide added control or diffusion.
High Performance Drivers
High Performance Drivers
TRIAC/ELV, 0-10V, EcoSystem, dims to 1% standard, 0.5% and Warm Dim available

Options

LED light engine performance
1" 2" 3" 4"
BEST FOR Clean, Modern, Minimalist Accents with Higher Lumens General Uniform Lighting Large Spaces, High Ceiling
PRECISE ADJUSTABILITY 15° Tilt
360° Rotation
35° Tilt
360° Rotation
40° Tilt
360° Rotation
40° Tilt
360° Rotation
AVAILABLE OPTICS 10° 30° 50° 80° Beam Spread
MEDIA Clear, Solite, Frosted, Wall Wash, Linear Spread, Hex
MAX WATTAGE 10W, 15W 10W, 15W, 20W 10W, 15W, 20W, 25W 10W, 15W, 20W, 25W, 30W, 35W
MAX DELIVERED LUMENS 1160 1400 1900 2700
EFFICACY up to 77 up to 79 up to 89 up to 101
CCT @ 90 CRI
2700K, 3000K, 3500K, 4000K
LED LIFETIME
L70>50,000 Hours
DIMMING TYPES
TRIAC/ELV, 0-10V, EcoSystem
WARM DIM
X
X
X
SERVICABILITY
Above Ceiling
Below Ceiling
Below Ceiling
Below Ceiling
MIN PLENUM HEIGHT
2 1/2"
2 1/2"
2 1/2"
2 1/2"

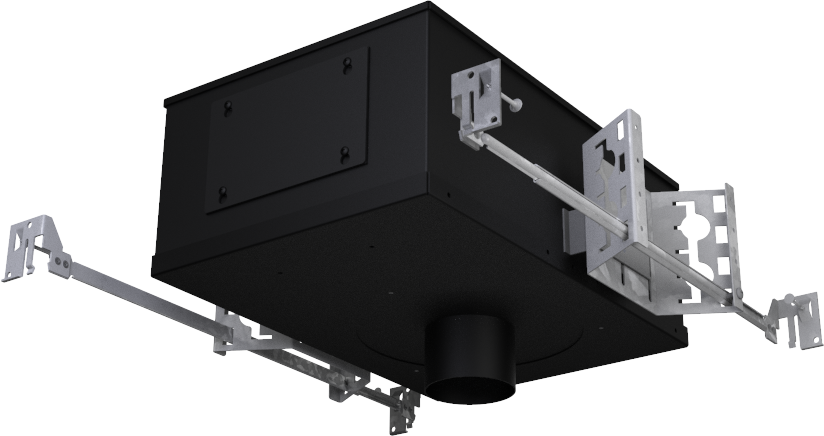

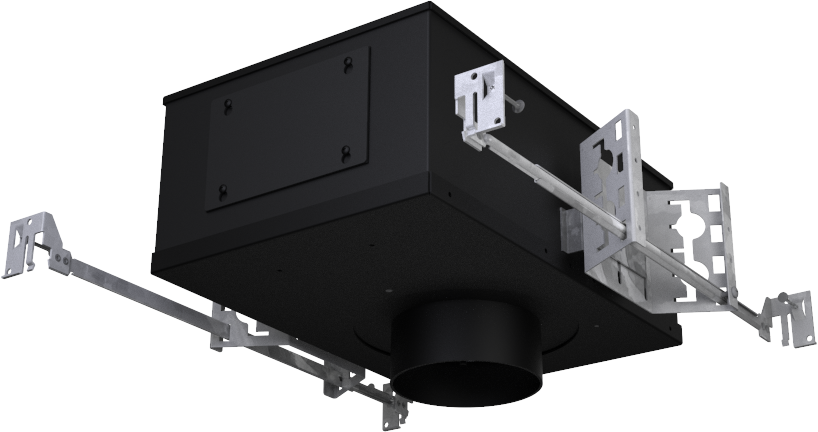

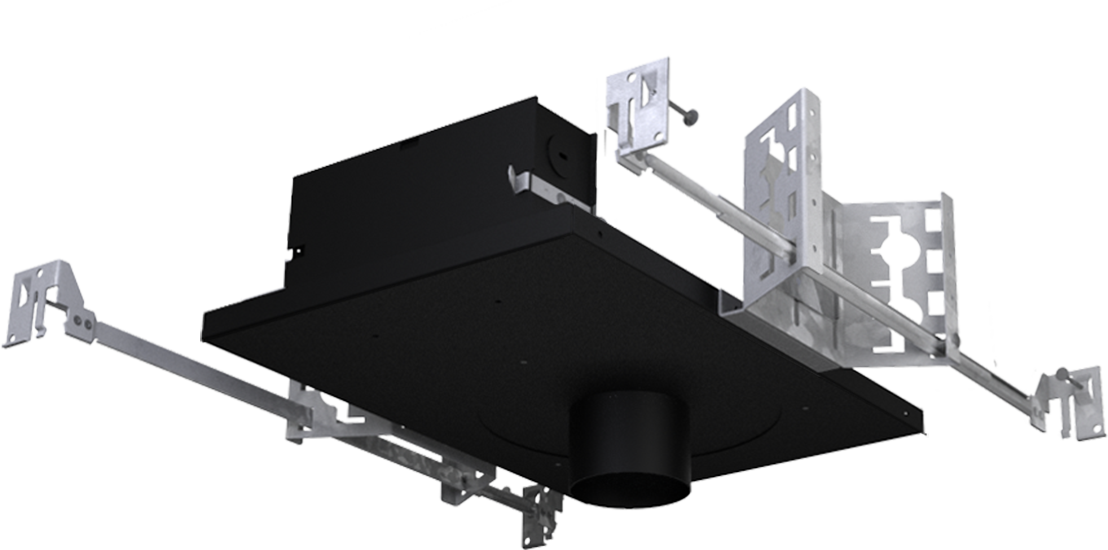

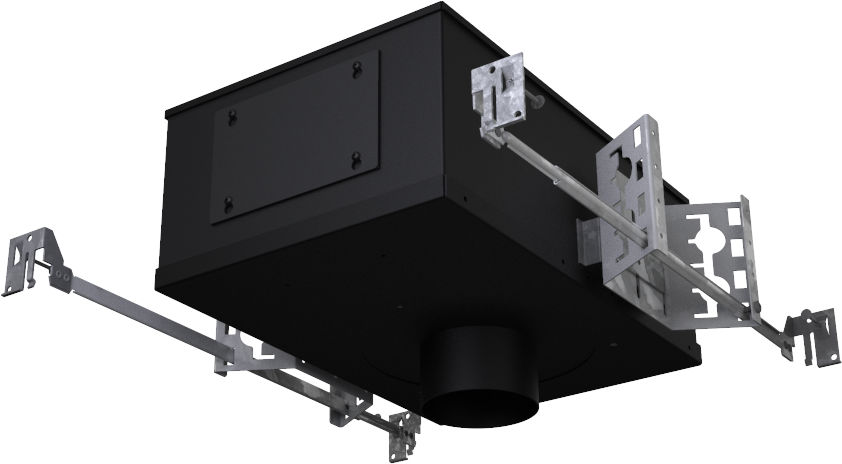

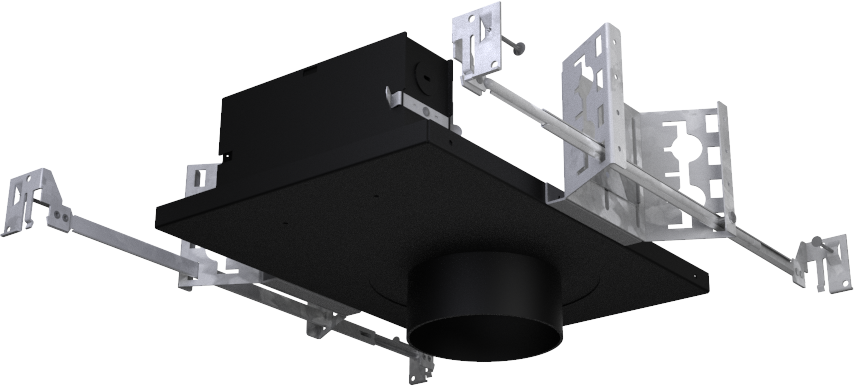

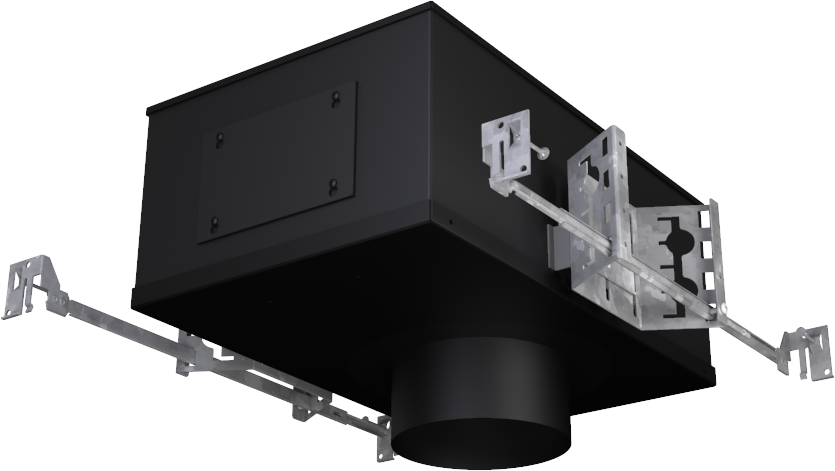

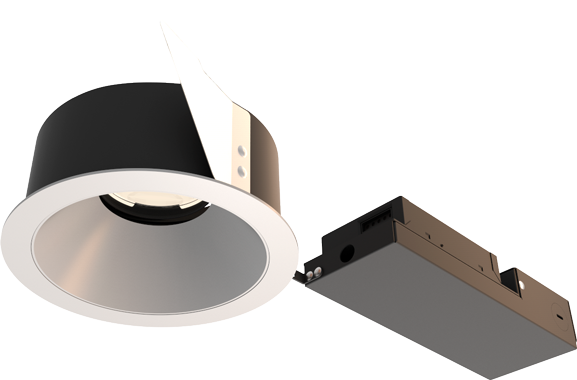

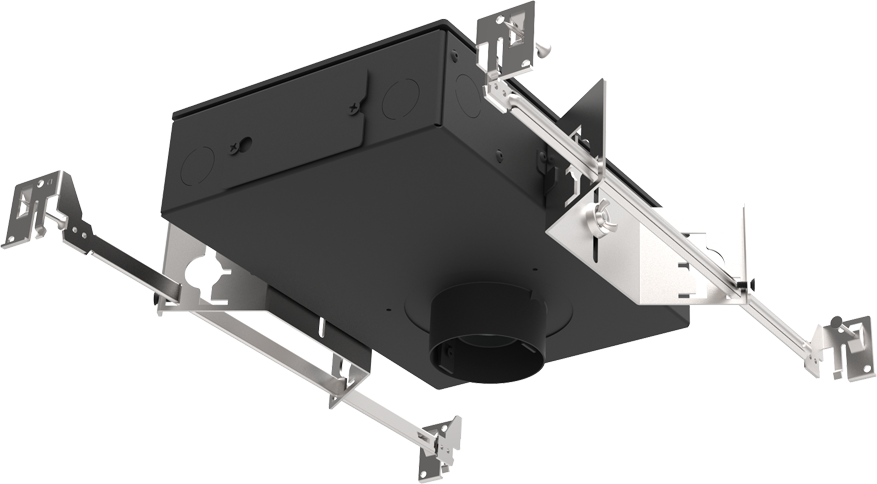

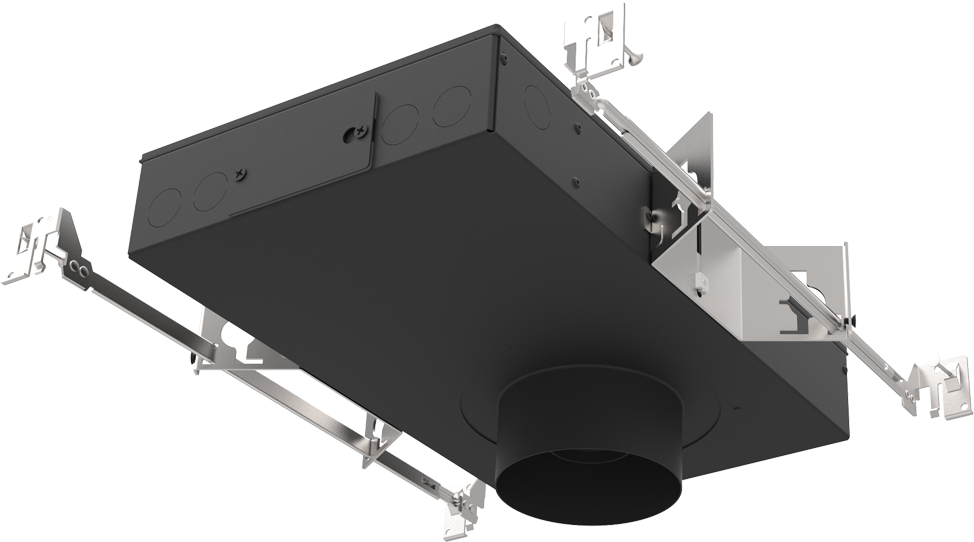

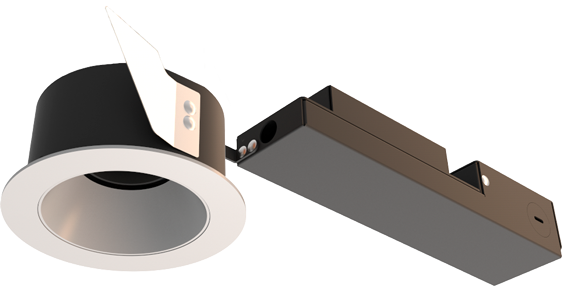

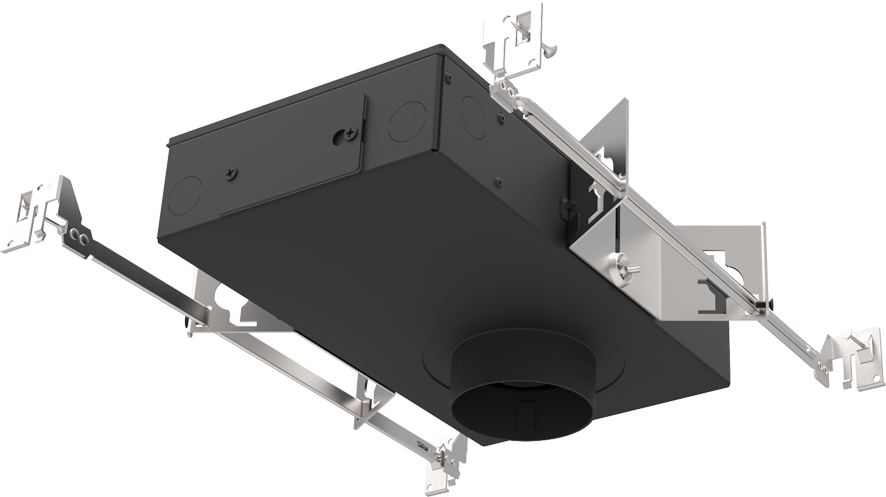

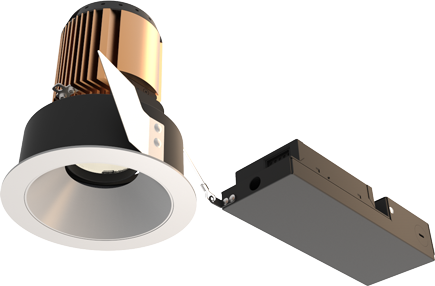

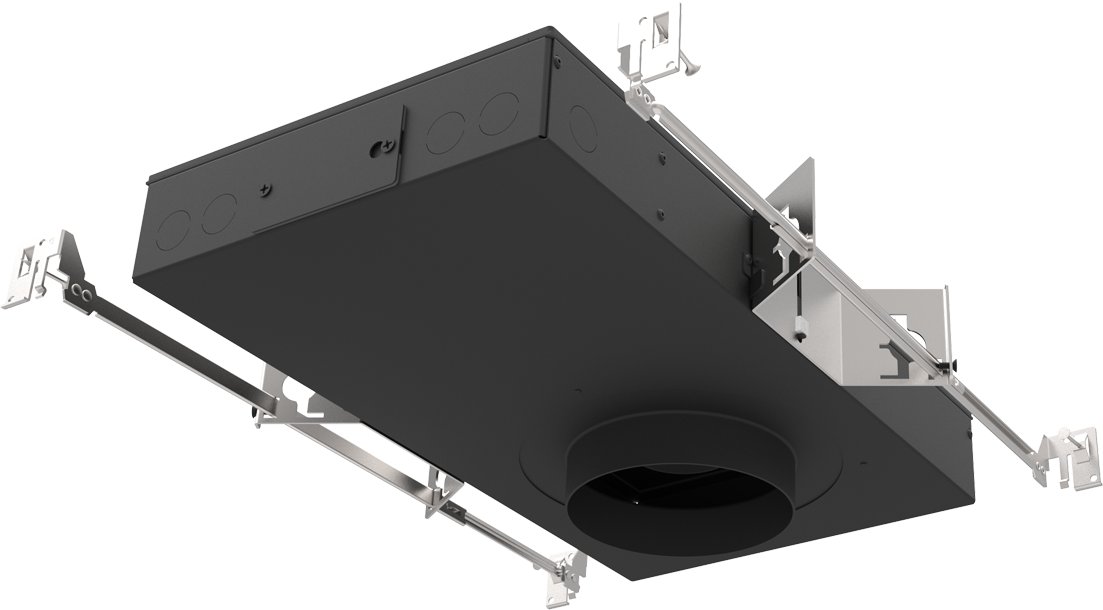

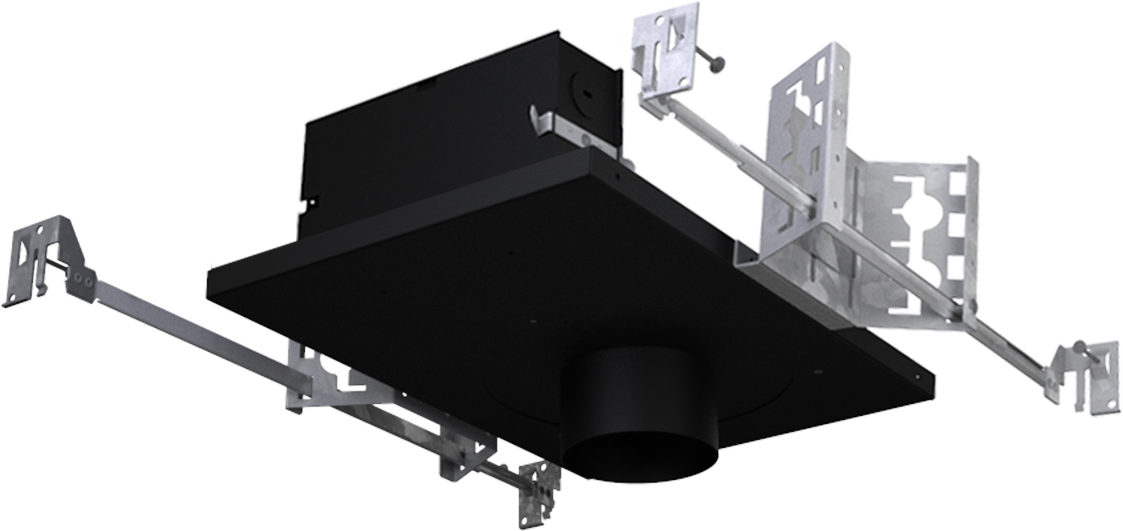

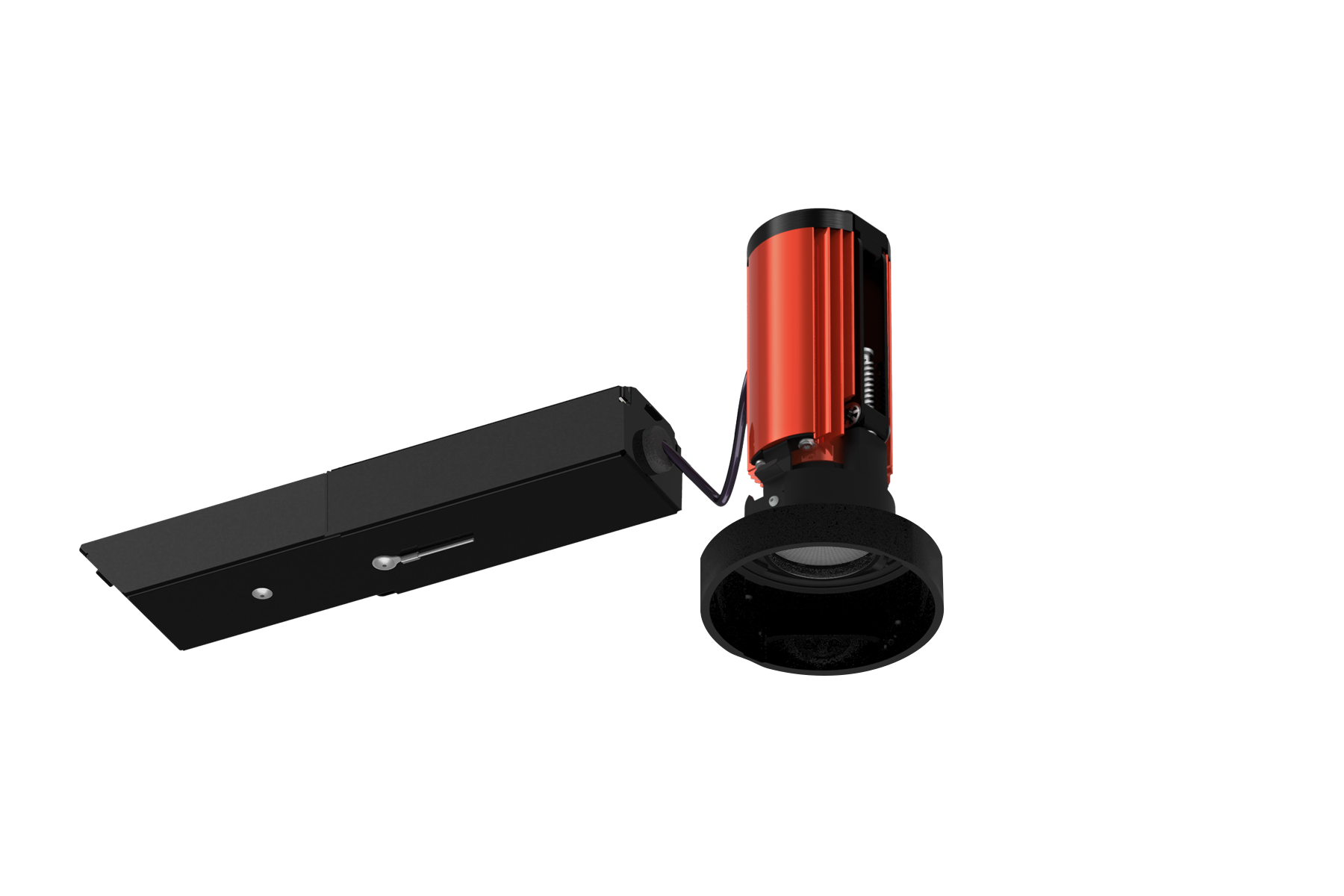

Housing



Trim

Acrobat LED recessed downlights provide an unparalleled look below the ceiling. Round and square aperture trims create a downlight, adjustable, baffle, pinhole, or wall wash. Trimless options are available.

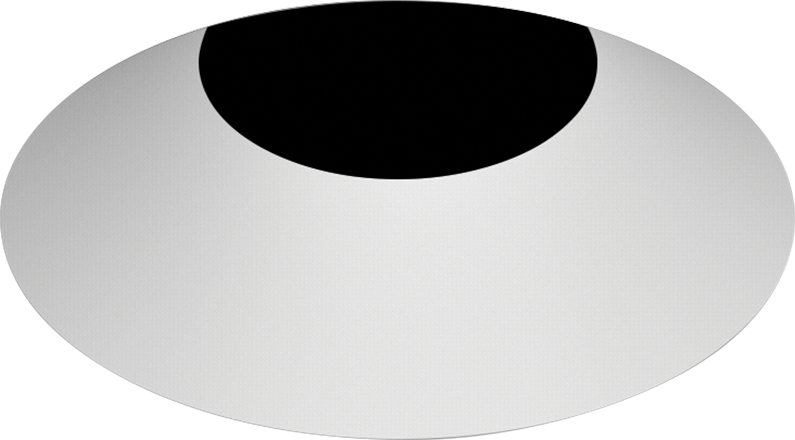

Round Smooth Flangeless Trim

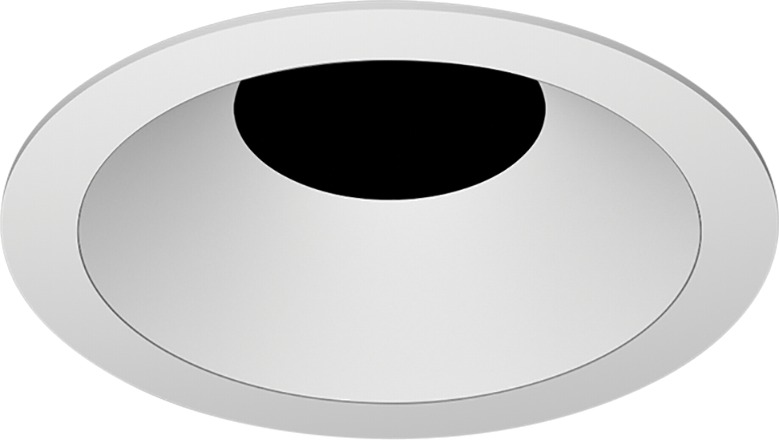

Round Smooth Trim

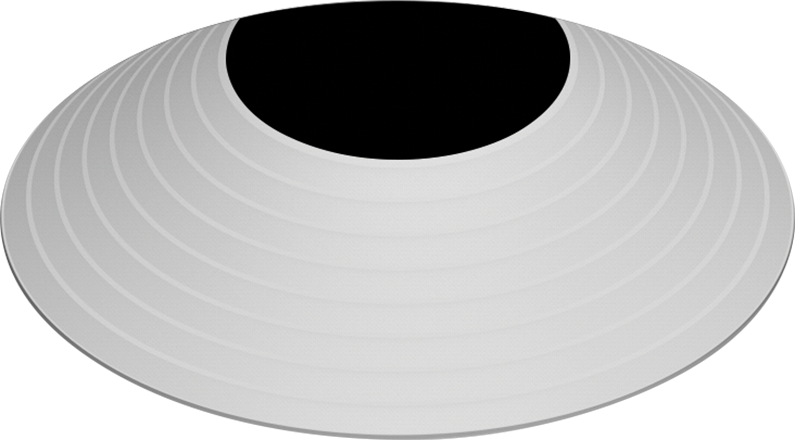

Round Baffle Flangeless Trim

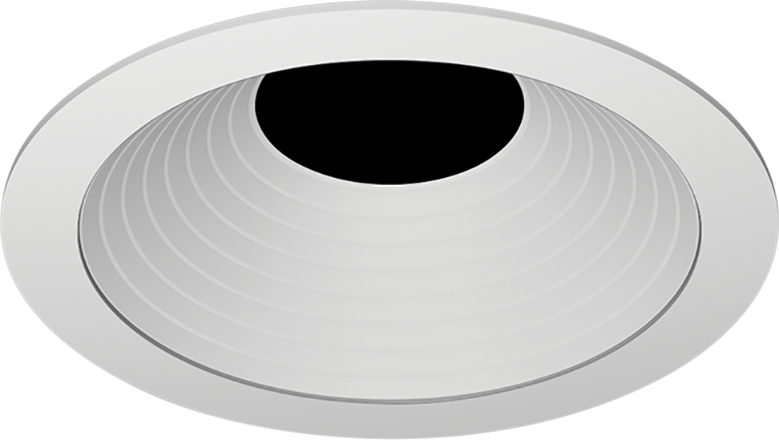

Round Baffle Trim

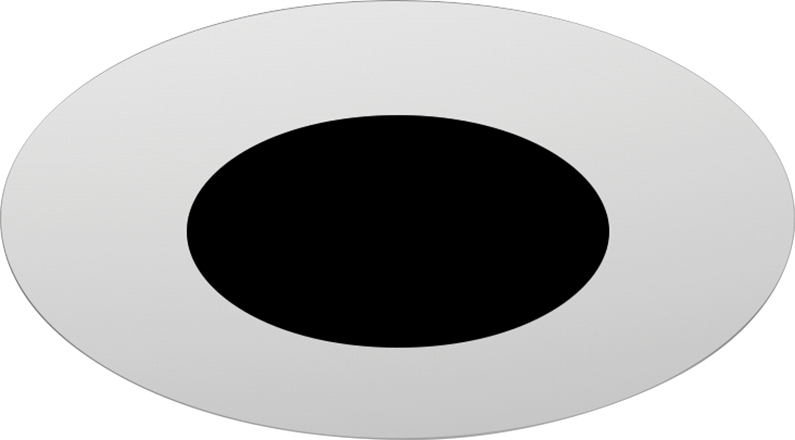

Round Pinhole Flangeless Trim

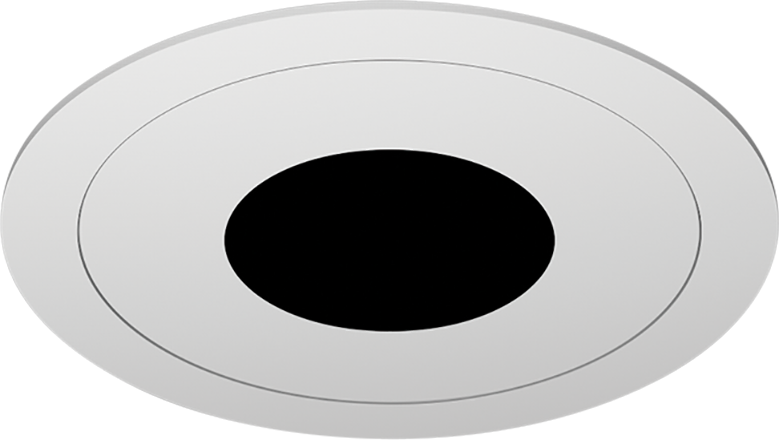

Round Pinhole Trim

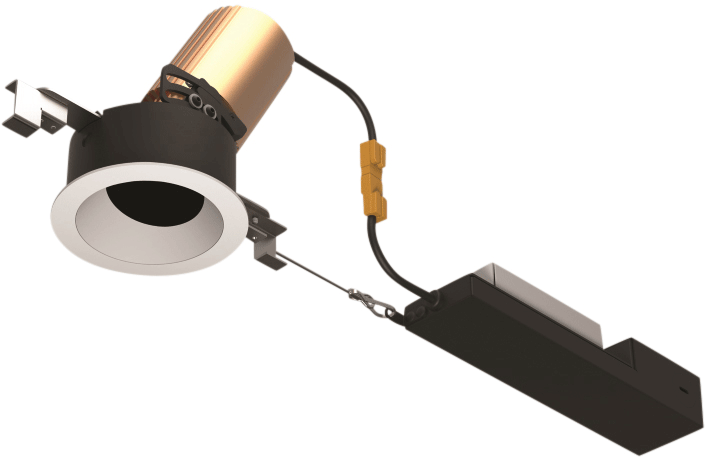

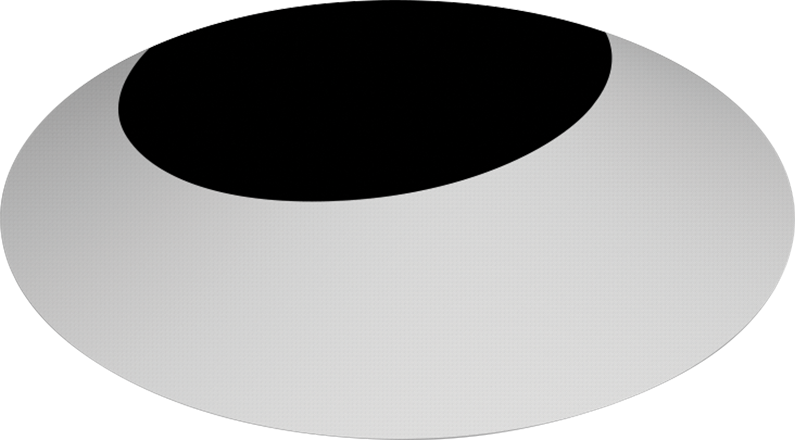

Adjustable Round Smooth Flangeless Trim

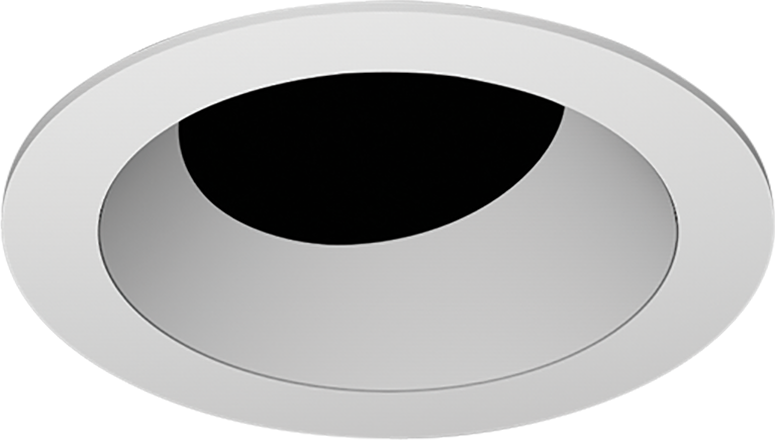

Adjustable Round Smooth Trim

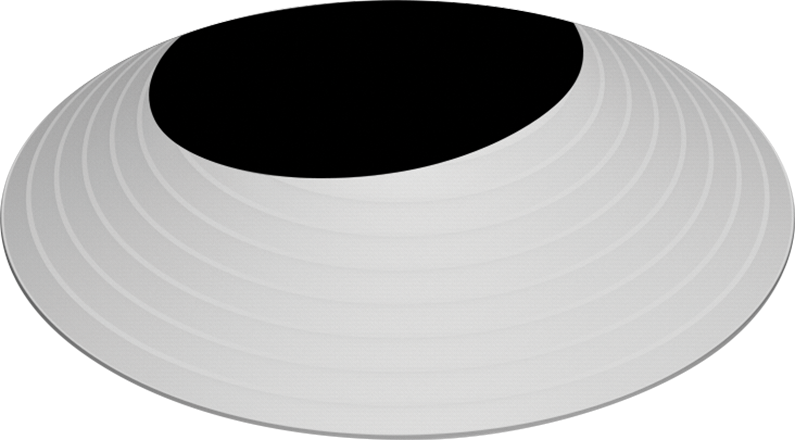

Adjustable Round Baffle Flangeless Trim

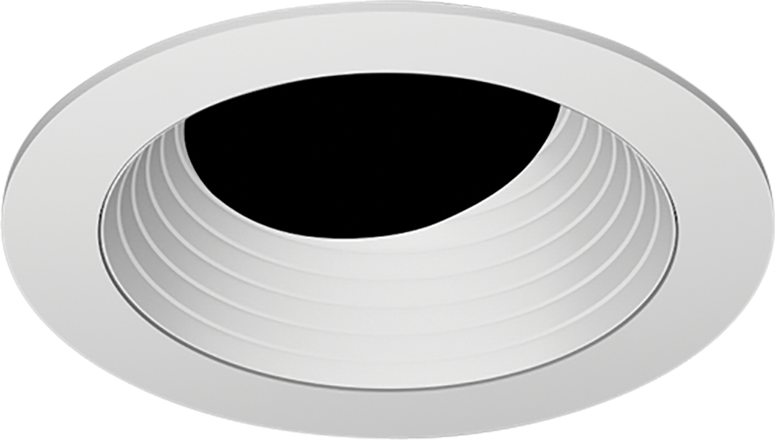

Adjustable Round Baffle Trim

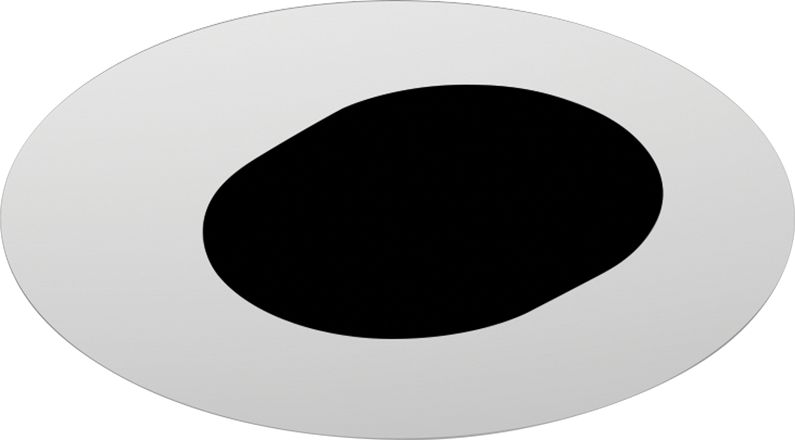

Round Slot Pinhole Flangeless Trim
Round Slot Pinhole Trim

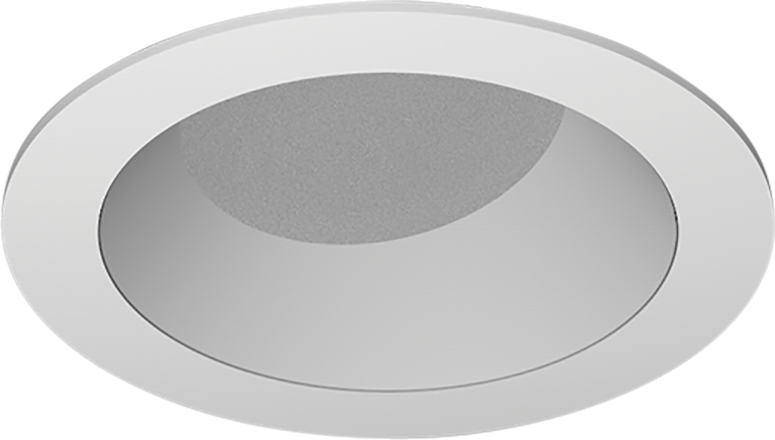

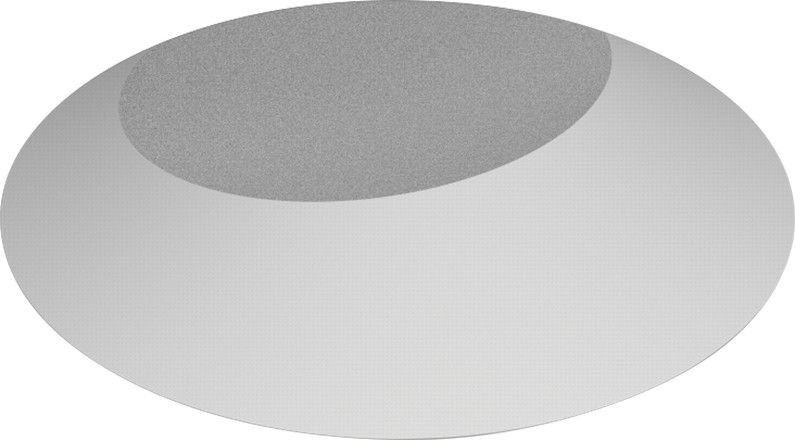

Round Wall Wash Trim
Round Wall Wash Trim

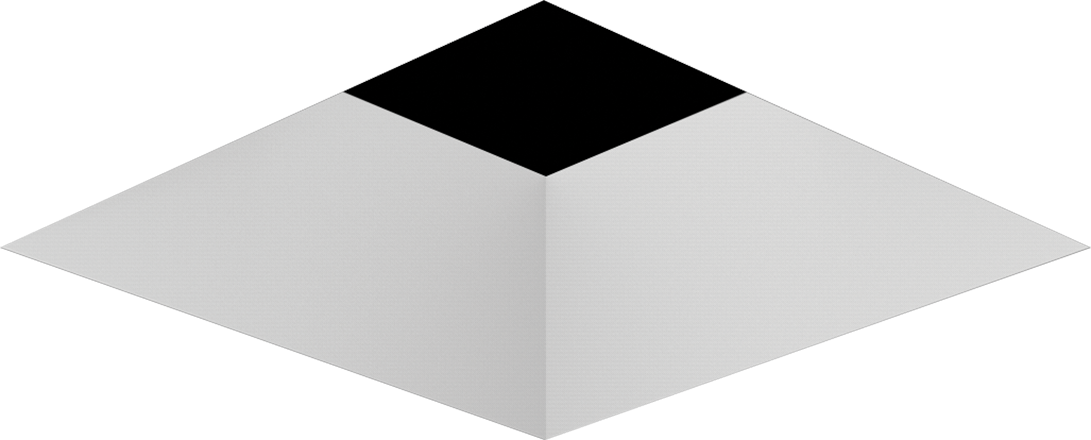

Square Smooth Flangeless Trim

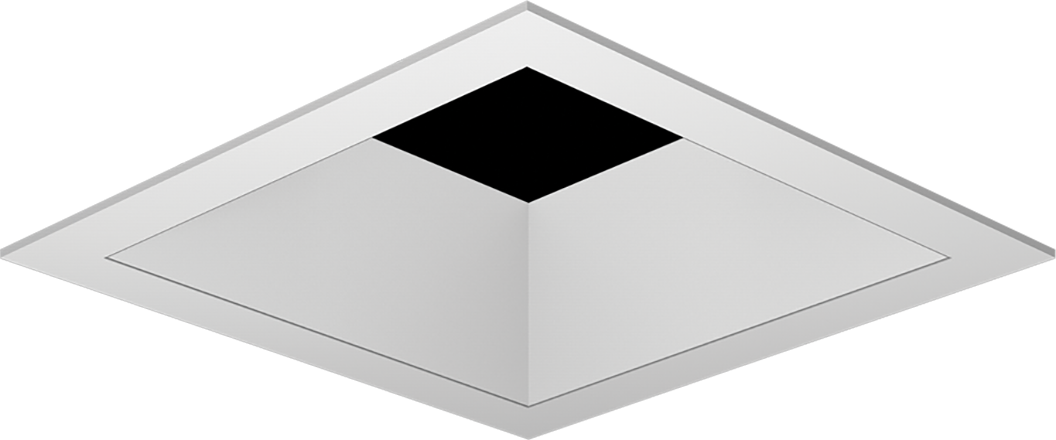

Square Smooth Trim

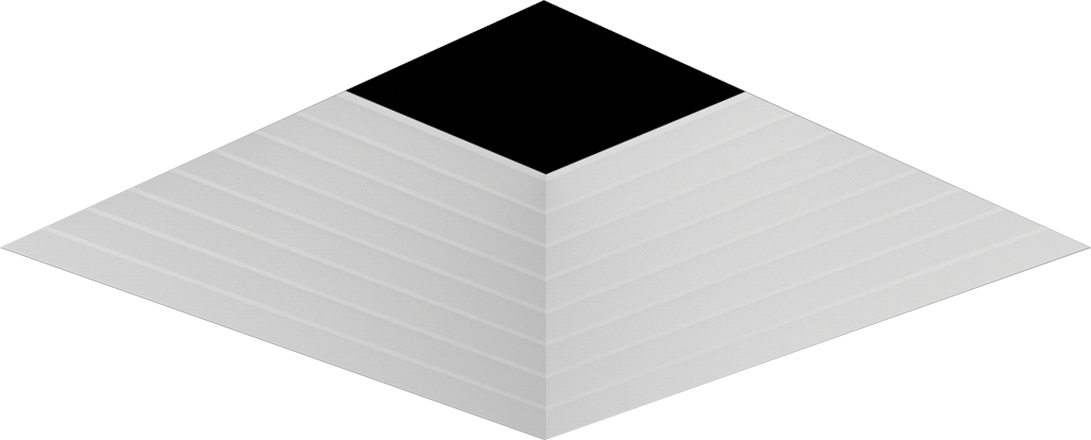

Square Baffle Flangeless Trim

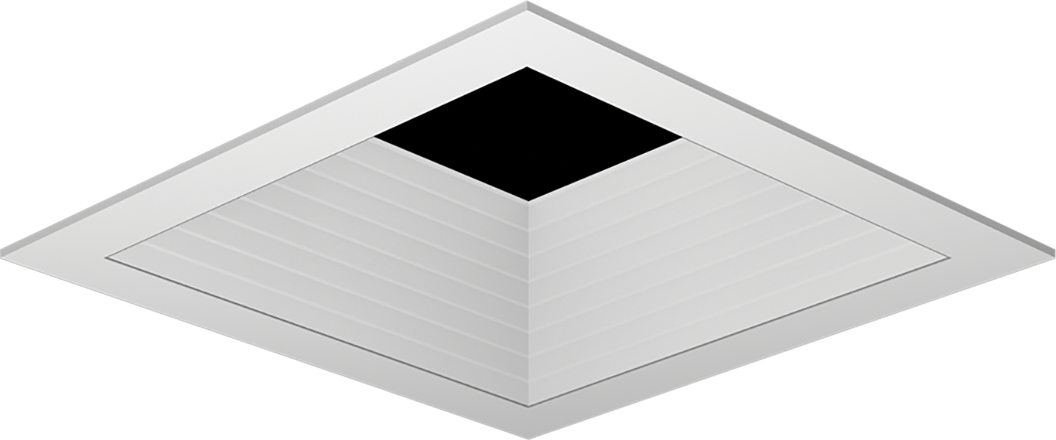

Square Baffle Trim

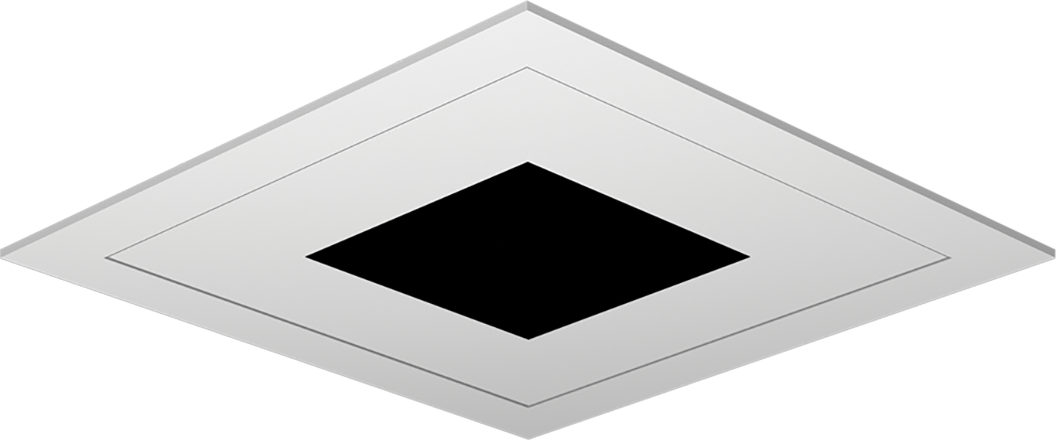

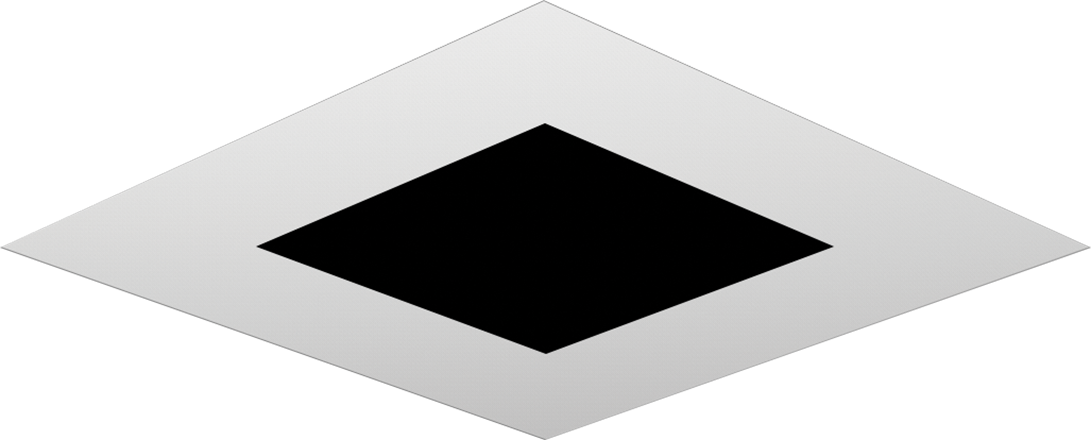

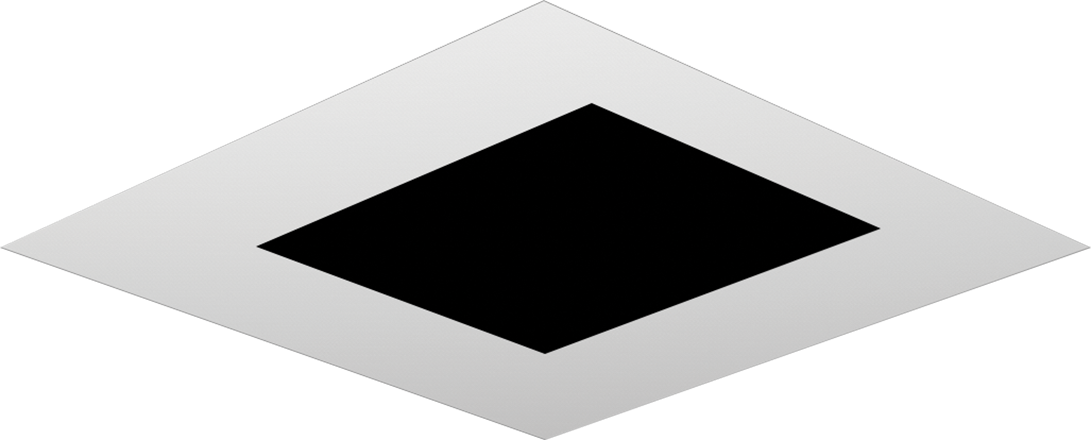

Square Pinhole Flangeless Trim
Square Pinhole Trim

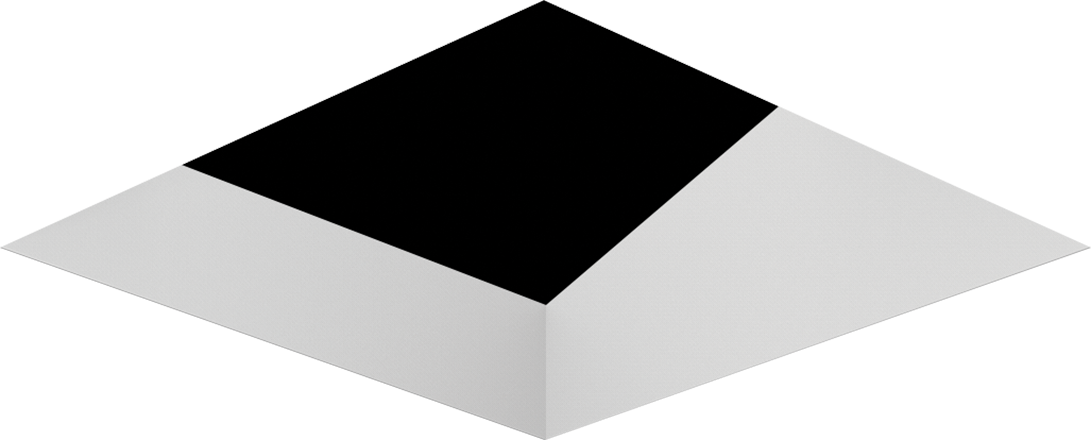

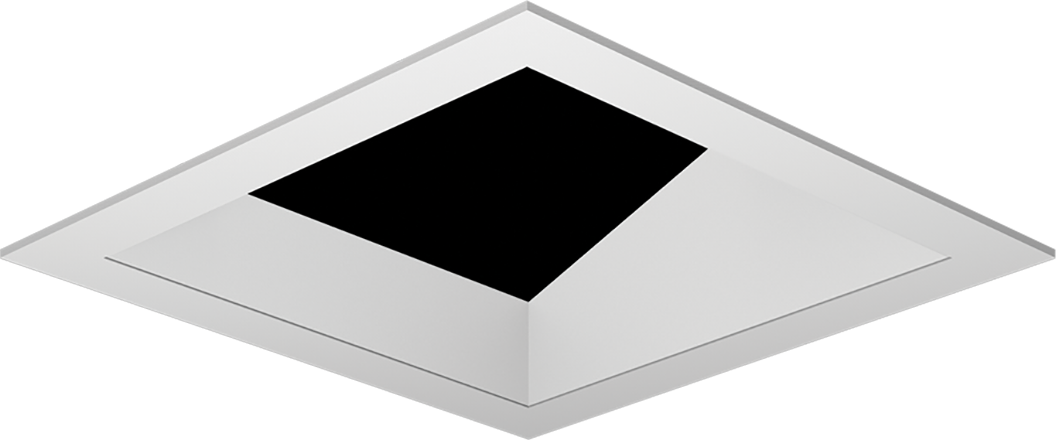

Adjustable Square Smooth Flangeless Trim
Adjustable Square Smooth Trim

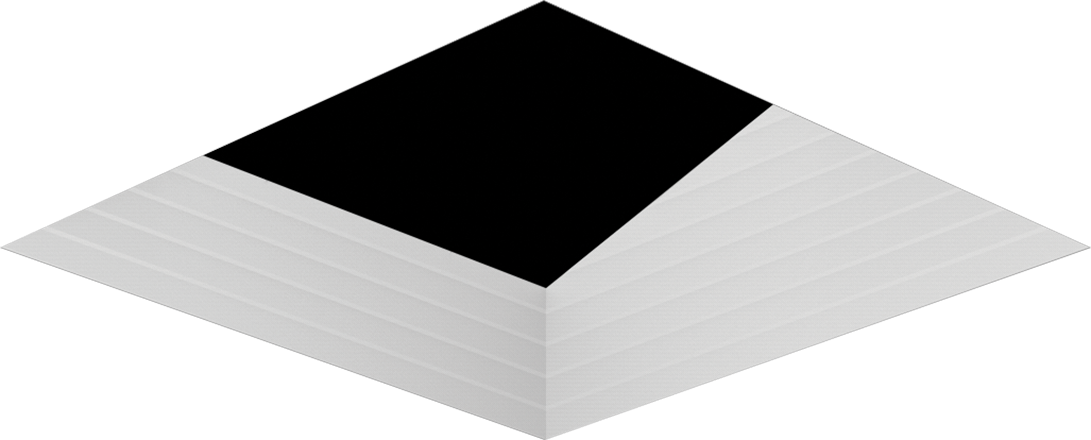

Adjustable Square Baffle Flangeless Trim

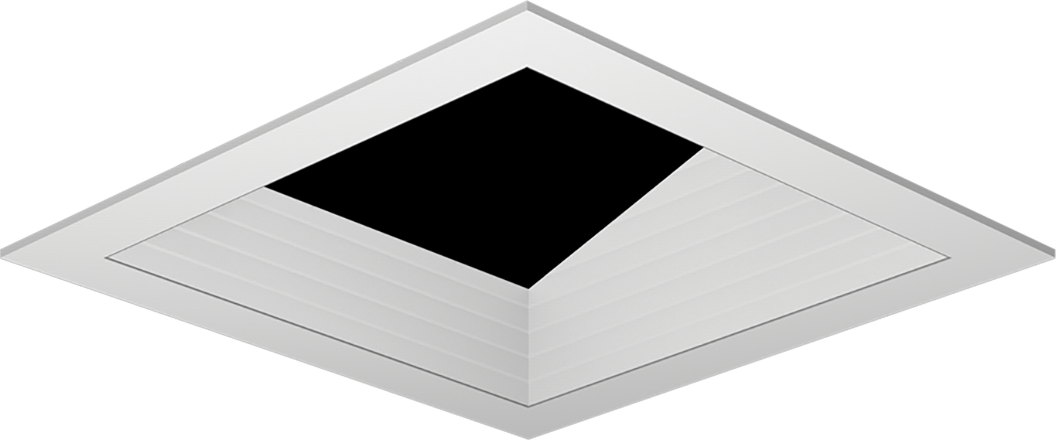

Adjustable Square Baffle Trim

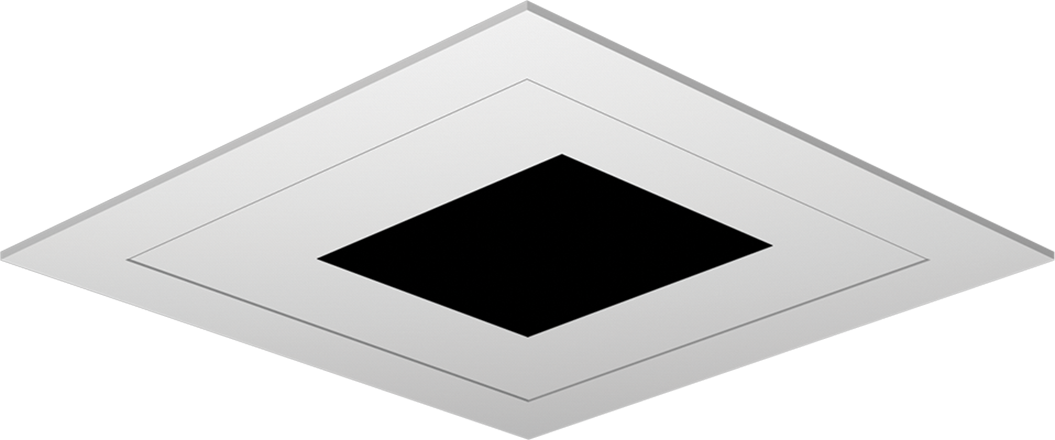

Square Slot Pinhole Flangeless Trim
Square Slot Pinhole Trim
Square Flangeless Trim

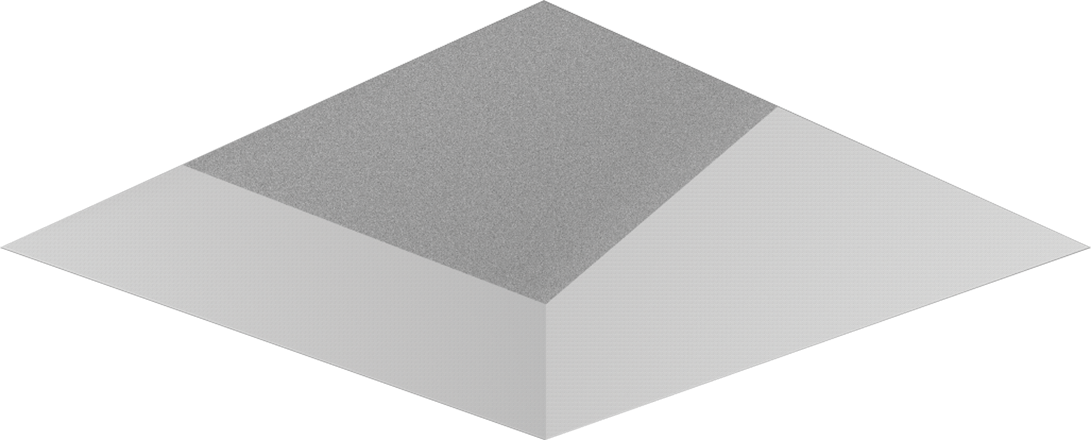

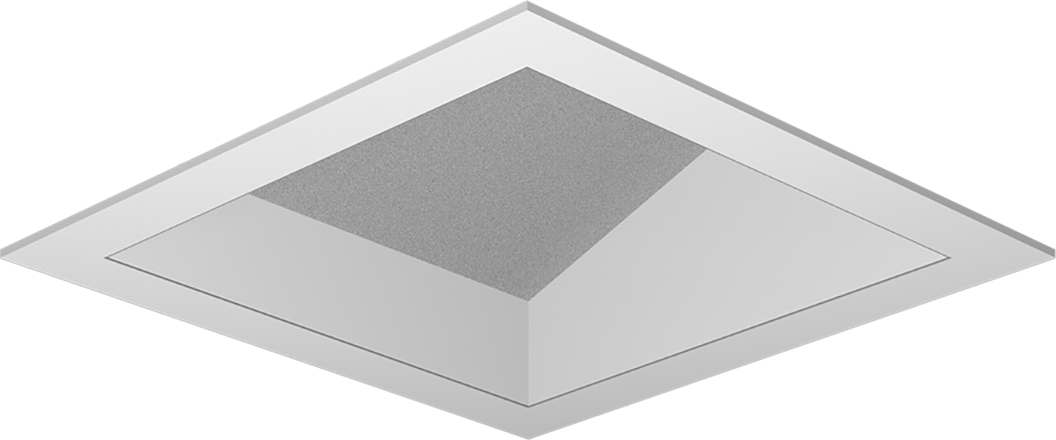

Square Wall Wash Trim

Applications

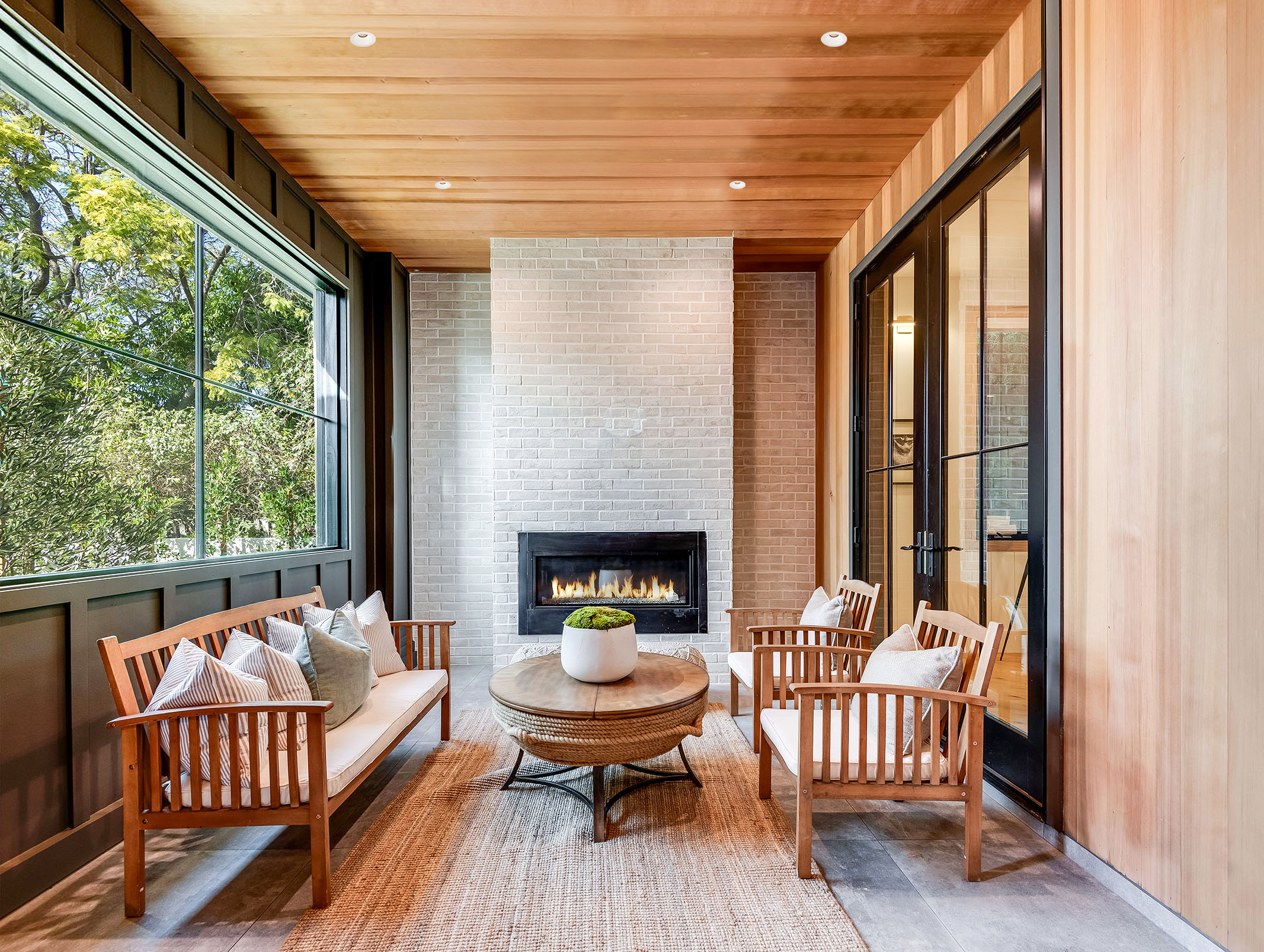

Acrobat Recessed Downlights offer precise hot aiming from below the ceiling, with a sophisticated architectural finish.
  • • Residential
  • • Commercial
  • • Hospitality
