1" Shallow Plenum Adjustable IC

Square Adjustable Trim, Wet Regressed

ECO™ Recessed Downlights

The high-performance, cost-effective LED Downlight designed to over-deliver on light quality, efficiency, and versatility.

1" Fixed Shallow Plenum Adustable IC Wet Regressed Square Trim Recessed Lighting
Wet Location
Dimmable
Warm Dim
CA Title 24-JA8
5 Year Warranty
    Downloads Browse

    Features

    The all-new high-performance, cost-effective ECO™ LED Recessed Downlights are designed to over-deliver on light quality, efficiency, and versatility - an LED solution that fits any application, including general, task, or accent lighting for residential, commercial, hospitality and retail spaces. The ECO™ Downlight is available in adjustable and fixed models and can be installed into shallow plenums. With the highest quality chips powered by high-performance dimming drivers, ECO™ housings pair perfectly with your choice of trim style and colors to bring the light where you need it and provide a clean ceiling aesthetic.

    Housing

    • New Construction Shallow Box
    • 2 3/8" Min Plenum
    • Drywall
      T-bar
    IC Rated
    Wet Location (Lensed Trim Only)
    Damp Location
    CA Title 24-JA8

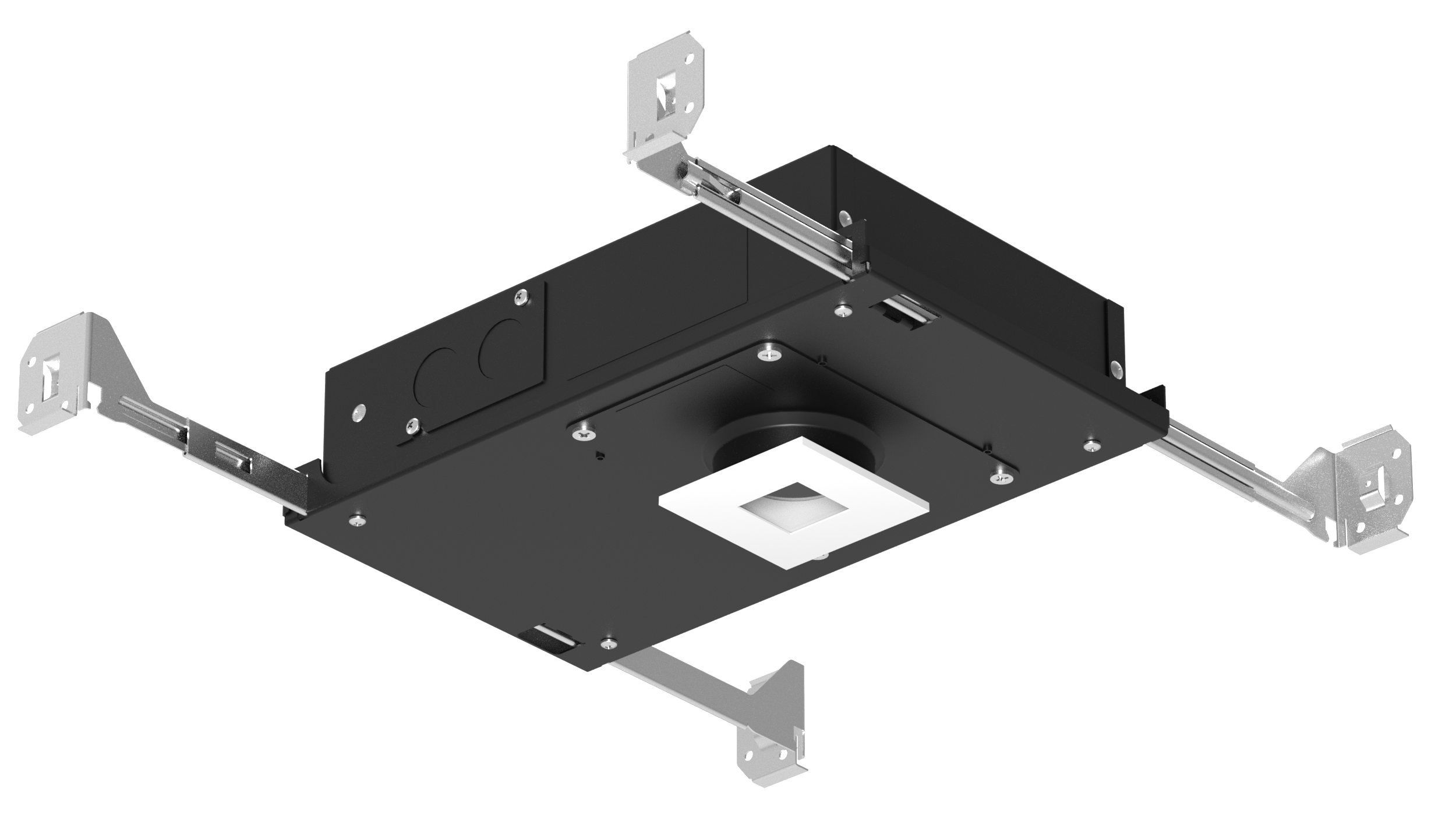

    1" Shallow Plenum Adjustable IC Recessed Light Housing

    LED Performance

    • 2700K, 3000K, 3500K, 4000K, Warm Dim CCT Options
    • Quality 90+ CRI LEDs, 2 SDCM
    • 55,000 Hours at LM90

    Optics Performance

    Installed Optics
    Choice
    Available Optics
    10°
    30°
    50°
    80°

    Drivers and Dimming

    Integral Driver Options
    Standard Universal Dim 1%-100% 0-10V TRIAC ELV 120V/277V
    • Fully Below Access

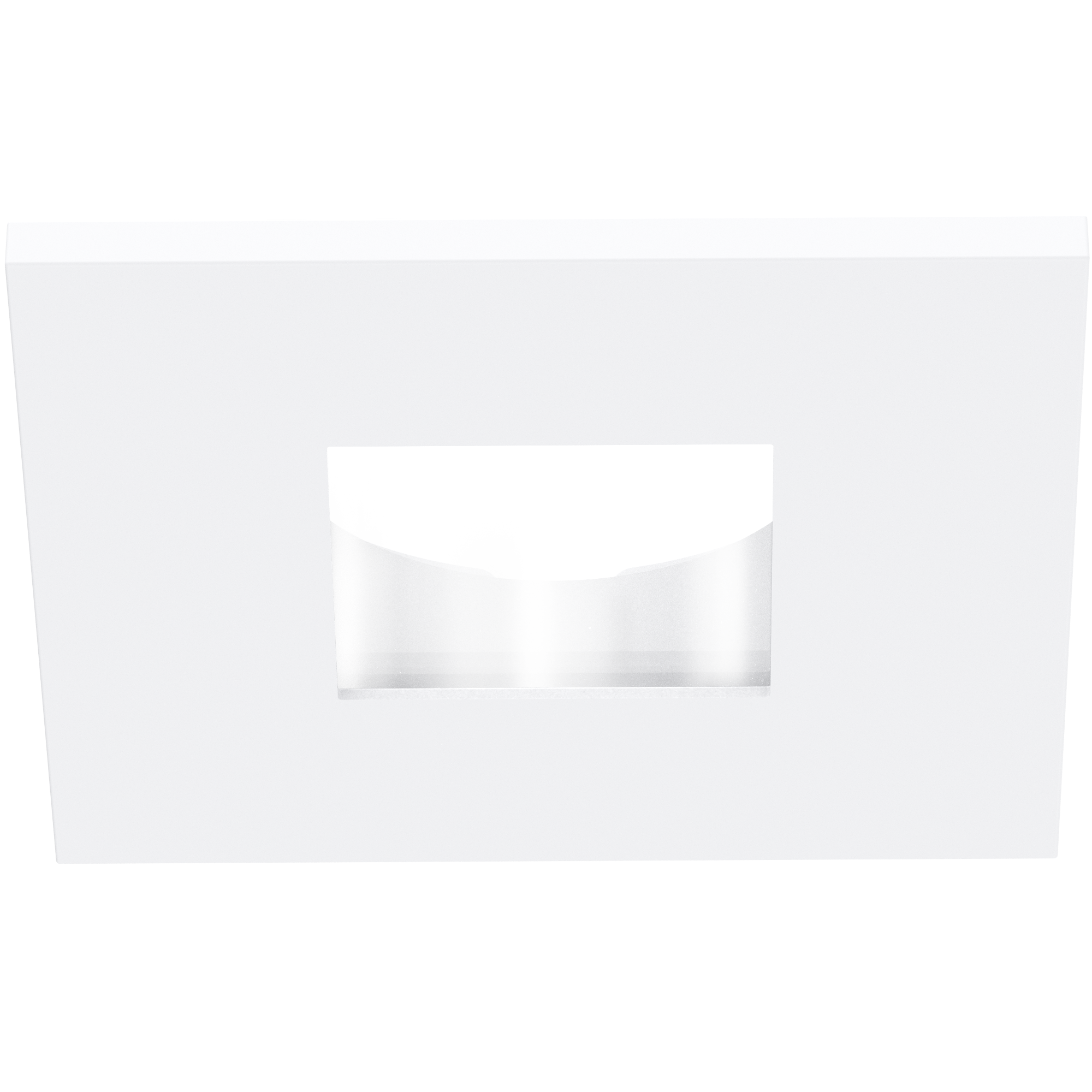

    Square Adjustable Trim, Wet Regressed

    • Adjustable

    Downloads

    BROCHURE
    ⬇
    SPEC SHEET
    ⬇
    INSTALLATION GUIDE
    ⬇
    IES FILES
    ⬇
    REVIT FILES
    ⬇
